Toyota RAV4 车内装饰板 — Figure 6451

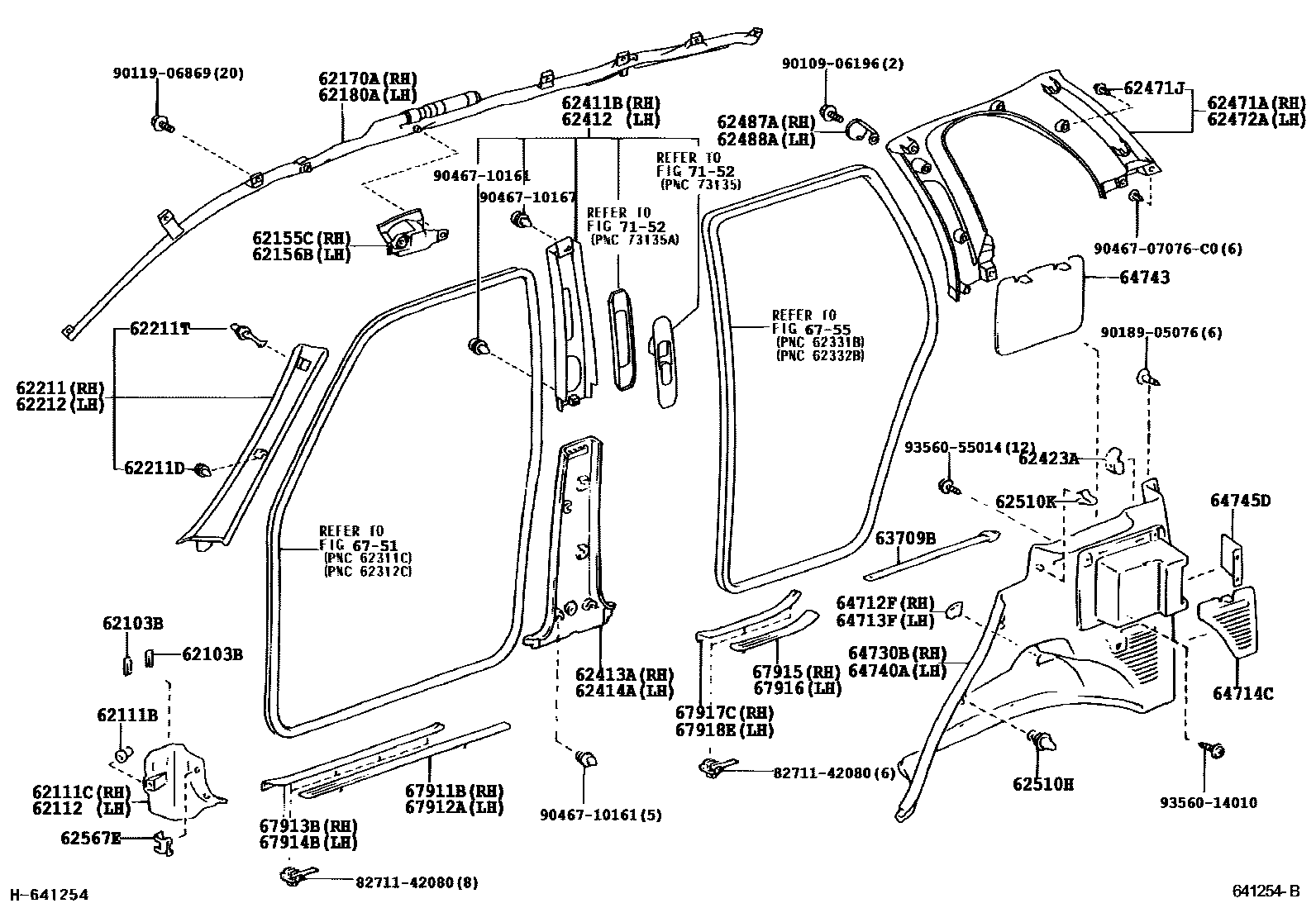

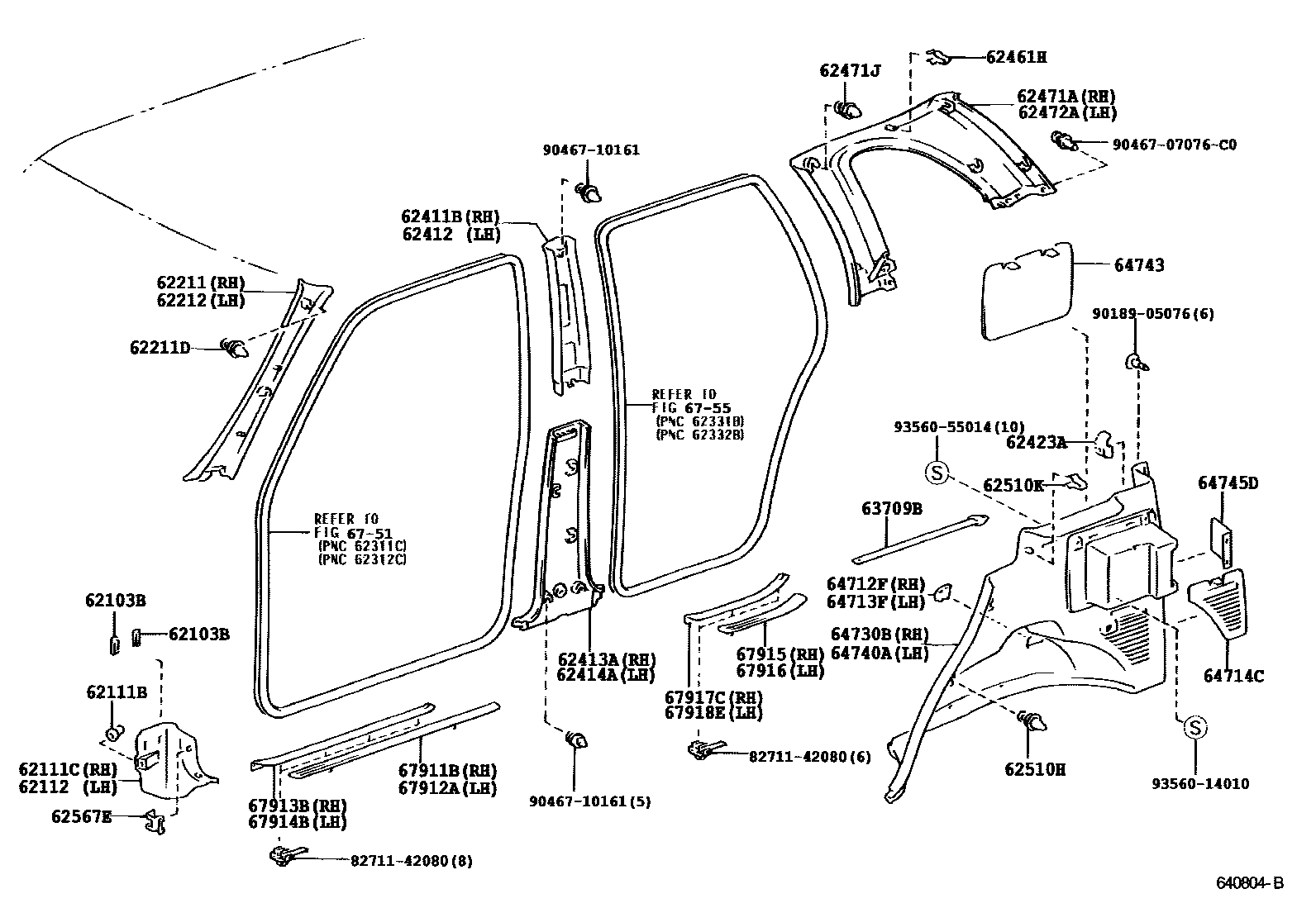

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06094 |
| 62155C | Right curtain airbag bracket | 62155-42010 |
| 62156B | Left curtain airbag bracket | 62156-42010 |
| 62170A | Right curtain air bag assembly | 62170-42010 |
| 62180A | Left curtain air bag assembly | 62180-42010 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 |
| 62211T | Clip (for front pillar decorative panel) | 90950-08004 |
| 62461H | Clips (for roof side interior panels) | 90468-05077 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 |
| 62510H | Clip (for front side panel) | 90467-10161 |
| 62510K | Clip (for front side panel) | 90468-05077 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-21010 |
| 63709B | In-car luggage rack strap sub-assembly | 63709-42030 |
| 64745D | Right rear combination light access hole cover | 64745-42010 |
| 67911B | Right front door outer wear plate | 67911-42010 |
| 67912A | Left front door outer wear plate | 67911-42010 |
| 67915 | Right rear door outer wear plate | 67915-42010 |
| 67916 | Left rear door outer wear plate | 67916-42010 |
