Toyota RAV4 后地板和后地板梁 — Figure 5852

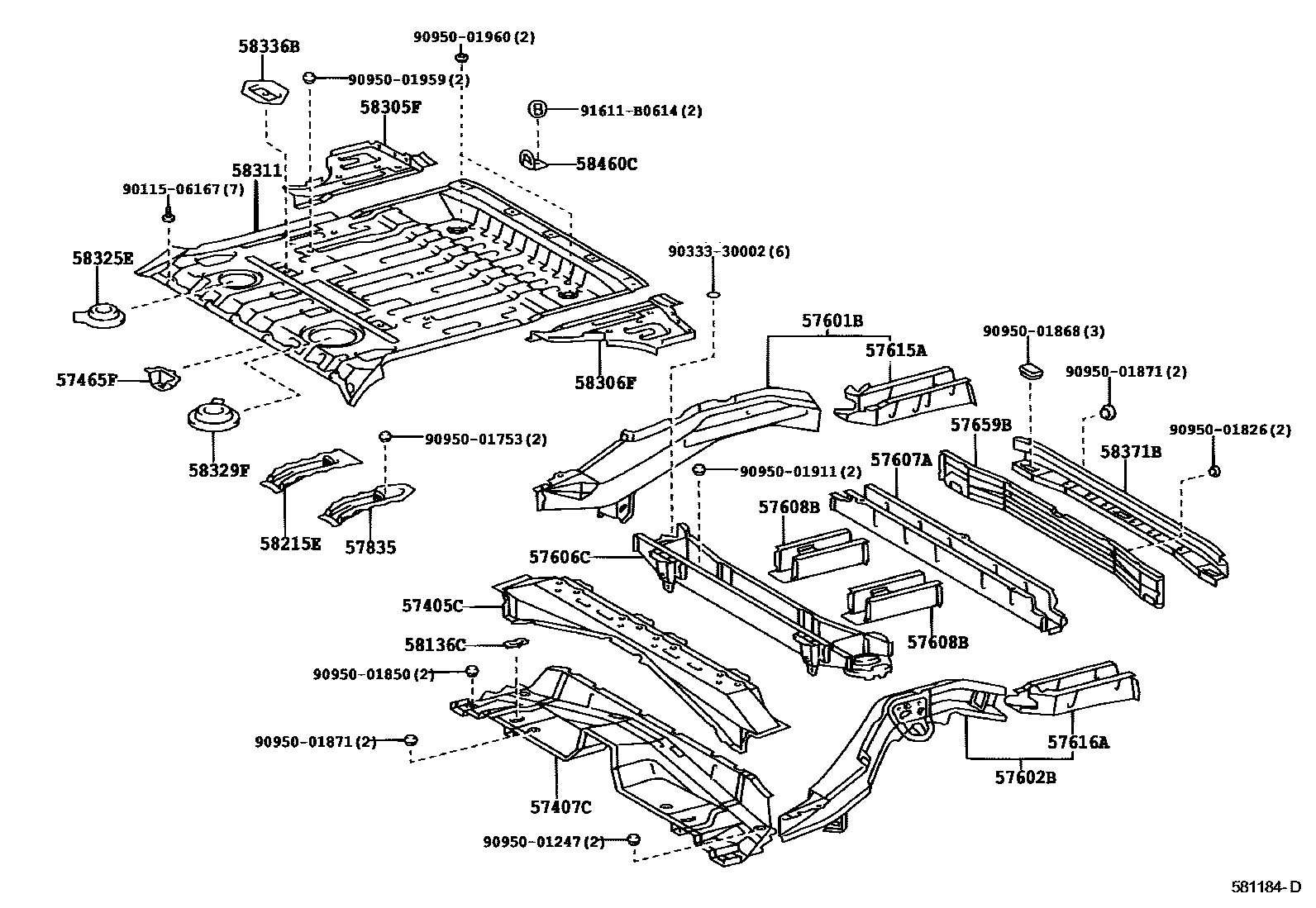

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57405C | Center floor rear cross member sub-assembly | 57405-42020 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-42010 |
| 57465F | Center floor beam gusset | 57465-42020 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-42090 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-42090 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-42070 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-42050 |
| 57608B | Rear floor No. 4 cross member sub-assembly | 57608-42020 |
| 57615A | Rear floor right rear longitudinal member | 57615-42903 |
| 57616A | Rear floor left rear longitudinal member | 57616-42903 |
| 57659B | Rear floor inner rear cross member | 57659-42030 |
| 57835 | No. 1 rear seat support No. 1 rear reinforcement | 57835-42010 |
| 58136C | Rear floor hole cover | 58136-51010 |
| 58215E | Rear right seat mounting bracket | 58215-42030 |
| 58305F | Rear floor right side panel sub-assembly | 58305-42020 |
| 58306F | Rear floor left side panel sub-assembly | 58306-42040 |
| 58311 | rear floor pan | 58311-42900 · 58311-42902 |
| 58325E | Rear floor access hole cover | 58325-42030 |
| 58329F | Rear floor manhole cover No. 2 | 58329-42030 |
| 58336B | Rear floor pan reinforcement | 58336-42040 |
| 58371B | Body outer lower back panel | 58371-42030 |
| 58460C | Luggage fixing belt lock assembly | 58460-35012 |
