Toyota RAV4 仪表板和手套箱 — Figure 5551

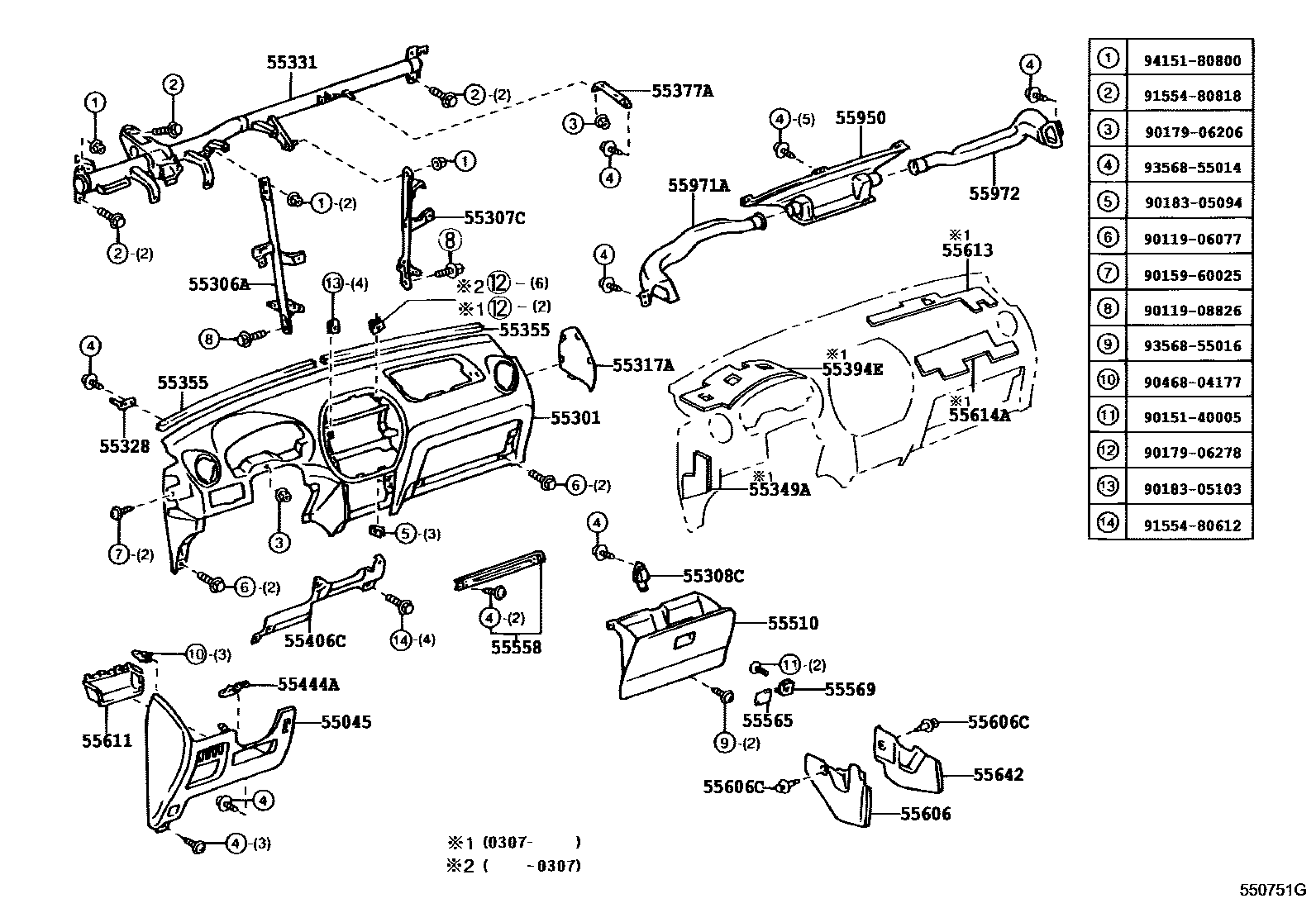

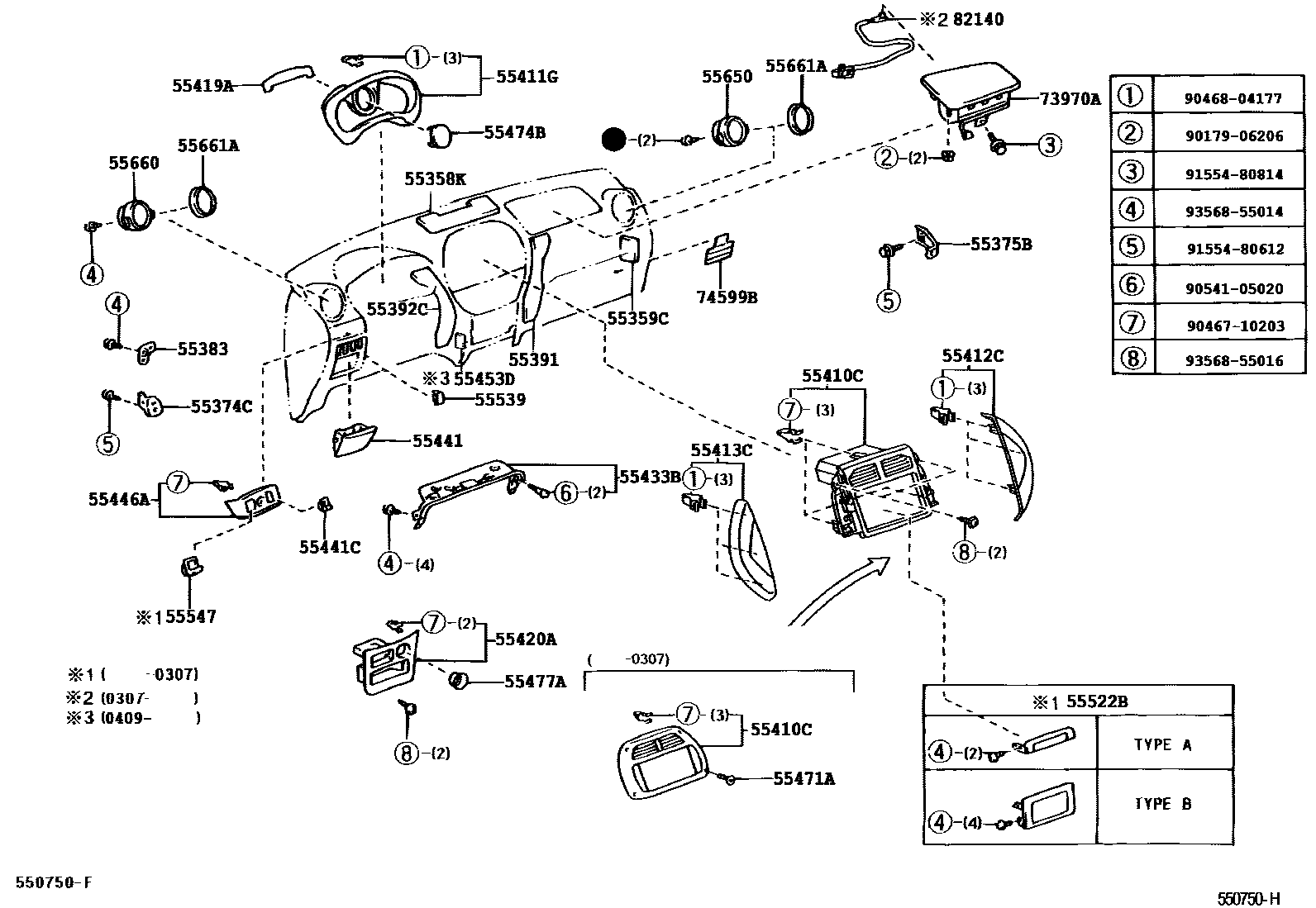

Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42070 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-42060 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-42050 |
| 55328 | Instrument panel pin 1 | 55328-22040 · 55328-51020 |
| 55331 | Dashboard reinforcement | 55330-42140 · 55330-42150 · 55330-42190 · 55330-42200 |
| 55349A | Dashboard cushion | 55349-42020 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-42010 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-42020 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-42010 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55374-42040 |
| 55375B | No. 2 lower instrument panel mounting bracket | 55375-42040 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-42010 |
| 55383 | No. 3 decorative panel mounting bracket | 55383-42010 |
| 55391 | Dashboard No. 1 lower cushion | 55391-42010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-42010 |
| 55394E | Dashboard No. 4 lower cushion | 55394-42020 |
| 55406C | Instrument panel lower left insert sub-assembly | 55406-42030 |
| 55410C | Instrument cluster decorative panel assembly | 55410-42080 · 55410-42100 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-42030 · 55411-42040 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-42050 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-42060 |
| 55419A | Instrument cluster decorative panel cushion | 55419-42020 |
| 55444A | Dashboard storage box spring | 55444-33030 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-42010 |
| 55471A | Instrument cluster decorative panel trim parts | 55471-42010 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-42010 · 55474-42020 |
| 55477A | Cigarette lighter hole frame | 55477-32050 |
| 55522B | Radio tuner opening cover | 55522-42010 · 55522-52020 |
| 55558 | Glove box cover reinforcement | 55558-42020 |
| 55613 | Instrument panel base no. 2 muffler pad | 55613-42020 |
| 55614A | Instrument panel base No. 3 muffler pad | 55614-42020 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-42030 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-42030 |
| 55661A | Dashboard air register bezel | 55661-42010 · 55661-42020 |
| 55950 | Defroster nozzle assembly | 55950-42020 |
| 55971A | Side defroster No. 1 nozzle air duct | 55971-42020 |
| 55972 | Side defroster No. 2 nozzle air duct | 55972-42020 |
| 74599B | Driver and passenger air bag information labels | 74599-50010 |
| 82140 | Instrument panel wiring harness assembly | 82142-42030 |
