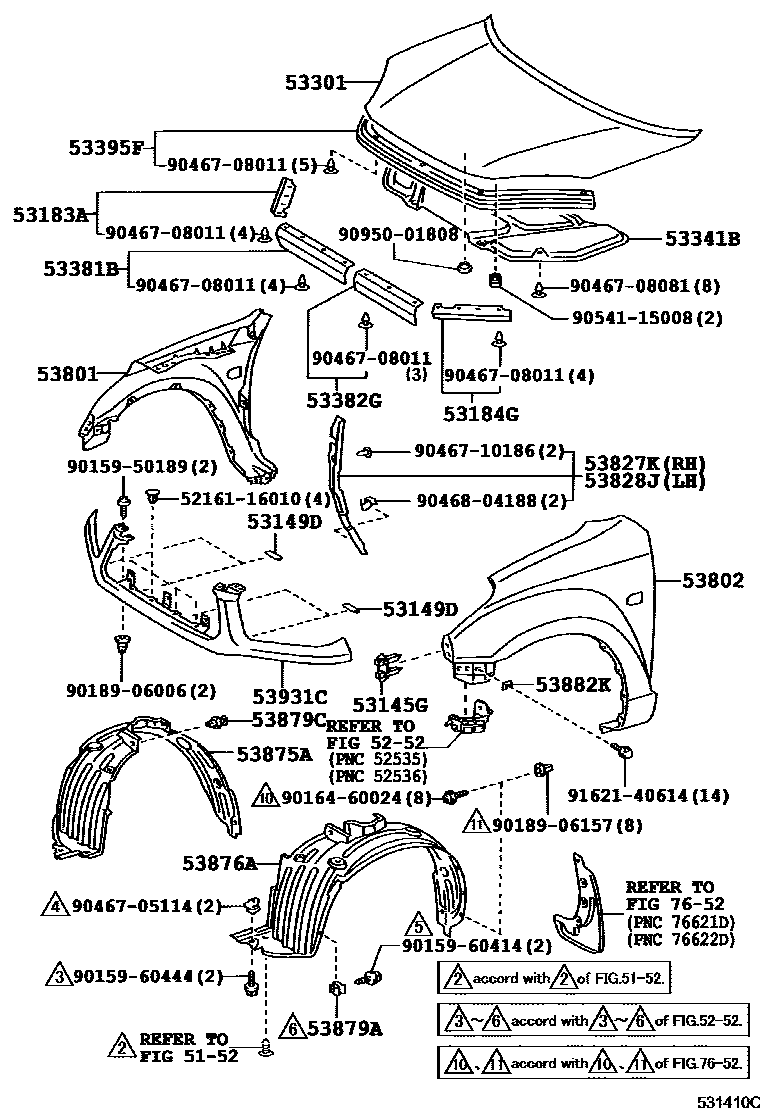

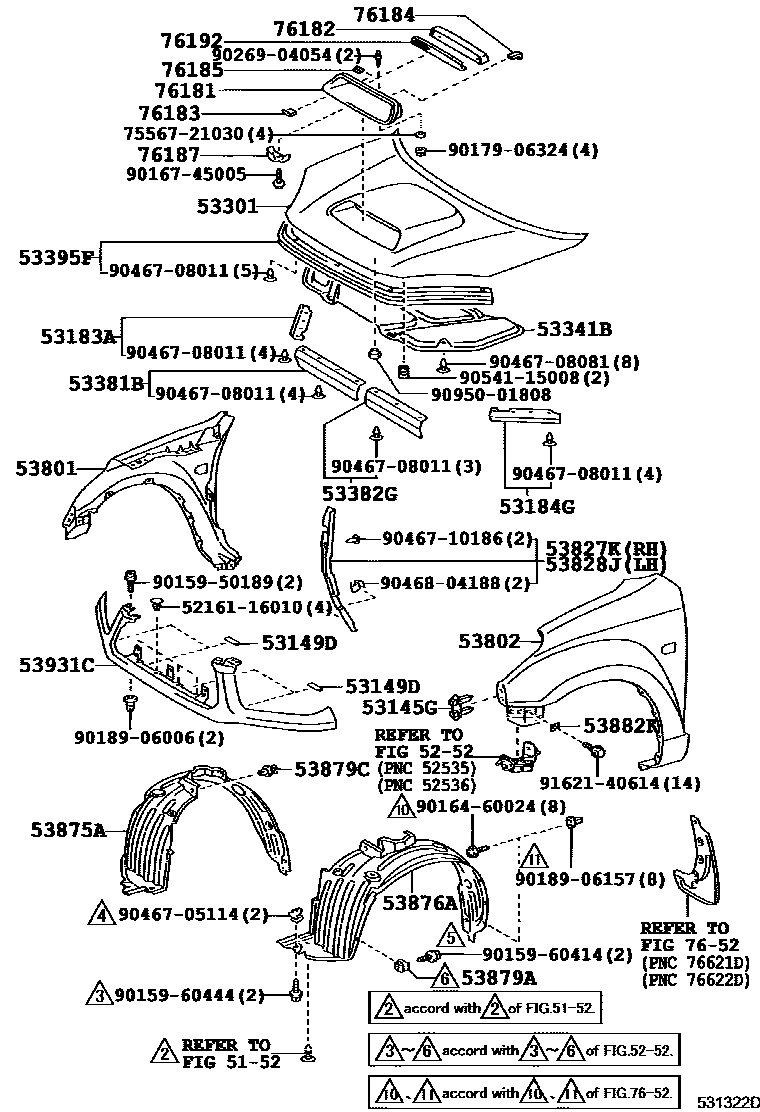

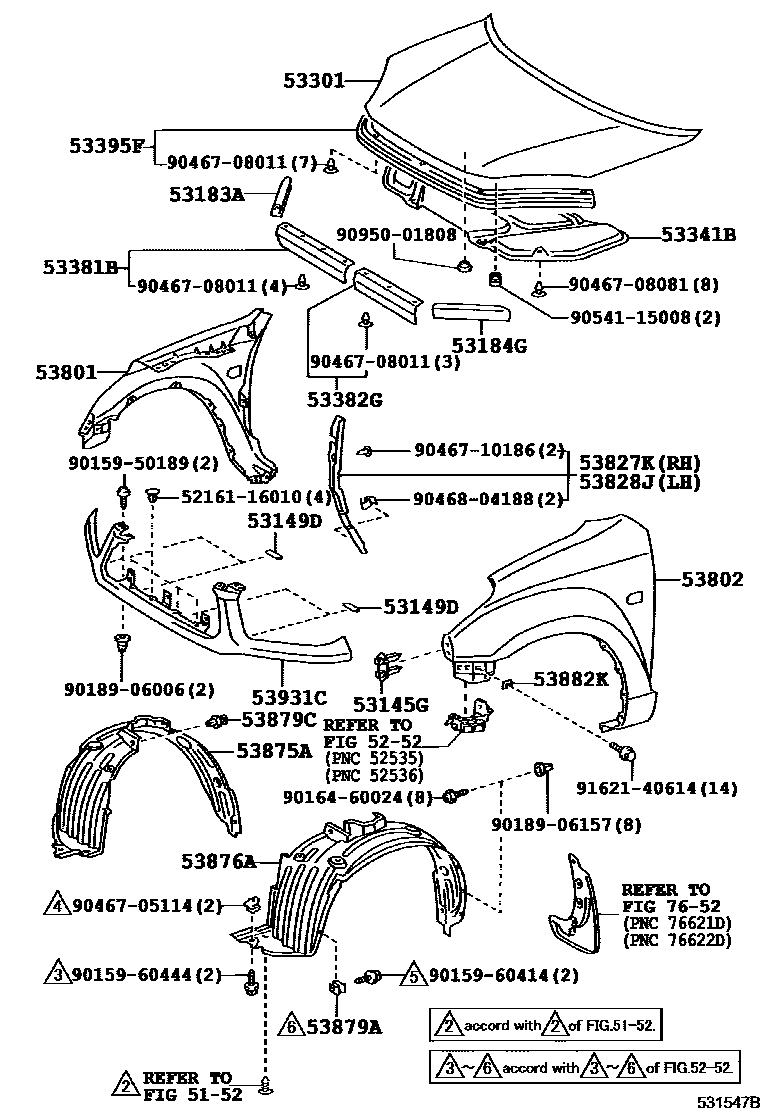

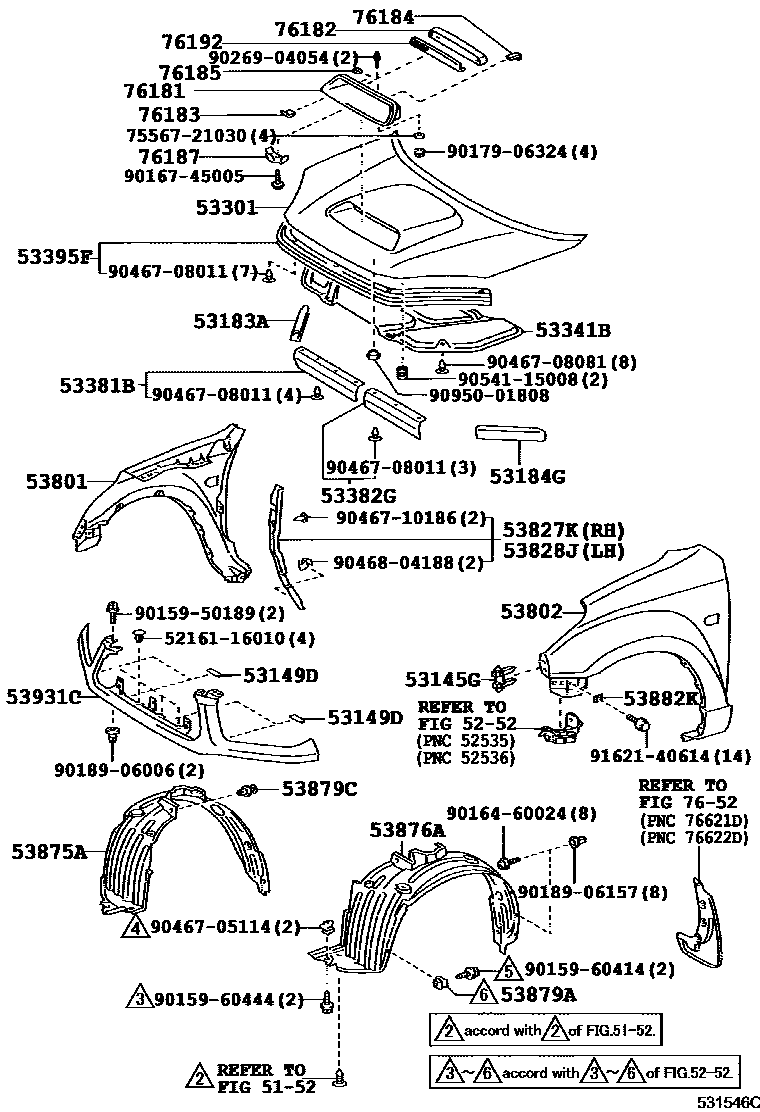

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53145G | Radiator grille clip | 53145-42010 |
| 53149D | Radiator grille No. 2 protective cover | 53149-46010 |
| 53183A | Right headlight cover seal | 53183-42010 · 53183-42020 |
| 53184G | Left headlight cover seal | 53184-42010 · 53184-42020 |
| 53301 | Engine cover sub-assembly | 53301-42030 · 53301-42040 · 53301-42050 · 53301-42060 |
| 53341B | engine cover gasket | 53341-42020 · 53341-42021 · 53341-42050 · 53341-42051 |
| 53381B | Right seal (engine cover to radiator bracket) | 53381-42020 |
| 53382G | Seal, left side (engine cover to radiator bracket) | 53382-42010 |
| 53395F | Engine cover to radiator grille seal | 53395-42010 · 53395-42011 |
| 53801 | Right front fender sub-assembly | 53811-42130 · 53811-42140 · 53811-42170 · 53811-42180 |
| 53802 | Left front fender sub-assembly | 53812-42120 · 53812-42130 · 53812-42180 · 53812-42190 |
| 53827K | Right front fender side panel protector | 53827-42030 · 53827-42031 |
| 53828J | Left front fender side panel protector | 53828-42040 · 53828-42041 |
| 53875A | Right front fender lining | 53875-42050 · 53875-42051 |
| 53876A | Left front fender lining | 53876-42050 · 53876-42051 |
| 53879A | Front fender lining fixing parts | 53879-44010 |
| 53879C | Front fender lining fixing parts | 53879-60010 |
| 53882K | front fender seal | 53882-16030 |
| 53931C | front board | 53931-42020 · 53931-42030 |
| 76181 | hood bulge | 76181-35901 |
| 76182 | Engine cover air intake duct | 76182-35020 |
| 76183 | Engine cover bump protector No. 1 | 76183-12030 |
| 76184 | No. 2 engine cover bump protector | 76184-12020 |
| 76185 | No. 3 engine cover bulge protection device | 76185-35010 |
| 76187 | No. 1 engine cover air intake duct fixing part | 76187-35010 |
| 76192 | Engine cover raised plate | 76192-35010 |
