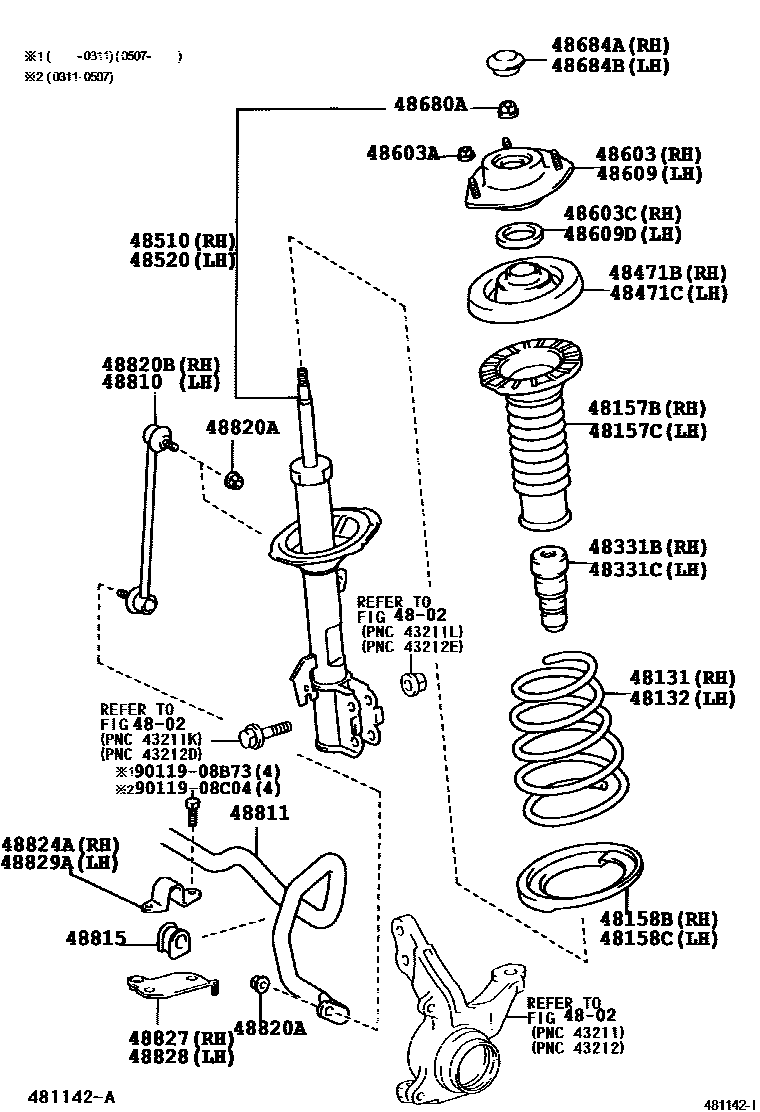

Toyota RAV4 Front Spring & Shock Absorber — Figure 4803
Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-42400 · 48131-42410 · 48131-42420 · 48131-42430 · 48131-42440 · 48131-42450 · 48131-42460 |
| 48132 | Left front coil spring | 48131-42400 · 48131-42410 · 48131-42420 · 48131-42430 · 48131-42440 · 48131-42450 · 48131-42460 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-42010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-42010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-32030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-32030 |
| 48331B | Right front spring buffer block | 48331-42020 |
| 48331C | Left front spring buffer block | 48331-42020 |
| 48471B | Front coil spring upper right seat | 48044-32030 |
| 48471C | Front coil spring upper left seat | 48044-32030 |
| 48510 | Right front shock absorber assembly | 48510-49215 · 48510-49535 |
| 48520 | Left front shock absorber assembly | 48520-49325 · 48520-49615 |
| 48603 | Right front suspension bearing sub-assembly | 48609-42011 · 48609-42012 |
| 48603A | Nut (for front suspension mount) | 90178-10008 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48609 | Left front suspension bearing sub-assembly | 48609-42011 · 48609-42012 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48680A | Nut (for front mount to front shock absorber) | 94184-61401 |
| 48684A | Right front suspension support dust cover | 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-32010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42020 |
| 48811 | front stabilizer bar | 48811-42050 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-42060 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48820B | Right front stabilizer bar link assembly | 48820-42020 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-28190 |
| 48827 | Right front stabilizer bar bracket No. 2 | 48827-42010 |
| 48828 | Left front stabilizer bar bracket No. 2 | 48828-42010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-28190 |
