Toyota RAV4 Steering Wheel — Figure 4504

Toyota RAV4 EPC diagram 4504, Steering Wheel, with 3 images and 3 PNC and OE references.

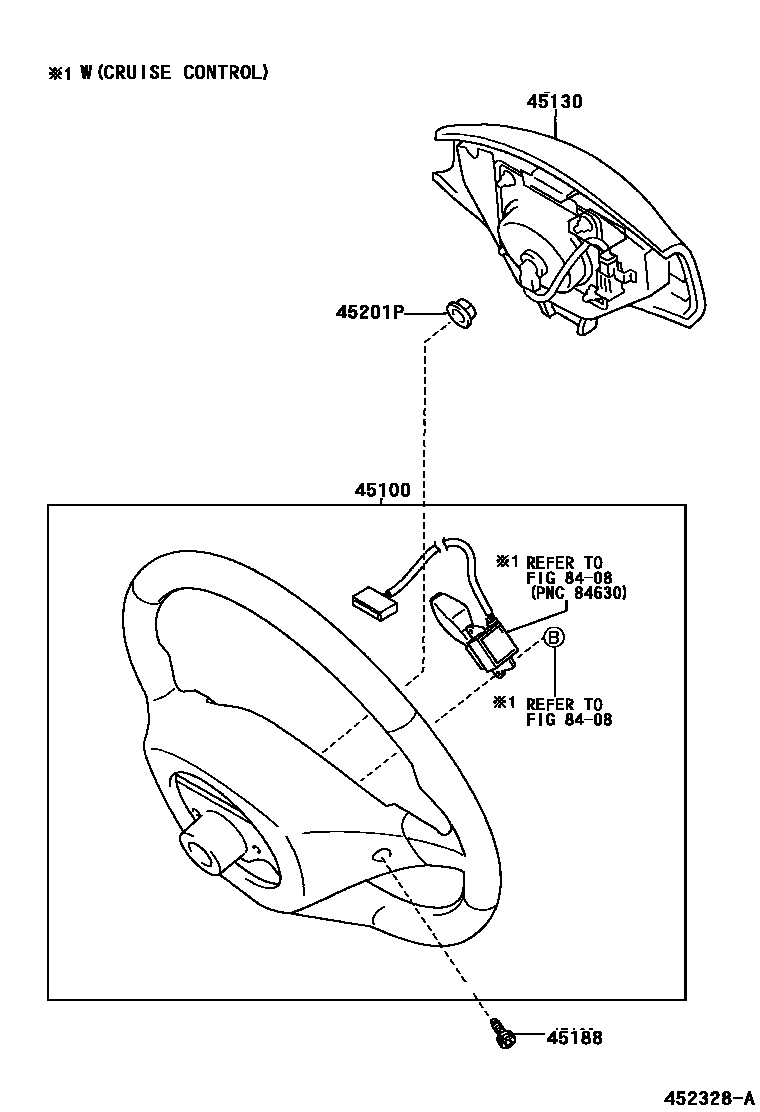

Toyota RAV4 Steering Wheel EPC diagram — 452328A
Steering Wheel — 452328A (200008 – 200307)

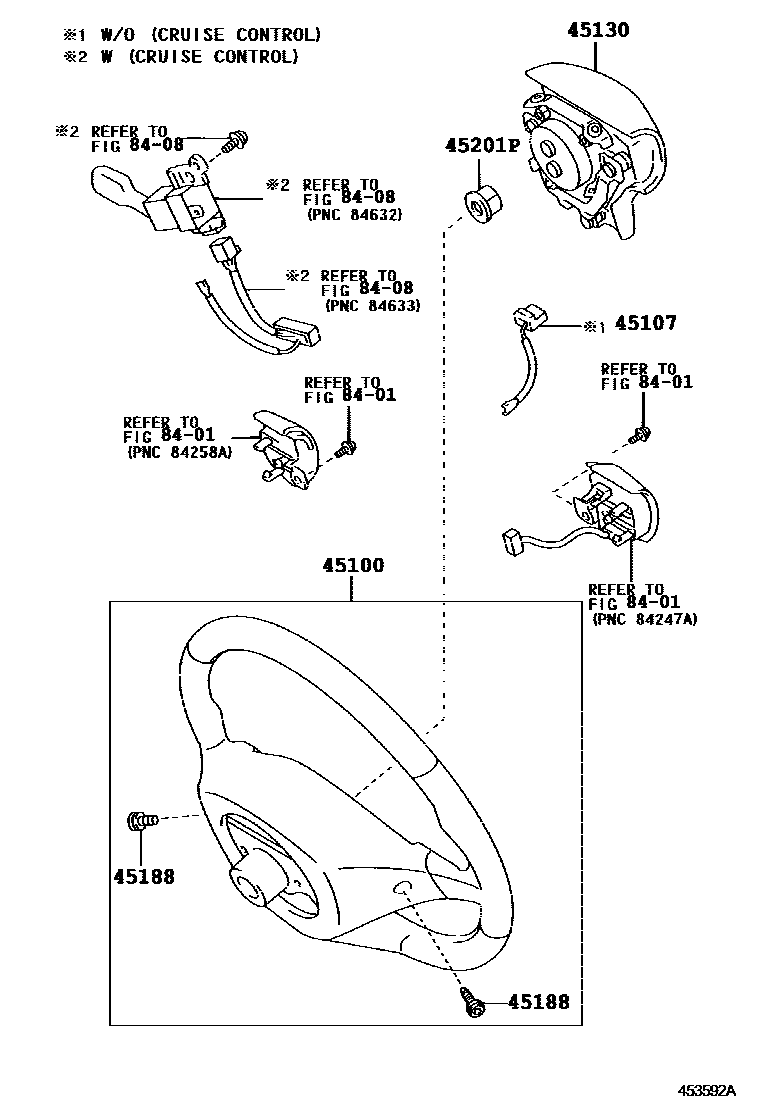

Toyota RAV4 Steering Wheel EPC diagram — 453592A
Steering Wheel — 453592A (200307 – 999999)

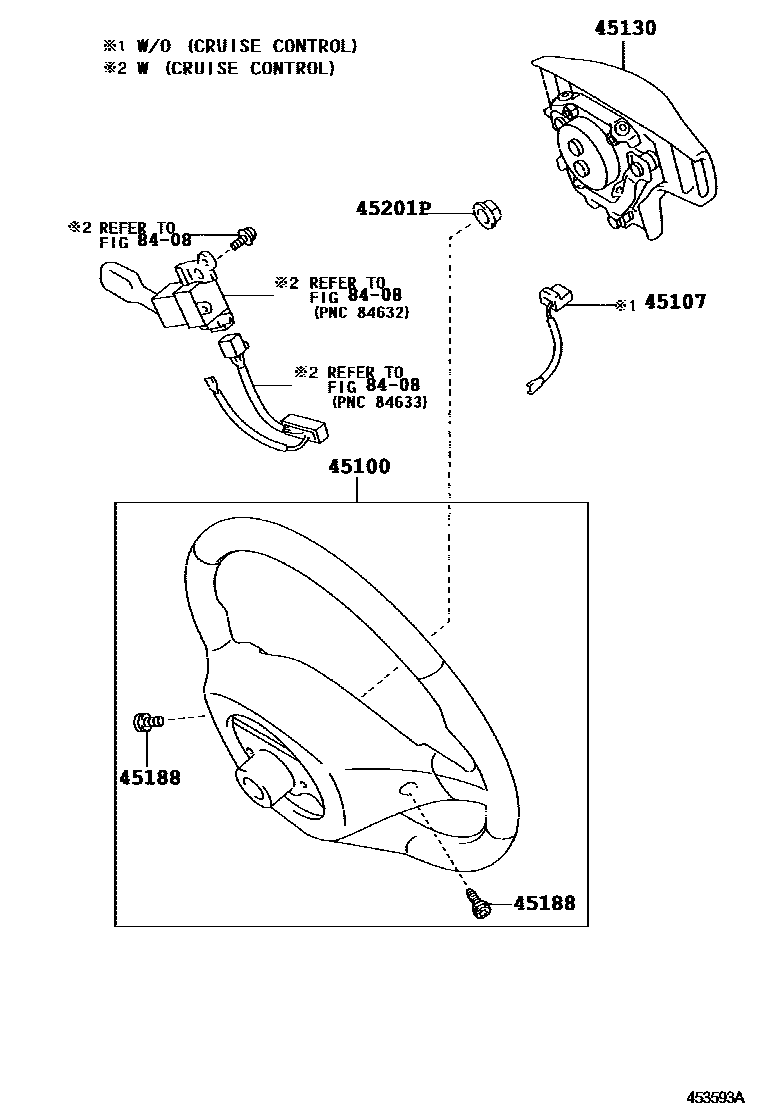

Toyota RAV4 Steering Wheel EPC diagram — 453593A
Steering Wheel — 453593A (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-42020
45188Steering wheel trim cover fixing screws45188-60010 · 90148-60007
45201PSteering wheel fixing nut90179-12071
