Toyota RAV4 叶片泵和储油罐(动力转向) — Figure 4502

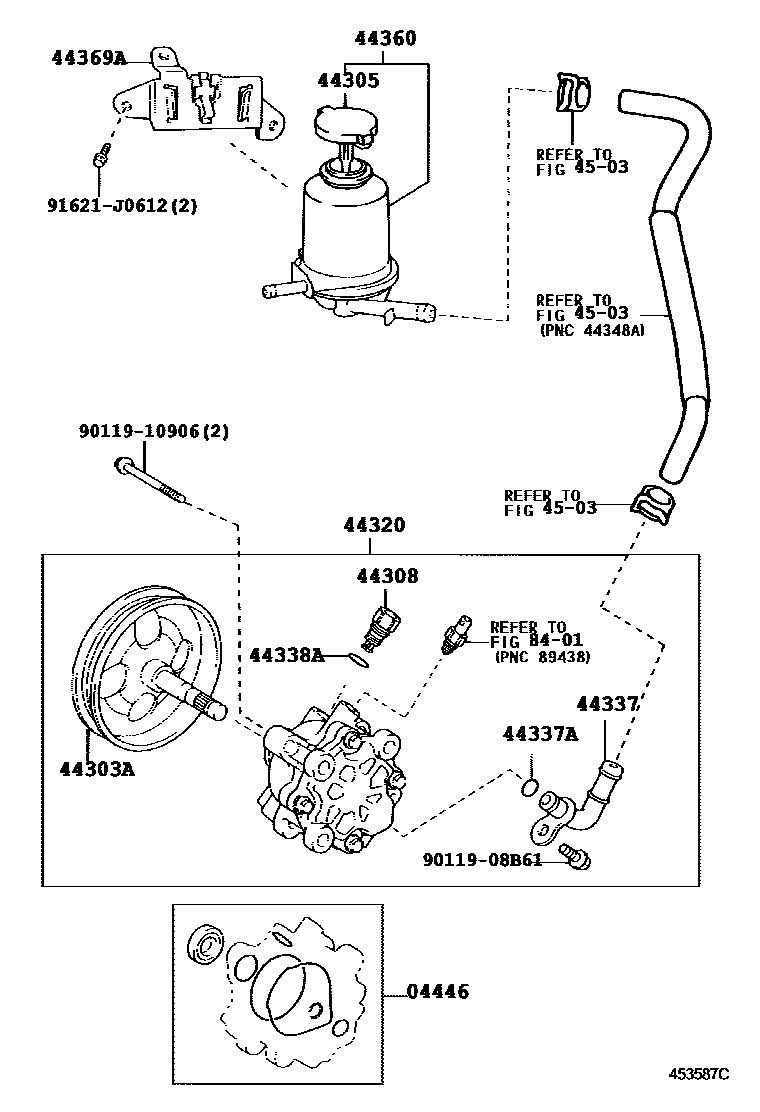

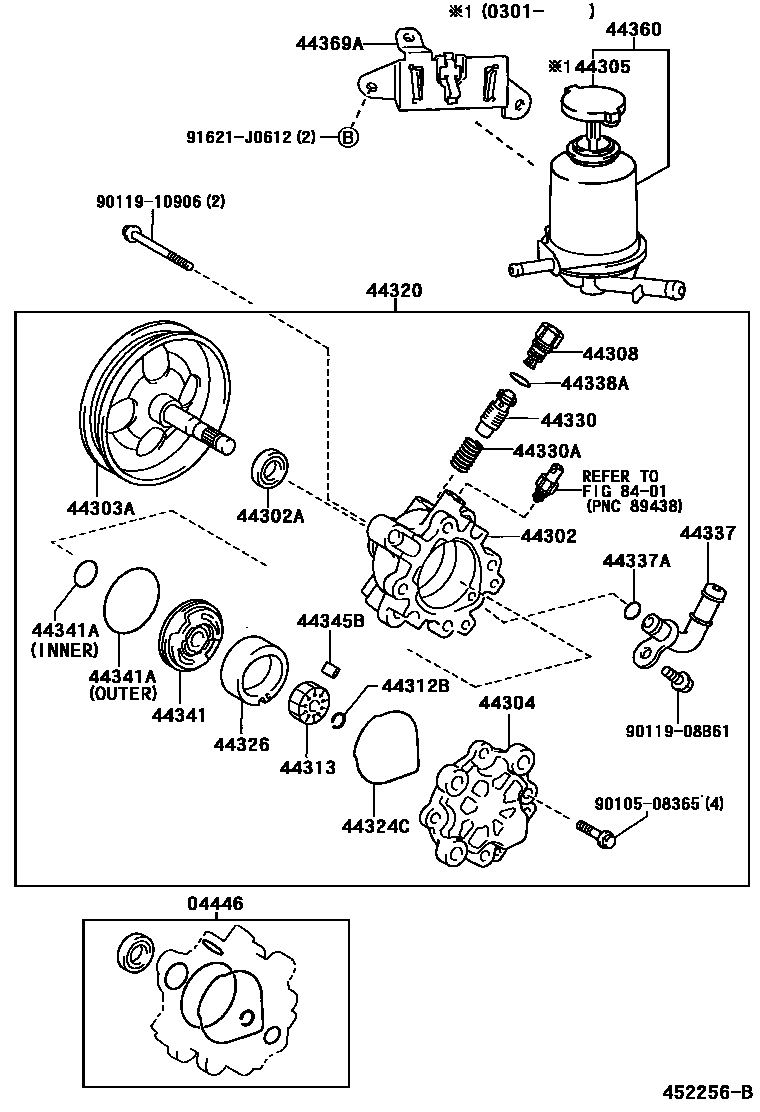

Toyota RAV4 EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-32050 |
| 44302 | Front vane pump housing sub-assembly | 44302-32100 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90311-15012 |
| 44303A | Shaft sub-assembly with pulley | 44303-28010 |
| 44304 | Vane pump rear housing sub-assembly | 44304-32041 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28030 |
| 44308 | Pressure hole connector sub-assembly | 44308-42010 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-32060 · 44313-32070 · 44313-32080 · 44313-32090 · 44313-32100 |
| 44320 | Vane pump assembly | 44310-42070 |
| 44324C | O-ring (for pump rear housing) | 90903-01007 |
| 44326 | Cam ring (for vane pumps) | 44325-32340 · 44325-32350 · 44325-32360 · 44325-32370 · 44325-32380 |
| 44330 | Flow control valve assembly | 44330-20580 · 44330-20590 · 44330-20600 · 44330-20610 · 44330-20620 · 44330-20630 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-13069 |
| 44337 | Power steering suction port connector | 44337-42010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11020 |
| 44338A | O-ring (for pressure port connector) | 90301-18009 |
| 44341 | Vane pump front cover | 44341-32031 |
| 44341A | O-ring (for vane pump front cover) | 90301-16012 · 90301-45003 |
| 44345B | vane pump disc | 44345-32100 · 44345-32110 · 44345-32120 · 44345-32130 · 44345-32140 |
| 44360 | Vane pump oil storage tank assembly | 44360-42030 |
| 44369A | No. 1 oil storage tank bracket | 44390-42040 |
