Toyota RAV4 后桥半轴和后桥轮毂 — Figure 4102

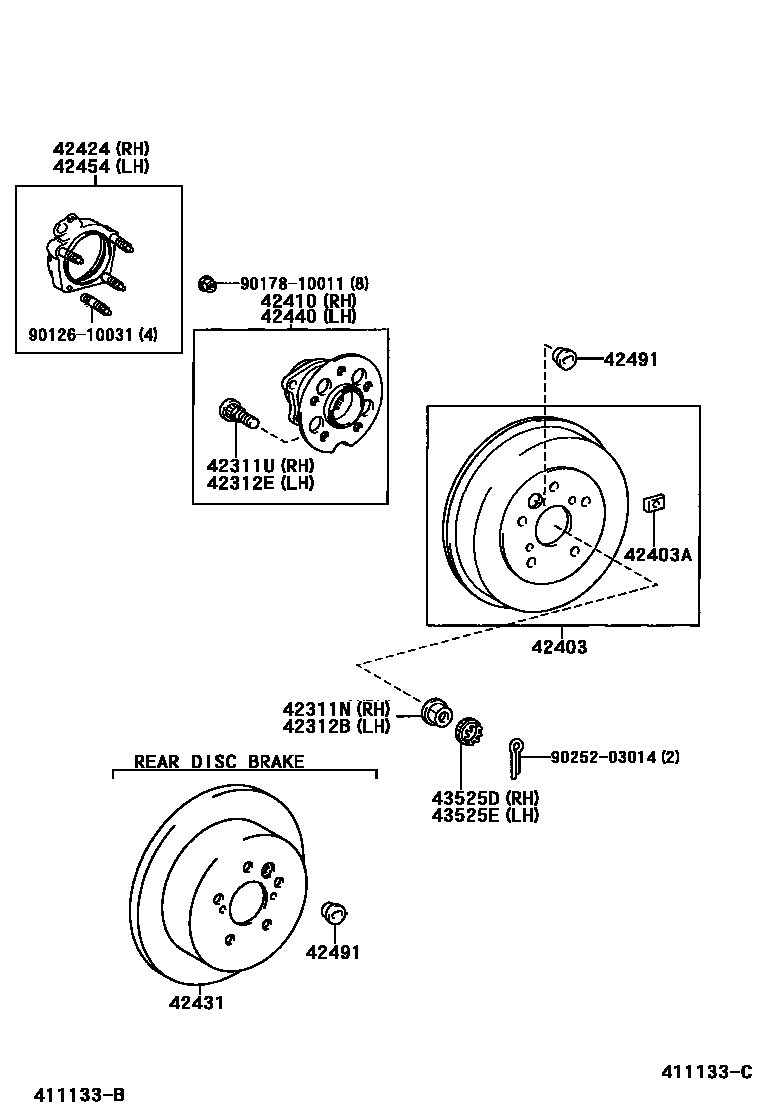

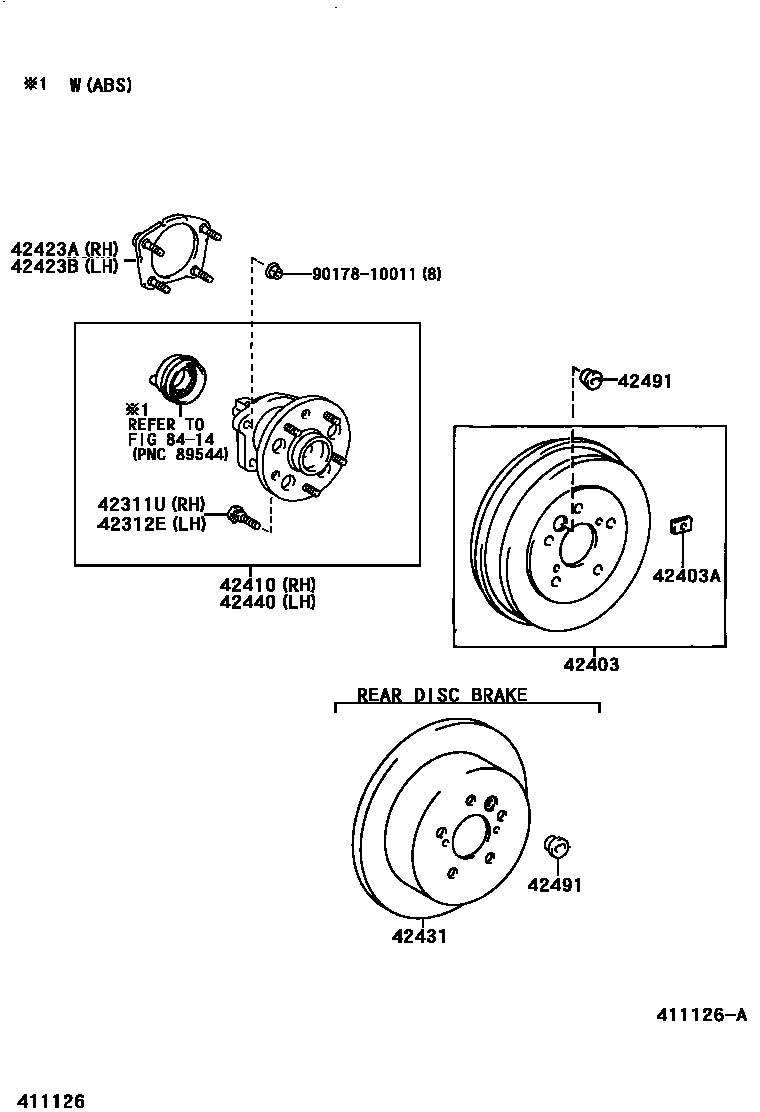

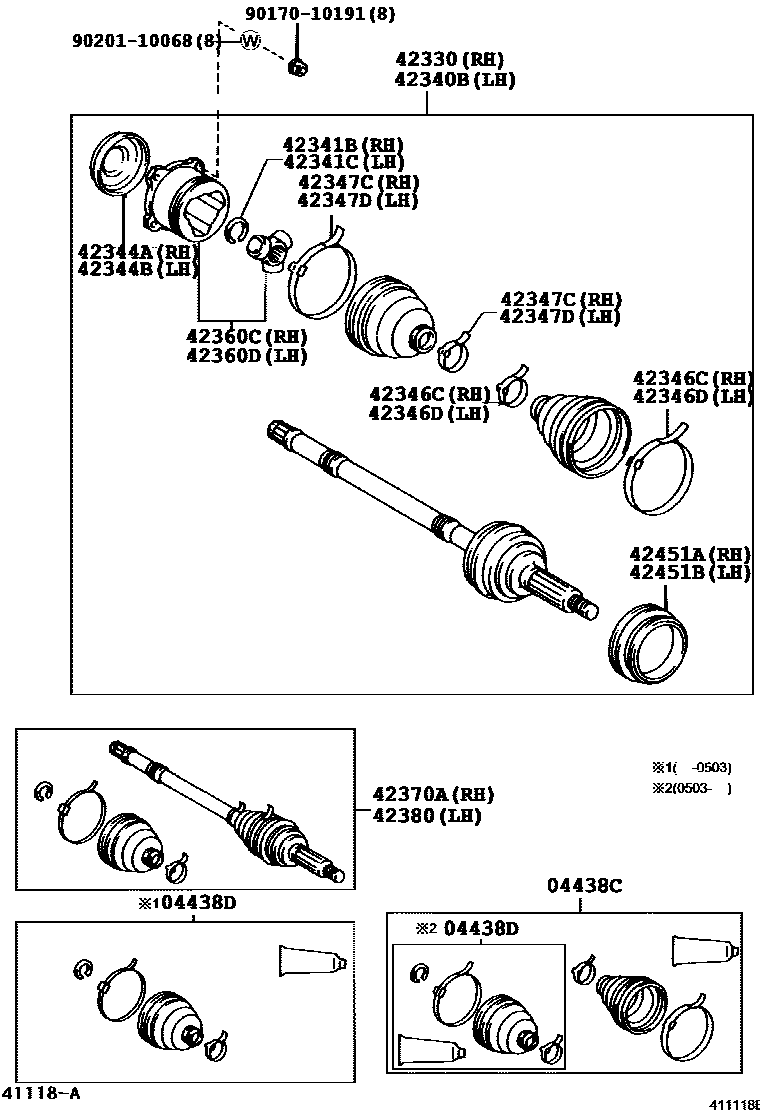

Toyota RAV4 EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438C | Rear drive shaft dust boot assembly | 04429-42020 · 04438-42020 |
| 04438D | Rear drive shaft inner universal joint dust boot assembly | 04438-42010 · 04439-42020 |
| 42311N | Nut (for rear axle right half shaft) | 90178-22001 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312B | Nut (for rear axle left half shaft) | 90178-22001 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42330 | Rear axle right drive shaft assembly | 42330-42030 · 42330-42031 · 42330-42040 · 42330-42041 |
| 42340B | Rear axle left drive shaft assembly | 42340-12051 · 42340-12052 · 42340-12061 · 42340-12062 |
| 42341B | Snap ring (for rear axle right drive shaft) | 90520-22005 |
| 42341C | Snap ring (for rear axle left drive shaft) | 90520-22005 |
| 42344A | Rear axle inner universal joint right end cover | 42343-14010 |
| 42344B | Rear axle inner universal joint left end cover | 42343-14010 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 90949-01078 · 90949-01080 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 90949-01078 · 90949-01080 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-14010 · 42345-14020 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-14010 · 42345-14020 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42350-42010 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42350-42010 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-49075 · 42370-49085 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42370-49095 · 42370-49105 |
| 42403 | Rear brake drum sub-assembly | 42431-42011 · 42431-42050 |
| 42403A | Balance weight (for rear brake drum) | 90937-01287 · 90937-01288 · 90937-01289 |
| 42410 | Rear axle right hub and bearing assembly | 42410-42020 · 42410-42030 · 42410-42050 · 42450-42020 · 42450-42030 |
| 42423A | Rear axle right bearing inner retainer | 42423-42010 |
| 42423B | Rear axle left bearing inner retainer | 42423-42010 |
| 42424 | Rear axle right bearing outer retainer | 42405-42010 · 42405-42020 |
| 42431 | rear brake disc | 42431-42040 · 42431-42041 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-42020 · 42410-42030 · 42410-42050 · 42450-42020 · 42450-42030 |
| 42451A | No. 1 right rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42451B | No. 1 left rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42454 | Rear axle left bearing outer retainer | 42405-42020 · 42406-42010 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-14010 |
| 43525D | Right rear wheel adjustment lock cover | 42428-42010 |
| 43525E | Left rear wheel adjustment lock cover | 42428-42010 |
