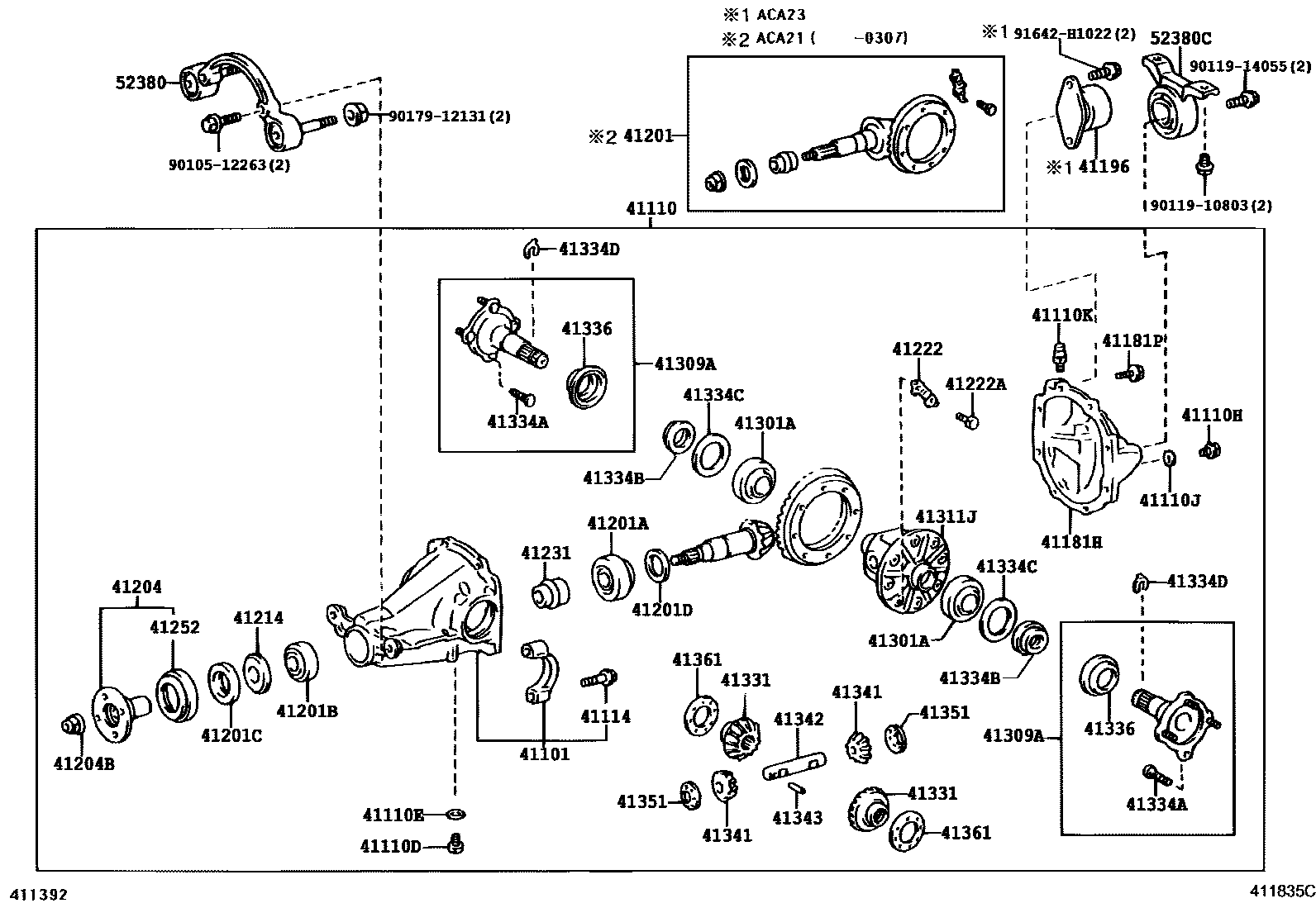

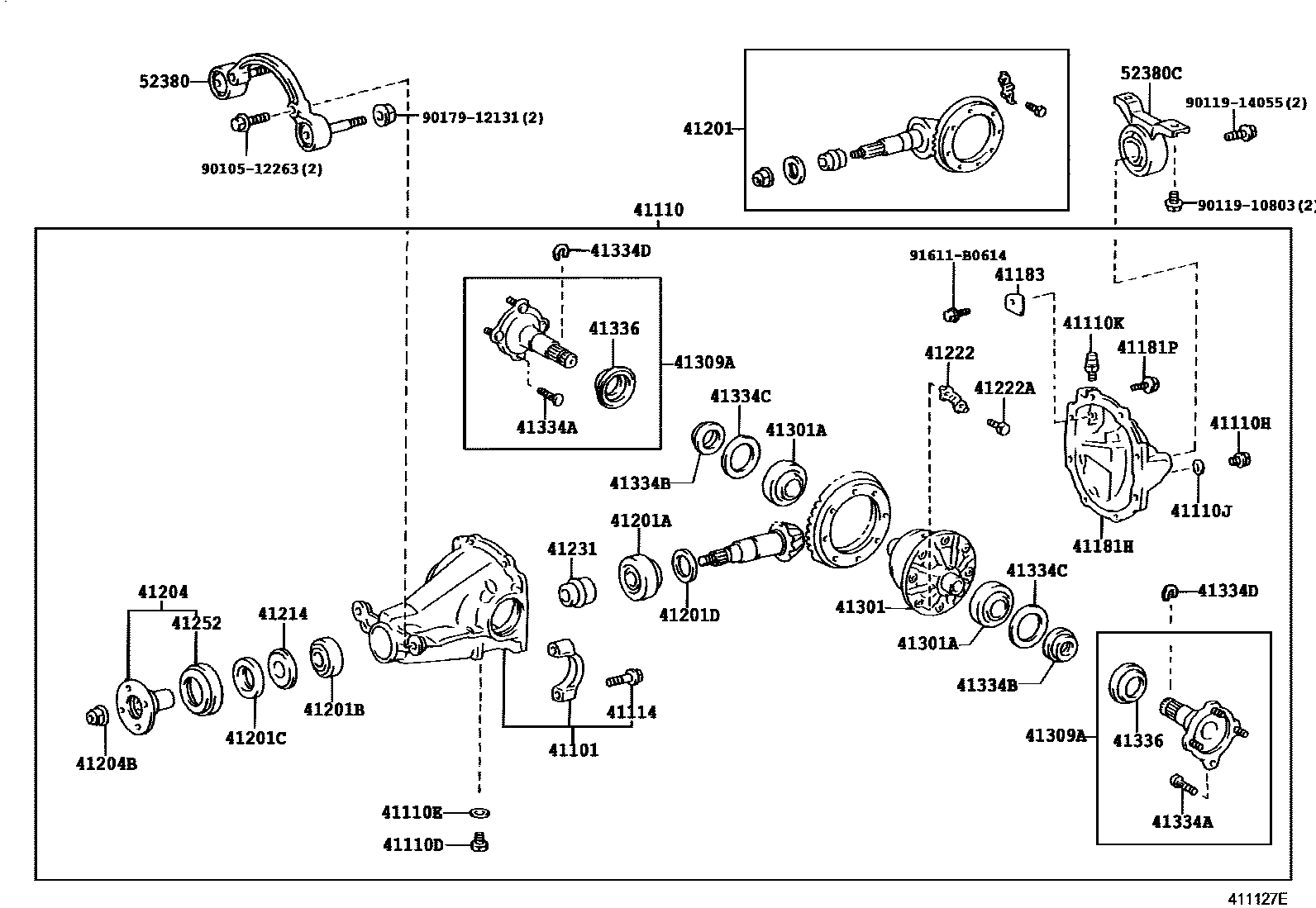

Toyota RAV4 后桥壳和差速器 — Figure 4101
Toyota RAV4 EPC diagram 4101, 后桥壳和差速器, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101 | Rear differential bracket sub-assembly | 41101-42010 |
| 41110 | Rear differential bracket assembly | 41110-42011 · 41110-42031 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18035 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-18032 |
| 41110J | Gasket (for rear differential oil plug) | 12157-10010 |
| 41110K | Breather plug (for rear differential) | 90930-03129 |
| 41114 | Rear differential bearing cap bolts | 90105-12114 |
| 41181H | Rear differential case cover | 41181-42011 · 41181-42020 |
| 41181P | Bolts (for securing rear differential case cover) | 90105-10202 · 90105-10361 |
| 41183 | Rear differential breather plug oil baffle | 41183-42011 |
| 41196 | Rear differential power damper | 41196-42010 |
| 41201 | Rear differential final drive gear assembly | 41201-29746 · 41201-29748 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90368-34049 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90368-30002 |
| 41201C | Oil seal (for rear differential case) | 90311-38068 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35516 · 90201-35517 · 90201-35518 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20040 |
| 41204B | Nut (for rear driving pinion) | 90179-18020 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-20020 · 41214-28010 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-28010 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-22010 |
| 41252 | Dust cover (for rear differential) | 41252-48020 |
| 41301 | Rear differential housing sub-assembly | 41301-48020 |
| 41301A | Bearings (for rear differential housing) | 90368-41001 |
| 41309A | Rear differential side gear shaft sub-assembly | 41309-32020 · 41309-42010 · 41309-42011 |
| 41311J | rear differential case | 41311-14031 |
| 41331 | rear differential side gear | 41331-28010 |
| 41334A | Serrated threaded bolt (for rear differential side gear shaft) | 90114-10028 |
| 41334B | Oil seal (for rear differential side gear shaft) | 90311-35032 |
| 41334C | Flat washer (for rear differential side gear shaft) | 90201-54001 · 90201-54002 · 90201-54003 · 90201-54004 · 90201-54005 · 90201-54006 · 90201-54007 · 90201-54008 · 90201-54009 · 90201-54010 · 90201-54011 · 90201-54012 · 90201-54013 · 90201-54014 · 90201-54015 · 90201-54016 · 90201-54017 · 90201-54018 · 90201-54019 · 90201-54020 · 90201-54021 · 90201-54022 · 90201-54023 · 90201-54024 · 90201-54025 · 90201-54026 · 90201-54027 · 90201-54028 · 90201-54029 · 90201-54030 · 90201-54031 · 90201-54032 · 90201-54033 · 90201-54034 |
| 41334D | Shaft snap ring (for rear differential side gear shaft) | 90520-22012 · 90521-28004 |
| 41336 | Dust cover (for rear differential side gear shaft) | 41336-14010 |
| 41341 | rear differential pinion | 41341-22020 |
| 41342 | Rear differential planetary gear shaft | 41342-22010 |
| 41343 | Rear differential planetary gear pin | 90250-04193 |
| 41351 | Rear differential planetary gear thrust washer | 41351-12030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 |
| 52380 | Rear differential No. 1 bracket | 52380-42071 |
| 52380C | Rear differential No. 2 bracket | 52380-42050 |
