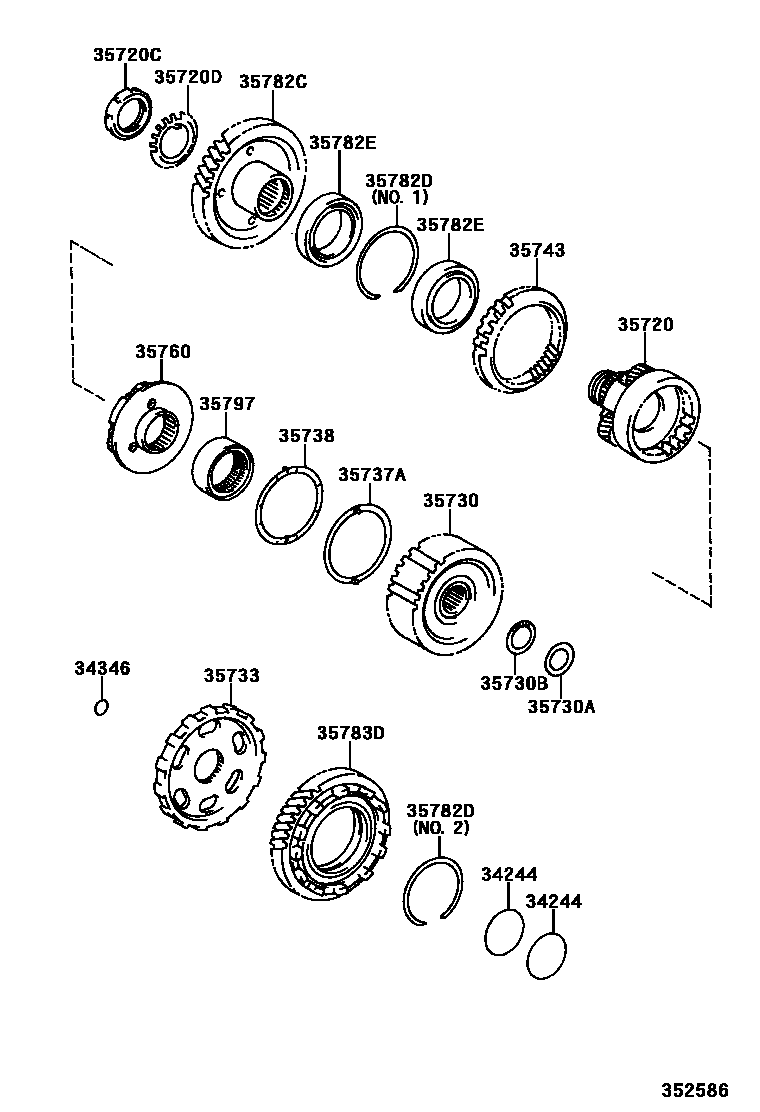

Toyota RAV4 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota RAV4 EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34244 | Low gear clutch drum oil protection ring | 34244-21010 |
| 34346 | Low speed gear output shaft oil protector ring | 34346-28010 |
| 35720 | Front planetary gear assembly | 35720-28040 · 35720-28080 |
| 35720C | Nut (for front planetary gear) | 90179-46001 |
| 35720D | Washer (for front planetary gear) | 90209-46001 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-28010 · 35730-28020 |
| 35730A | Thrust bearing race (for rear planetary gear train sun gear) | 35789-21010 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-33003 |
| 35733 | Parking lock gear | 35733-21010 · 35733-32030 · 35733-32040 · 35733-48010 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-28010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35737-28010 · 35737-28020 |
| 35743 | Front planetary ring gear | 35743-28010 |
| 35760 | Rear planetary gear assembly | 35760-28010 |
| 35782C | countershaft driving gear | 35782-28010 · 35782-28020 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-84001 · 90520-89002 · 90520-89004 |
| 35782E | Bearings (for countershaft drive gear) | 90366-60009 |
| 35783D | countershaft driven gear | 35783-28010 · 35783-28020 |
| 35797 | One-way clutch inner race | 35797-21010 |
