Toyota RAV4 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota RAV4 EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

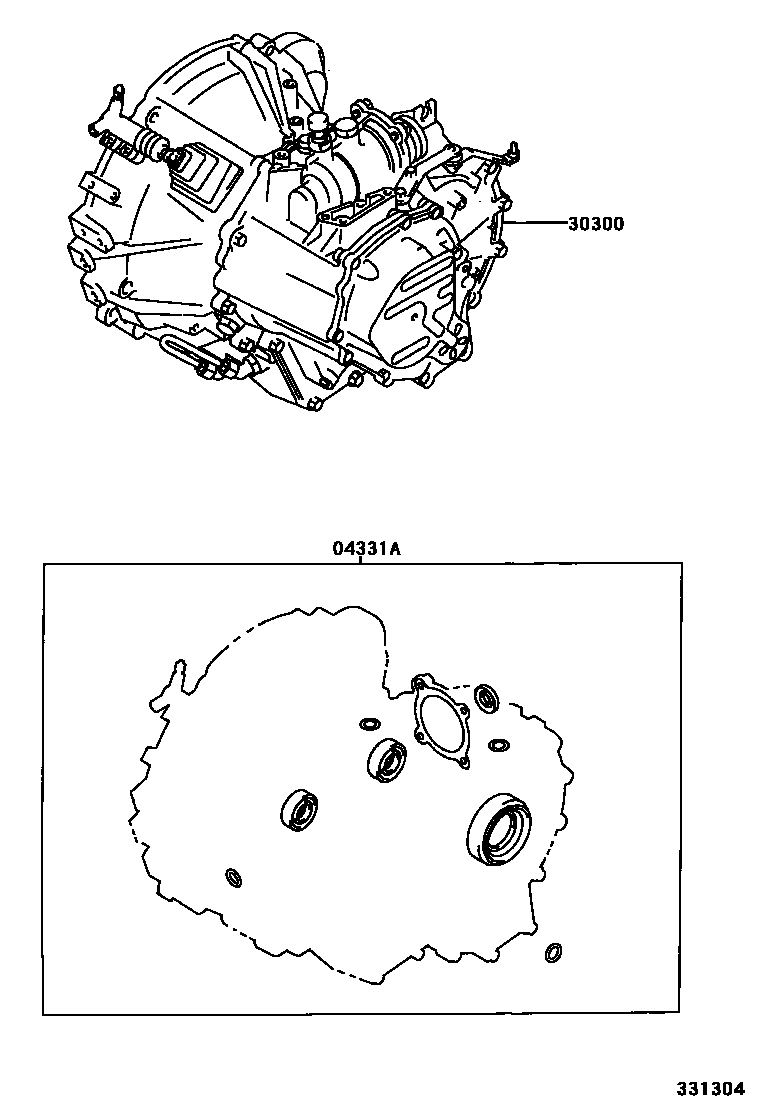

| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-28020 · 04331-42010 · 04331-42020 · 04331-42060 · 04331-42061 · 04331-64010 · 04331-64011 |
| 30300 | Manual transmission axle assembly | 30300-42090 · 30300-42091 · 30300-42100 · 30300-42101 · 30300-42150 · 30300-42151 · 30300-42160 · 30300-42161 |
