Toyota RAV4 离合器踏板和挠性软管 — Figure 3102
Toyota RAV4 EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 24 PNC and OE references.
PNC and OE references

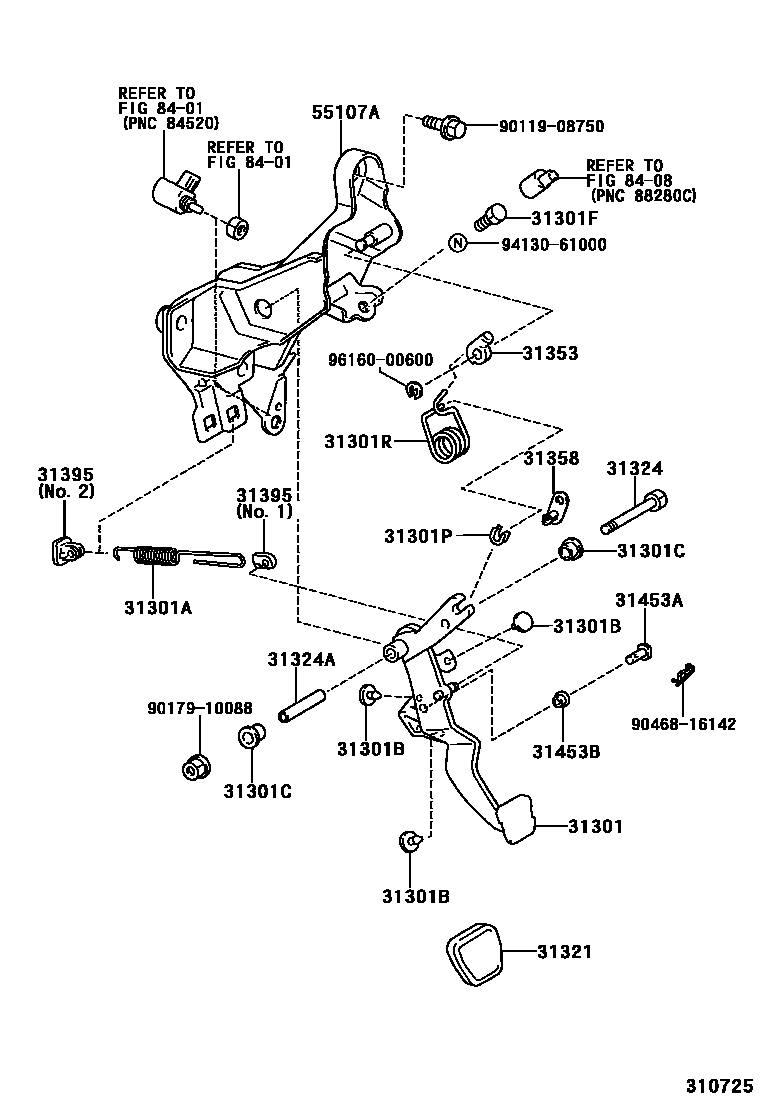

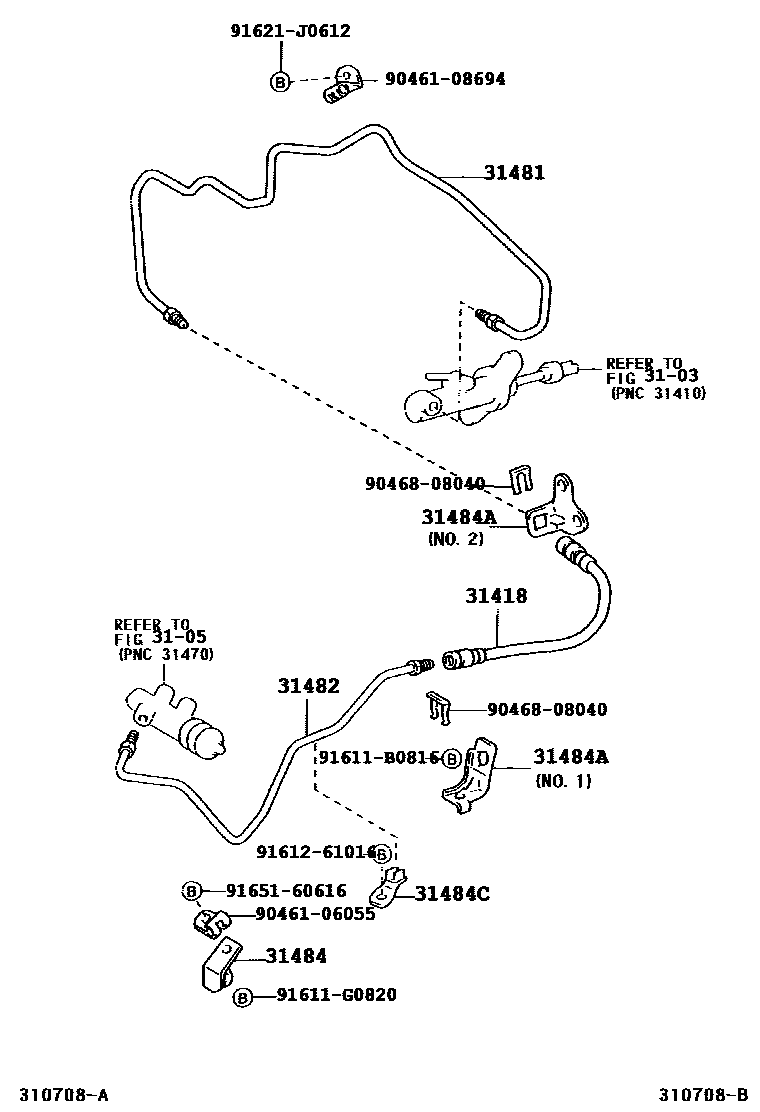

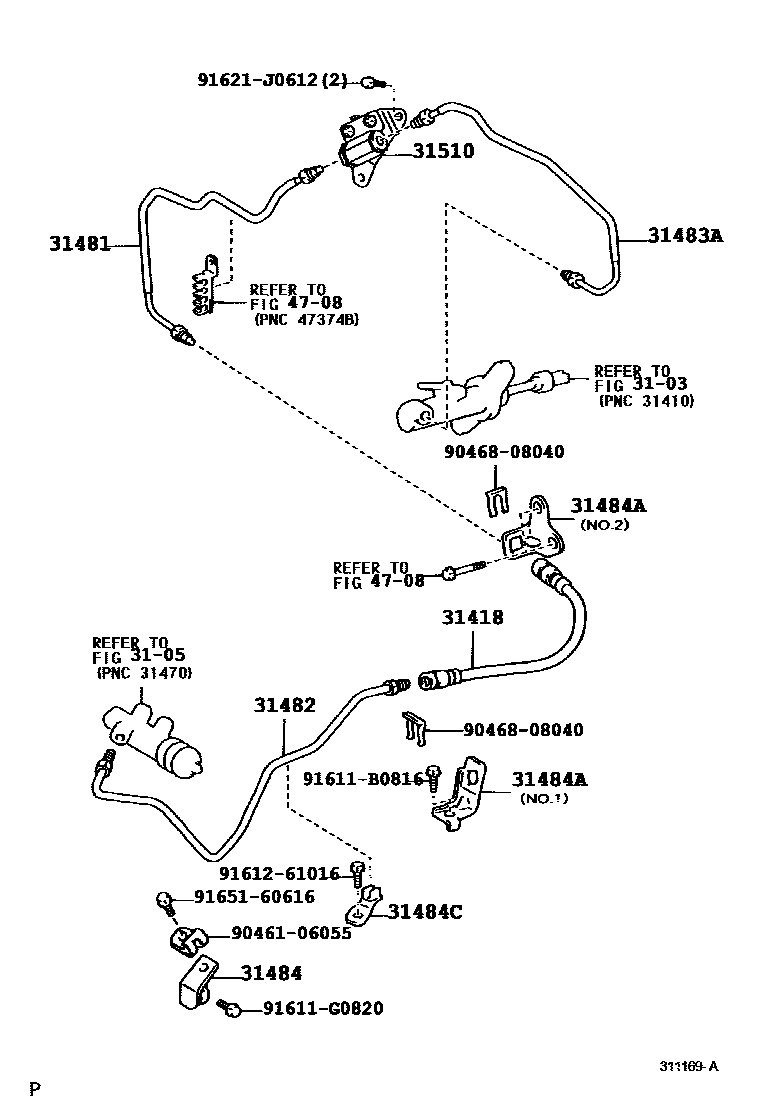

| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-42060 |
| 31301A | Spring (for clutch pedal) | 90905-07033 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301R | Compression spring (for flip spring seat) | 90949-03099 · 90949-03112 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31324 | clutch pedal shaft | 90101-10015 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-14010 |
| 31358 | center spring cover | 31358-42010 |
| 31395 | pedal spring hook | 31395-33010 · 31395-33020 |
| 31418 | clutch hose | 90947-02C56 · 90947-02D01 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08018 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08036 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-42050 · 31481-42090 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-42020 |
| 31483A | Pipe from clutch master cylinder to orifice | 31483-42030 |
| 31484 | Flexible hose bracket (for clutch) | 31484-20320 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-42030 · 31484-42050 |
| 31484C | No. 1 clutch tube bracket | 31484-42020 |
| 31510 | Clutch orifice assembly | 31510-42020 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-42070 |
