Toyota RAV4 起动机 — Figure 1904

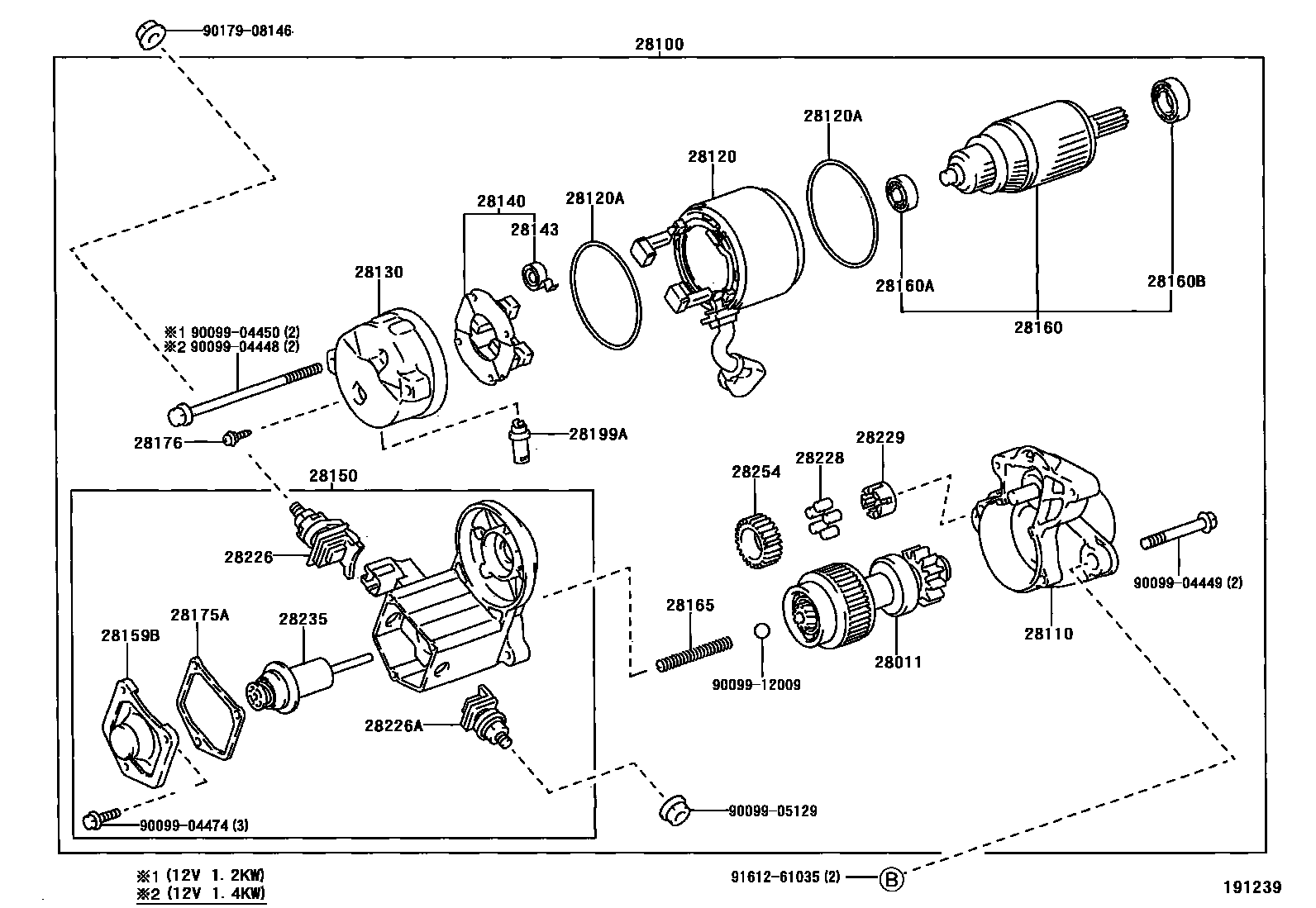

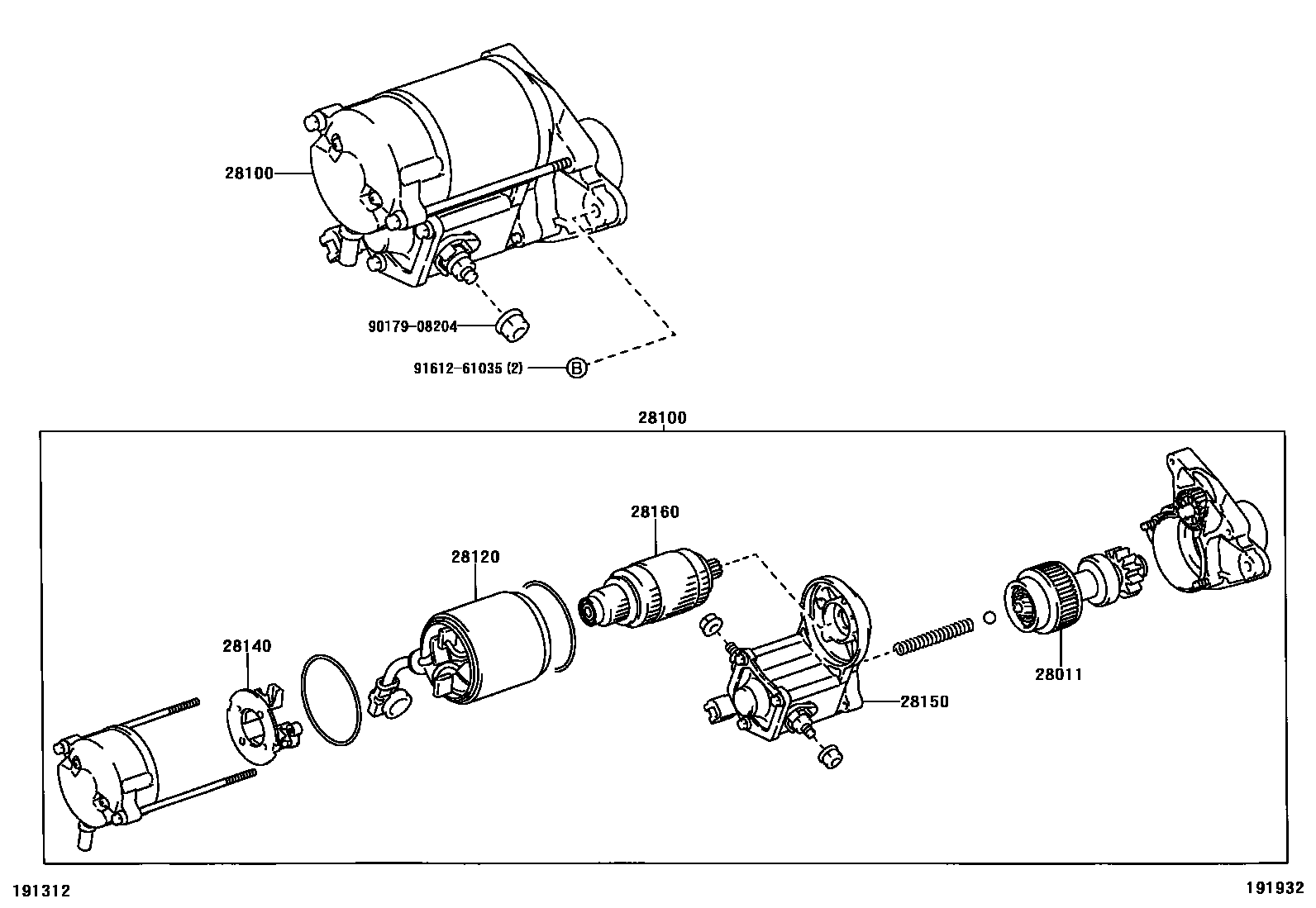

Toyota RAV4 EPC diagram 1904, 起动机, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-74070 |
| 28100 | Starter assembly | 28100-74260 · 28100-74270 |
| 28110 | Starter drive end housing assembly | 28110-74270 |
| 28120 | Starter yoke assembly | 28120-16180 · 28120-66040 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-74260 · 28130-74270 |
| 28140 | Starter brush holder assembly | 28140-74070 · 28140-74120 |
| 28143 | starter brush spring | 28143-76060 · 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-74270 |
| 28159B | Electromagnetic switch cover | 28159-55050 |
| 28160 | Starter armature assembly | 28160-74070 · 28160-76060 |
| 28160A | starter armature bearing | 90099-10196 |
| 28160B | Starter armature bearing No. 2 | 90099-10197 |
| 28165 | Starter solenoid switch return spring | 28165-74070 |
| 28175A | Electromagnetic switch cover gasket | 28175-55050 |
| 28176 | starter screw | 90099-00270 |
| 28199A | Starter dust protection device | 28199-74110 |
| 28226 | battery terminal starter assembly | 28226-55050 |
| 28226A | Motor terminal starter assembly | 28226-74070 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-74130 |
| 28254 | Starter idler pinion | 28254-74070 |
