Toyota RAV4 Engine Oil Cooler — Figure 1503

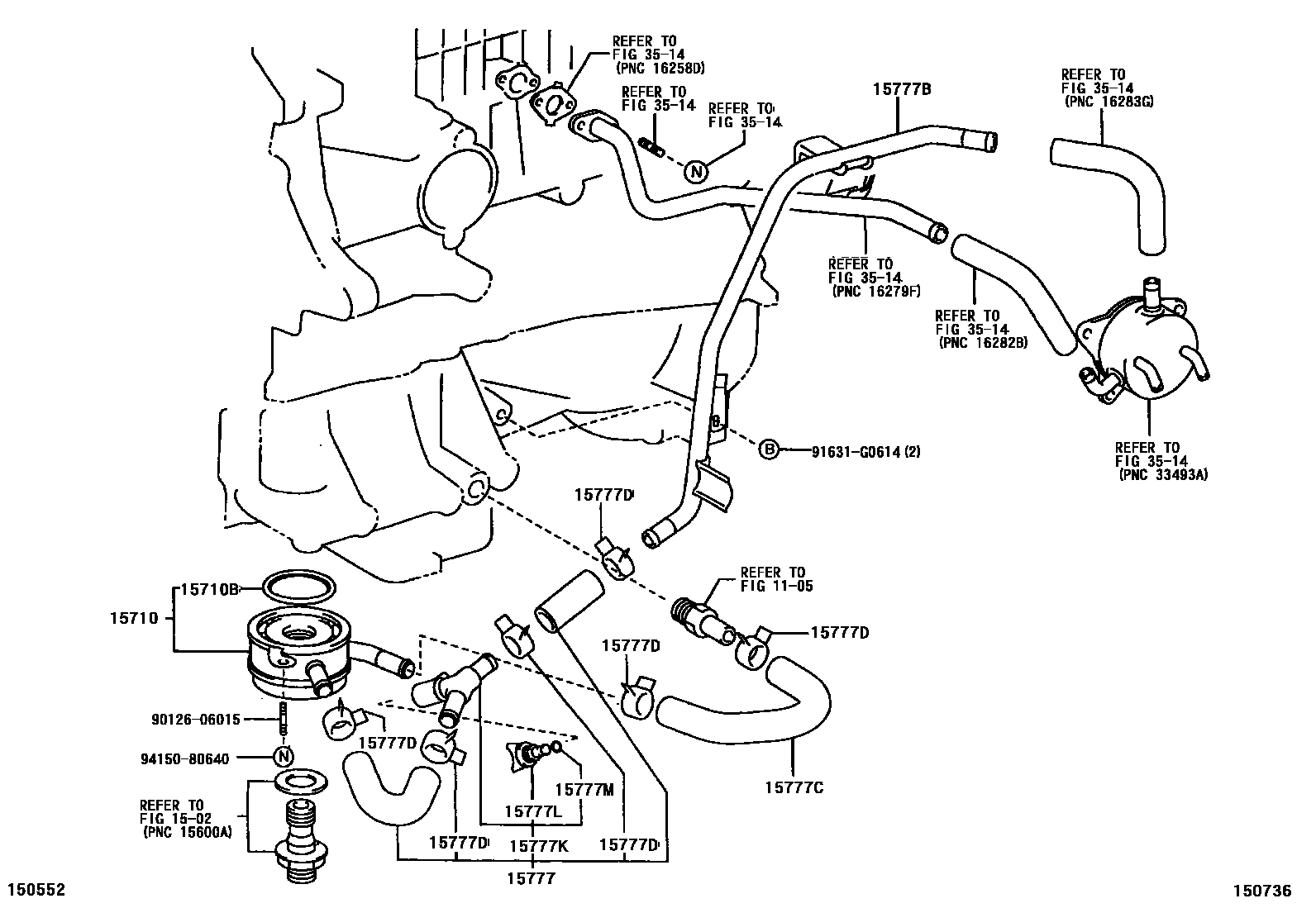

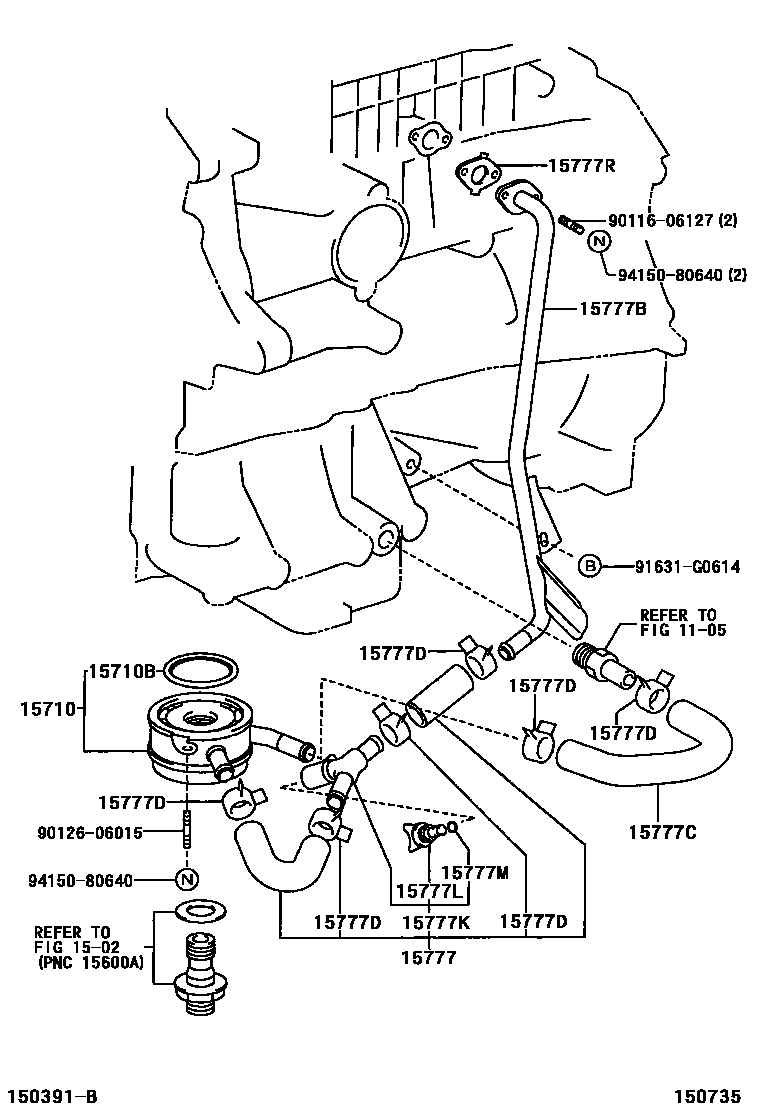

Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15710-28020 |
| 15710B | O-ring (for oil cooler) | 90301-52006 |
| 15777 | oil cooler hose | 16267-28020 |
| 15777B | oil cooler pipe | 16279-28010 · 16288-28020 |
| 15777C | oil cooler hose | 16281-28010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 |
| 15777K | Oil drain switch assembly (for oil cooler hose) | 90910-09119 |
| 15777L | Air plug (for oil cooler oil drain switch) | 23322-54010 |
| 15777M | O-ring (for oil cooler oil drain switch) | 16492-21050 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 16258-28021 · 16258-28040 |
