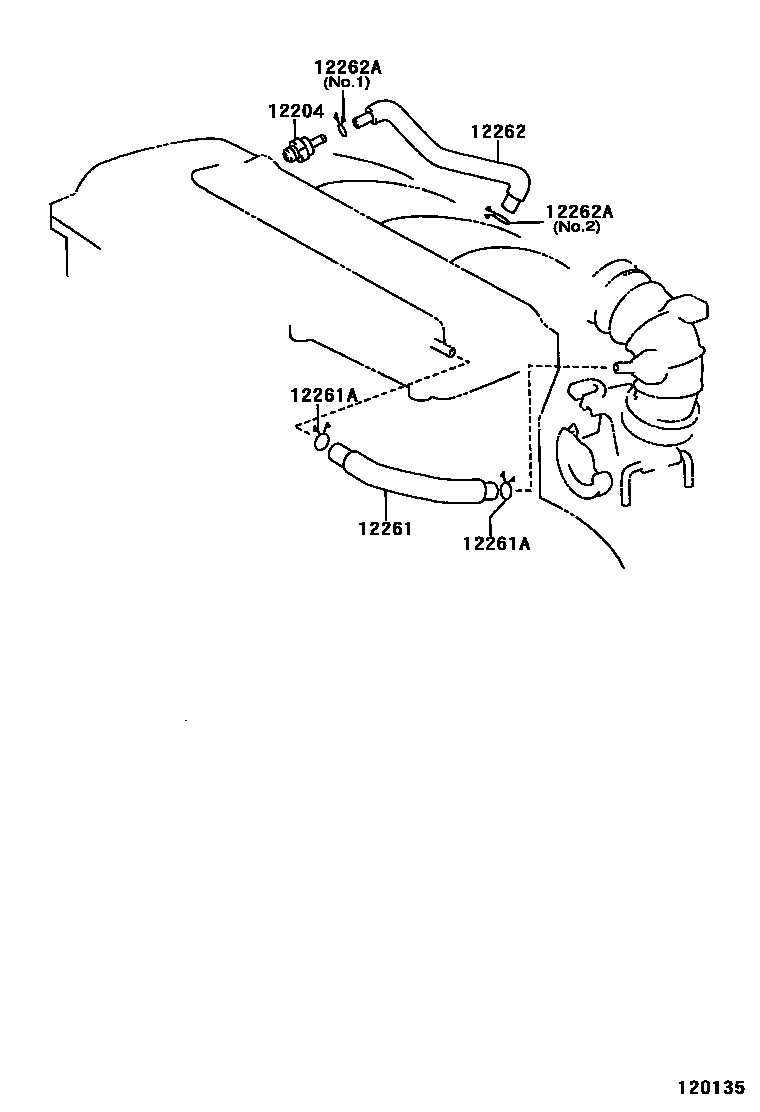

Toyota RAV4 Ventilation Hose — Figure 1201
Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-28020 |
| 12261 | Ventilation Hose | 12261-28010 |
| 12261A | Clip or clip (for vent hose) | 90467-19003 |
| 12262 | Ventilation hose No. 2 | 12262-28020 · 12262-28021 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16035 |
