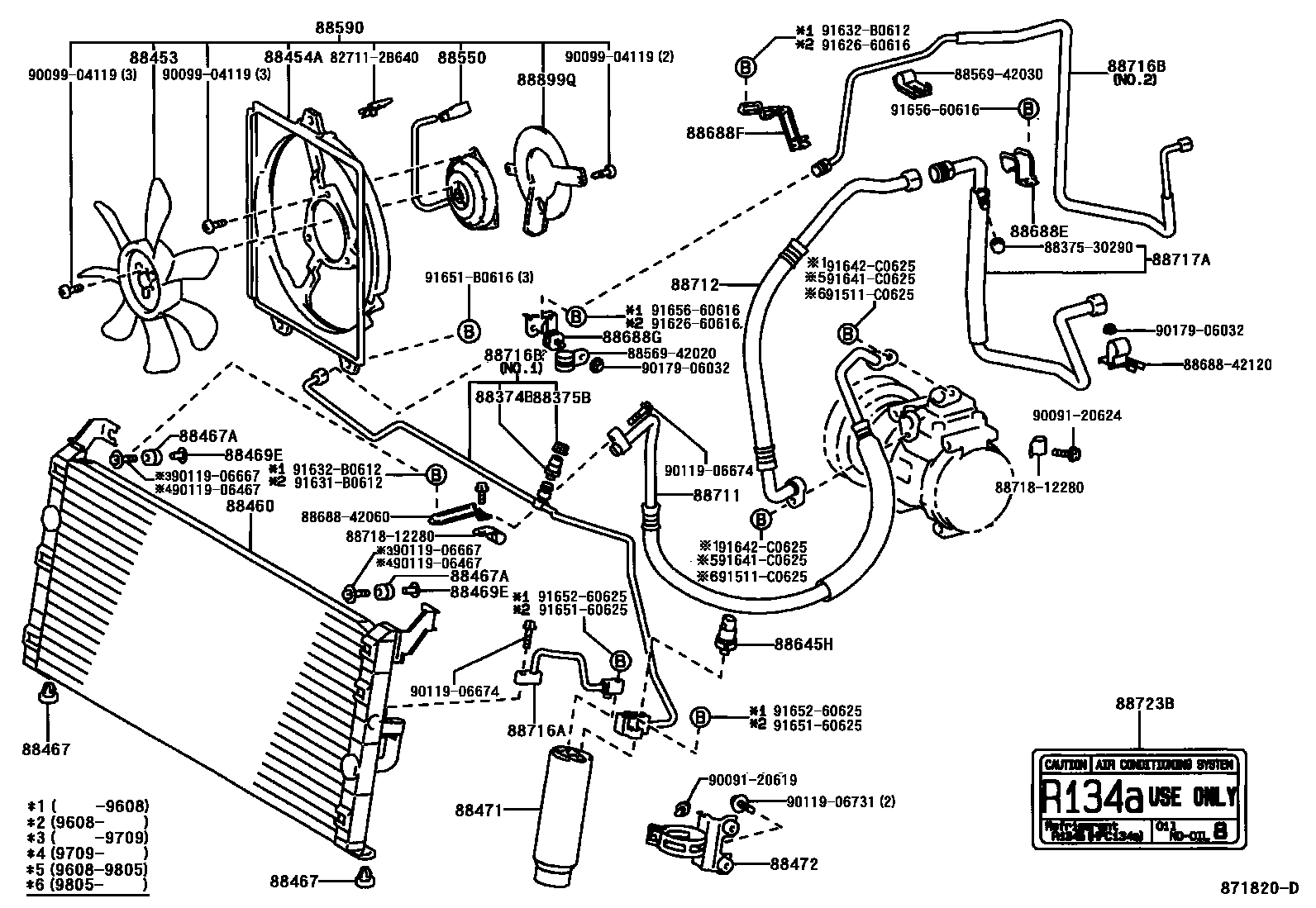

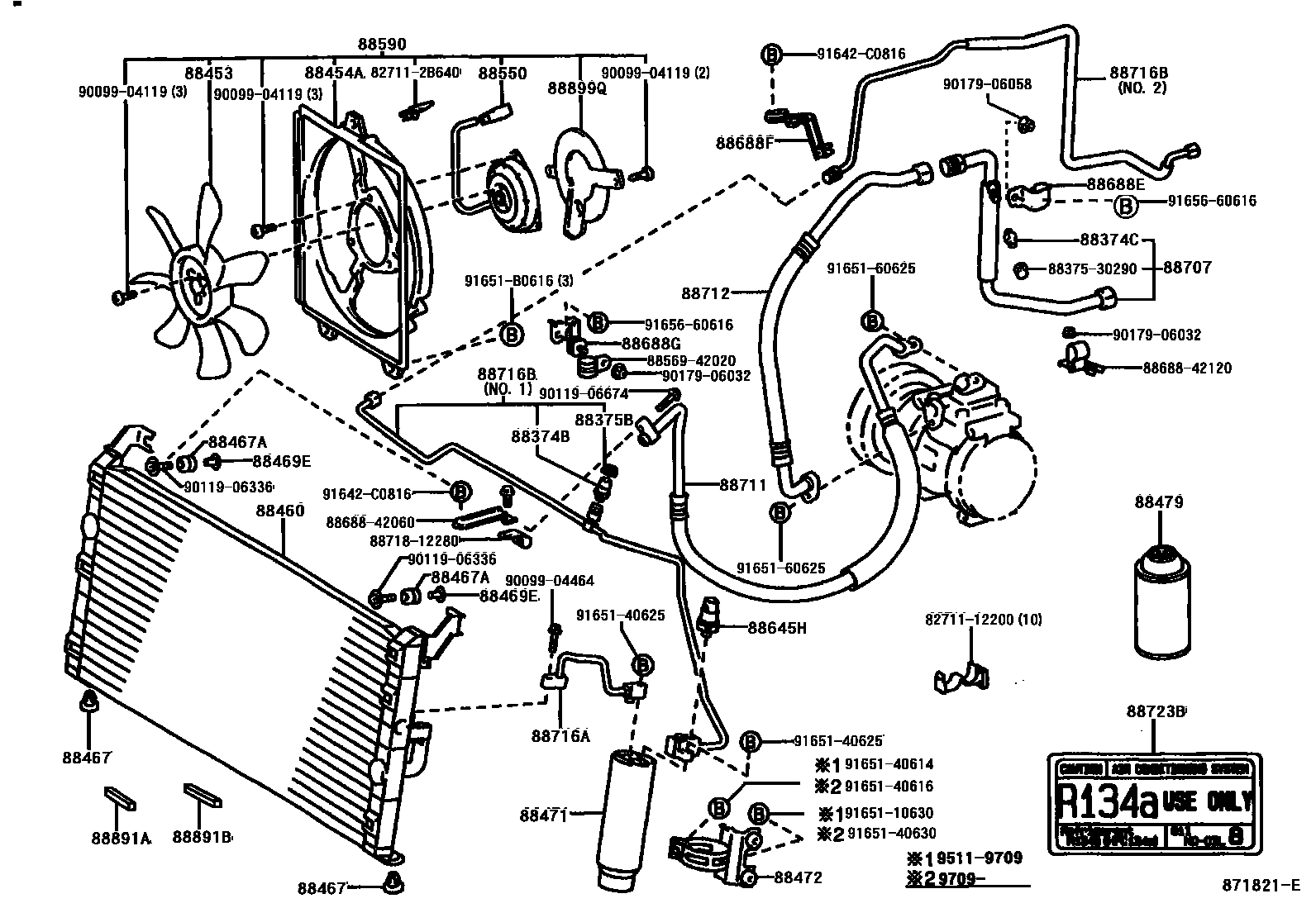

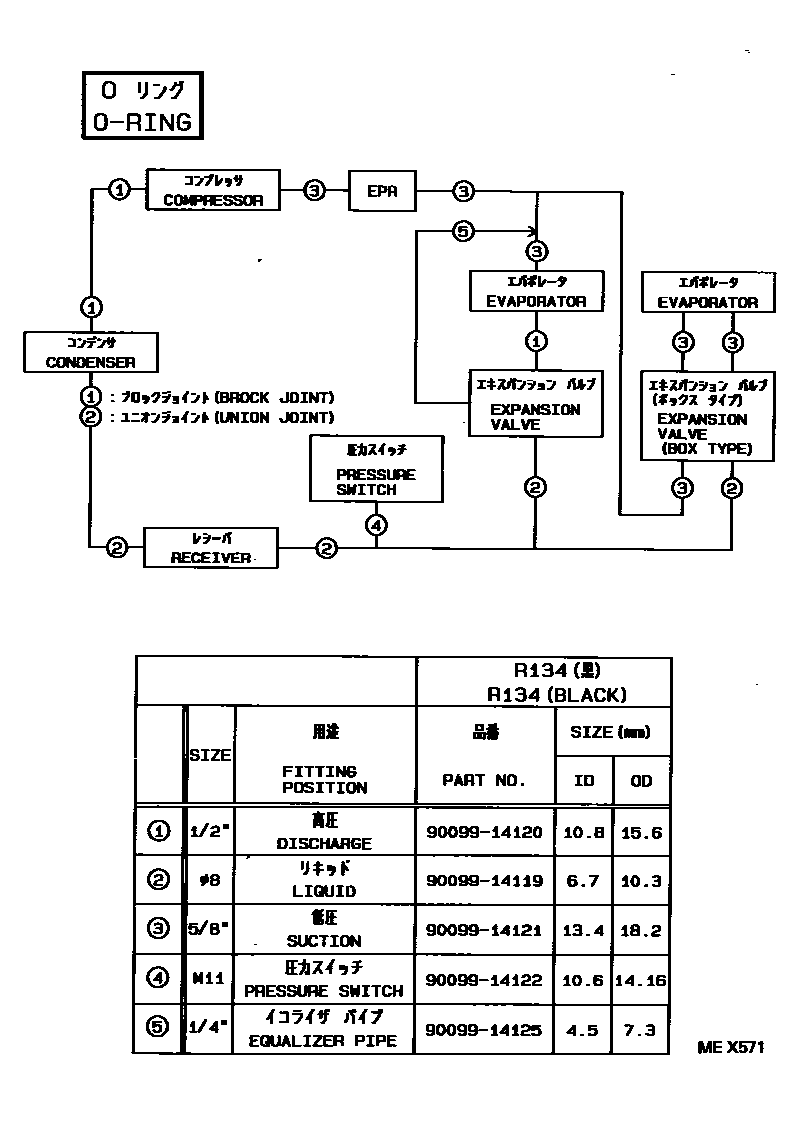

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88453 | Cooling fan (for condenser) | 88453-42010 |
| 88454A | fan cover | 88454-42020 · 88454-42021 |
| 88460 | Air conditioning condenser assembly | 88460-42020 · 88460-42021 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-16090 |
| 88467A | No. 2 air conditioning condenser buffer pad | 90099-32130 |
| 88469E | No. 2 condenser bracket collar | 88469-28010 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88472 | No. 1 liquid storage tank bracket | 88472-42010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 |
| 88550 | Blower motor assembly (for condenser) | 16363-74190 |
| 88590 | Blower assembly with hood | 88590-42020 · 88590-42021 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-42100 · 88688-42120 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-42040 |
| 88688G | Cooler refrigerant pipe bracket | 88688-42010 |
| 88707 | Suction pipe sub-assembly | 88717-42051 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-42010 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-42020 · 88712-42030 · 88712-42041 · 88712-42042 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-42010 |
| 88716B | Cooler refrigerant liquid pipe B | 88706-42030 · 88706-42031 · 88716-42060 · 88716-42061 · 88716-42070 |
| 88717A | Cooler refrigerant suction pipe A | 88717-42040 · 88717-42051 |
| 88723B | Cooler maintenance warning label | 88723-14020 |
| 88891A | Seal A (for cooler) | 88578-42040 |
| 88891B | Seal B (for cooler) | 88578-42030 |
| 88899Q | Cover plate | 88899-42060 |
