Toyota RAV4 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

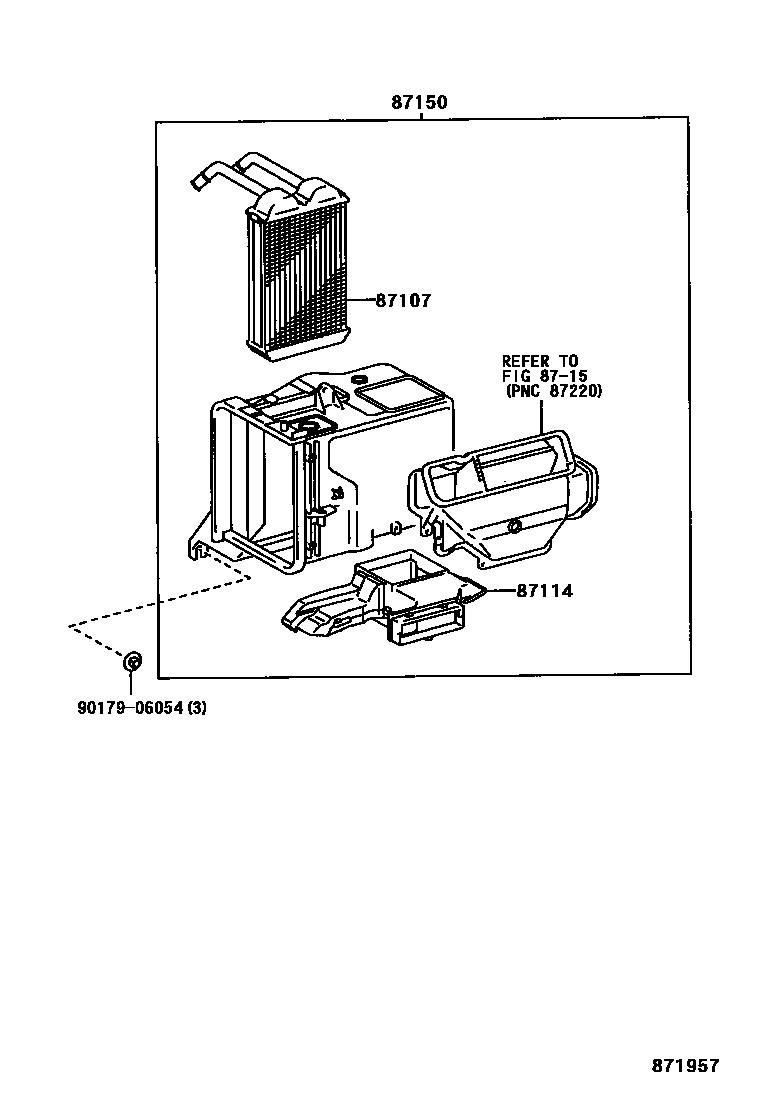

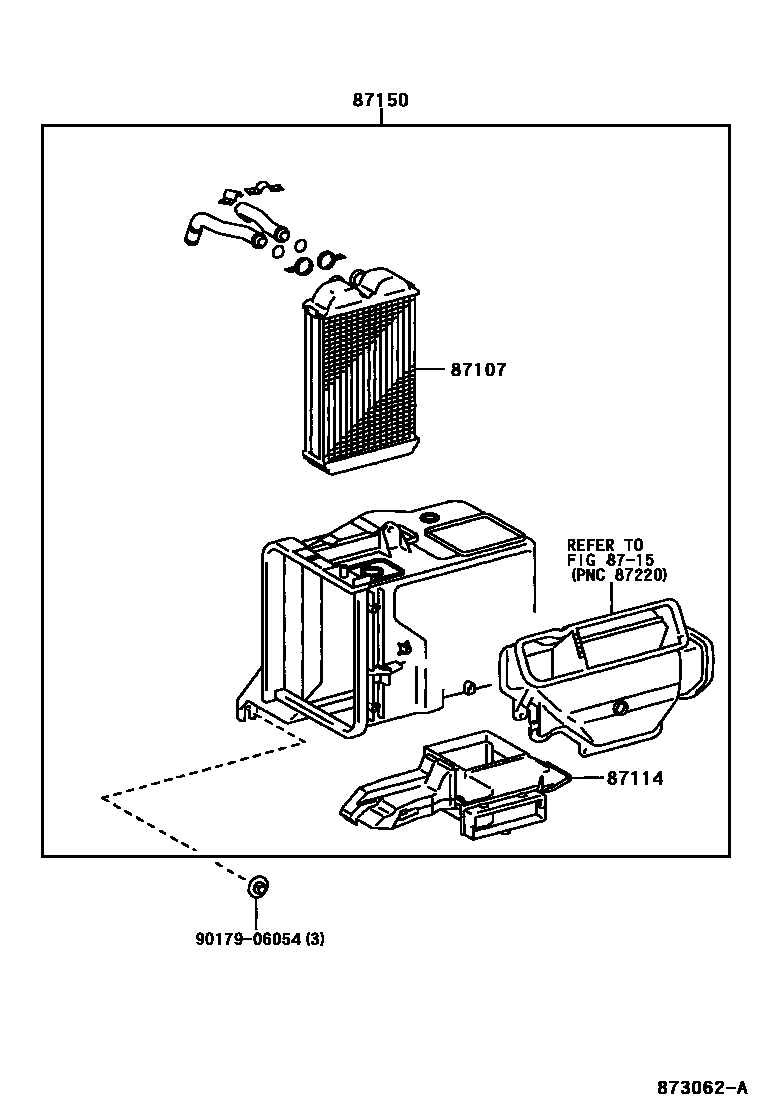

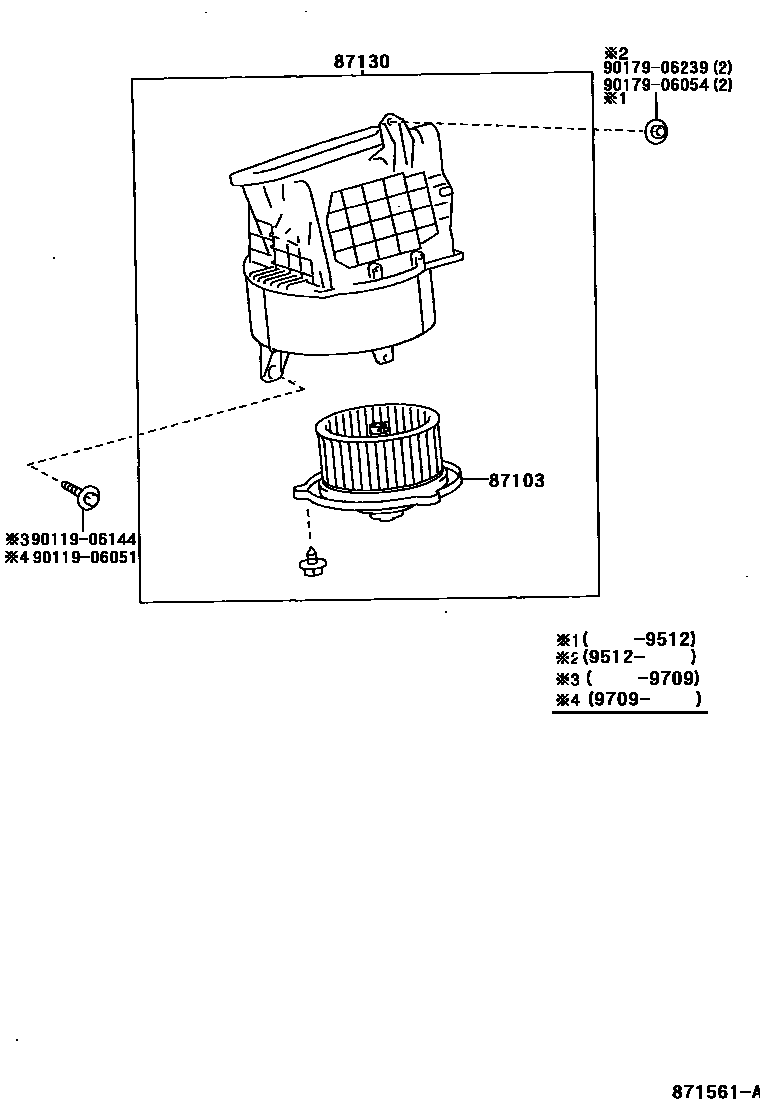

Toyota RAV4 EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-17020 · 87103-42020 |
| 87107 | Heater radiator device sub-assembly | 87107-10340 · 87107-10350 · 87107-42030 · 87107-42040 · 87107-42060 |
| 87114 | heater cover | 87114-10080 · 87114-10090 |
| 87130 | Front heater blower assembly | 87130-16160 |
| 87150 | Heater radiator assembly | 87150-42030 · 87150-42031 · 87150-42040 · 87150-42041 · 87150-42060 |
