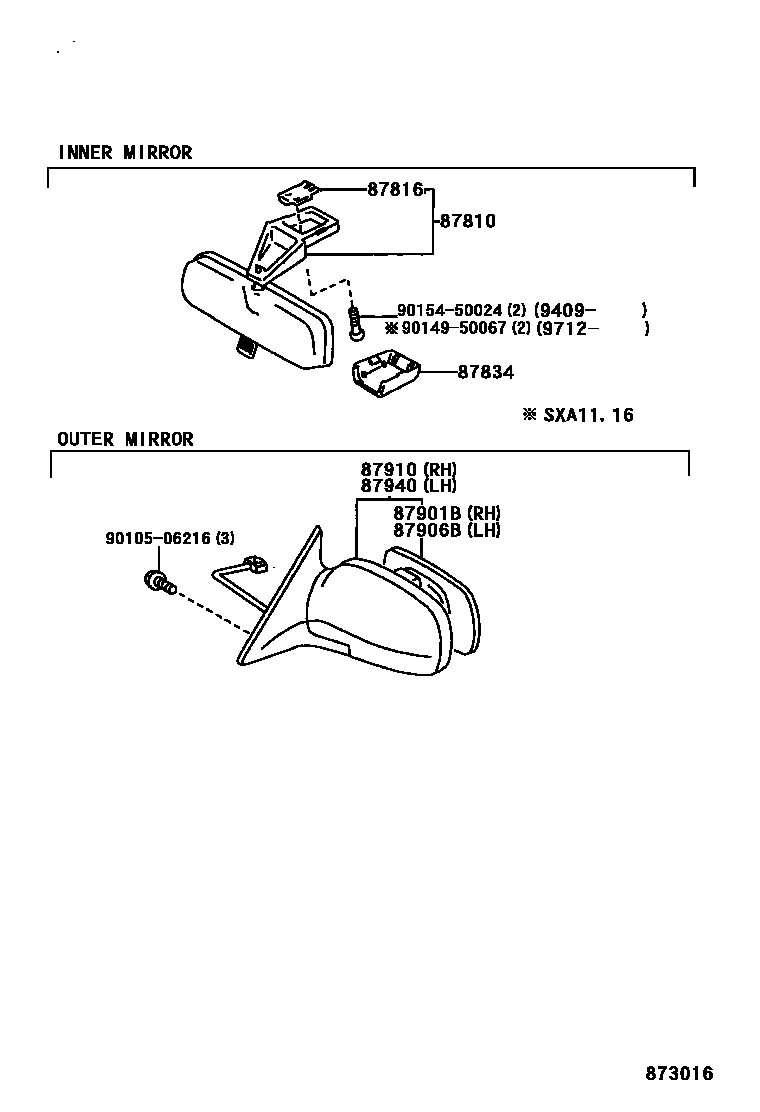

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-01020 · 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42150 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42180 |
| 87910 | Right exterior rearview mirror assembly | 87910-42150 · 87910-42160 · 87910-42170 · 87910-42171 · 87910-42180 · 87910-42181 |
| 87940 | Left exterior rearview mirror assembly | 87940-42180 · 87940-42190 · 87940-42200 · 87940-42201 · 87940-42210 · 87940-42211 |
