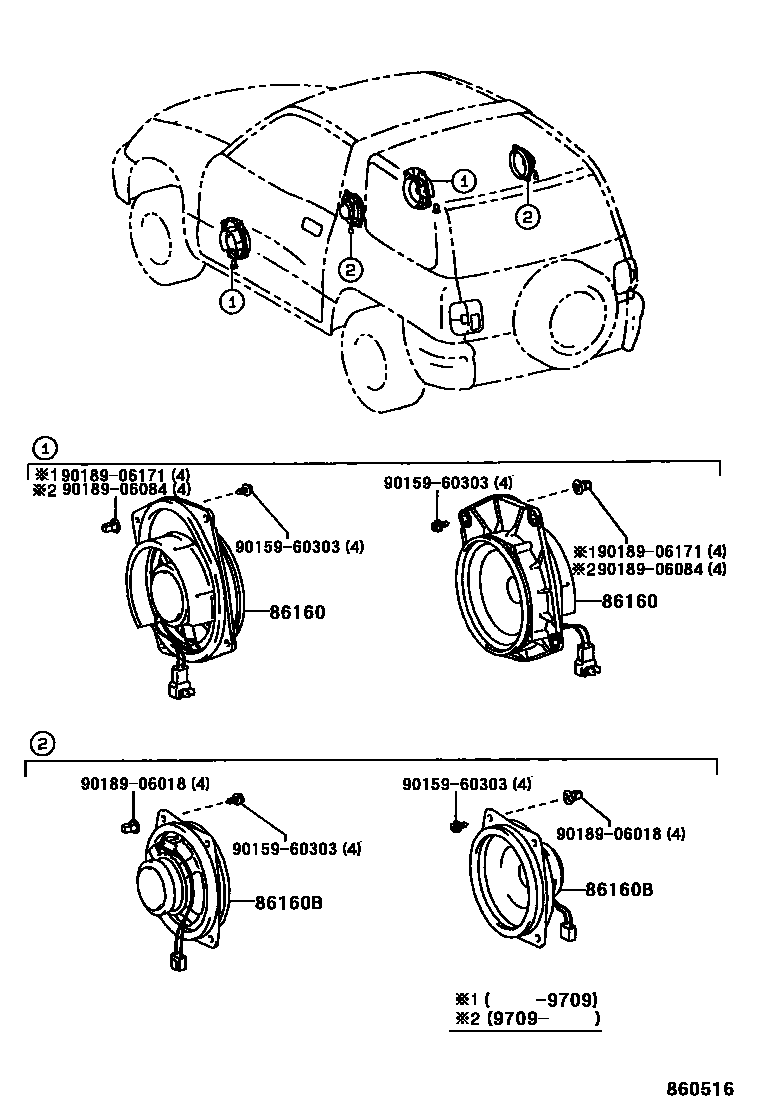

Toyota RAV4 扬声器 — Figure 8602
Toyota RAV4 EPC diagram 8602, 扬声器, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-42010 · 86160-42020 |
| 86160B | Rear speaker assembly | 86160-42040 · 86160-42050 · 86160-42060 |
