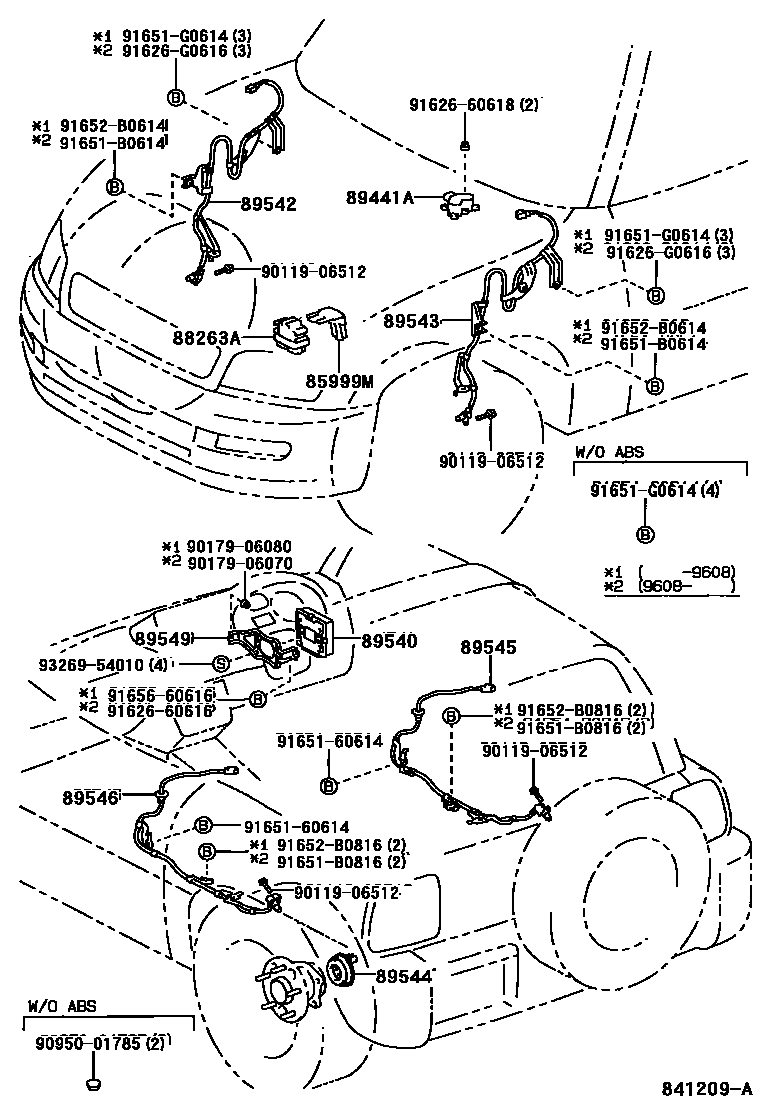

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-42020 |
| 88263A | Anti-skid control relay | 88263-12080 |
| 89441A | deceleration sensor | 89441-20050 · 89441-30040 · 89441-42010 |
| 89540 | Anti-skid control ECU assembly | 89540-42040 · 89540-42060 · 89540-42080 · 89541-42010 · 89541-42020 · 89541-42030 · 89541-42040 |
| 89542 | Right front wheel speed sensor | 89542-42011 · 89542-42020 |
| 89543 | Left front wheel speed sensor | 89543-42011 · 89543-42020 |
| 89544 | Anti-skid control sensor | 89544-42010 |
| 89545 | Right rear wheel speed sensor | 89516-42010 · 89516-42020 · 89545-42010 · 89545-42020 |
| 89546 | Left rear wheel speed sensor | 89516-42010 · 89516-42020 · 89546-42010 · 89546-42020 |
| 89549 | Anti-slip control ECU bracket | 89549-42010 · 89549-42020 |
