Toyota RAV4 巡航控制(自动行驶) — Figure 8408

Toyota RAV4 EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 4 PNC and OE references.

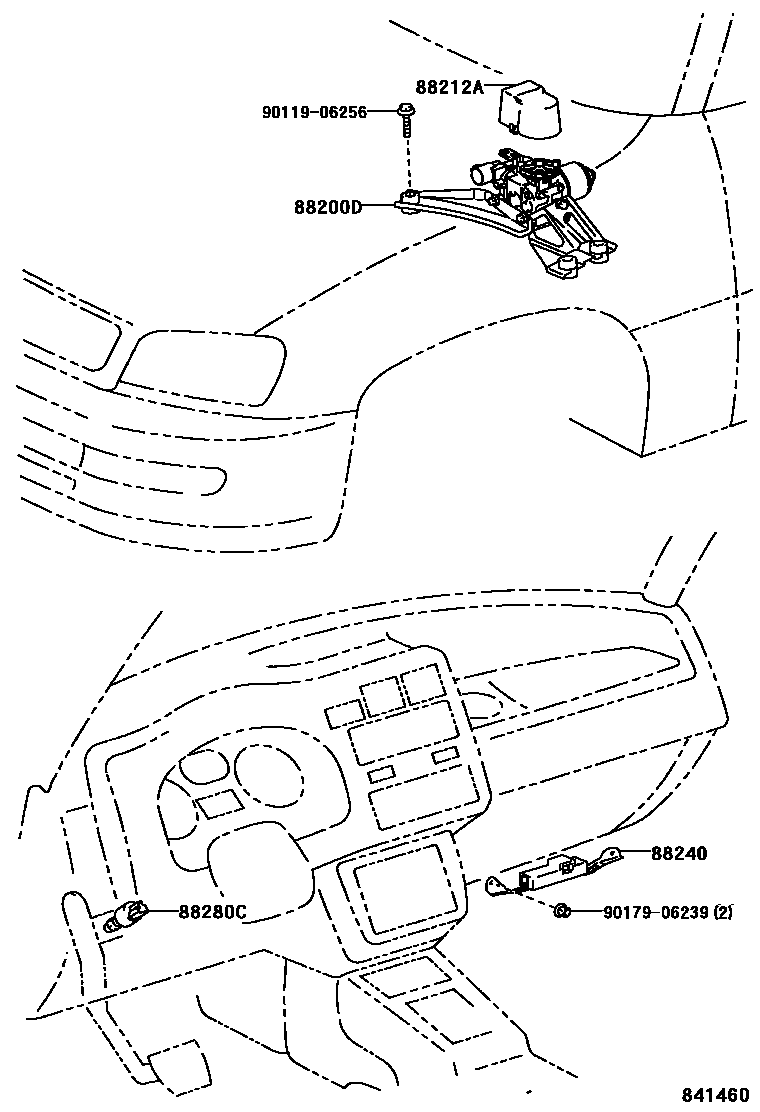

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 841460
巡航控制(自动行驶) — 841460 (199709 – 999999)

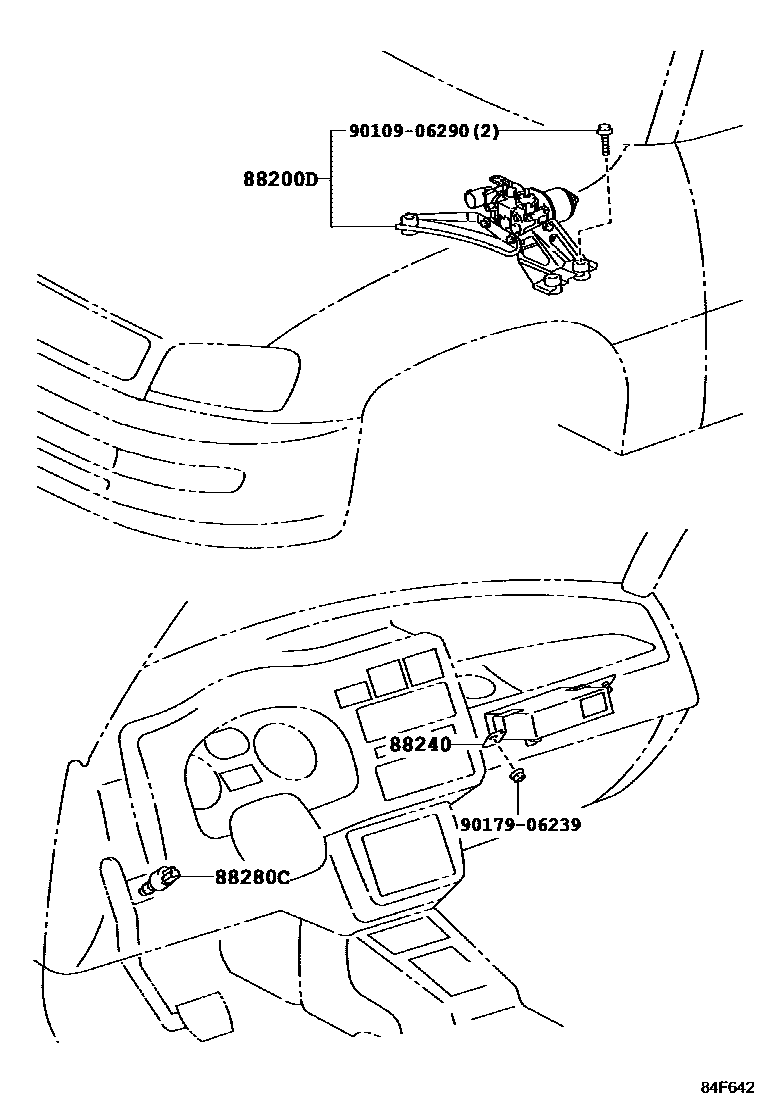

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 84F642
巡航控制(自动行驶) — 84F642 (199511 – 199709)

PNC and OE references

PNCPart nameOE numbers
88200DCruise control actuator assembly88002-42010 · 88200-42010
88212Acruise control actuator cover88212-42010
88240Cruise control ECU assembly88240-0W010 · 88240-0W020 · 88240-0W021 · 88240-42010
88280CClutch switch assembly88280-14030
