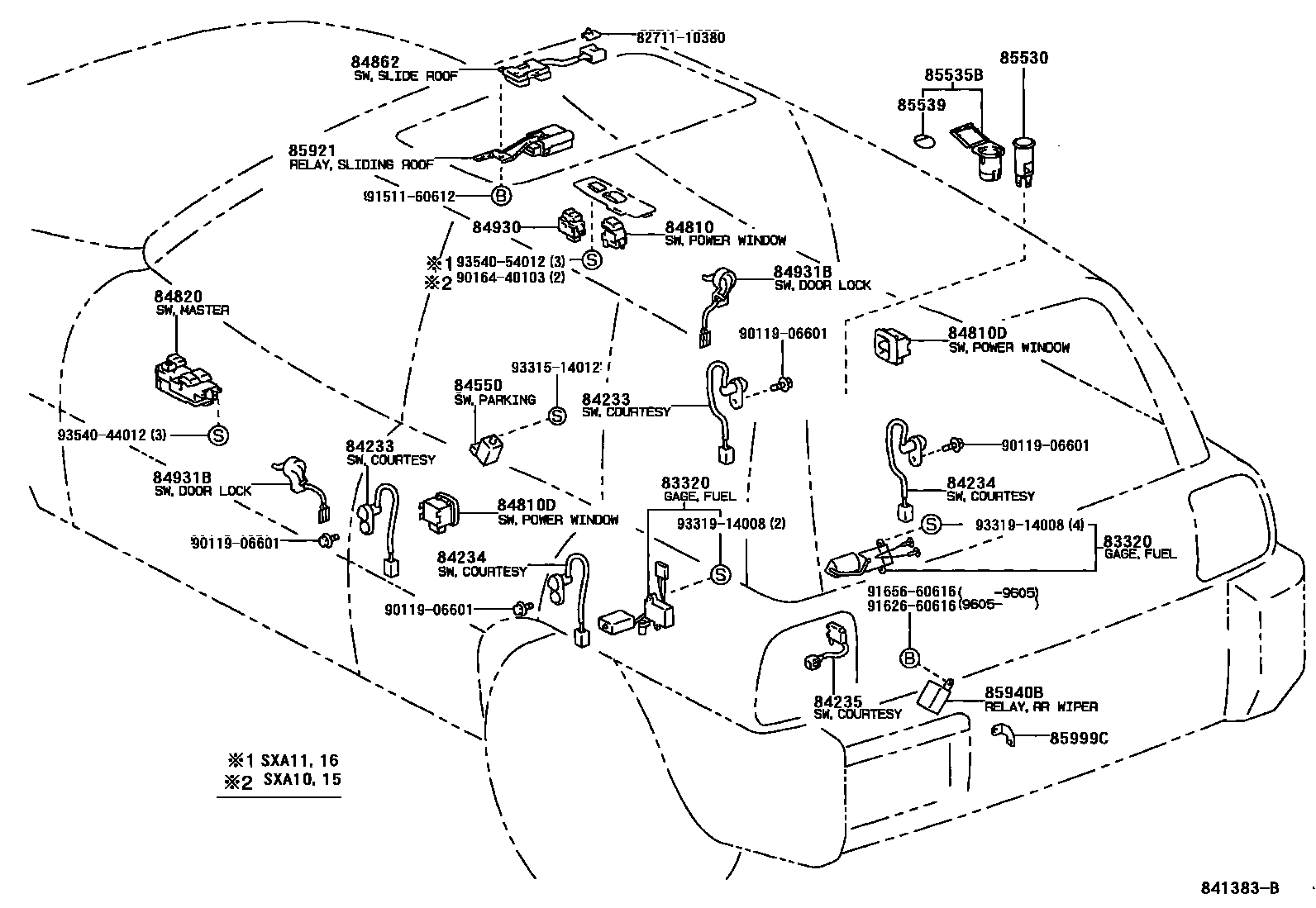

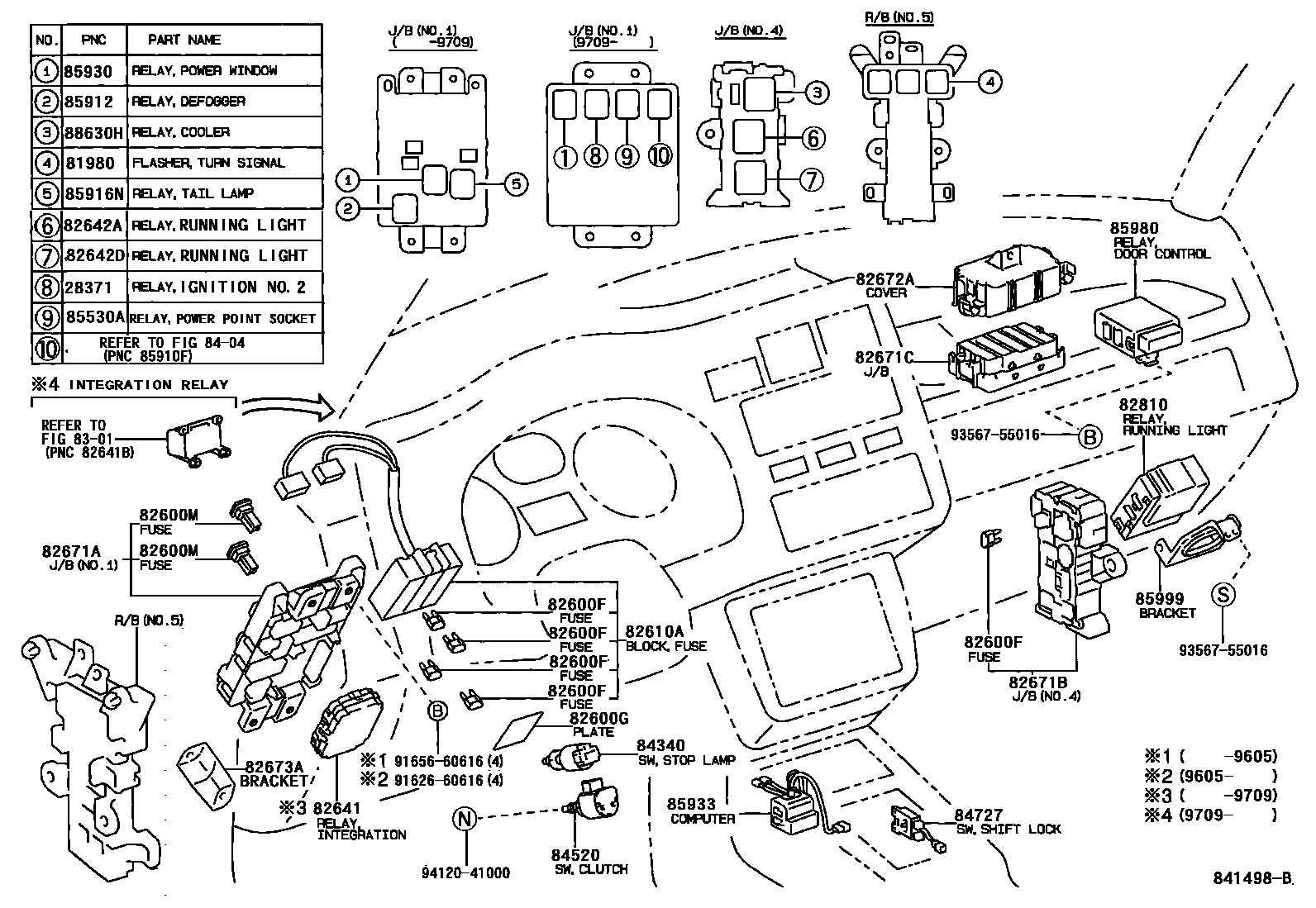

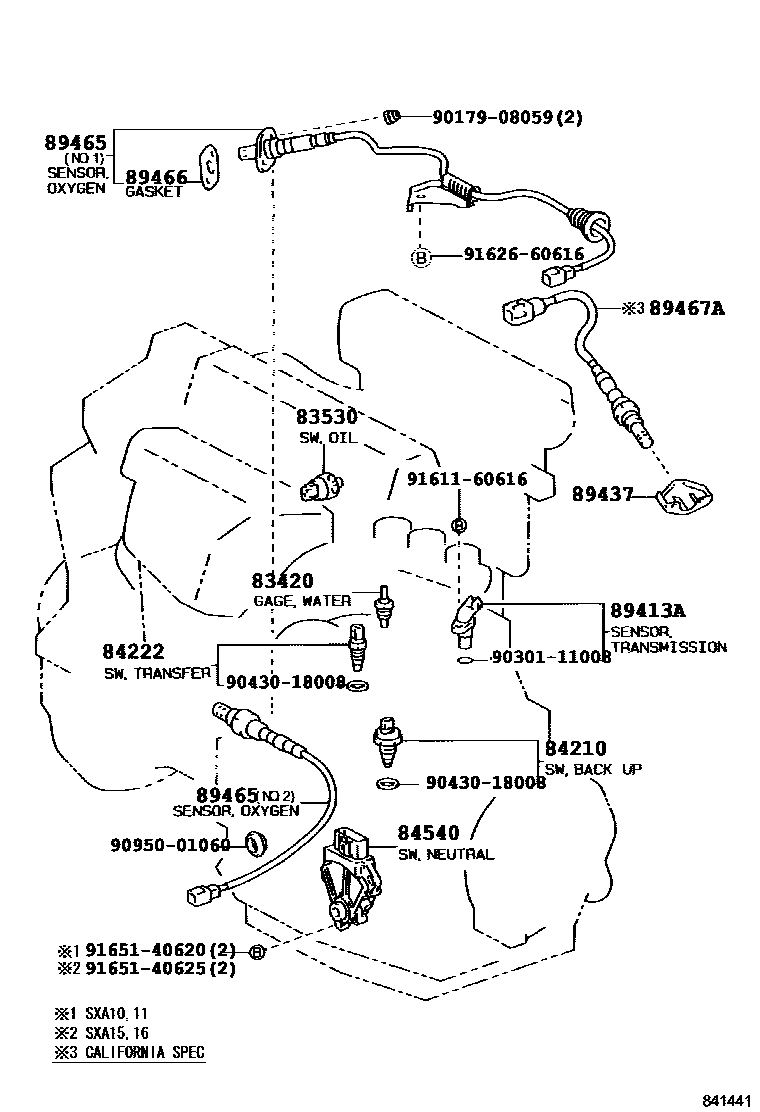

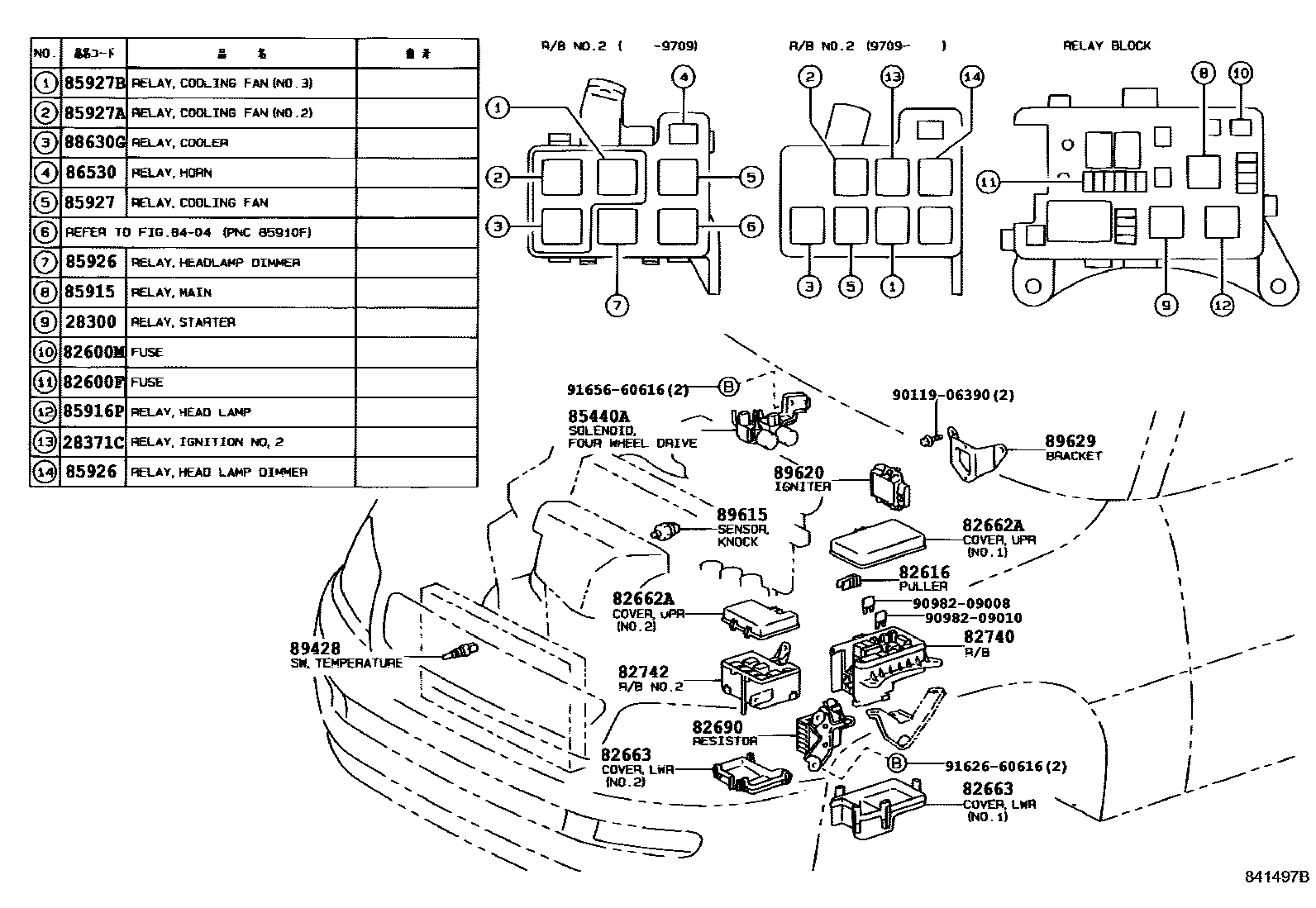

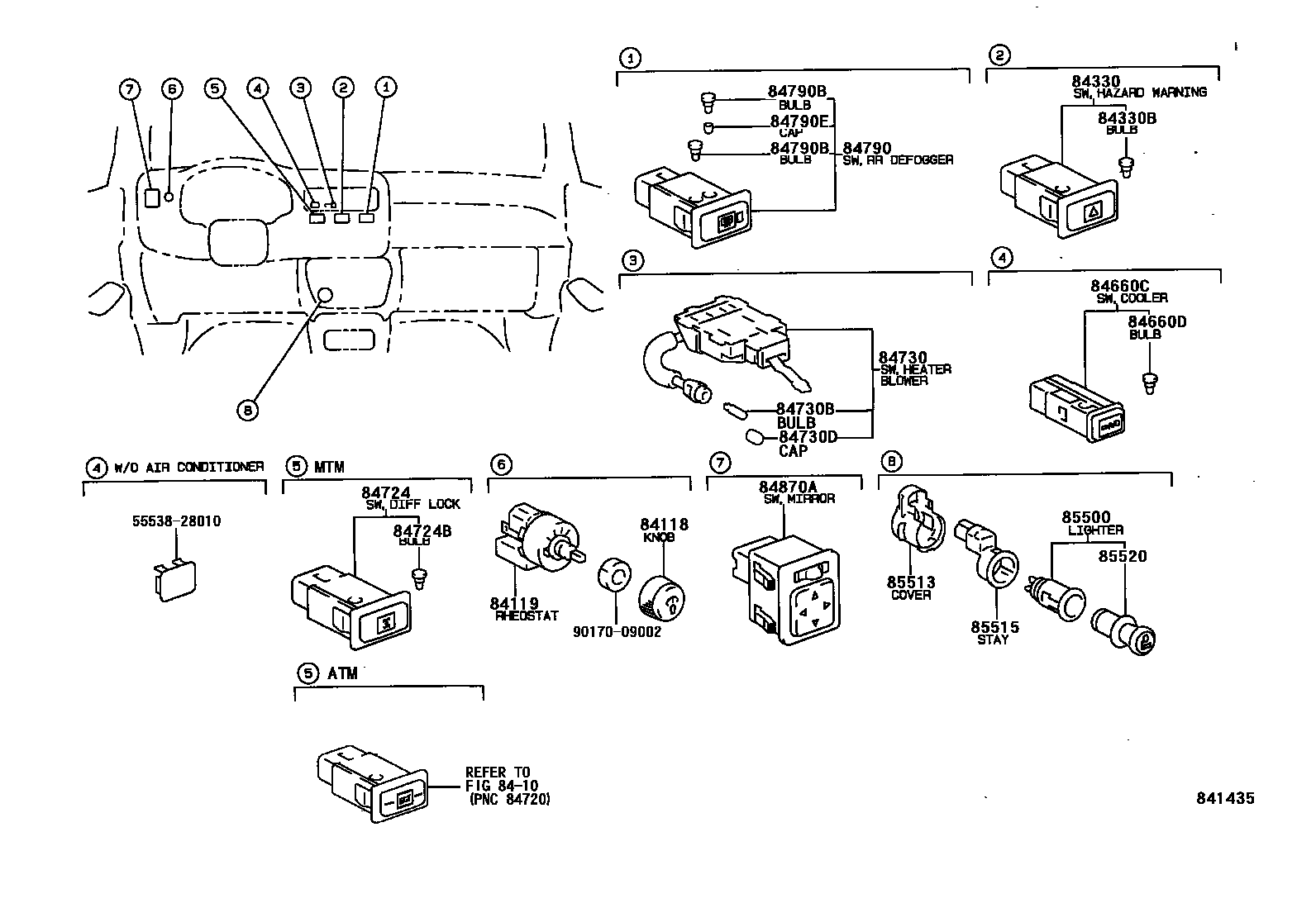

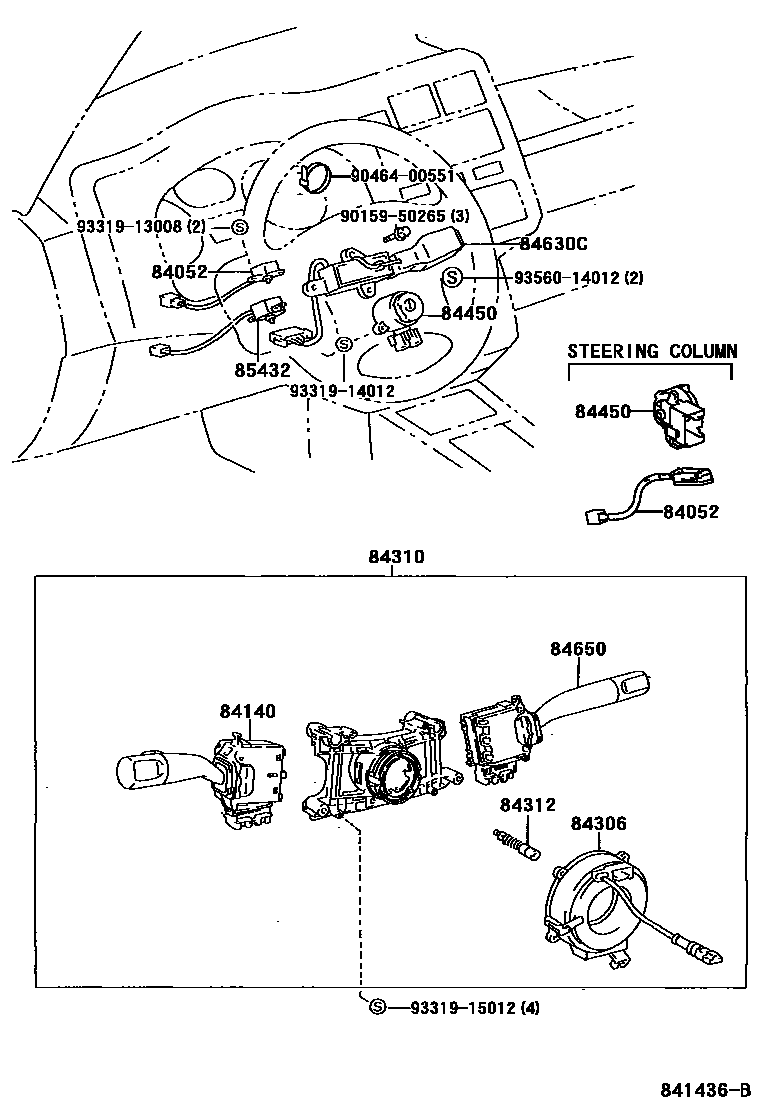

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 6 images and 99 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02009 |
| 28371C | No. 2 ignition relay | 90987-02012 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-12110 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 |
| 82600G | Warning nameplate (for fuses) | 82683-42030 · 82683-42080 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82610A | Fuse box assembly | 82610-42030 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-20141 |
| 82642A | driving light relay | 90987-04002 |
| 82642D | No. 2 driving light relay | 90987-02006 |
| 82662A | No. 1 relay box upper cover | 82662-42030 · 82662-42031 · 82662-42040 · 82662-42041 · 82662-42080 · 82662-42081 · 82662-42082 |
| 82663 | Relay box lower cover | 82663-42010 · 82663-42020 · 82663-42030 · 82663-42040 |
| 82671A | junction box | 82732-42030 · 82732-42060 |
| 82671B | junction box | 82733-42020 |
| 82671C | junction box | 82671-12150 |
| 82672A | Junction box cover | 82672-42030 · 82672-42050 |
| 82673A | Junction box bracket | 82673-42040 |
| 82690 | Low beam resistor assembly | 82690-42010 |
| 82740 | Engine room relay box assembly | 82740-42010 · 82740-42021 · 82740-42022 |
| 82742 | Engine room No. 2 relay box | 82742-42010 · 82742-42020 |
| 82810 | Driving light relay assembly | 82810-42020 · 82810-42030 |
| 83320 | Fuel gauge sensor assembly | 83320-49055 · 83320-49065 · 83320-49145 · 83320-49155 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-20040 · 83420-AA010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-30090 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-12060 · 84052-12070 · 84052-20050 |
| 84119 | Light control rheostat | 84119-60020 |
| 84140 | Headlight dimmer switch assembly | 84140-26140 · 84140-44010 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-32040 |
| 84234 | Door control light switch assembly (for rear door) | 84231-32040 |
| 84235 | Door control light switch assembly (for back door) | 84231-42010 · 84231-42020 |
| 84306 | Spiral cable sub-assembly | 84306-07010 · 84306-12070 · 84306-35010 · 84306-35011 |
| 84310 | Turn signal switch assembly | 84310-42050 · 84310-42051 · 84310-42170 · 84310-42180 · 84310-42200 · 84310-42210 |
| 84312 | Speaker contact piece | 84312-26010 |
| 84330 | Hazard warning signal switch assembly | 84332-42010 · 84332-43010 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 · 84999-10860 |
| 84340 | brake light switch assembly | 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-12200 · 84450-41010 |
| 84520 | Clutch start switch assembly | 84520-24010 |
| 84540 | Neutral start switch assembly | 84540-12200 · 84540-12210 · 84540-16050 · 84540-20200 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84630C | Speed control main switch assembly | 84630-33020 · 84630-42010 |
| 84650 | Windshield wiper switch assembly | 84652-1A680 · 84652-42050 · 84652-42080 · 84652-60800 |
| 84660C | Cooler switch | 84660-42010 · 84660-42011 |
| 84660D | Light bulb (for cooler switch) | 88607-16010 |
| 84724 | four wheel drive control switch | 84724-42010 |
| 84724B | Four wheel drive control switch light bulb | 84999-10320 |
| 84727 | Shift lock control switch | 84727-12040 |
| 84730 | Heater blower switch assembly | 84732-42020 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10050 |
| 84790 | Rear window defogger switch assembly | 84790-42010 · 84790-42020 · 84790-42030 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10310 · 84999-10320 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10630 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-10070 · 84820-33060 · 84820-42030 · 84820-42060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16020 · 84870-20050 |
| 84930 | Door control switch assembly | 84930-12150 · 84930-14090 · 84930-33080 |
| 84931B | door control switch | 84931-10071 · 84931-10081 · 84931-10090 · 84931-10100 |
| 85432 | Key interlock solenoid valve | 85432-12020 · 85432-42011 · 85432-42012 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-42011 · 85440-42020 · 85440-42021 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-30030 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90987-02012 |
| 85535B | No. 1 power outlet cover | 85535-33030 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85912 | defogger relay | 90987-02009 |
| 85915 | main relay | 85925-17010 |
| 85916N | Tail light relay | 90987-02009 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12070 · 85921-42010 |
| 85926 | Headlight dimmer relay | 85926-30020 · 90987-02006 |
| 85927 | cooling fan relay | 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90987-02012 · 90987-04003 |
| 85927B | Cooling fan relay No. 3 | 90987-02009 · 90987-04004 |
| 85930 | Electric window relay assembly | 90987-02009 · 90987-02012 |
| 85933 | Shift lock control ECU | 85933-12090 · 85933-12091 |
| 85940B | Rear wiper relay assembly | 85940-42010 |
| 85980 | Door control relay assembly | 85980-42030 |
| 85999 | Combination relay bracket | 85999-42010 |
| 85999C | No. 3 relay bracket | 85999-42030 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 88630G | Cooler relay assembly | 90987-02009 · 90987-02012 |
| 88630H | Cooler relay assembly | 90987-04002 |
| 89413A | Transmission speed sensor | 89413-32010 |
| 89428 | No. 2 temperature detection switch | 89428-33010 |
| 89437 | sensor cover | 89437-42010 |
| 89465 | oxygen sensor | 89465-20420 · 89465-20430 · 89465-49065 · 89465-80008 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89467A | Wide-band air-fuel ratio sensor | 89467-41020 · 89467-42030 |
| 89615 | knock control sensor | 89615-20030 · 89615-32030 · 89615-32040 · 89615-33020 |
| 89620 | Ignition assembly | 89621-16020 |
| 89629 | Ignition bracket assembly | 89629-42020 · 89629-42030 |
