Toyota RAV4 Headlamp — Figure 8101

Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 8 PNC and OE references.

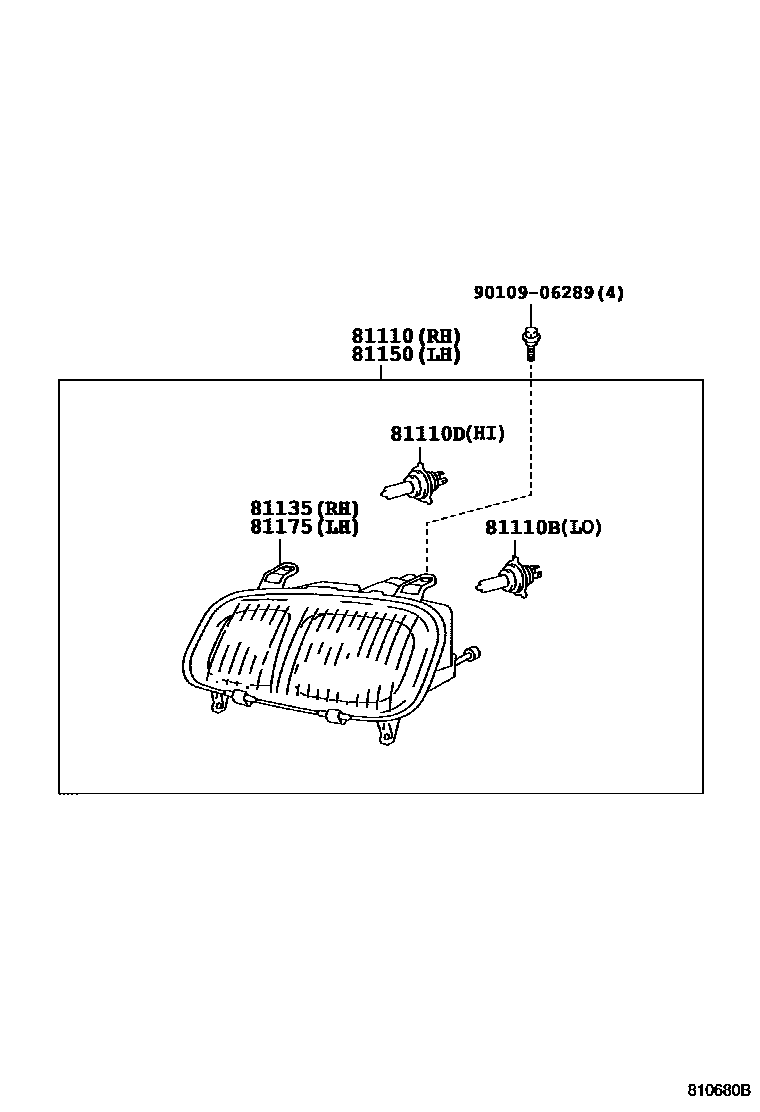

Toyota RAV4 Headlamp EPC diagram — 810680B
Headlamp — 810680B (199709 – 999999)

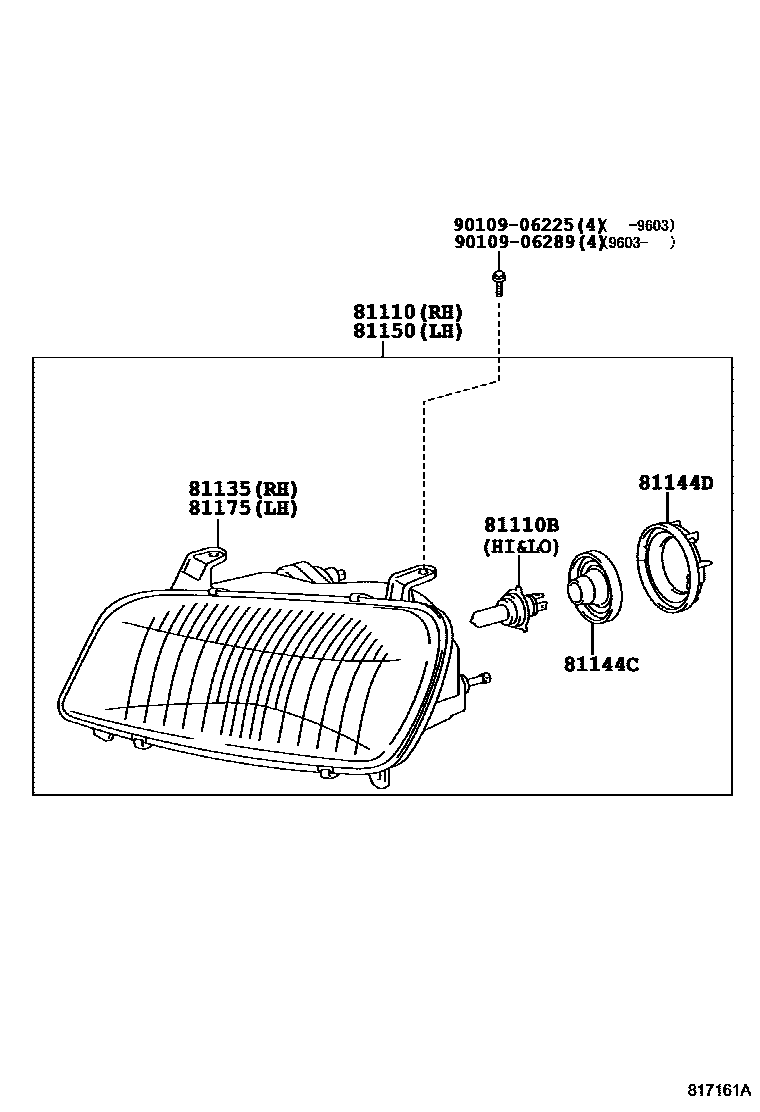

Toyota RAV4 Headlamp EPC diagram — 817161A
Headlamp — 817161A (199511 – 199709)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-42060 · 81110-42090
81110BBulb (for headlight No. 1)90080-81040 · 90981-13058
81110DBulb (for headlight No. 2)90080-81041
81135Right headlight assembly81105-42060 · 81105-42090
81144CHeadlight lamp holder cover81139-1E310
81144Dheadlight lock cover81112-1E310
81150Left headlight assembly81150-42060 · 81150-42090
81175Left headlight assembly81106-42060 · 81106-42090
