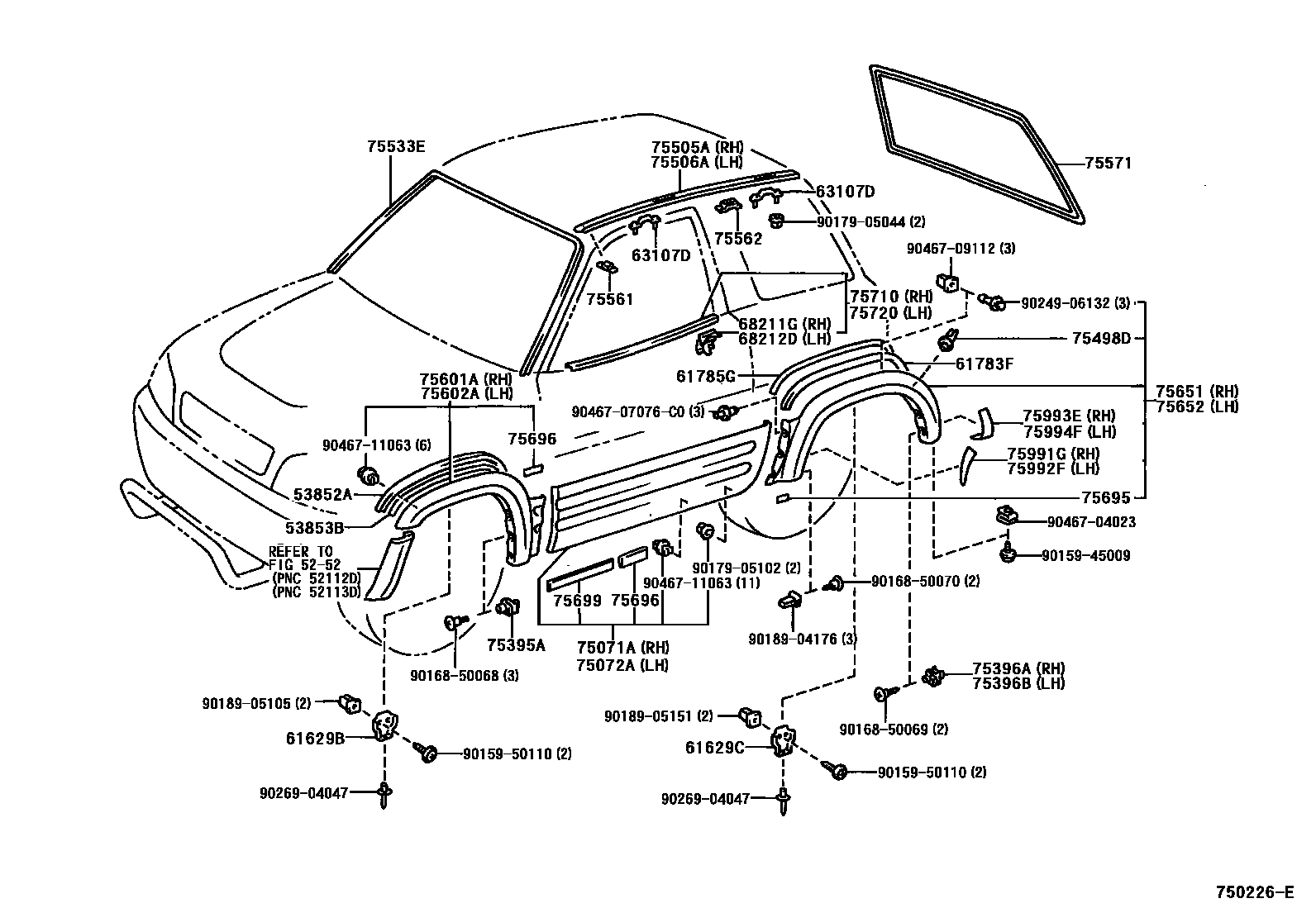

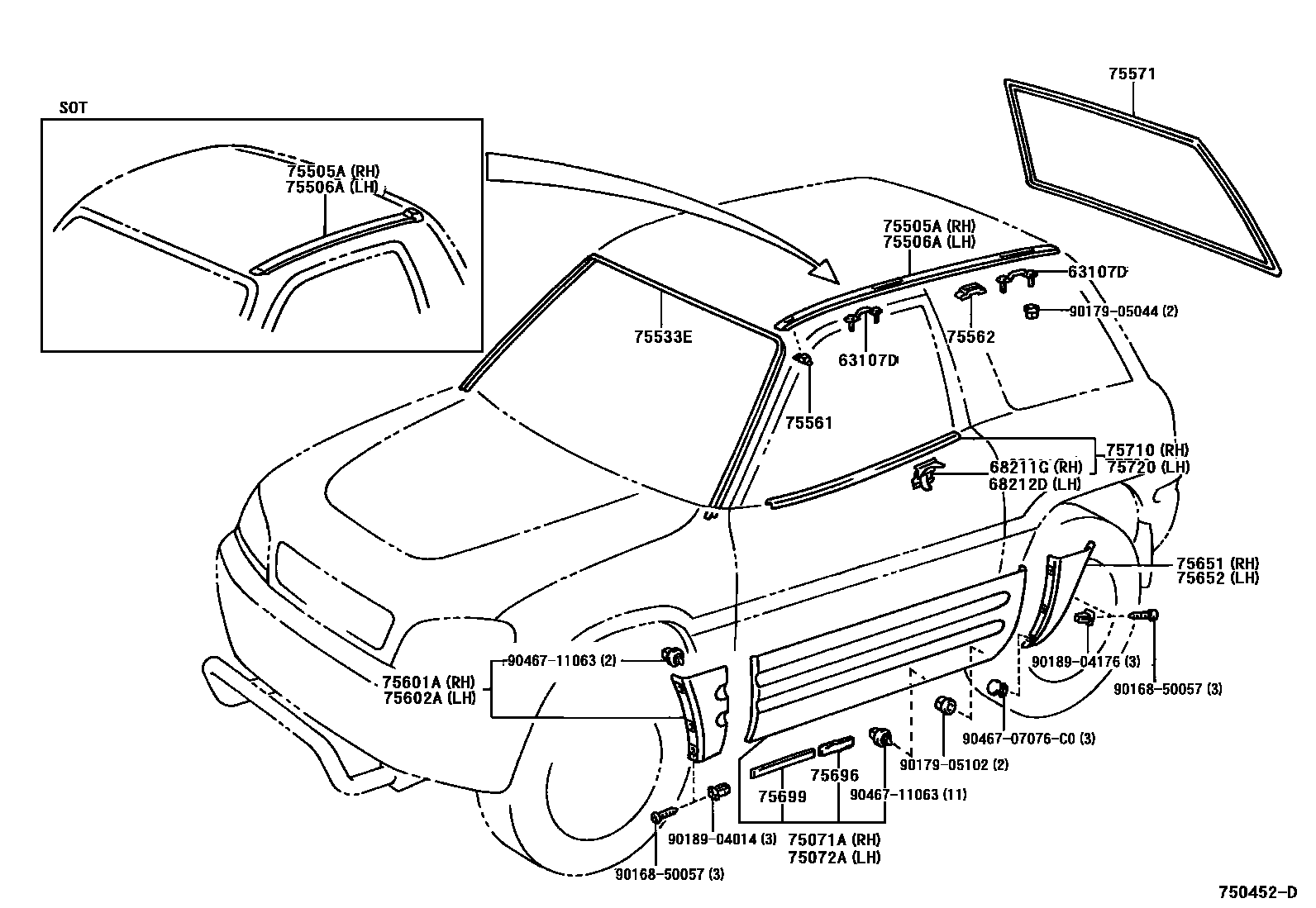

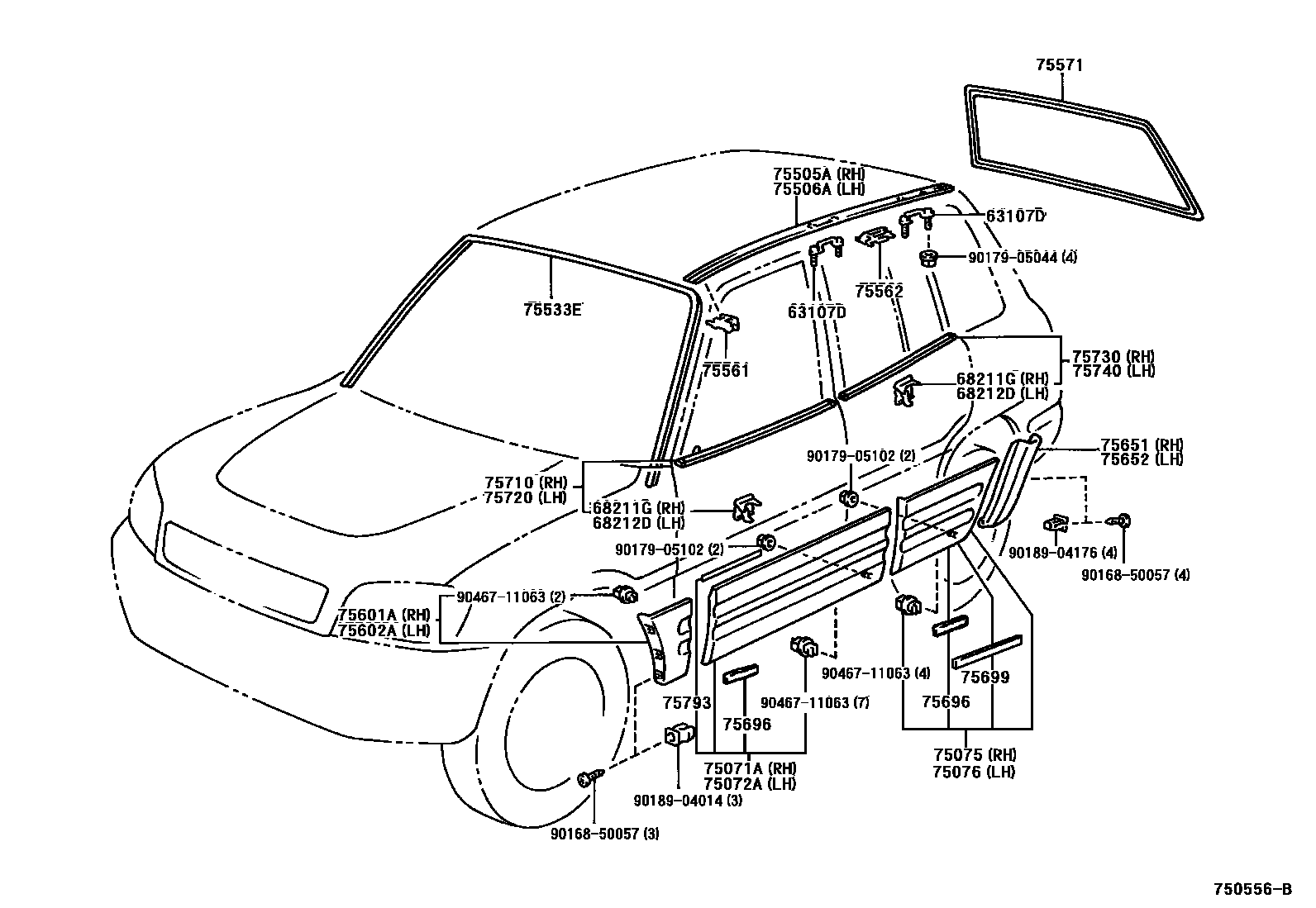

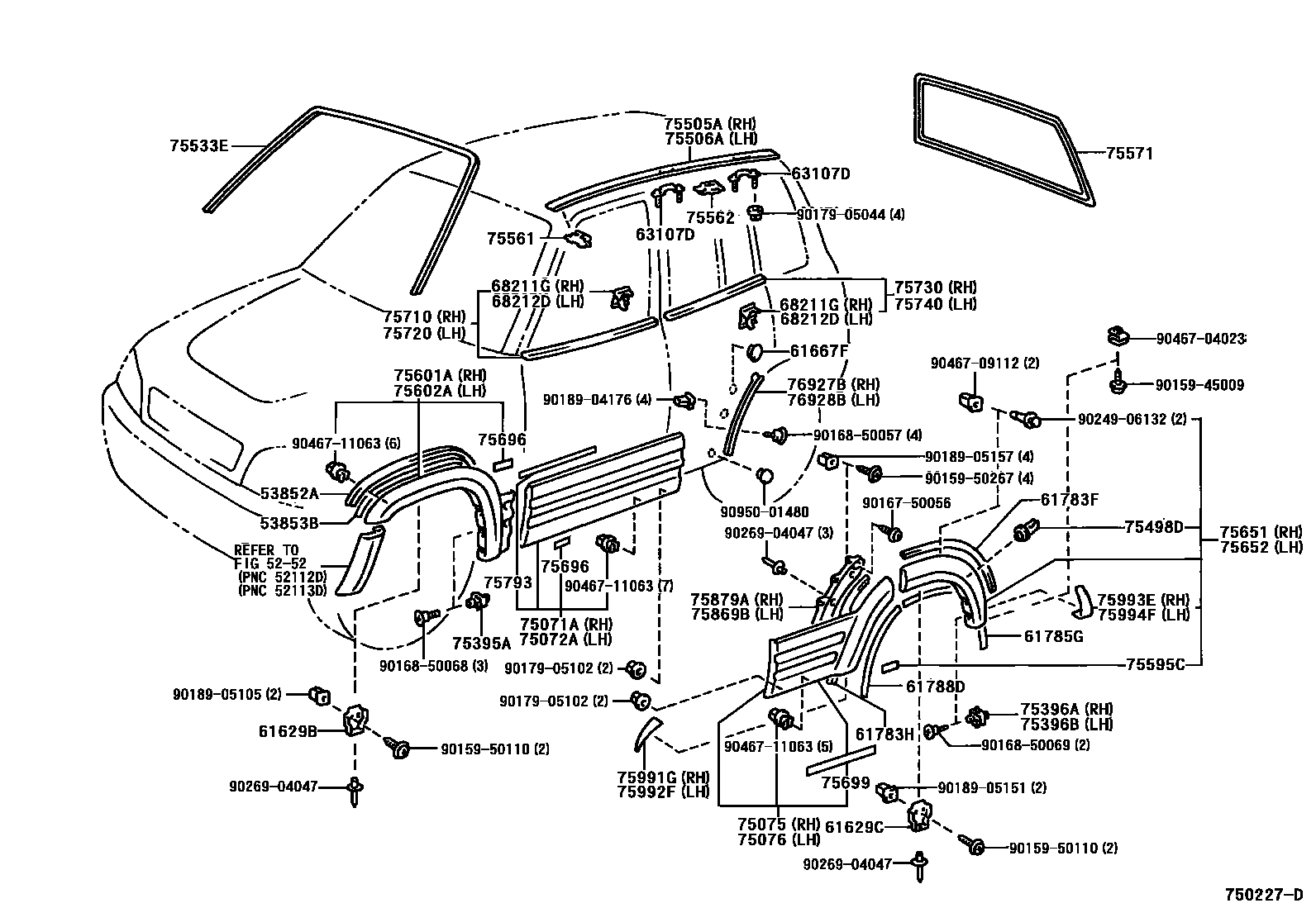

Toyota RAV4 防护条 — Figure 7552
Toyota RAV4 EPC diagram 7552, 防护条, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53853B | No. 1 front fender outer panel pad | 53853-42010 |
| 61629B | Rear side panel outer panel extension | 61629-42010 |
| 61629C | Rear side panel outer panel extension | 61629-42010 |
| 61667F | Side panel seals | 61667-42010 |
| 61785G | No. 3 rear fender outer panel pad | 61785-42010 · 61785-42020 |
| 61788D | No. 4 rear fender outer panel pad | 61788-42010 |
| 63107D | Roof protection strip bracket sub-assembly | 63107-42010 · 63107-42011 |
| 68211G | Clip (for right door belt line protection strip) | 68212-16010 |
| 68212D | Clip (for left door belt line protection strip) | 68212-16010 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-42011 · 75071-42021 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-42011 · 75072-42021 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-42011 · 75075-42900 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-42011 · 75076-42900 |
| 75395A | No. 1 outer protective strip clip | 75395-42010 |
| 75396A | No. 2 outer protective strip clip | 75396-42010 |
| 75396B | No. 2 outer protective strip clip | 75396-42010 |
| 75498D | No. 1 side panel decorative part clip | 75498-42010 |
| 75505A | Drainage groove side decorative strip sub-assembly on the right side of the roof | 75505-42010 · 75505-42020 · 75505-42030 |
| 75506A | Roof drain channel left decorative strip sub-assembly | 75506-42010 · 75506-42020 · 75506-42030 |
| 75533E | Windshield outer protective strip | 75533-42020 · 75533-42030 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-42020 |
| 75562 | No. 2 roof drain channel side decorative strip clip | 75562-42020 |
| 75571 | Protective strips on the outside of the rear window | 75573-42010 |
| 75595C | Side panel trim panel padding | 75595-42010 |
| 75601A | Right front fender protection strip sub-assembly | 75601-42011 · 75601-42900 |
| 75602A | Left front fender protection strip sub-assembly | 75602-42011 · 75602-42900 |
| 75651 | Right side outer protective strip | 75605-42900 · 75605-42901 · 75651-42011 · 75651-42020 |
| 75652 | Left side outer protective strip | 75606-42900 · 75606-42901 · 75652-42011 · 75652-42020 |
| 75695 | Side panel outer protective strip lining | 75695-42020 |
| 75696 | No. 1 body outer protective strip lining | 75696-42010 · 75696-42030 · 75697-42030 |
| 75699 | No. 4 body outer protective strip lining | 75699-42010 · 75699-42020 · 75699-42030 |
| 75710 | Right front door waistline protection strip assembly | 75710-42010 · 75710-42020 |
| 75720 | Left front door waistline protection strip assembly | 75720-42010 · 75720-42020 |
| 75730 | Right rear door waistline protection strip assembly | 75730-42010 |
| 75740 | Left rear door waistline protection strip assembly | 75740-42010 |
| 75793 | Front door outer upper protective strip lining | 75793-42020 |
| 75869B | Left side panel opening fixing | 75869-42010 |
| 75879A | Right side panel opening fixing | 75879-42010 |
| 75991G | Right front side panel | 75991-42010 · 75991-42020 |
| 75992F | Left front side panel | 75992-42010 · 75992-42020 |
| 75993E | Right rear side panel trim | 75993-42010 · 75993-42020 |
| 75994F | Left rear side panel | 75994-42010 · 75994-42020 |
| 76927B | Right rear fender protection strip | 76927-42010 |
| 76928B | Left rear fender protection strip | 76928-42010 |
