Toyota RAV4 徽标和铭牌 — Figure 7551

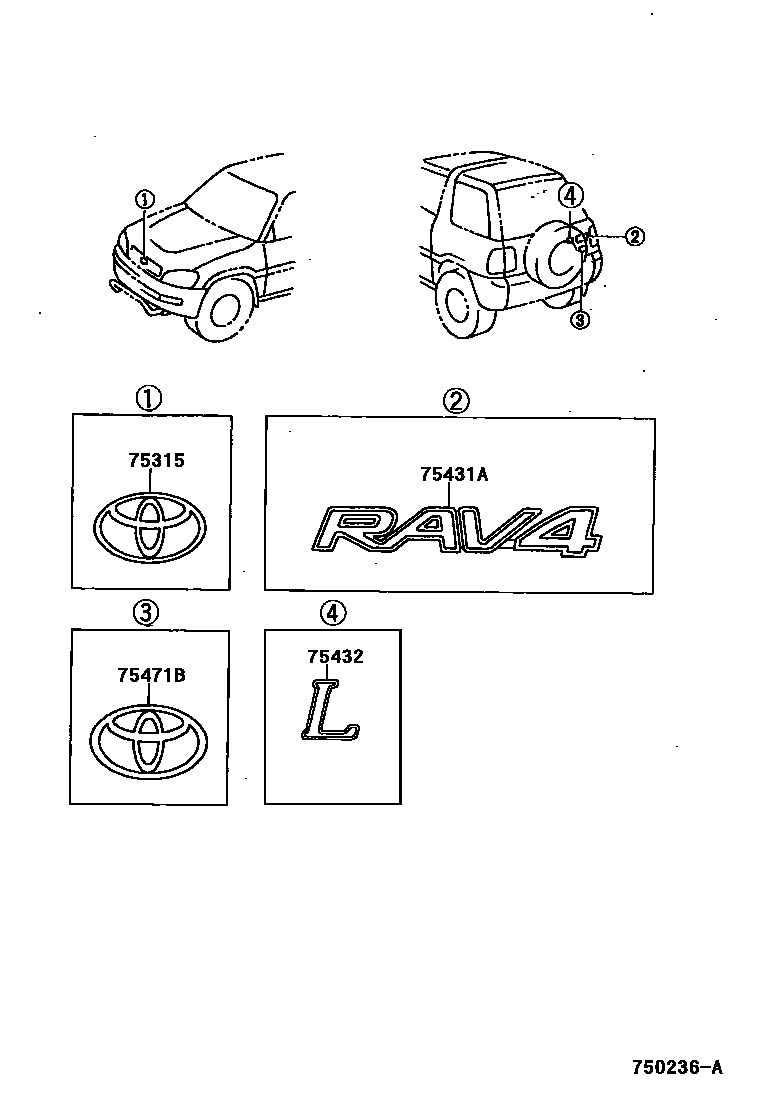

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75315 | Radiator grille trim | 75315-28010 |
| 75431A | No. 1 sign on back door | 75431-42010 |
| 75432 | No. 2 sign on back door | 75432-42020 |
| 75471B | No. 1 nameplate on rear body | 75471-13041 |
