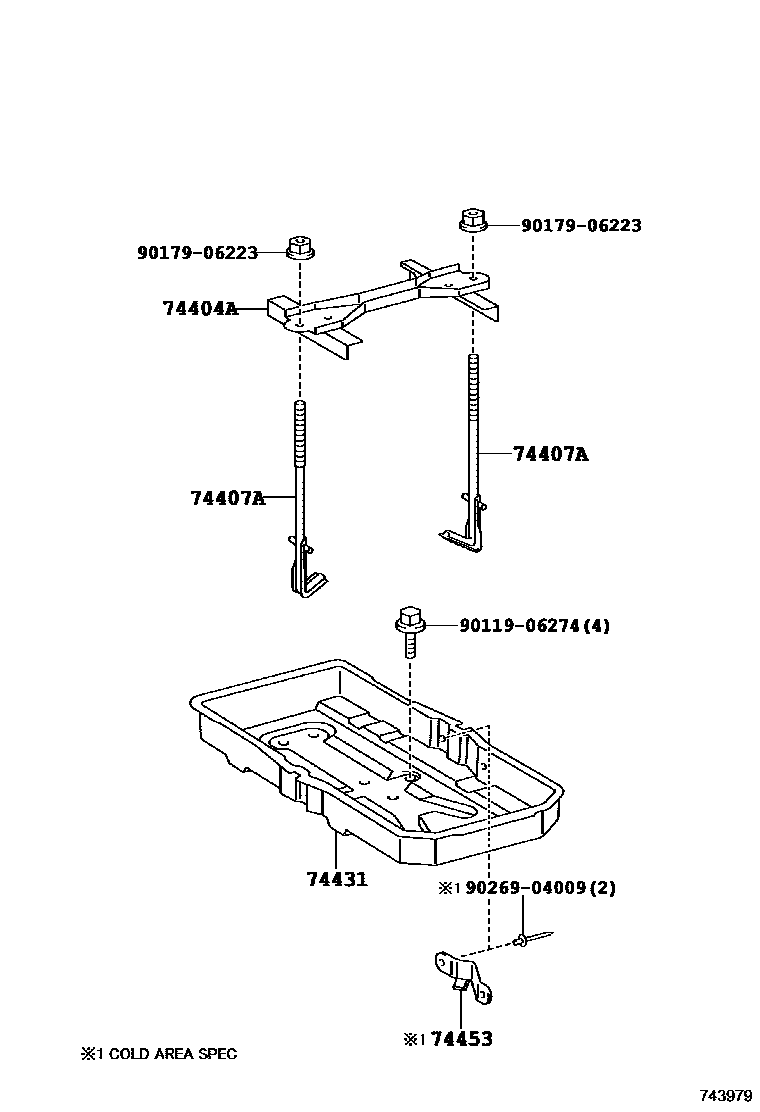

Toyota RAV4 battery holder — Figure 7454
Toyota RAV4 EPC diagram 7454, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-42020 · 74404-42030 |
| 74407A | Battery clamp bolt sub-assembly | 74407-42010 |
| 74431 | battery tray | 74431-42010 · 74431-42020 |
| 74453 | battery holder bracket | 74454-42010 |
