Toyota RAV4 前转向齿轮和连杆 — Figure 4505

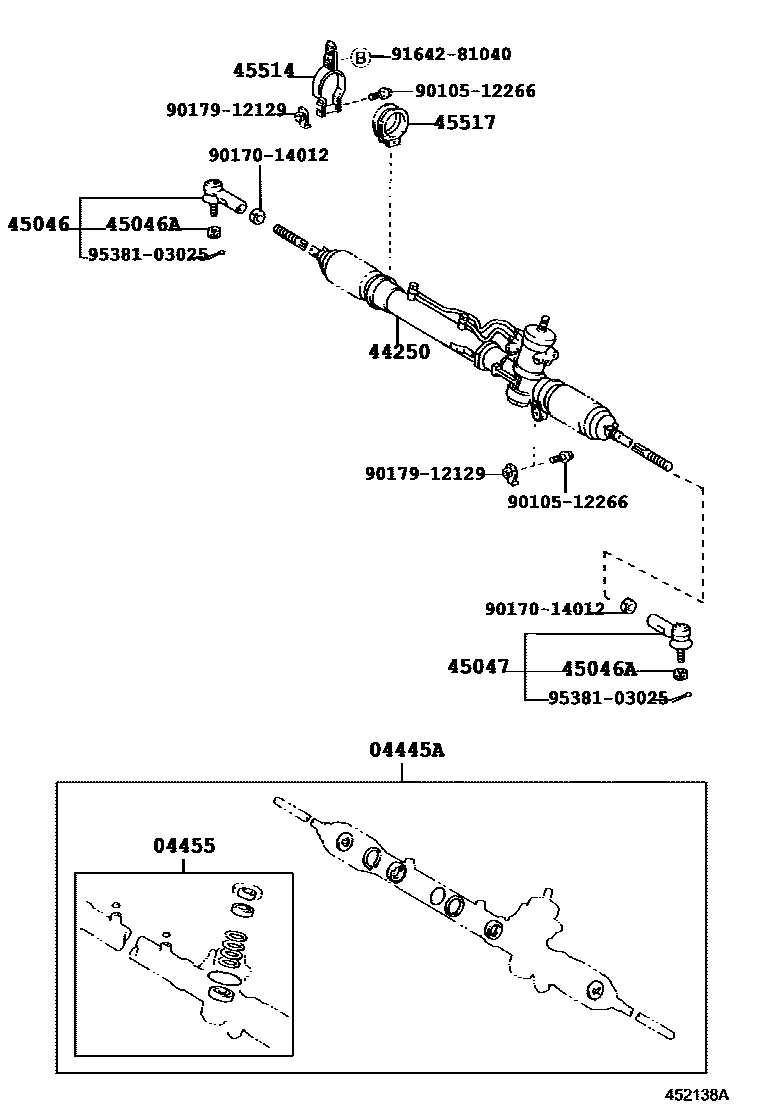

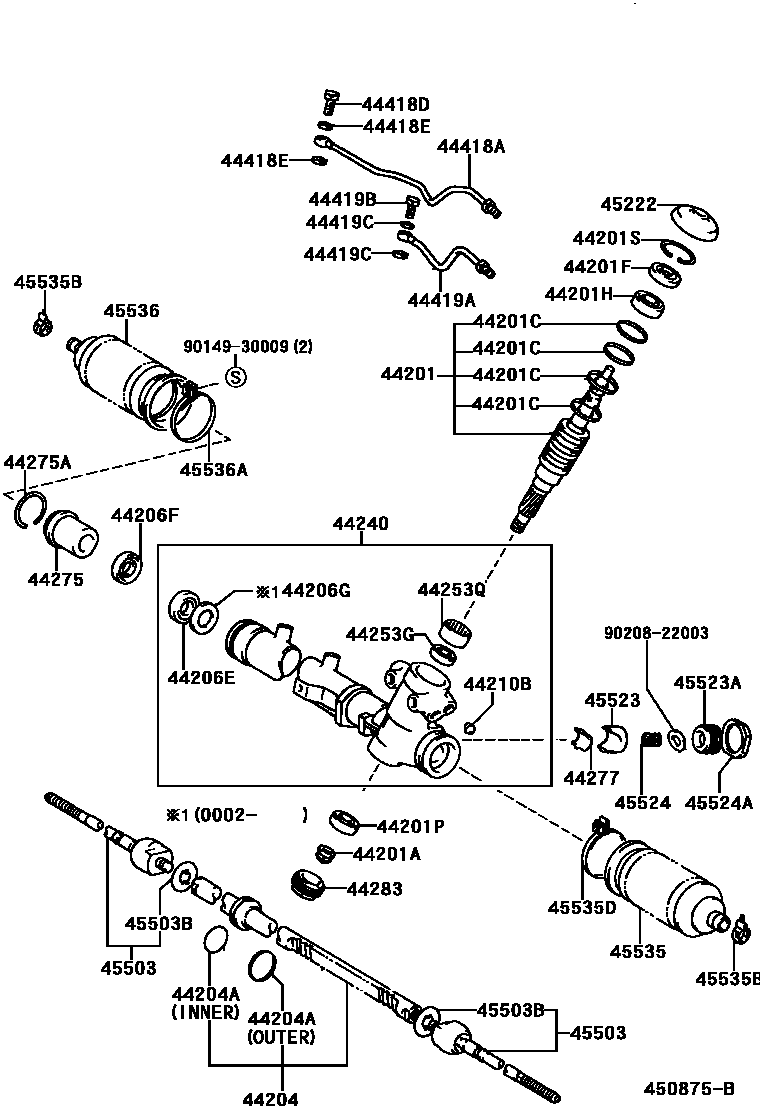

Toyota RAV4 EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-42020 · 04445-42040 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-12090 · 04455-42020 |
| 44201 | Power steering control valve sub-assembly | 44201-42021 · 44201-42040 |
| 44201A | Lock nut (for power steering control valve) | 90179-12098 |
| 44201C | Ring (for power steering control valve) | 90562-33002 |
| 44201F | Oil seal (for power steering control valve) | 90311-19007 |
| 44201H | Bearing (for upper power steering control valve) | 90369-19005 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12008 |
| 44201S | Snap ring (for power steering control valve) | 90521-41003 |
| 44204 | Power steering rack sub-assembly | 44204-42021 · 44204-42060 |
| 44204A | Ring (for steering rack piston) | 90301-33003 · 90562-37004 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-24009 · 90310-24012 |
| 44206F | No. 2 oil seal (for power steering cylinder barrel) | 90310-24009 · 90310-24012 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-24005 |
| 44210B | Connector seat (for power steering control valve) | 90410-06002 |
| 44240 | Power steering rack housing assembly | 44240-42020 · 44240-42040 · 44240-42060 · 44240-42080 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-42020 · 44250-42021 · 44250-42022 · 44250-42040 · 44250-42041 · 44250-42042 · 44250-42080 · 44250-42100 |
| 44253G | No. 2 oil seal (for power steering rack housing) | 90310-23005 |
| 44253Q | Bushing (for power steering rack housing) | 90389-28001 |
| 44275 | Cylinder end stop | 44275-12090 · 44275-42010 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-50002 |
| 44277 | Rack guide block seat | 44277-12040 |
| 44283 | Rack housing cover | 44283-12010 |
| 44418A | Right steering pressure oil pipe | 44418-42020 · 44418-42040 |
| 44418D | Connector bolt (for steering pressure oil pipe) | 90401-10021 |
| 44418E | Gasket (for steering pressure oil pipe) | 90430-10008 |
| 44419A | Left steering pressure oil pipe | 44419-42020 |
| 44419B | Connector bolt (for steering pressure oil pipe) | 90401-10021 |
| 44419C | Gasket (for steering pressure oil pipe) | 90430-10008 |
| 45046 | Right tie rod end sub-assembly | 45046-29305 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-29305 |
| 45222 | Steering gear dust cover | 45222-12021 · 45222-42010 |
| 45503 | Steering rack end sub-assembly | 45503-19215 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45514 | No. 1 steering rack housing bracket | 45514-42010 |
| 45517 | No. 2 steering rack housing seal | 45517-42010 |
| 45523 | Rack guide block (for steering gear) | 45053-12010 · 45523-12080 |
| 45523A | Spring (for steering gear rack guide block) | 90501-30015 · 90501-35040 |
| 45524 | Steering rack guide block spring cover | 45524-12041 · 45524-42010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-33003 |
| 45535 | No. 1 steering rack dust cover | 45535-12100 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19012 · 90467-19019 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-52001 |
| 45536 | No. 2 steering rack dust cover | 45535-12100 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-52001 |
