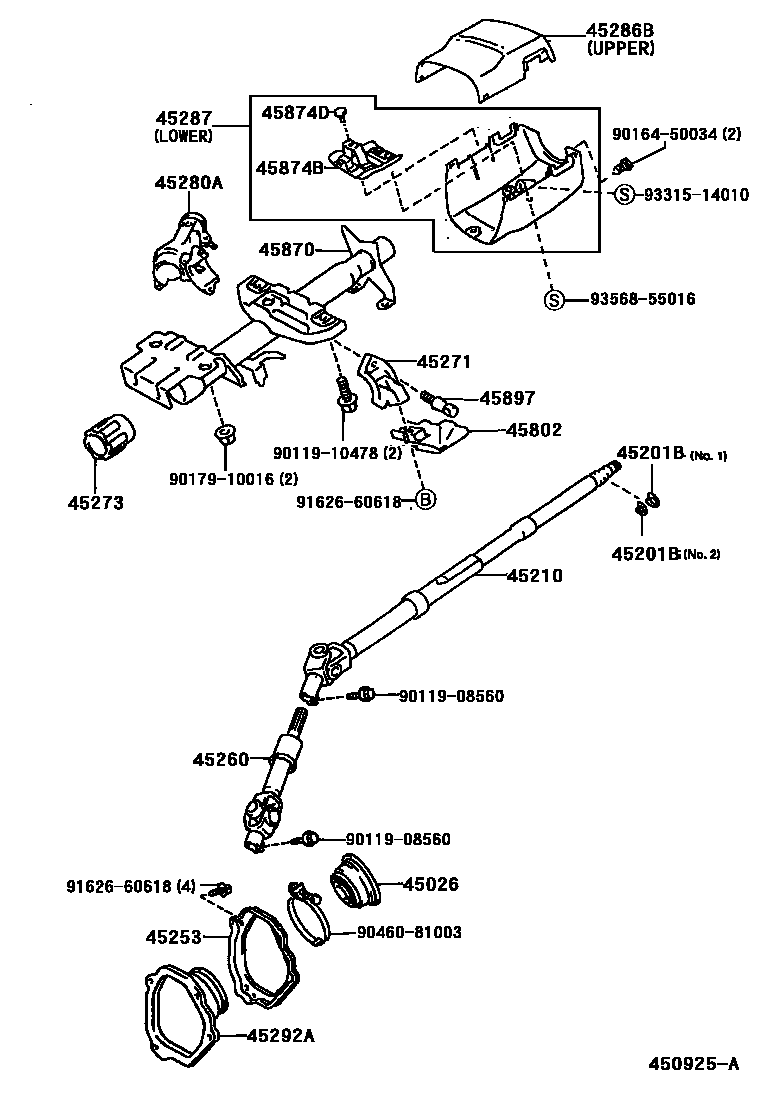

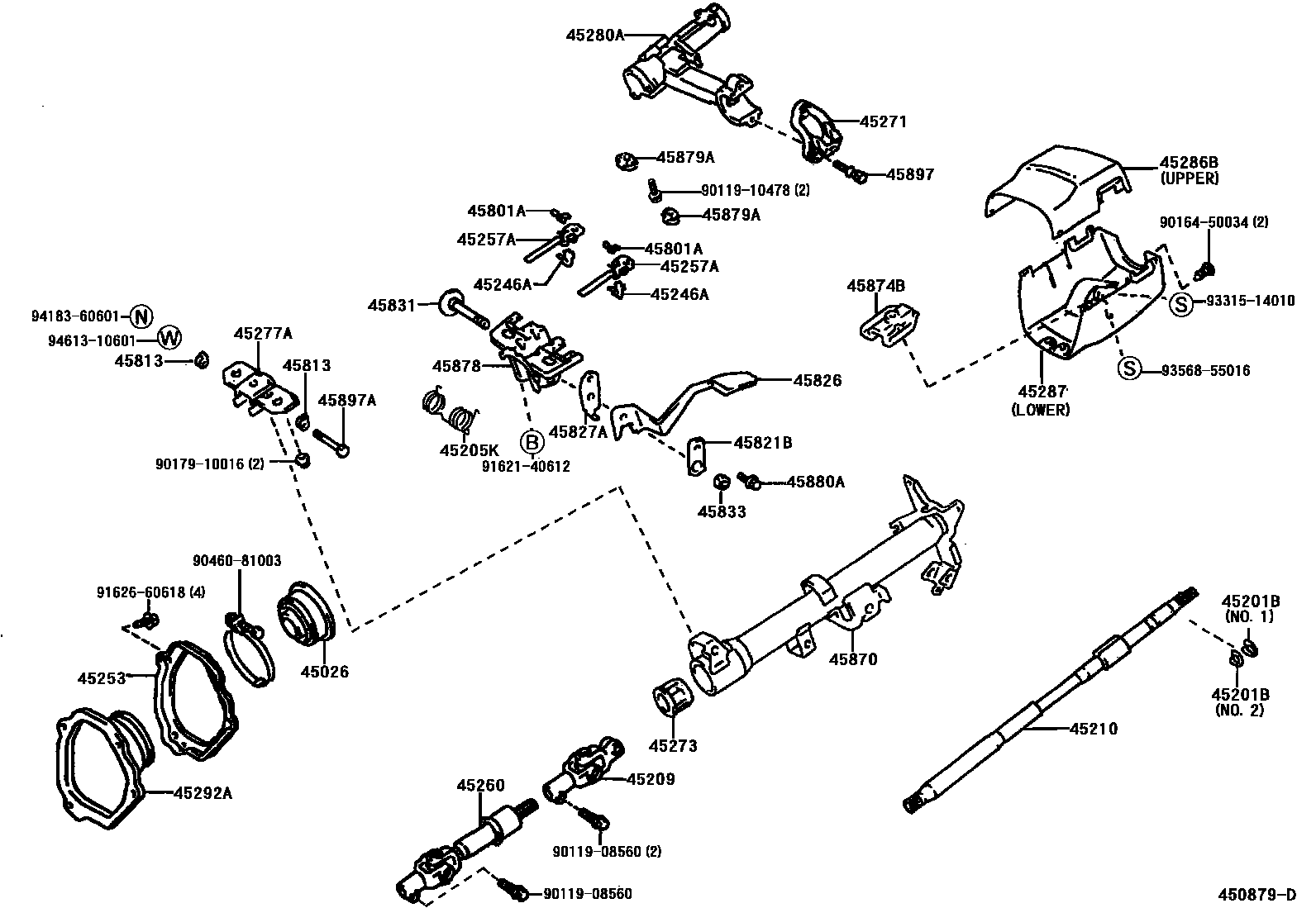

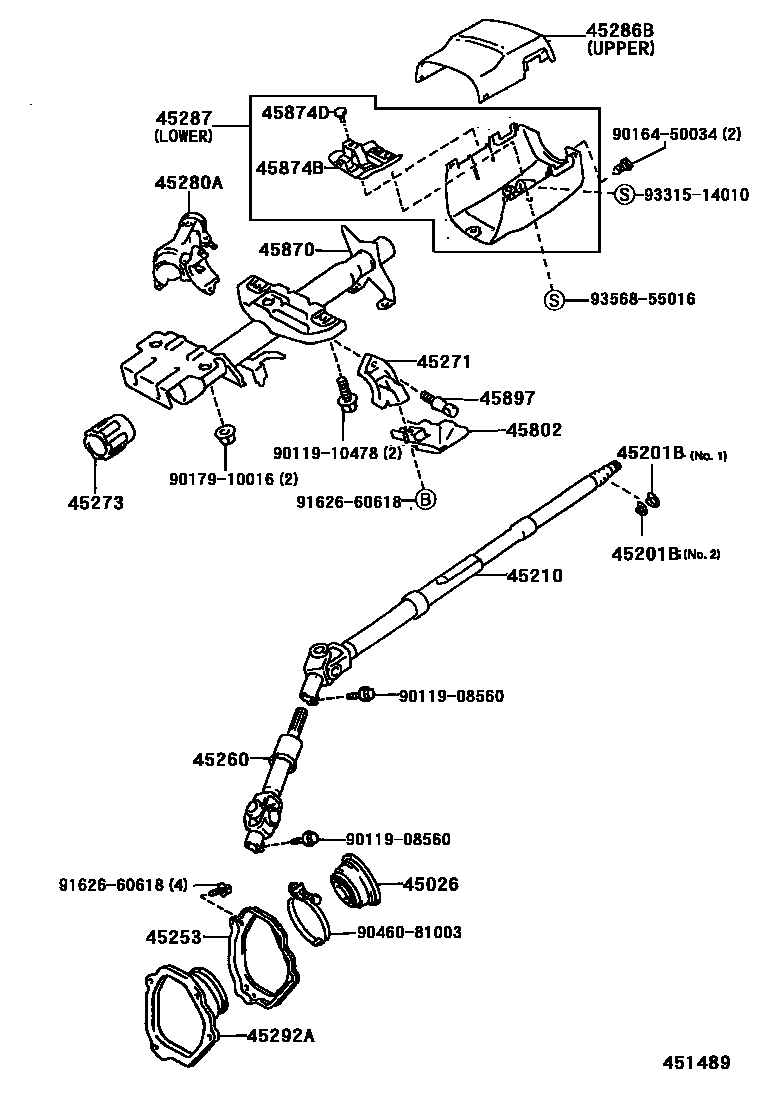

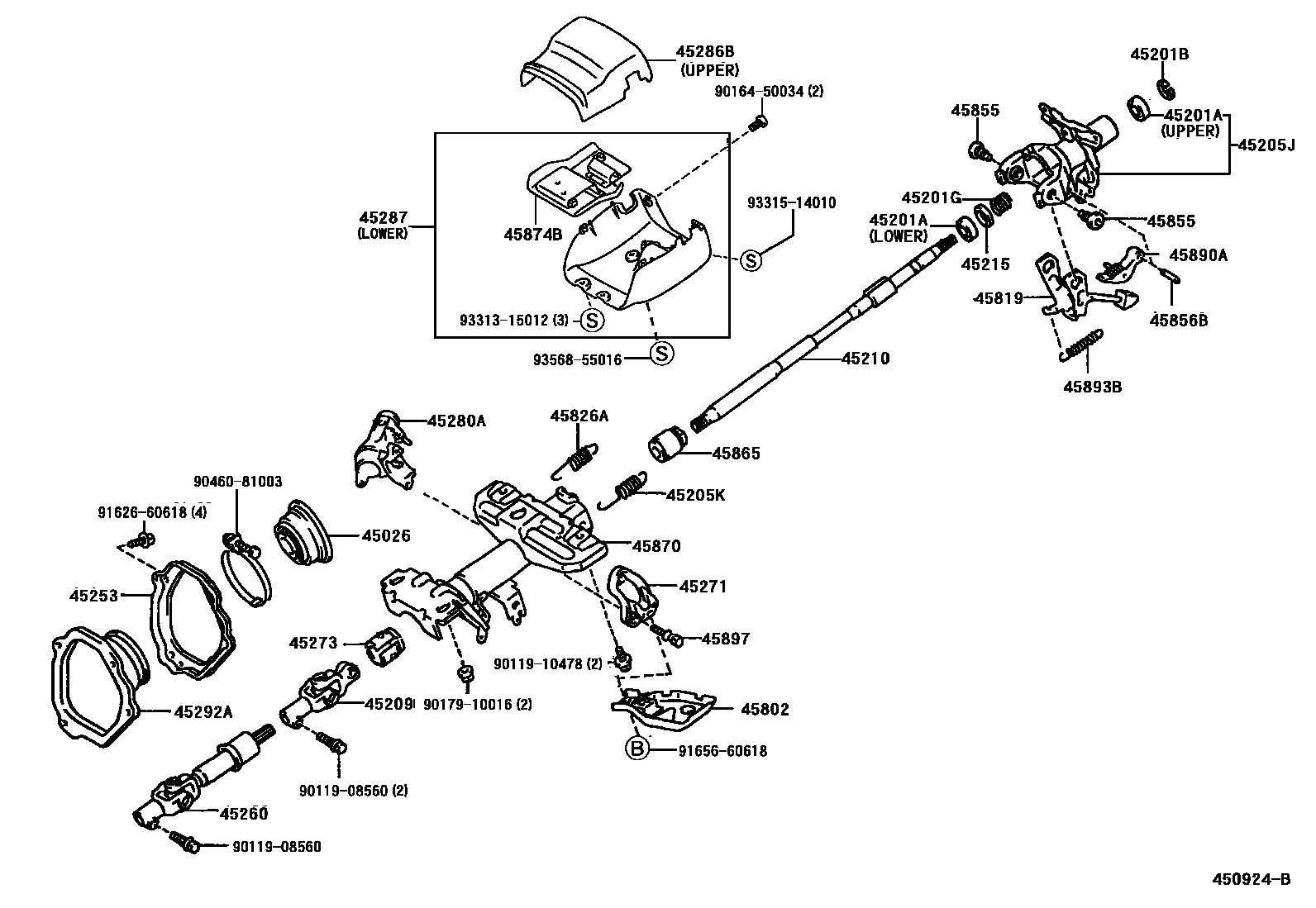

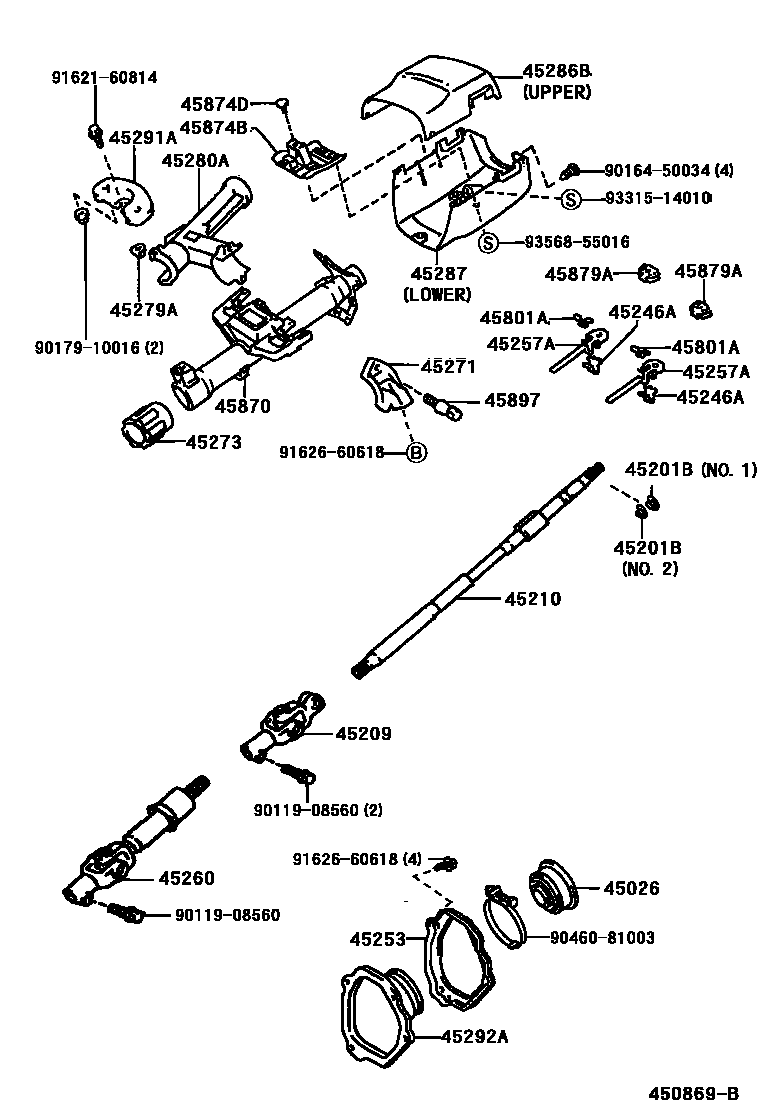

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 6 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-42010 · 45026-42020 |
| 45201A | Bearings (for steering spindle) | 90363-18005 · 90363-18009 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45205J | Steering column upper tube sub-assembly | 45205-42030 |
| 45205K | Spring (for steering column tube) | 90506-25004 · 90949-03027 · 90949-25004 |
| 45209 | Steering slip fork sub-assembly | 45209-32010 · 45209-44010 |
| 45210 | Steering spindle assembly | 45210-20260 · 45210-35170 · 45210-42010 · 45210-42011 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-12110 |
| 45253 | Steering column hole cover | 45253-42010 |
| 45257A | Steering column energy absorbing sheet | 45257-12070 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42030 · 45260-42050 |
| 45271 | Clamp on steering column | 45271-12070 · 45271-12080 · 45271-16020 |
| 45273 | Steering spindle bushing | 45273-16020 · 45273-20030 · 45273-20040 · 45273-20050 · 45273-38010 |
| 45277A | Tilt-adjustable steering bracket | 45277-12010 |
| 45279A | Steering column tube lower connecting piece | 45279-12040 |
| 45280A | Steering column upper bracket assembly | 45280-12331 · 45280-12332 · 45280-12341 · 45280-12342 · 45280-42050 · 45280-42060 · 45280-42070 · 45280-42080 |
| 45291A | Steering column tube bracket | 45291-50010 |
| 45292A | Dust cover under spindle | 45292-42010 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45802 | No. 1 steering column guard sub-assembly | 45802-12020 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-12010 |
| 45819 | Tilt adjustment lever retaining ring | 45819-42010 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-20020 |
| 45826 | Steering tilt adjustment lever | 45826-20180 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90506-25005 |
| 45827A | Steering tilt adjustment lever | 45827-12030 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-12020 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-12010 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45855-35010 |
| 45856B | No. 2 tilt-adjustable steering shaft | 45856-42010 |
| 45865 | Steering spindle collar | 45865-12060 |
| 45870 | Steering column tube assembly | 45205-12350 · 45205-42040 · 45870-42050 · 45870-42060 · 45870-42080 · 45870-42090 |
| 45874B | No. 1 steering column guard | 45874-42010 · 45874-42020 · 45874-42040 |
| 45874D | Cushion pad (for steering column guard) | 90541-06008 |
| 45878 | Steering column upper bracket | 45878-12220 |
| 45879A | Separate enclosure | 45879-12050 |
| 45880A | Bolt (for steering tilt adjustment lever) | 45832-12010 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-35010 |
| 45893B | Tension spring (for tilt-adjustable steering pawl stop) | 90905-07013 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-12040 |
