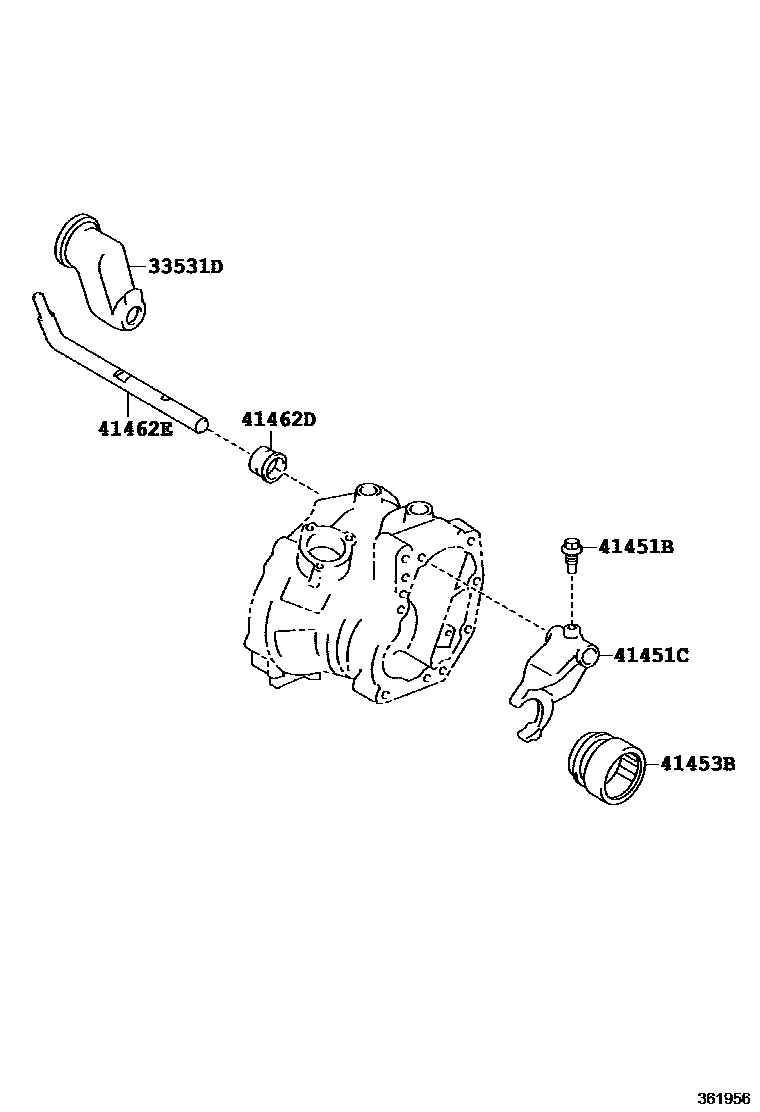

Toyota RAV4 Transfer Lever & Shift Fork Shaft — Figure 3611
Toyota RAV4 EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33531D | Dust boot (for differential lock shift fork shaft) | 33531-12010 |
| 41451B | Bolt (for differential lock shift fork) | 90105-06094 |
| 41451C | Differential lock shift fork | 41451-12010 |
| 41453B | Differential lock sleeve | 41453-12010 |
| 41462D | Oil seal (for differential lock shift fork shaft) | 90311-14007 |
| 41462E | Differential lock shift fork shaft | 41462-12010 |
