Toyota RAV4 阀体和滤油网(ATM) — Figure 3512

Toyota RAV4 EPC diagram 3512, 阀体和滤油网(ATM), with 15 images and 203 PNC and OE references.

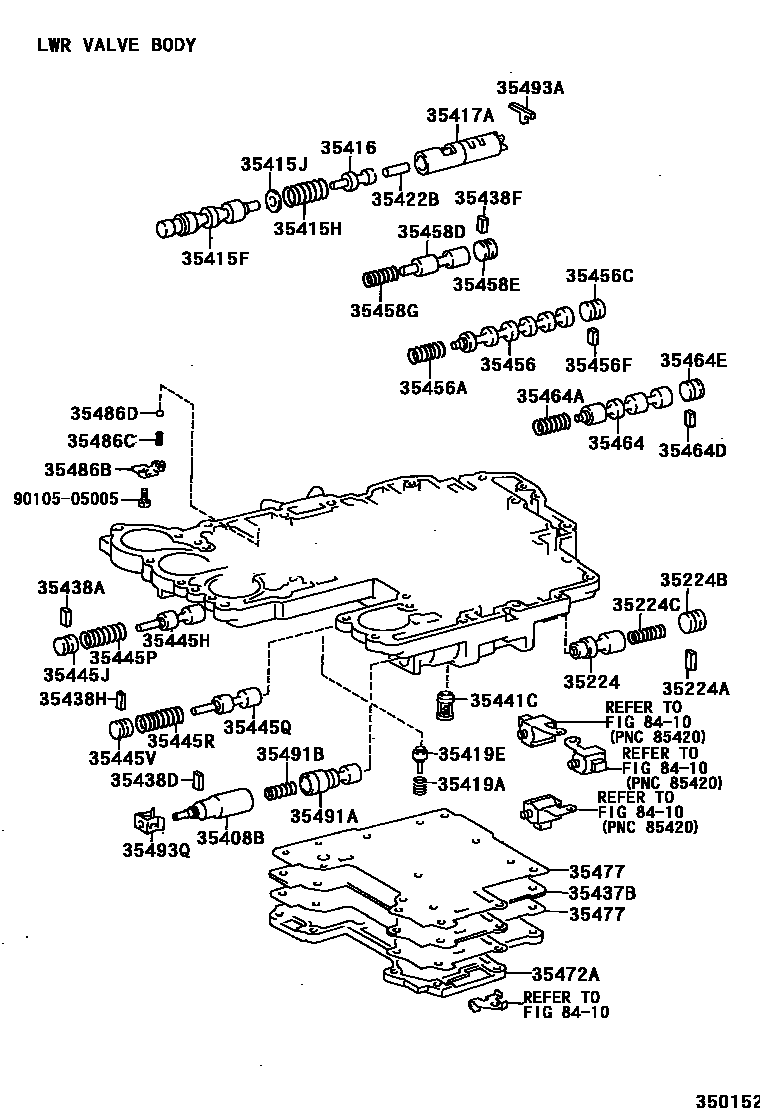

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 350152
阀体和滤油网(ATM) — 350152 (199709 – 999999)
Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 350154
阀体和滤油网(ATM) — 350154 (199709 – 999999)

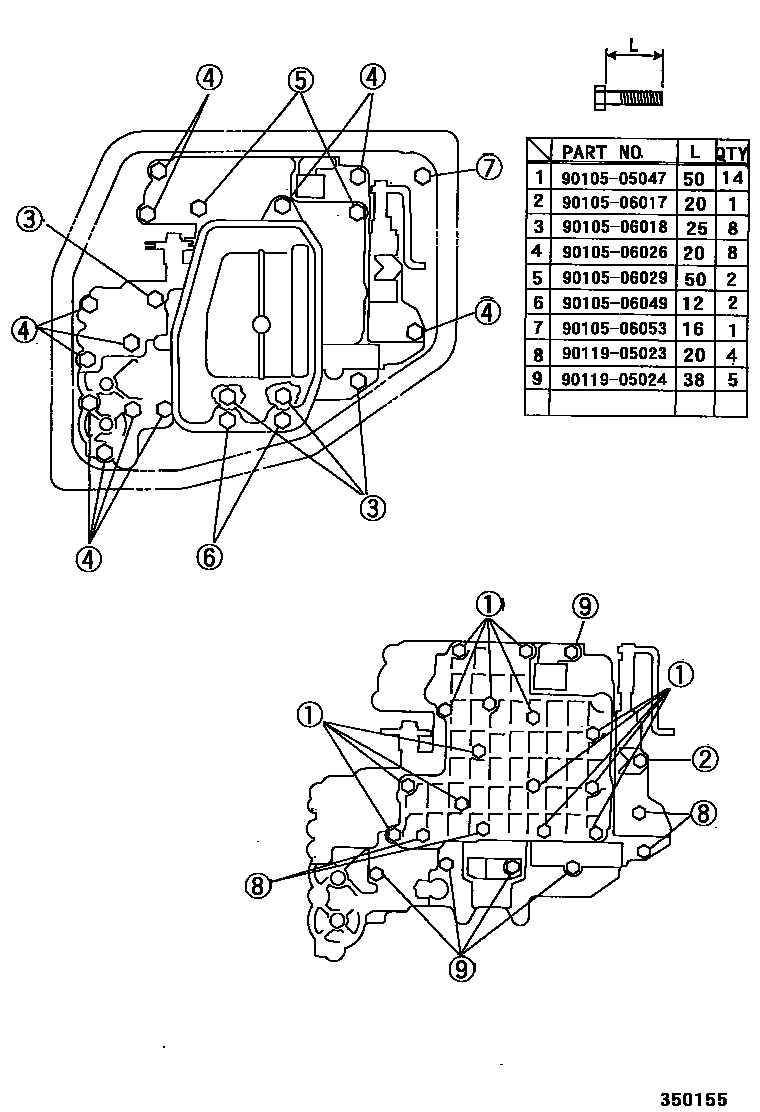

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 350155
阀体和滤油网(ATM) — 350155 (199709 – 999999)

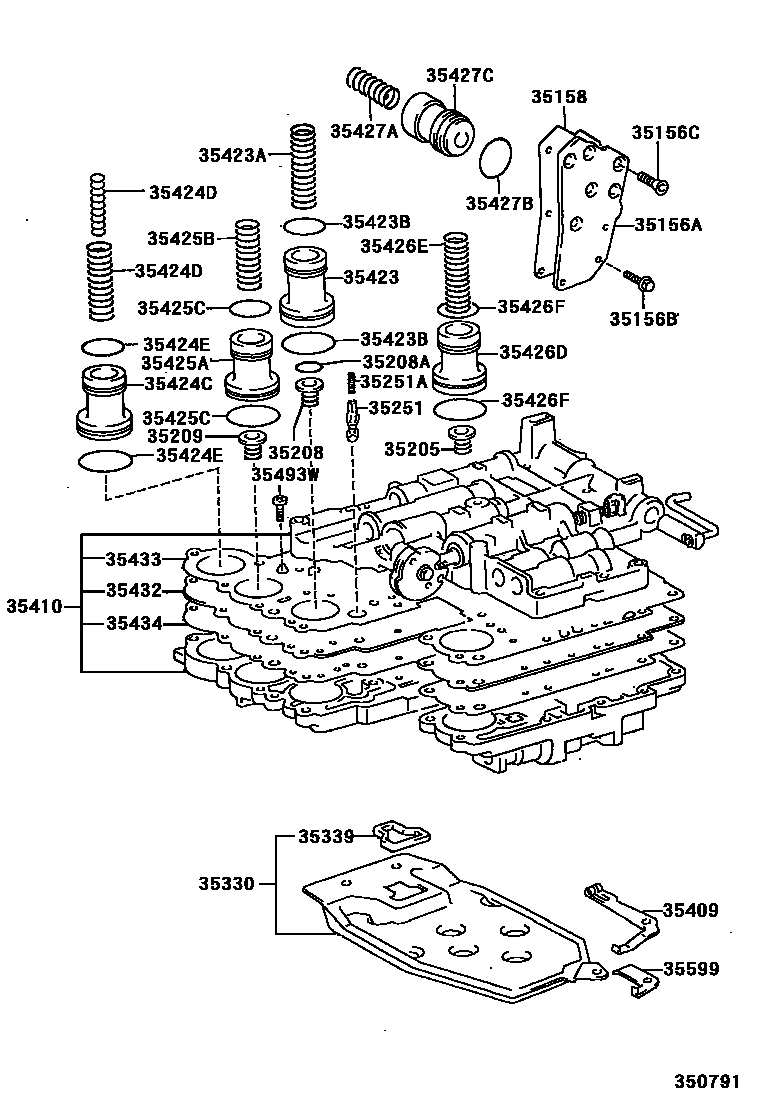

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 350791
阀体和滤油网(ATM) — 350791 (199709 – 999999)

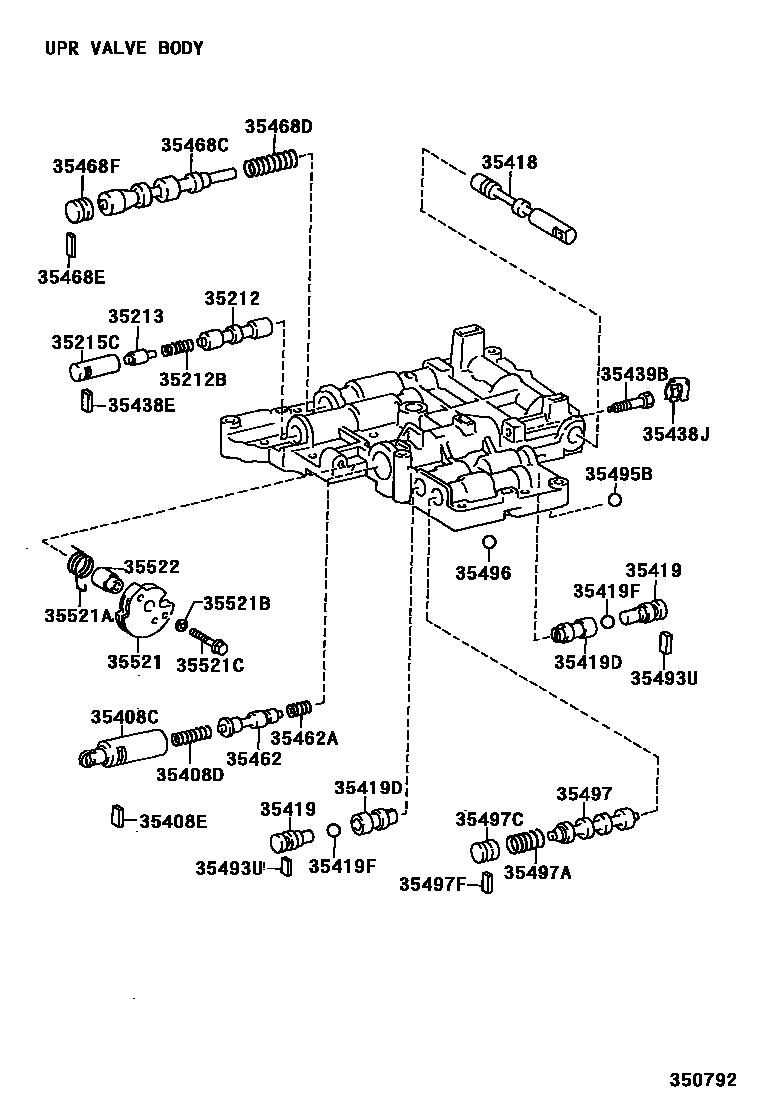

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 350792
阀体和滤油网(ATM) — 350792 (199709 – 999999)

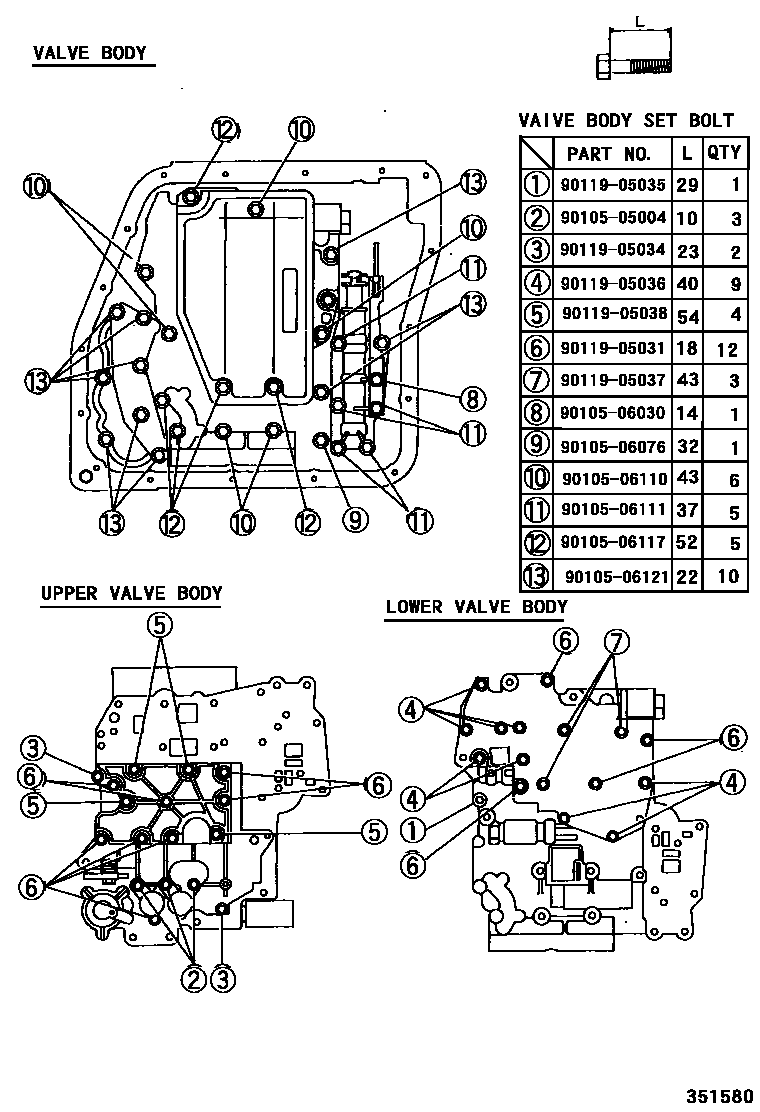

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 351580
阀体和滤油网(ATM) — 351580 (199511 – 999999)

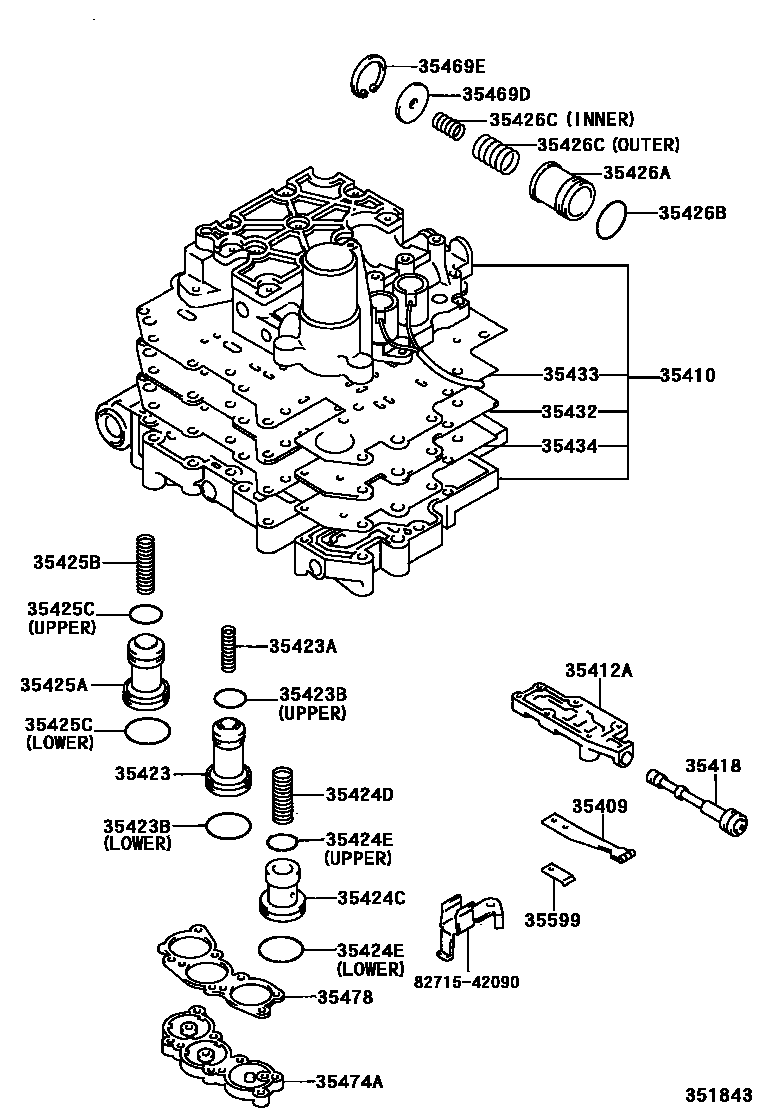

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 351843
阀体和滤油网(ATM) — 351843 (199511 – 999999)

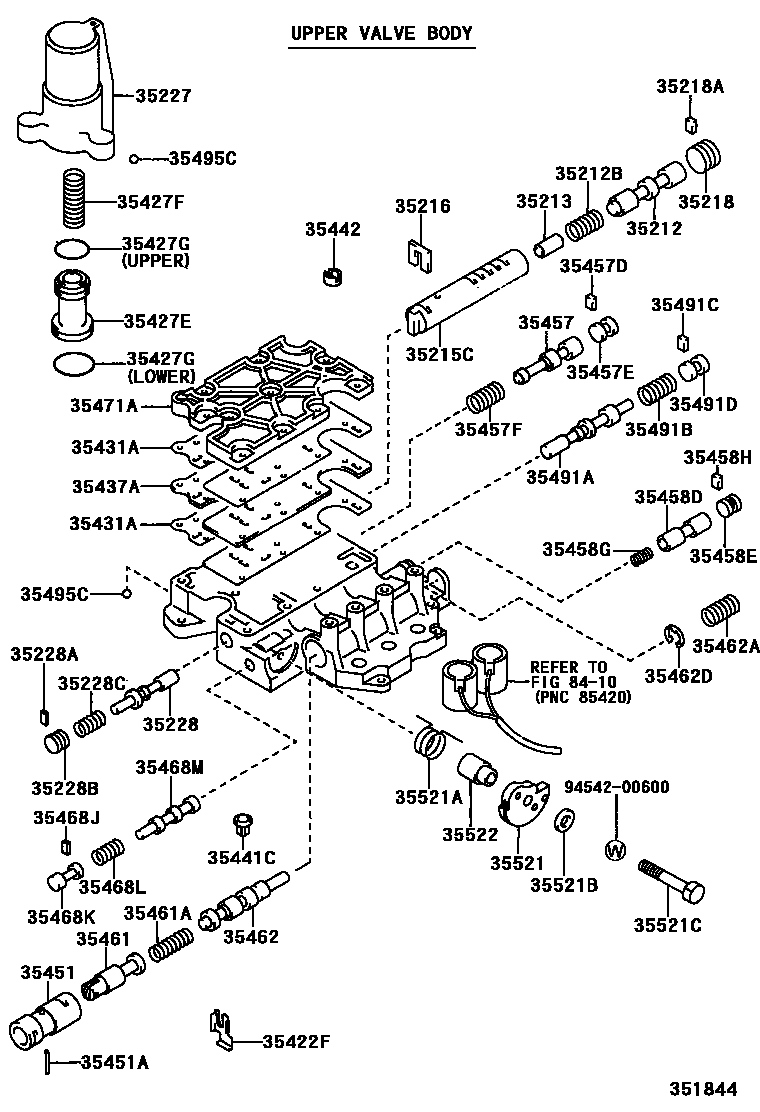

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 351844
阀体和滤油网(ATM) — 351844 (199511 – 999999)

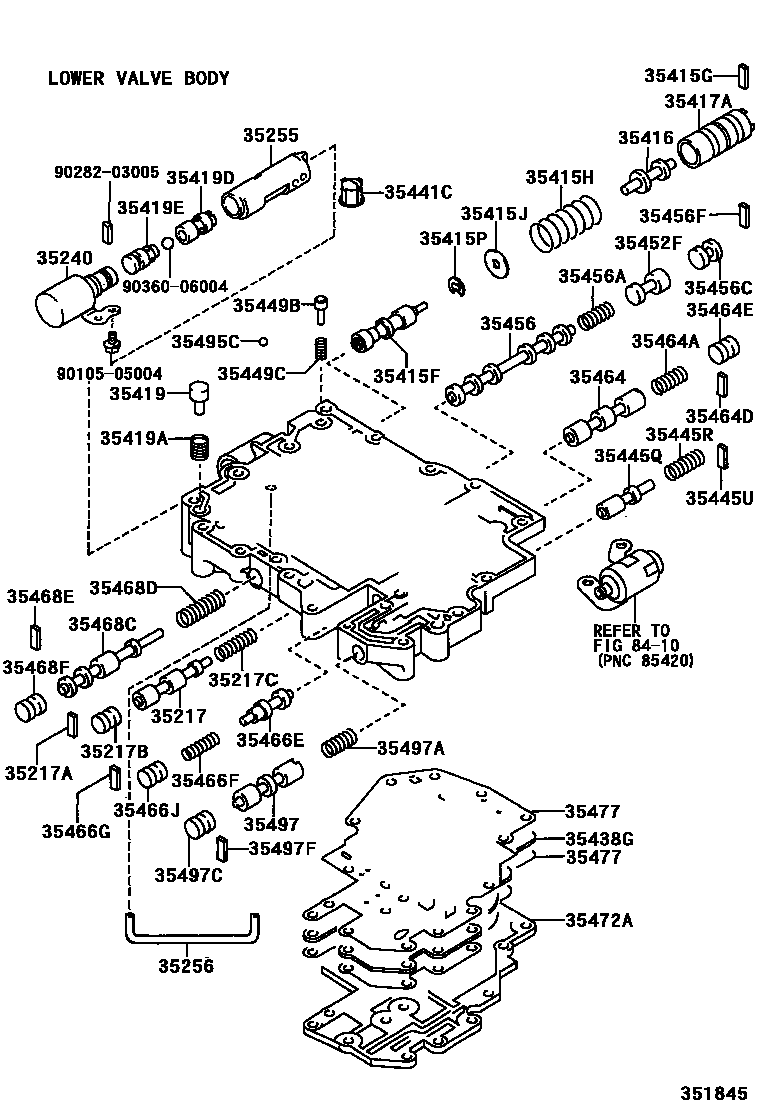

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 351845
阀体和滤油网(ATM) — 351845 (199511 – 999999)
Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 351846
阀体和滤油网(ATM) — 351846 (199511 – 999999)

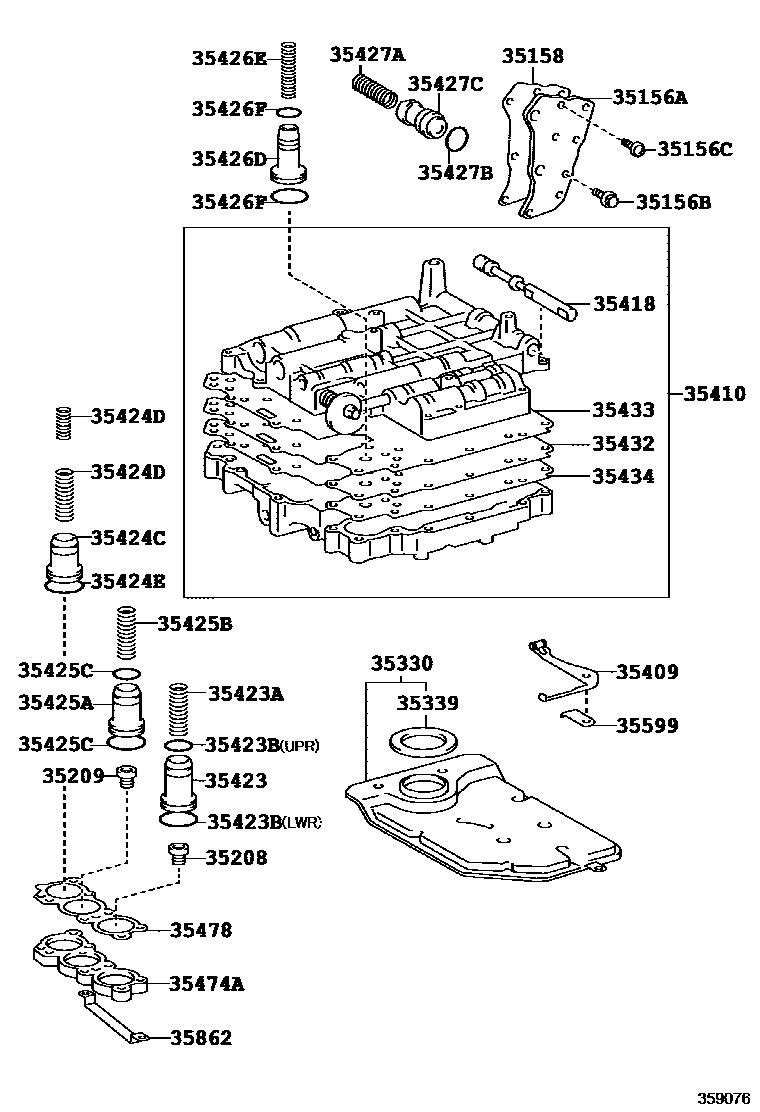

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 359076
阀体和滤油网(ATM) — 359076 (199602 – 199709)
Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 359077
阀体和滤油网(ATM) — 359077 (199602 – 199709)
Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 359078
阀体和滤油网(ATM) — 359078 (199602 – 199709)
Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 359079
阀体和滤油网(ATM) — 359079 (199602 – 199709)

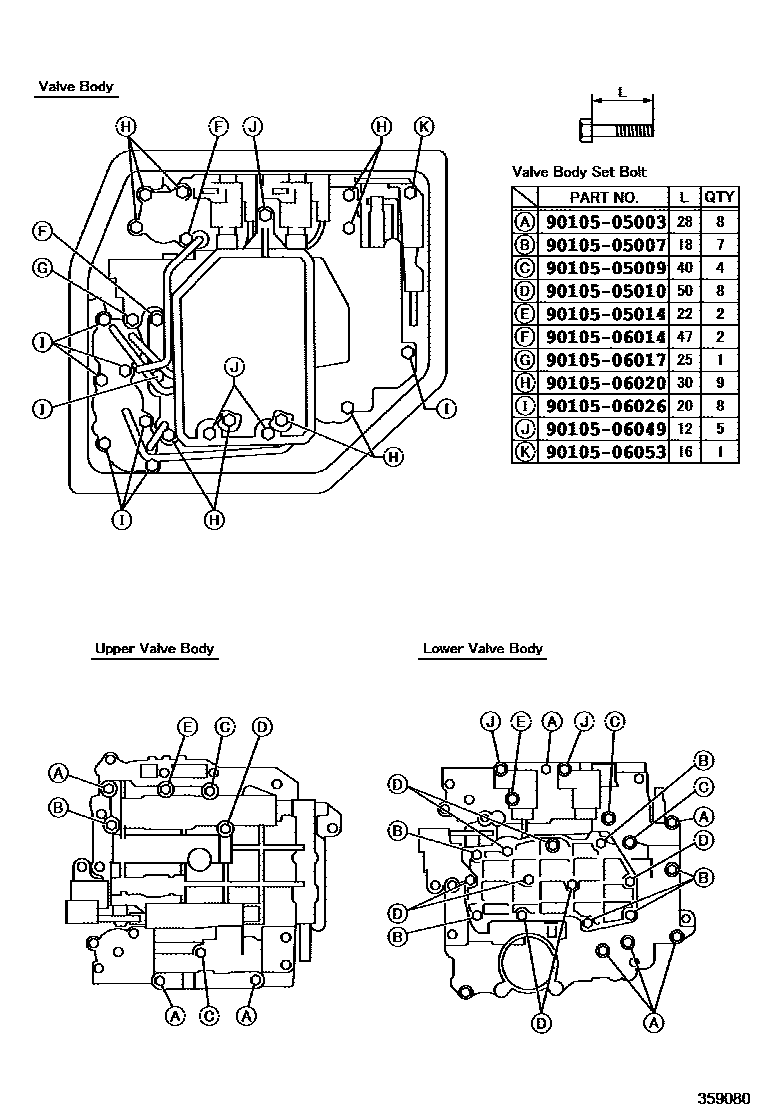

Toyota RAV4 阀体和滤油网(ATM) EPC diagram — 359080
阀体和滤油网(ATM) — 359080 (199602 – 199709)

PNC and OE references

PNCPart nameOE numbers
35156ANo. 2 gearbox block35156-20010
35156BBolt (for gearbox block No. 2)90105-06049
35156CBolt (for gearbox block No. 2)90149-60041
35158No. 2 gearbox shield gasket35158-20020

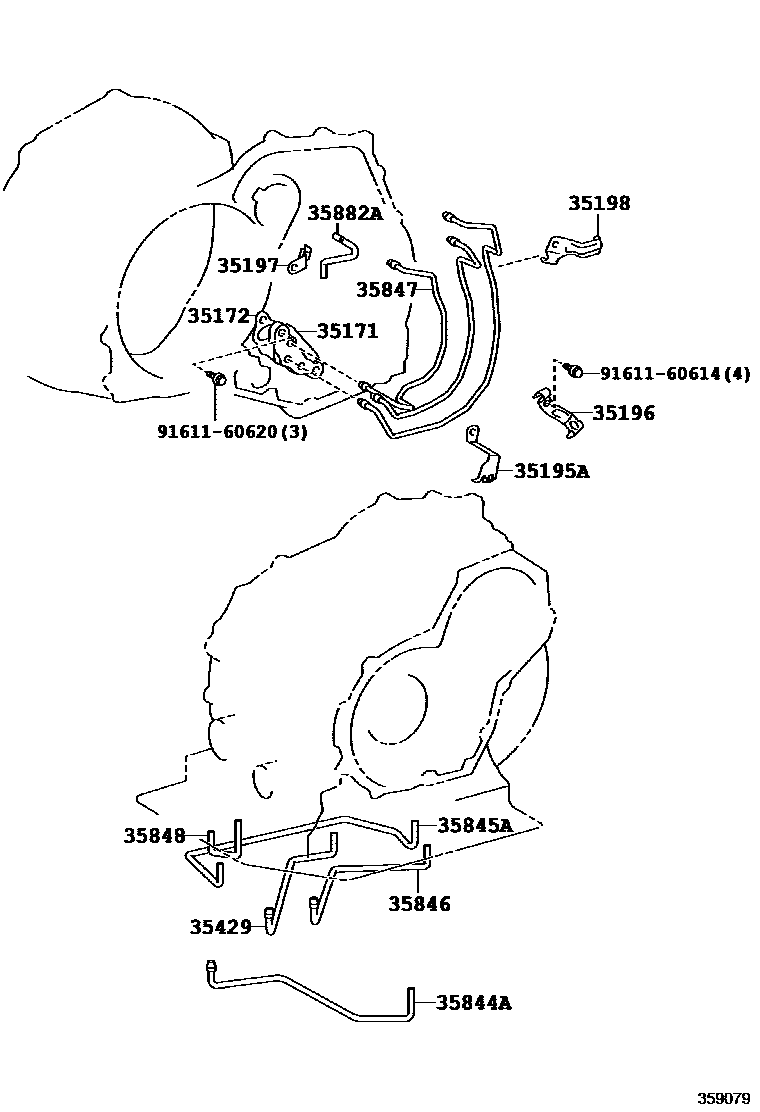

35171Transmission axle housing cover35171-12010
35172Transaxle housing cover gasket35172-12010

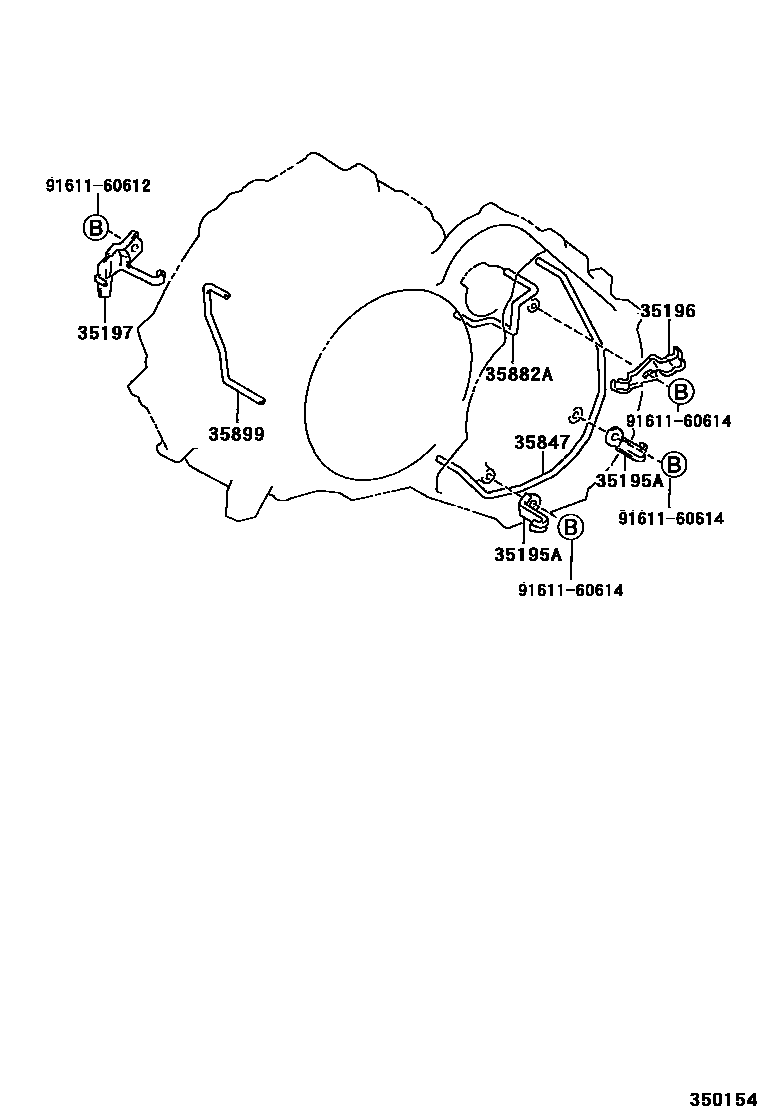

35195ANo. 1 transmission axle fuel supply pipe clamp35195-12010 · 35195-12030
35196No. 2 transmission axle fuel supply pipe clamp35196-12010 · 35196-12030
35197No. 3 transmission axle oil supply pipe clamp35197-12010 · 35197-12030
35198No. 4 transmission axle oil supply pipe clamp35198-20010
35205C-3 Accumulator Spring Sub-Assembly35205-20010
35208B-2 Accumulator Spring Sub-Assembly35205-16020 · 35205-20040
35208AHole snap ring (for B-2 accumulator spring)90521-22004
35209C-2 Accumulator spring sub-assembly35209-20010 · 35209-20030
35211lock signal valve35211-32020
35211BCompression spring (for locking signal valve)90501-07028
35211CStraight key (for locking signal valve)90282-03002
35212lock relay valve35212-12010 · 35212-32010
35212BCompression spring (for locking relay valve)90501-05010 · 90501-07023 · 90501-16077
35213Lock relay control valve35213-12010 · 35213-12020 · 35213-32010
35215BDirect pin (for locking relay valve sleeve)90250-03038
35215CNo. 1 locking relay valve sleeve35215-12021 · 35215-12040 · 35215-32010
35216Valve sleeve stop35216-32020
35217No. 2 accumulator control valve35217-32010
35217AStraight key (for No. 2 accumulator control valve)90282-03017
35217BPlunger (for No. 2 accumulator control valve)90339-04003
35217Ccompression spring90501-06034
35218Lock relay valve plunger35218-32010
35218AStraight key (for locking the relay valve plunger)90282-03011
35219Lock signal valve plunger90339-04002
35224reverse gear control valve35224-50010
35224AStraight key (for reverse gear control valve)90282-03002
35224BPlunger (for reverse control valve)90339-05020
35224CCompression spring (for reverse control valve)90501-06056
35227B-0 accumulator cylinder35227-32011
35228Second gear regulator valve35228-32010
35228AStraight key (for second-speed regulator valve)90282-03011
35228BPlunger (for second-speed regulator valve)90339-04025
35228CCompression spring (for second-speed regulator valve)90501-09122
35240Automatic transmission three-way solenoid valve assembly35240-42010
35251Ball check valve body35251-30020
35251ACompression spring (for ball check valve body)90501-03005
35255One-way valve sleeve35255-42010
35256One-way valve oil supply pipe35256-42010
35330Valve body oil filter assembly35330-12020 · 35330-12030 · 35330-32031

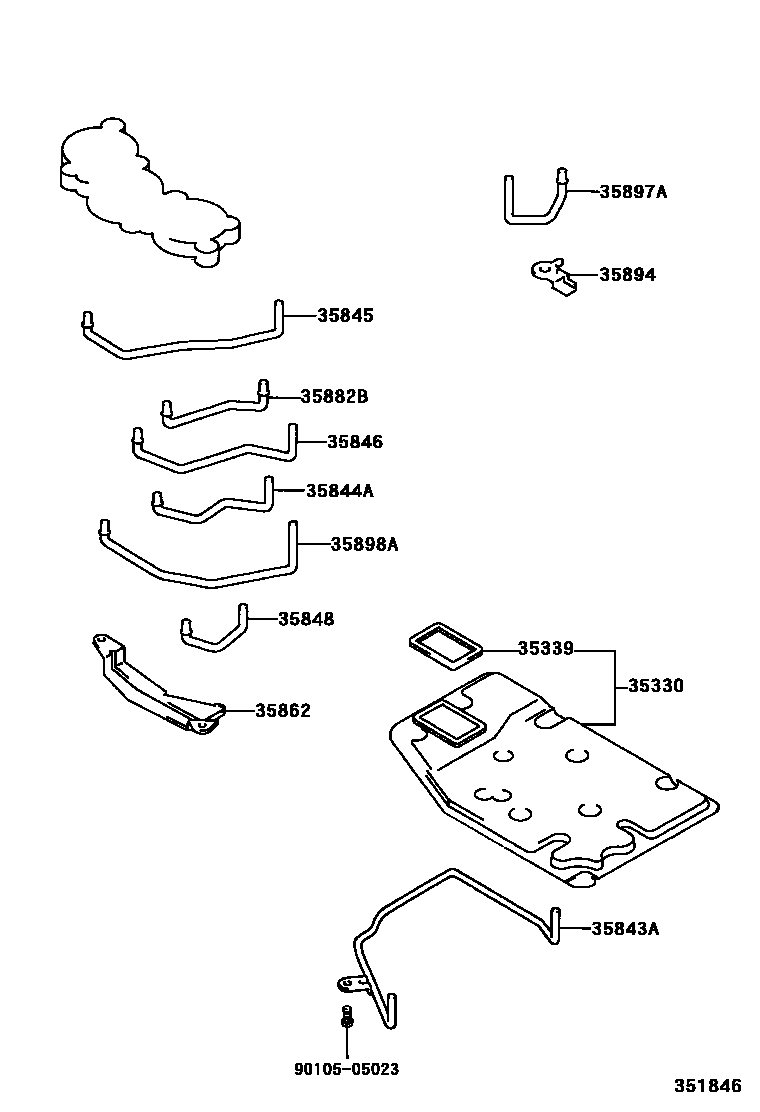

35339Oil filter gasket35339-12010 · 35339-12020 · 35339-32020
35408BAccumulator control valve plunger sub-assembly35408-50010
35408CThrottle valve plunger sub-assembly35408-12010
35408DCompression spring (for throttle plunger)90501-10119
35408EStraight key (for throttle plunger)90282-03015
35409Manual lock spring sub-assembly35409-12030 · 35409-20010 · 35409-32030
35410Transmission valve body assembly35410-20391 · 35410-20440 · 35410-20441 · 35410-42011
35412AManual valve body35412-32020
35415FMain regulator valve35415-12020 · 35415-12030 · 35415-32024 · 35415-32025
35415GStraight key (for main regulator valve)90282-03017
35415HCompression spring (for main regulator valve)90501-14117 · 90501-16077 · 90501-16120
35415JGasket (for main regulator valve)90201-08021 · 90201-08067 · 94614-10600
35415PE-ring (for main regulator valve)90523-06004
35416No. 1 main regulator valve plunger35416-17010 · 35416-32031 · 35416-50010
35417AMain regulator valve sleeve35417-12020 · 35417-12030 · 35417-32032
35417BDirect sales (for main regulator valve sleeve)90250-03038
35418Manual valve35418-12020 · 35418-12030 · 35418-32010
35418ADirect sales (for manual valves)90250-02007
35418BPlunger (for manual valve)90339-04007
35419No. 1 one-way valve35419-12030 · 35419-32010 · 35419-50020
35419ACompression spring (for one-way valve)90501-08139 · 90501-10056 · 90501-10079
35419DNo. 2 one-way valve35419-50030
35419ENo. 3 one-way valve35419-50010 · 35419-50020
35419FOne way valve ball90360-06004
35422BNo. 2 main regulator valve plunger35422-50011
35422FValve damping stop35422-22010 · 35422-32020
35423B-2 Accumulator Piston35403-33010 · 35423-12010 · 35423-20030
35423ACompression spring (for B-2 accumulator piston)90501-23102 · 90501-23125 · 90501-25031
35423BO-ring (for B-2 accumulator piston)90301-21006 · 90301-22185 · 90301-29187 · 90301-30005
35424CC-1 Accumulator Piston35424-12030 · 35424-20030 · 35424-32021
35424DCompression spring (for C-1 accumulator piston)90501-19026 · 90501-20136 · 90501-23127 · 90501-24027 · 90501-29028
35424EO-ring (for C-1 accumulator piston)90301-23194 · 90301-29187 · 90301-30005 · 90301-36006
35425AC-2 Accumulator Piston35405-32010 · 35425-20020 · 35425-20040
35425BCompression spring (for C-2 accumulator piston)90501-20094 · 90501-22018 · 90501-24028
35425CO-ring (for C-2 accumulator piston)90301-23194 · 90301-25002 · 90301-26190 · 90301-29187 · 90301-34007
35426AC-0 Accumulator Piston35426-32020
35426BO-ring (for C-0 accumulator piston)90301-30005
35426CCompression spring (for C-0 accumulator piston)90501-26036 · 90501-29019
35426DC-3 Accumulator Piston35426-12030 · 35426-20040
35426ECompression spring (for C-3 accumulator piston)90501-23129 · 90501-24024
35426FO-ring (for C-3 accumulator piston)90301-20002 · 90301-22185 · 90301-29187
35427ACompression spring (for B-4 accumulator piston)90501-26040 · 90501-26078
35427BO-ring (for B-4 accumulator piston)90301-22185
35427CB-4 Accumulator Piston35427-12010 · 35427-13010
35427EB-0 accumulator piston35401-32011
35427FCompression spring (for B-0 accumulator piston)90501-17023
35427GO-ring (for B-0 accumulator piston)90301-20002 · 90301-25002
35429pipeline pressure oil pipe35429-12030
35431AUpper body cover gasket35431-32023
35432No. 1 valve body plate35432-20310 · 35432-20330 · 35432-42011
35433No. 1 valve body gasket35433-12050 · 35433-16030 · 35433-42010
35434No. 2 valve body gasket35434-12030 · 35434-16030 · 35434-42010

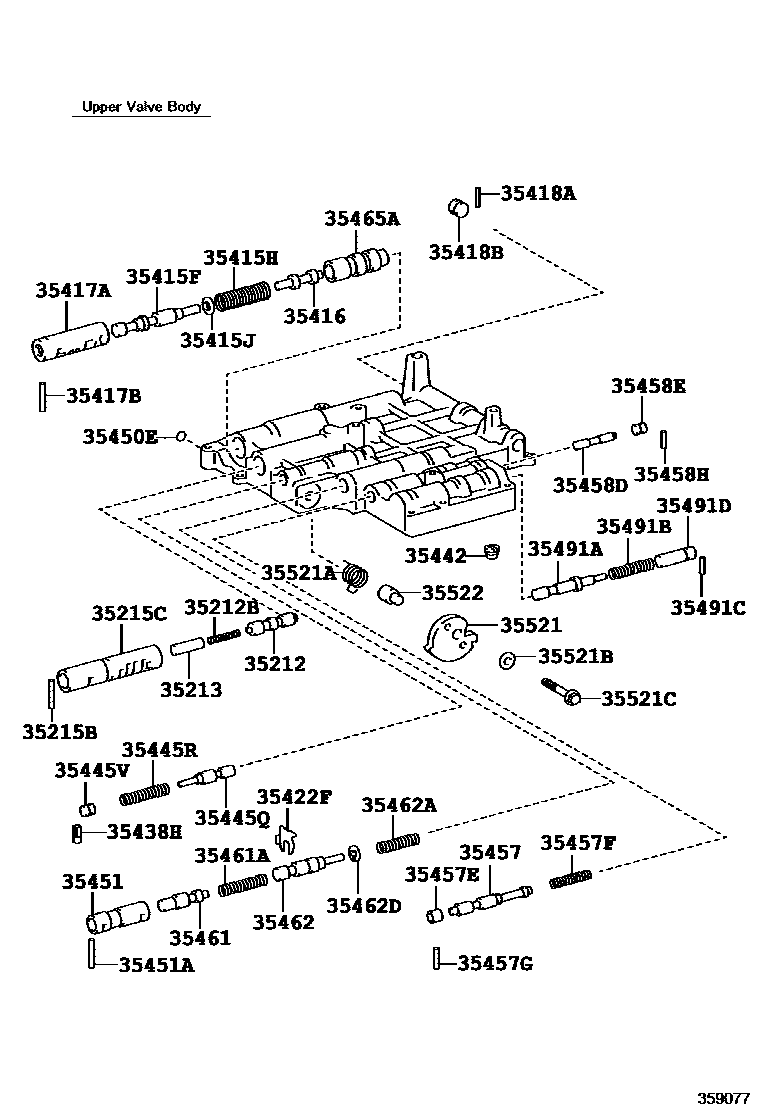

35437AUpper valve body cover35437-32021
35437BValve body cover35437-12020 · 35437-20040
35438ASecond gear slide regulator valve spring seat35438-22020
35438DAccumulator control valve spring seat35438-22020
35438ELock relay valve spring seat35438-22020
35438FLock spring seat35438-22020
35438GNo. 2 valve body plate35438-32011 · 35438-32012
35438HLow gear coast regulator valve spring seat35438-22020
35438JThrottle valve spring seat35438-50010
35439BThrottle valve screw35439-50010
35441CSolenoid valve oil filter35441-12010 · 35441-12020 · 35441-32020
35442Throttle regulator oil filter35442-32010 · 35442-32020
35445HSecond gear slide regulator valve35445-12010 · 35445-12020
35445JPlunger (for second gear slide regulator valve)90339-04002 · 90339-04030
35445PCompression spring (for second gear coast regulator valve)90501-09062 · 90501-10186
35445QLow gear coast regulator valve35445-12010 · 35445-12020 · 35445-32010
35445RCompression spring (for low range coast regulator valve)90501-09086 · 90501-09119 · 90501-10081
35445SStraight key (for second gear slide regulator valve)90282-03002
35445UStraight key (for low speed coast regulator valve)90282-03002
35445VPlunger (for low range coast regulator valve)90339-04002 · 90339-04030
35449BPressure reducing valve35449-32010
35449CCompression spring (for pressure reducing valve)90501-09032
35450EBall (for upper valve body)90360-06023
35451Throttle valve sleeve35451-32010
35451ADirect sales (with throttle sleeve)90250-03036 · 90250-03045
35452F2nd-3rd gear shift valve plunger35452-32010
354562nd-3rd gear shift valve35456-12010 · 35456-12020 · 35456-32030
35456ACompression spring (for 2-3 gear shift valve)90501-08135 · 90501-09053 · 90501-09088
35456CPlunger (for 2-3 gear shift valve)90339-03004 · 90339-05017 · 90339-05019
35456FStraight key (for 2-3 gear shift valve)90282-03002 · 90282-03017 · 90282-03028
35457Throttle regulator valve35457-12010 · 35457-32010
35457DStraight key (for throttle regulator valve)90282-03011
35457EPlunger (for throttle regulator valve)90339-04003 · 90339-05006
35457FCompression spring (for throttle regulator valve)90501-09037 · 90501-09040
35457GDirect sales (for throttle regulator valve)90250-02007
35458Dreverse valve35458-32010 · 35458-32020 · 35458-50010
35458EPlunger (for reverse valve)90339-04002 · 90339-04028 · 90339-04030
35458GCompression spring (for reverse valve)90501-06026 · 90501-06055
35458HStraight key (for reverse valve)90282-03010 · 90282-03017
35461Downshift plug35408-32010
35461ACompression spring (for downshift plug)90501-10054 · 90501-10131
35462throttle valve35462-12030 · 35462-32010 · 35462-50010
35462ACompression spring (for throttle valve)90501-07022 · 90501-07027 · 90504-06002
35462DE-ring (for throttle valve)90523-06023
354641-2 gear shift valve35464-12030 · 35464-12040 · 35464-32030
35464ACompression spring (for 1-2 gear shift valve)90501-08135 · 90501-09053 · 90501-09116
35464DStraight key (for 1-2 gear shift valve)90282-03002 · 90282-03011
35464EPlunger (for 1-2 gear shift valve)90339-03004 · 90339-04025 · 90339-05019
35465AMain regulator valve plunger sleeve35465-17010
35466ESecond gear lock valve35466-32010
35466FCompression spring (for second gear lock valve)90501-06047
35466GStraight key (for second gear lock valve)90282-03002
35466JPlunger (for second gear lock valve)90339-04028
35468CSecondary regulator valve35468-12020 · 35468-12030 · 35468-32031
35468DCompression spring (for secondary regulator valve)90501-13035 · 90501-14105 · 90501-14115
35468EStraight key (for secondary regulator valve)90282-03001 · 90282-03003 · 90282-03015
35468FPlunger (for secondary regulator valve)90339-03004 · 90339-04025 · 90339-05020
35468JStraight key (for B-1 throttle control valve)90282-03001
35468KPlunger (for B-1 throttle control valve)90339-04022
35468LCompression spring (for B-1 throttle control valve)90501-08100
35468MB-1 Throttle Control Valve35468-32020
35469DSpacer (for C-0 accumulator piston)35469-32020
35469ESnap ring (for C-0 accumulator piston spacer)96151-03700
35471AUpper valve body cover35471-32020

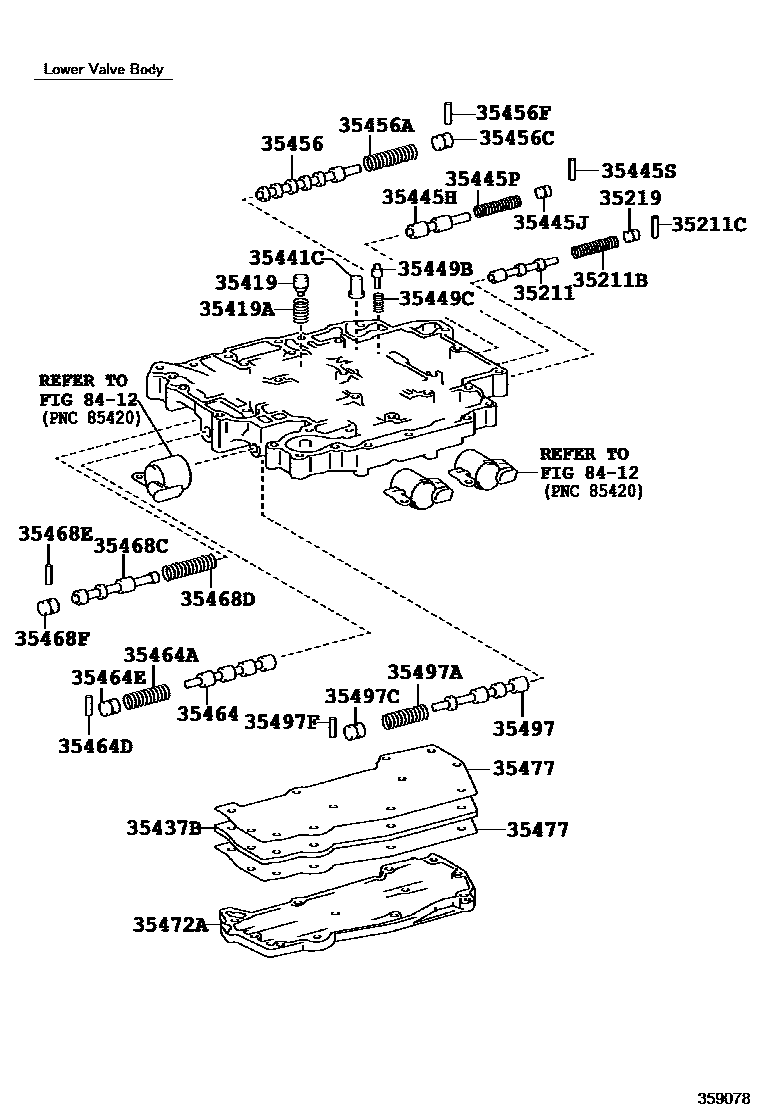

35472ALower valve body cover35472-12010 · 35472-12030 · 35472-32060
35474AAccumulator cover35474-12010 · 35474-32030
35477Valve body cover gasket35477-12010 · 35477-12030 · 35477-32043 · 35477-32044
35478Accumulator cover gasket35478-32010 · 35478-32020
35486BPressure reducing valve spring seat35486-50010
35486CCompression spring (for pressure reducing valve)90501-10143
35486DBall (for pressure reducing valve)90360-08003
35491ANo. 1 accumulator control valve35491-12020 · 35491-20010 · 35491-32020
35491BCompression spring (for No. 1 accumulator control valve)90501-08138 · 90501-09110 · 90501-10172
35491CStraight key (for No. 1 accumulator control valve)90282-03003 · 90282-03011
35491DPlunger (for No. 1 accumulator control valve)90339-04025 · 90339-04042
35493AMain regulator valve plunger seat35493-12030
35493QNo. 1 accumulator control valve plunger seat35493-50030
35493UNo. 1 one-way valve seat90282-03002
35493WValve body seat35493-50040
35495BOne-way ball No. 135495-22020
35495COne-way ball No. 135495-22020
35496No. 2 one-way ball35496-22030
354973rd-4th gear shift valve35497-12010 · 35497-12020 · 35497-32030
35497ACompression spring (for 3-4 gear shift valve)90501-08135 · 90501-09053 · 90501-09083
35497CPlunger (for 3-4 gear shift valve)90339-03004 · 90339-04025 · 90339-05019
35497FStraight key (for 3-4 gear shift valve)90282-03002 · 90282-03011
35521throttle cam35521-12030 · 35521-20040 · 35521-32040
35521ASpring (for throttle cam return)90508-11003 · 90508-12094 · 90949-03004
35521BGasket (for throttle cam assembly)90201-06472
35521CBolt (for throttle cam assembly)90101-06026 · 90105-06018 · 90105-06076
35522Throttle valve cam pin35522-12010 · 35522-22010
35599Manual locking spring cover35599-12010 · 35599-12020 · 35599-32020
35843ATransfer case lubricating oil supply pipe35843-32011 · 35843-33020
35844ANo. 1 accumulator back pressure pipe35844-12030 · 35844-32030
35845Rear clutch accumulator tube35845-32020
35845ADirect clutch accumulator tube35845-12030
35846brake accumulator pipe35846-12040 · 35846-32030
35847Transmission lubricant supply pipe35847-12010 · 35847-12030
35848Forward clutch accumulator tube35848-12030 · 35848-32020
35862Accumulator fuel supply pipe bracket35862-12020 · 35862-32020
35882ADifferential gear lubricant oil supply pipe35882-12010 · 35882-12020
35882BRear servo oil supply pipe35882-32010
35894Accumulator tube bracket35894-32010
35897ANo. 1 first and reverse brake pipe35897-32010
35898ANo. 2 accumulator back pressure pipe35898-32010
35899Governor pressure oil pipe35899-12040
