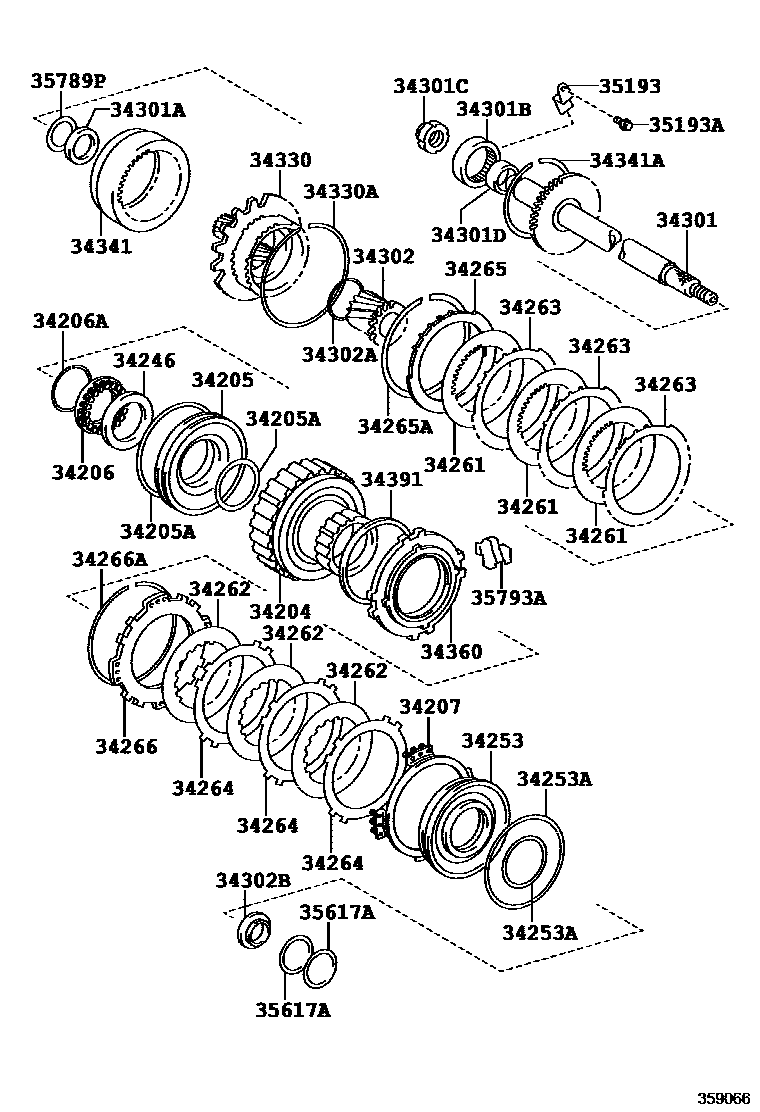

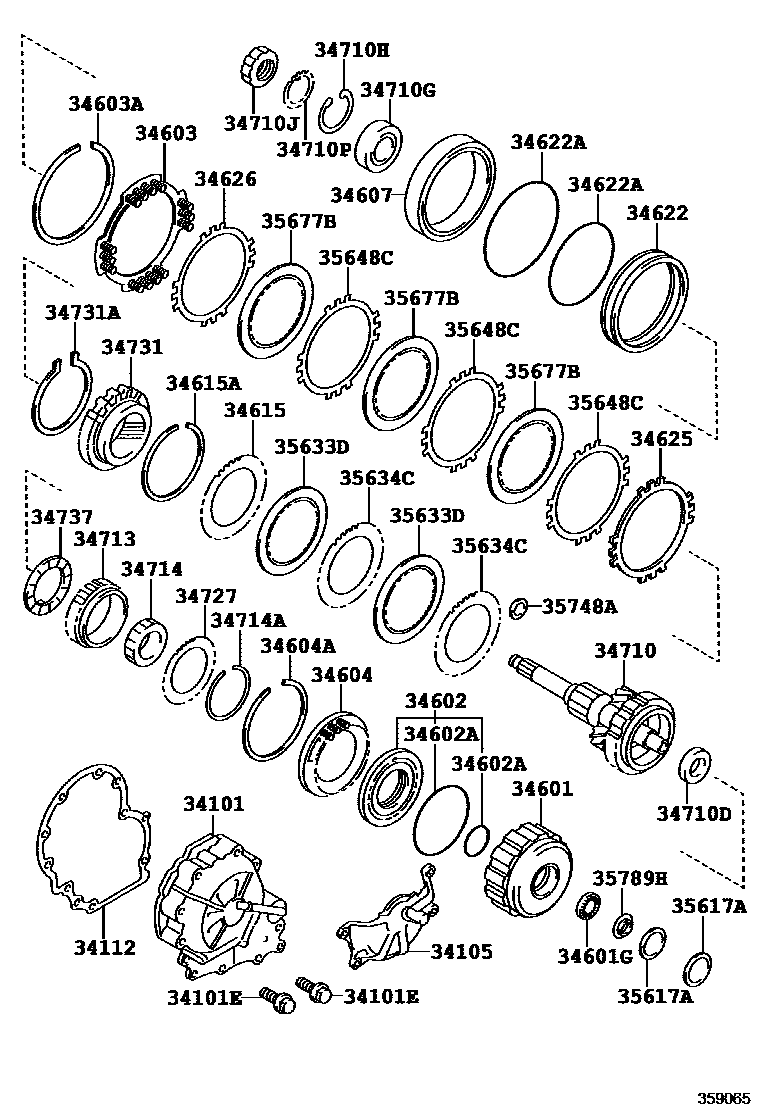

Toyota RAV4 超速档齿轮(ATM) — Figure 3506
Toyota RAV4 EPC diagram 3506, 超速档齿轮(ATM), with 2 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-32042 |
| 34101E | Bolts (for securing overdrive housing and transaxle housing) | 90105-08056 · 90105-08103 · 90105-08167 |
| 34105 | Overspeed gear housing protection device sub-assembly | 34115-20021 |
| 34112 | Overdrive housing gasket | 34112-32040 · 34112-32041 |
| 34204 | Low speed clutch drum sub-assembly | 34204-12030 |
| 34205 | Low speed clutch piston sub-assembly | 34205-12020 |
| 34205A | O-ring (for low-speed clutch piston) | 90301-57188 · 90301-98001 |
| 34206 | Low speed clutch return spring sub-assembly | 34206-12010 |
| 34206A | Shaft snap ring (for low speed return spring) | 90520-52262 |
| 34207 | Low speed brake return spring sub-assembly | 34207-12010 |
| 34246 | Low gear clutch return spring | 34246-12010 |
| 34253 | Low gear brake piston | 34253-12010 |
| 34253A | O-ring (for low-speed brake piston) | 90301-57188 · 90301-98001 |
| 34261 | No. 1 low speed clutch disc | 34261-20010 |
| 34262 | No. 2 low speed clutch disc | 34262-12020 · 34262-13010 |
| 34263 | No. 1 low speed clutch plate | 34263-12010 · 34263-12020 |
| 34264 | No. 2 low speed clutch plate | 34264-12010 · 34264-12020 |
| 34265 | No. 1 low speed clutch flange | 34265-12030 · 34265-12040 · 34265-12050 · 34265-20020 |
| 34265A | Hole snap ring (for No. 1 low-speed clutch flange) | 90521-99015 |
| 34266 | No. 2 low speed clutch flange | 34266-12010 |
| 34266A | Hole snap ring (for No. 2 low-speed clutch flange) | 90521-99015 |
| 34301 | Low speed gear input shaft sub-assembly | 34301-12020 · 34301-20010 |
| 34301A | Needle roller bearing (for low speed input shaft) | 90364-31002 · 90374-31002 |
| 34301B | No. 1 roller bearing (for low speed gear) | 90365-38002 |
| 34301C | Nut (for low speed input shaft) | 90179-26003 |
| 34301D | No. 2 roller bearing (for low speed gear) | 90365-30021 |
| 34302 | Low-speed planetary gear train sun gear sub-assembly | 34302-20010 |
| 34302A | Hole snap ring (for low speed planetary gear train sun gear) | 90521-48001 |
| 34302B | Needle roller bearings (for low-speed planetary gear train sun gear) | 90364-31002 · 90364-31003 |
| 34330 | Low speed planetary gear assembly | 34330-20010 |
| 34330A | Hole snap ring (for low speed planetary gear) | 90521-99015 |
| 34341 | Low speed planetary ring gear | 34341-20010 |
| 34341A | Hole snap ring (for low speed planetary ring gear) | 90521-98001 |
| 34360 | Low speed gear one-way clutch assembly | 34360-12010 · 34360-12020 |
| 34391 | Low range clutch drum thrust washer | 34391-12010 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-32021 |
| 34601G | Thrust needle roller bearing (for overspeed direct clutch) | 90374-28013 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-32020 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-99016 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-20010 · 34603-45010 |
| 34603A | Hole snap ring (for overdrive brake return spring) | 90521-99050 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-32010 |
| 34604A | Hole snap ring (for overdrive clutch return spring) | 90521-99060 |
| 34607 | Overdrive brake drum sub-assembly | 34607-32010 |
| 34615 | Overdrive clutch flange | 34615-20010 · 34615-32010 · 34615-33020 |
| 34615A | Hole snap ring (for overdrive clutch flange) | 90521-99058 |
| 34622 | overdrive brake piston | 34622-20010 · 34622-45010 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99043 · 90301-99044 |
| 34625 | No. 1 overdrive brake flange | 34625-32020 · 34625-33010 · 35648-32040 |
| 34626 | overdrive brake cushion | 34626-20011 |
| 34710 | Overdrive planetary gear assembly | 34710-32031 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-39003 |
| 34710G | Radial ball bearings (for overdrive planetary gears) | 90363-40053 |
| 34710H | Hole snap ring (for overdrive planetary gear bearings) | 90521-78003 |
| 34710J | Nut (for overdrive planetary gear) | 90179-40005 |
| 34710P | Washer (for overdrive planetary gear) | 90209-40001 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 34714-32021 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-93002 |
| 34727 | Block (for overdrive) | 34727-32020 |
| 34731 | Overdrive planetary ring gear | 34731-32022 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99059 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-33010 |
| 35193 | Roller retainer | 35193-12010 |
| 35193A | Bolt (for roller retainer) | 90119-08208 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-33030 |
| 35634C | Clutch disc (for overdrive direct gear clutch) | 34615-20010 · 34615-33020 |
| 35648C | Clutch disc (for overdrive brake) | 35648-32040 |
| 35677B | Clutch disc (for overdrive brake) | 35677-33010 |
| 35748A | Countershaft oil protector ring (for overdrive gear) | 35748-32010 |
| 35789H | Thrust bearing race (for overdrive housing) | 35789-20020 |
| 35789P | Thrust bearing race (for low speed input shaft) | 35789-12010 |
| 35793A | Low gear one-way clutch retaining ring | 35793-10010 |
