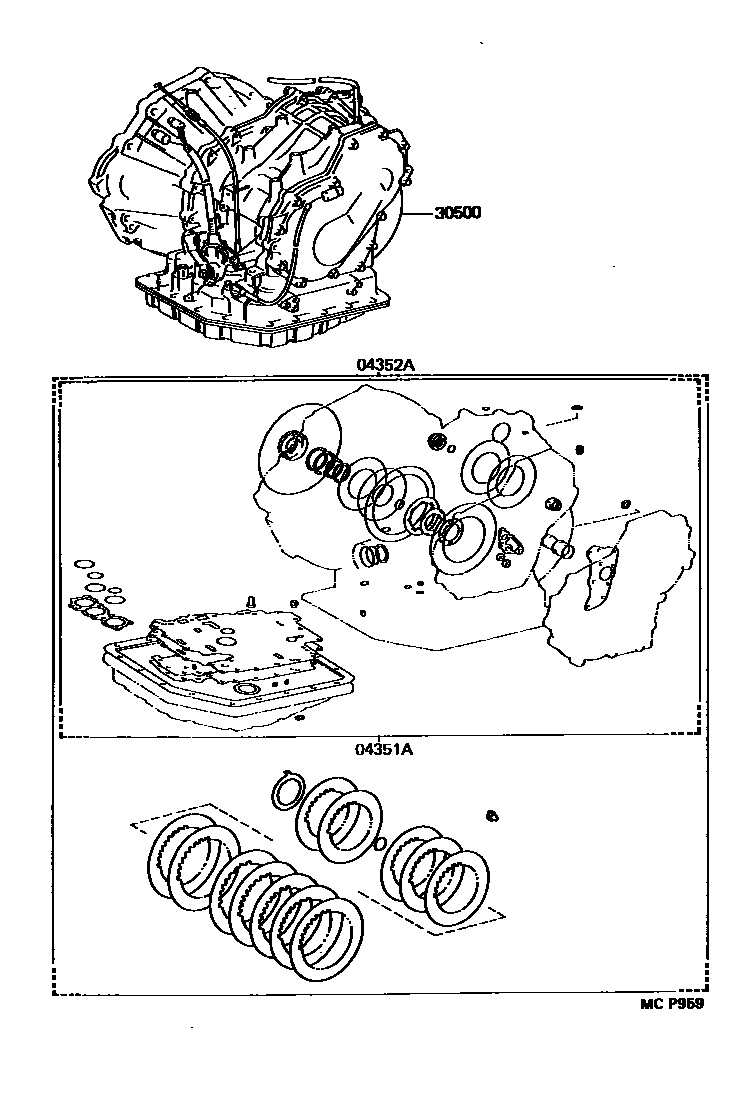

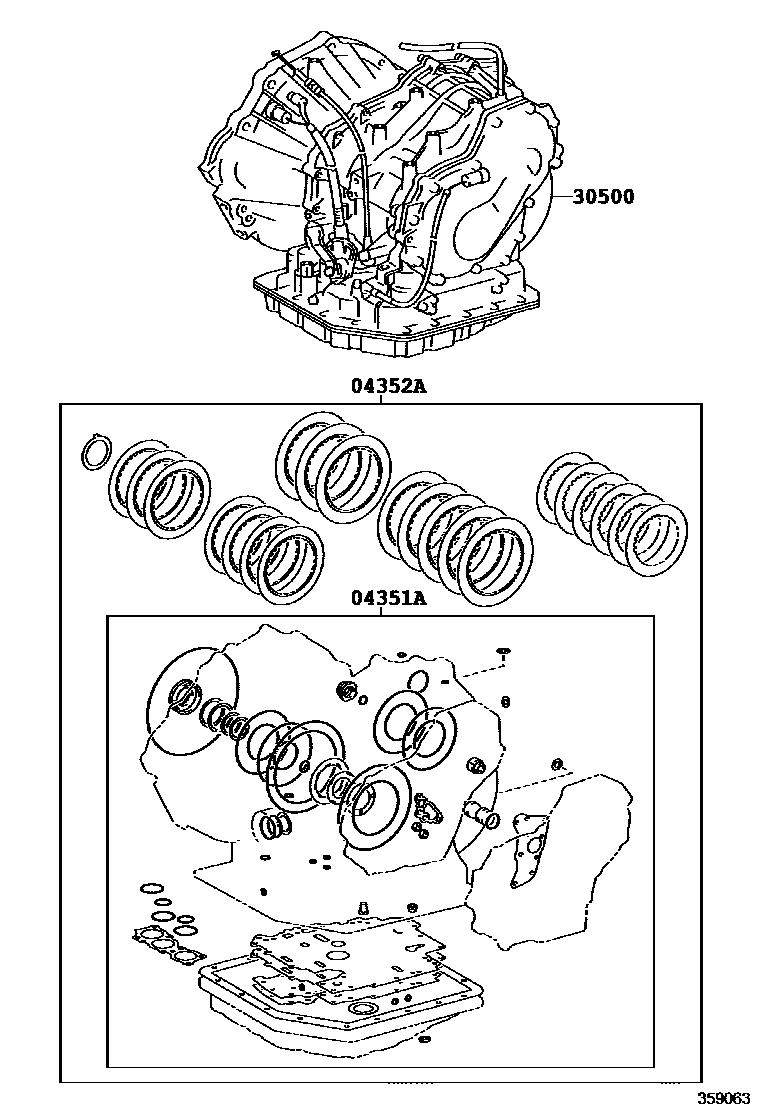

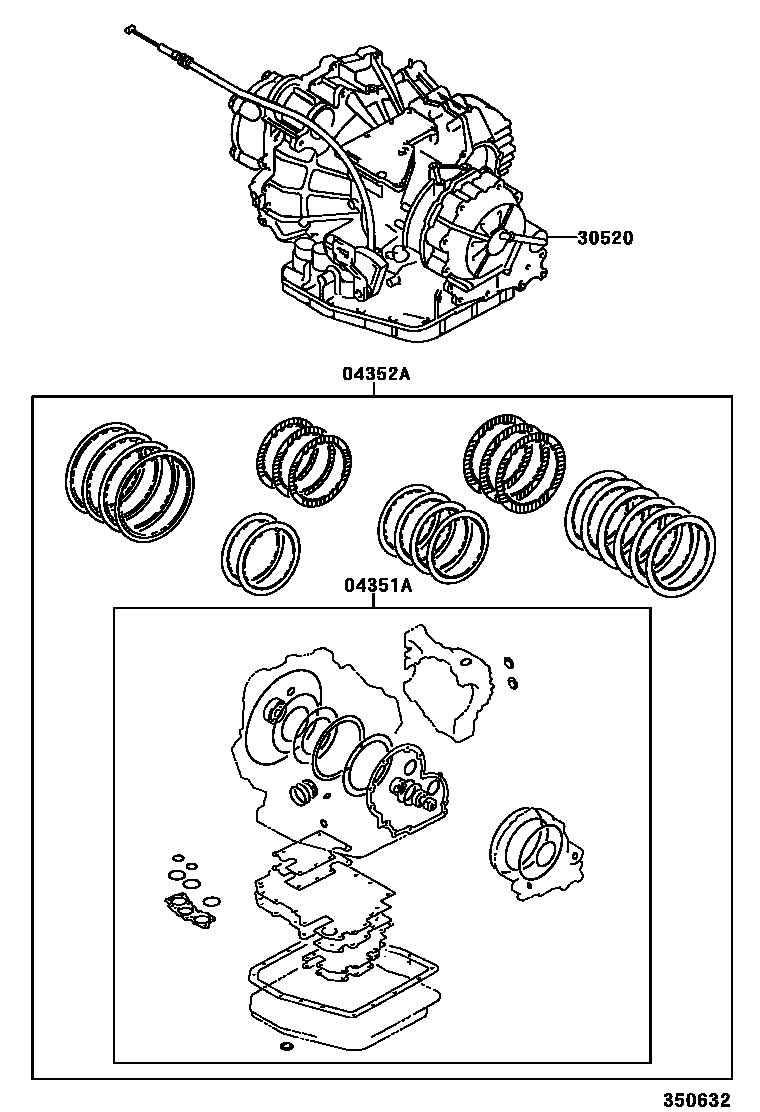

Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-16090 · 04351-42010 · 04351-42020 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-42010 · 04352-42020 · 04352-42030 |
| 30500 | Automatic transmission axle assembly | 30500-42020 · 30500-42070 |
| 30520 | Automatic transmission axle assembly with transfer case | 30520-42013 · 30520-42030 · 30520-42040 |
