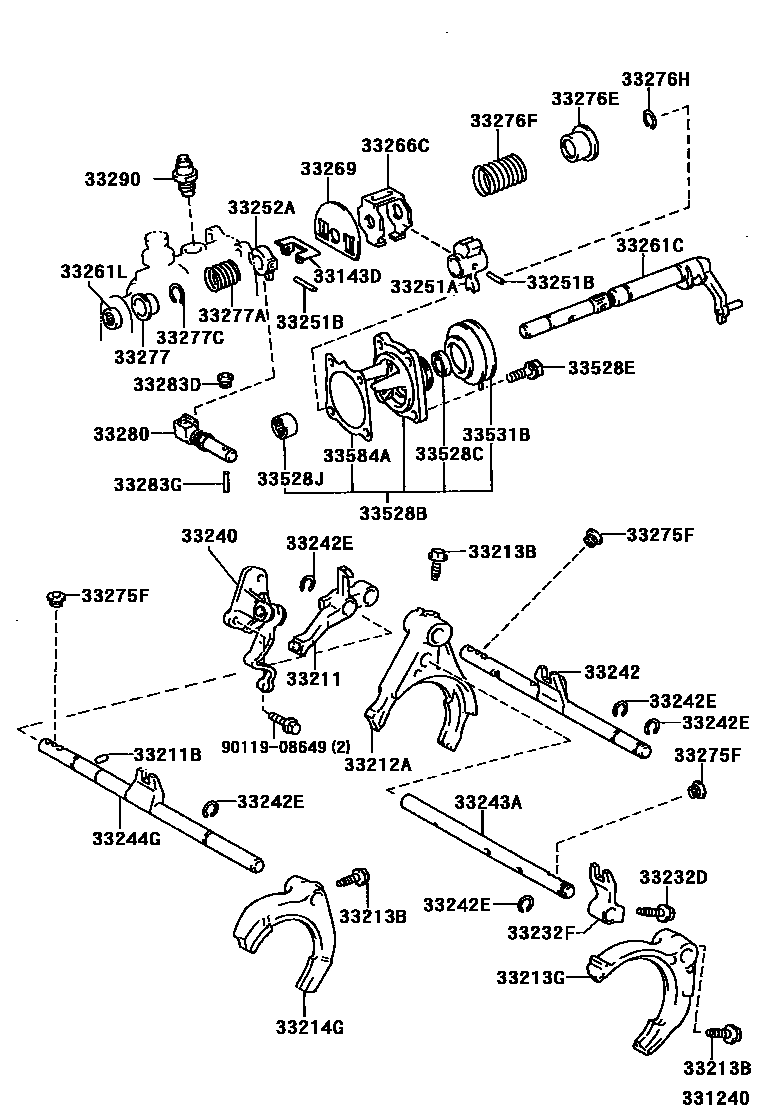

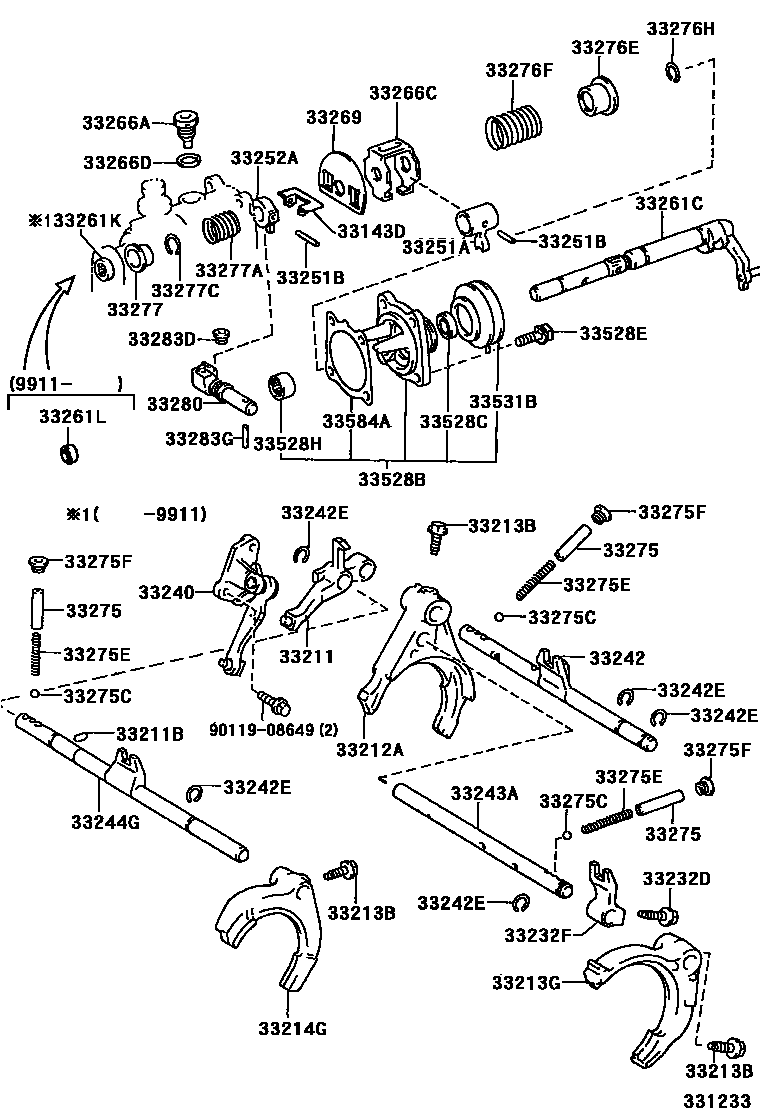

Toyota RAV4 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota RAV4 EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143D | Transmission oil baffle | 33143-12020 |
| 33211 | Reverse Shift Fork | 33211-20020 |
| 33211B | Roller (for reverse shift fork) | 90361-08005 |
| 33212A | No. 1 shift fork | 33212-12030 |
| 33213B | Bolt (for securing shift fork) | 90105-07002 |
| 33213G | No. 2 shift fork | 33213-12032 · 33220-28020 |
| 33214G | No. 3 shift fork | 33214-12020 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-07002 |
| 33232F | No. 1 transmission guide block | 33232-12030 |
| 33240 | Reverse shift arm bracket assembly | 33240-12021 · 33240-28010 |
| 33242 | No. 1 shift fork shaft | 33242-12061 · 33242-12062 · 33242-28030 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-13002 |
| 33243A | No. 2 shift fork shaft | 33243-12110 · 33243-12111 · 33243-28040 |
| 33244G | No. 3 shift fork shaft | 33244-12080 · 33244-28030 |
| 33251A | Internal shift lever No. 1 | 33251-20050 · 33251-28040 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-20020 |
| 33261C | shift lever shaft | 33261-20070 · 33261-20071 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90364-15003 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-15002 |
| 33266A | Bolt (for shift interlock plate) | 90109-18002 |
| 33266C | shift interlock plate | 33266-12030 · 33266-28010 |
| 33266D | Pad (for shift interlock plate) | 90430-18008 |
| 33269 | Shift interlock plate cover | 33269-12010 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-20010 |
| 33275C | Steel ball (for shift lock) | 90360-08009 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-14104 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-20020 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-16133 · 90501-16134 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-17010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-17028 · 90501-17030 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-20041 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-28010 |
| 33528B | control shaft cover | 33506-20270 · 33506-28210 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 |
| 33528H | Needle roller bearings (for control shaft housing) | 90364-18009 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 |
| 33584A | Shift lever stopper gasket | 33584-20020 |
