Toyota RAV4 分电器 — Figure 1902

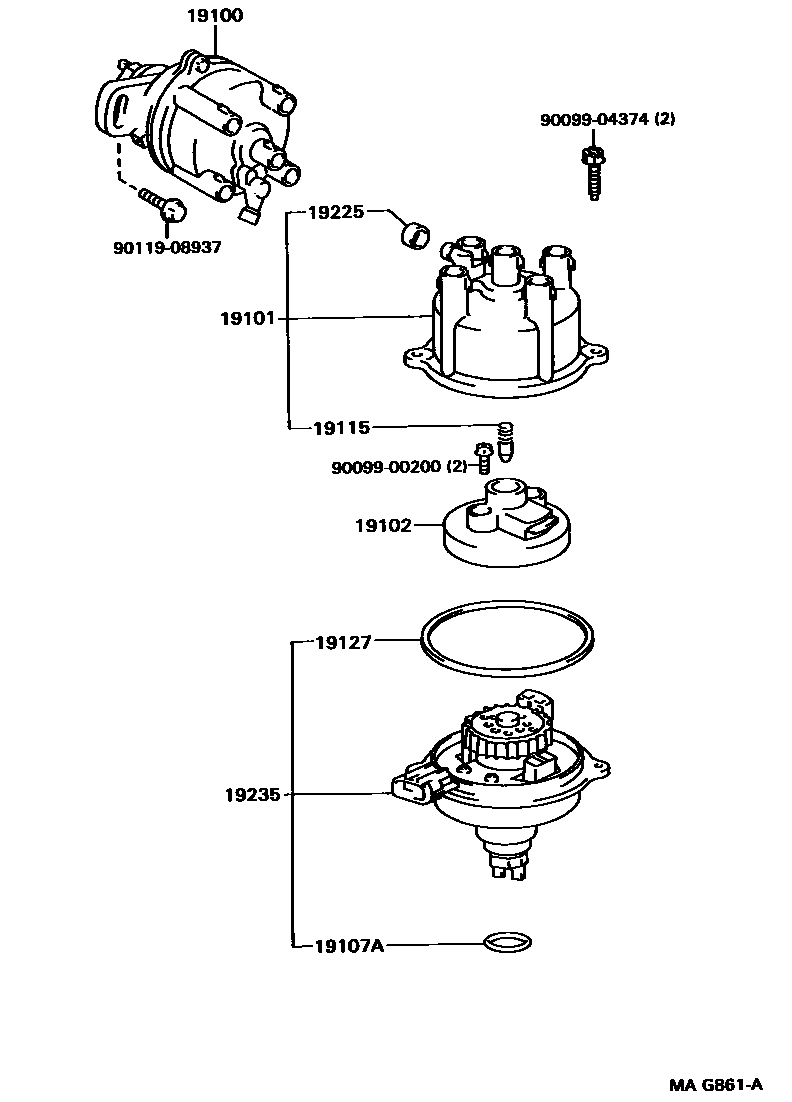

Toyota RAV4 EPC diagram 1902, 分电器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19100-74230 |
| 19101 | Distributor cover sub-assembly | 19101-74110 |
| 19102 | Distributor flame head sub-assembly | 19102-74040 |
| 19107A | Distributor housing O-ring | 90099-14127 |
| 19115 | Distributor cover center piece | 19115-88280 |
| 19127 | Dust seal | 19127-74040 |
| 19225 | rubber cap | 19225-74060 |
| 19235 | Distributor housing | 19235-74230 |
