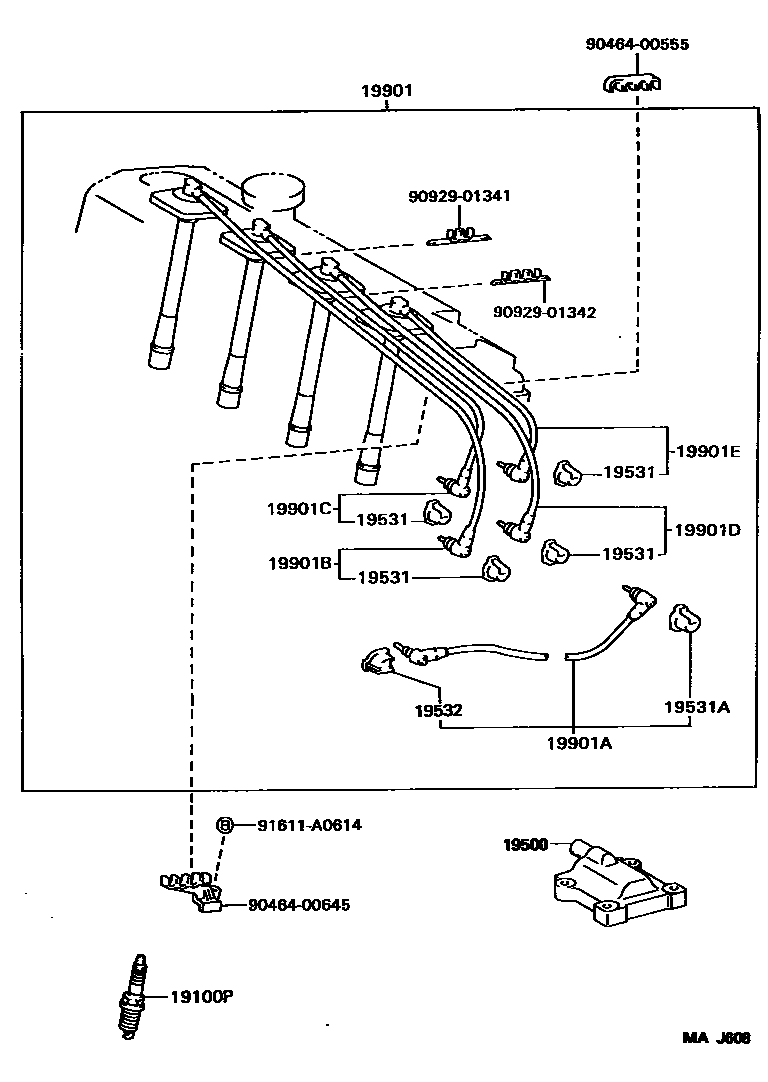

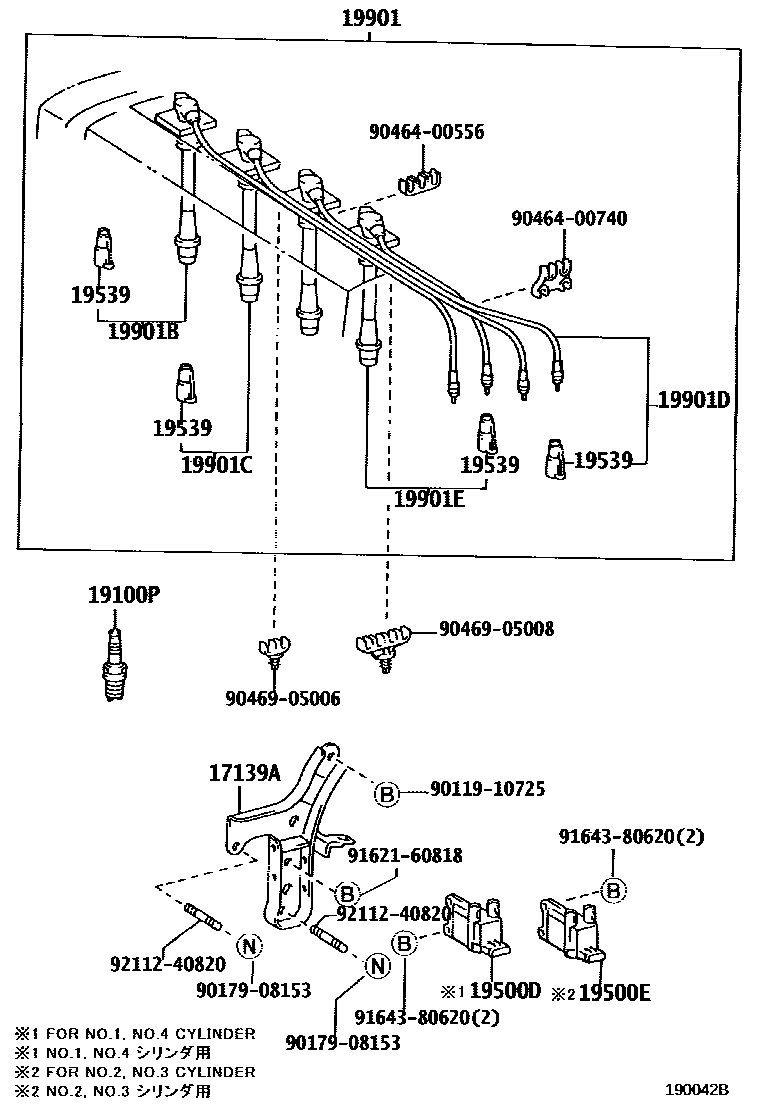

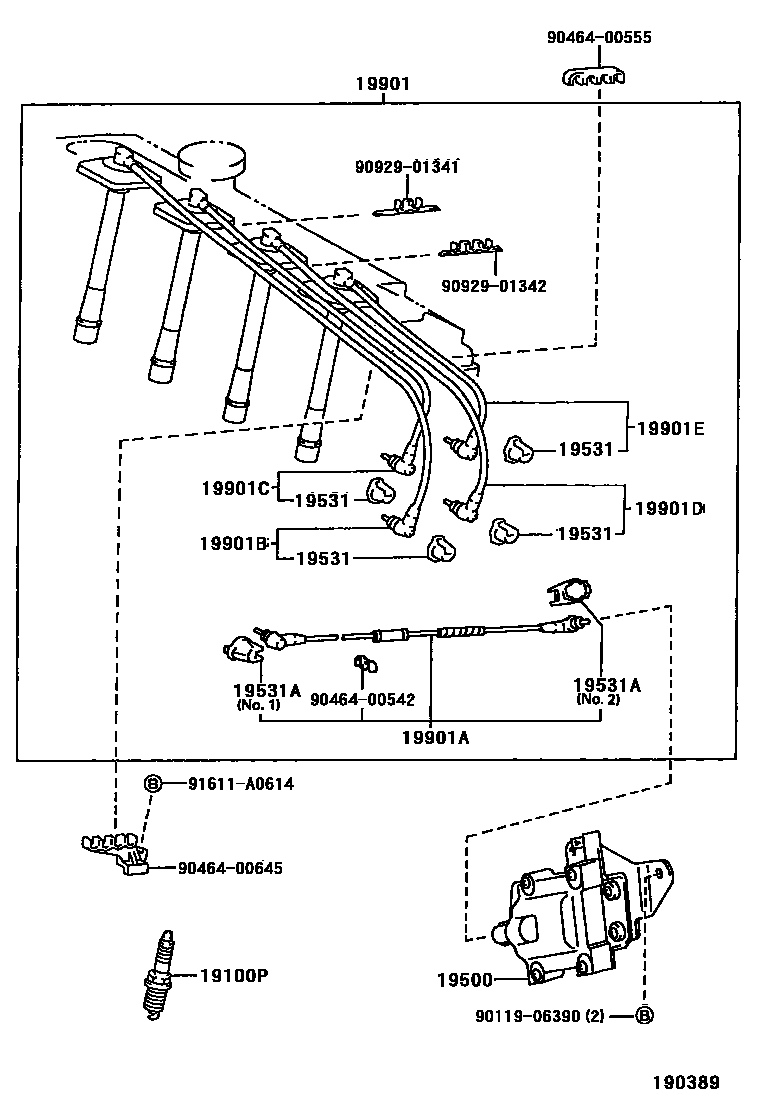

Toyota RAV4 点火线圈和火花塞 — Figure 1901
Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17139A | No. 1 manifold stay | 17139-74180 |
| 19100P | spark plug | 90919-01178 · 90919-01194 · 90919-01195 |
| 19500 | Ignition coil assembly | 19500-74120 · 90919-02209 |
| 19500D | No. 1 ignition coil | 90919-02217 |
| 19500E | No. 2 ignition coil | 90919-02218 |
| 19531 | No. 1 damping wire fixing piece | 19531-74010 |
| 19531A | No. 3 damping wire fixing piece | 19531-74010 · 19531-74020 |
| 19532 | No. 2 damping wire fixing piece | 19532-50010 |
| 19539 | No. 4 damping wire fixing piece | 19539-74050 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21598 · 90919-21609 · 90919-22386 · 90919-22400 |
| 19901A | coil damping line | 19590-74280 · 19590-74300 |
| 19901B | No. 1 spark plug damper wire | 90919-15400 · 90919-15466 · 90919-15546 |
| 19901C | No. 2 spark plug damper wire | 90919-15401 · 90919-15465 · 90919-15547 |
| 19901D | No. 3 spark plug damper wire | 90919-15402 · 90919-15464 · 90919-15548 |
| 19901E | No. 4 spark plug damper wire | 90919-15349 · 90919-15463 · 90919-15549 |
