Toyota RAV4 Water Pump — Figure 1601

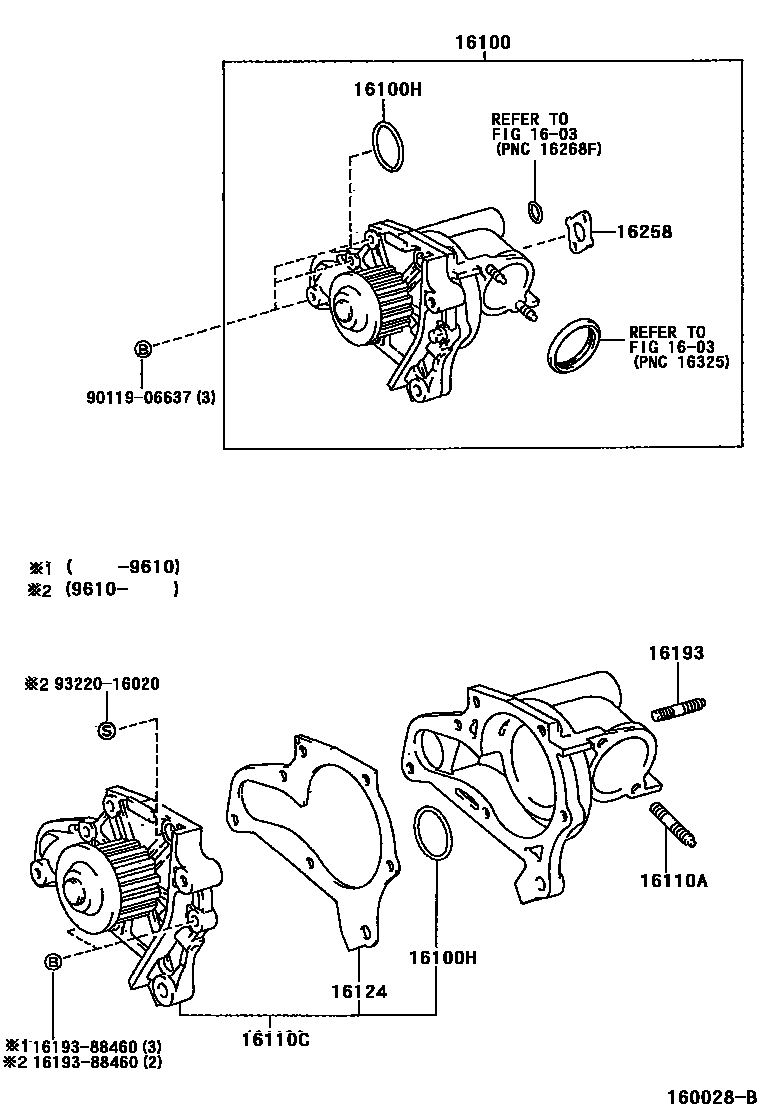

Toyota RAV4 EPC diagram 1601, Water Pump, with 1 images and 7 PNC and OE references.

Toyota RAV4 Water Pump EPC diagram — 160028B
Water Pump — 160028B (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-79185
16100HO-ring (for water pump)90301-37005
16110AStud bolts (for fixing the water outlet)16193-63010
16110CWater pump assembly without cover16110-79025 · 16110-79026
16124water pump cover gasket16124-88460
16193Studs (for water pump cover)90029-01500
16258Pad (for heater return)16258-74021
