Toyota RAV4 Cylinder Block — Figure 1105

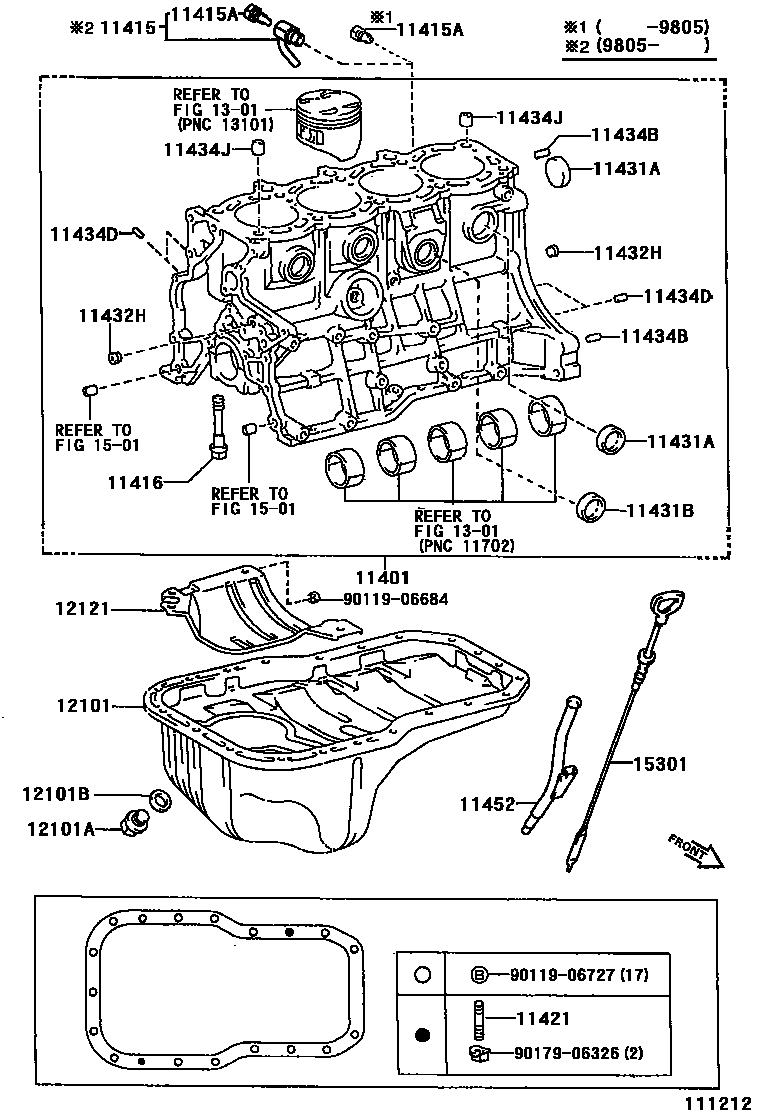

Toyota RAV4 EPC diagram 1105, Cylinder Block, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-79517 · 11401-79617 · 11401-79775 · 11401-80015 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 92122-60610 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11432H | No. 5 headed tapered thread plug | 90344-53006 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11452 | Engine oil level gauge guide | 11452-74050 |
| 12101 | Oil pan sub-assembly | 12101-74050 · 12101-74150 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12121 | No. 1 oil pan baffle | 12123-74040 |
| 15301 | Engine oil level scoring assembly | 15301-74100 |
