Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

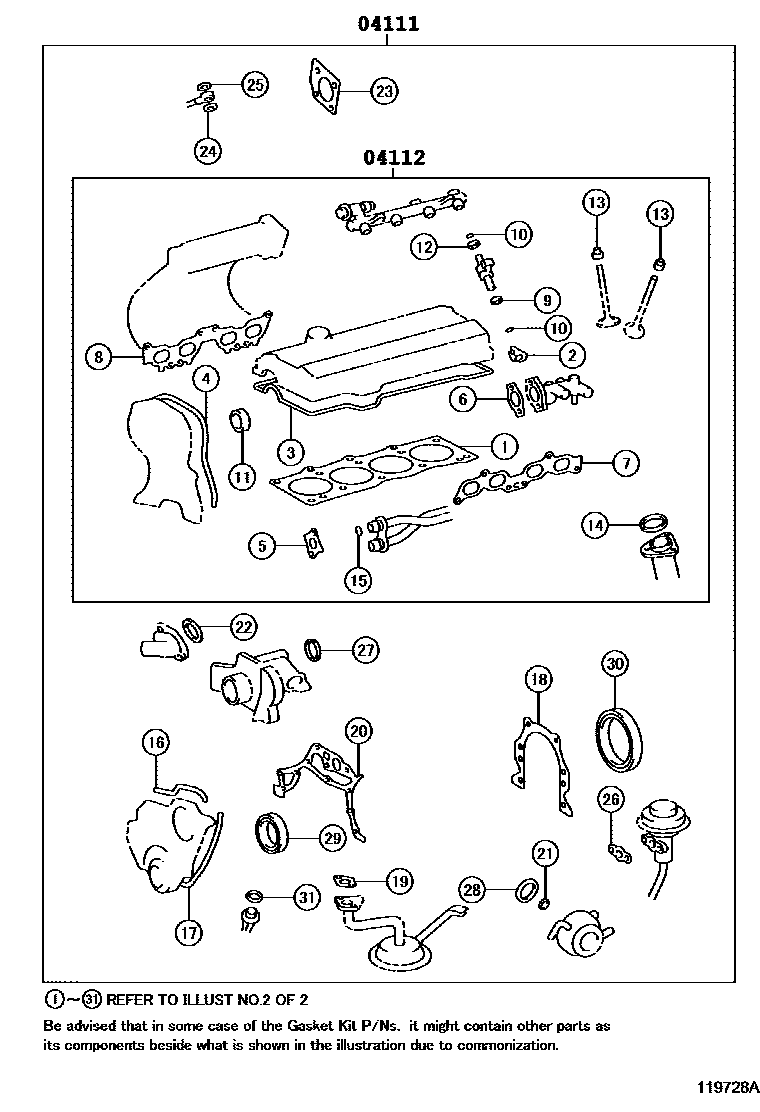

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 119728A
Engine Overhaul Gasket Kit — 119728A (199511 – 999999)

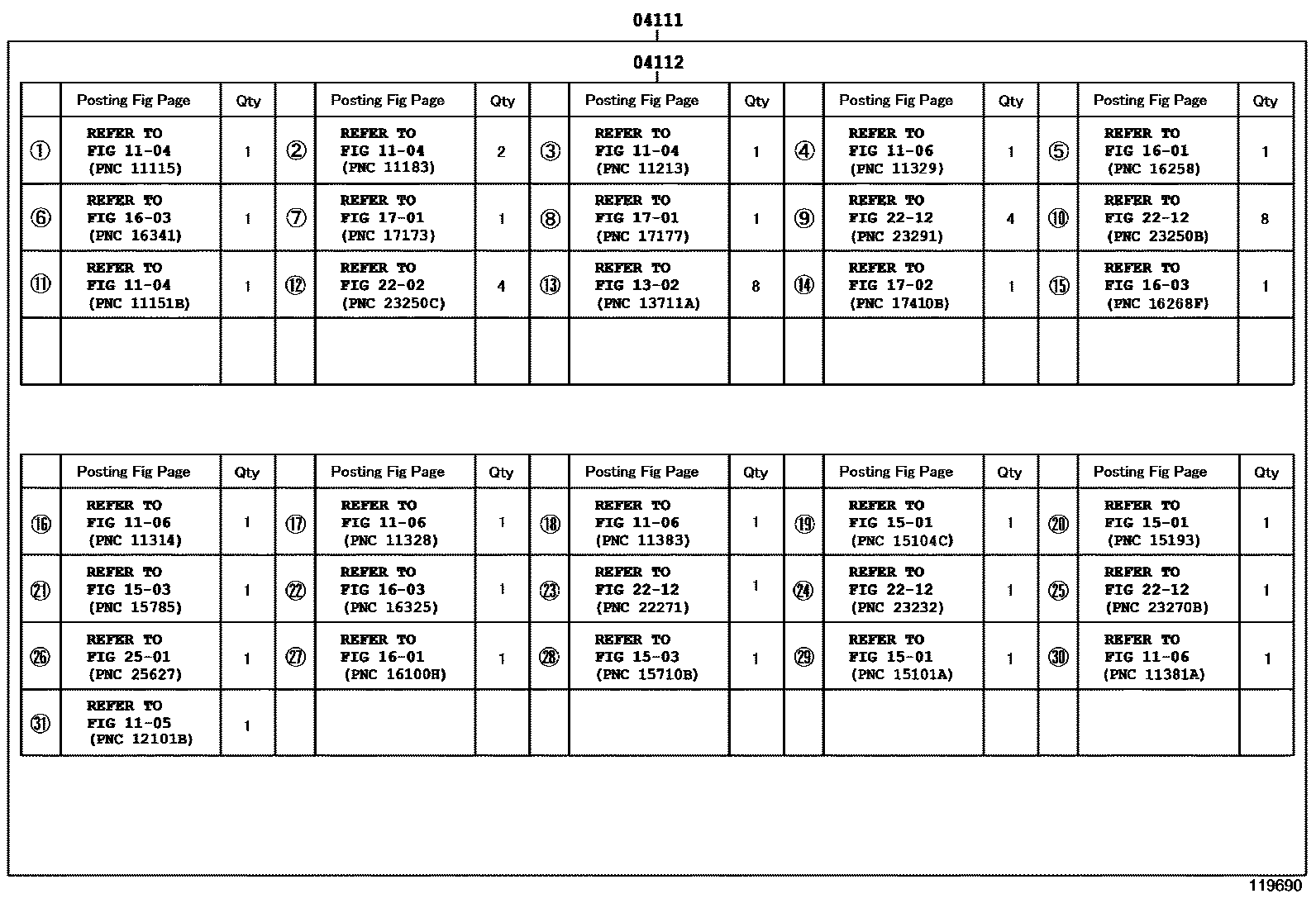

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 119730
Engine Overhaul Gasket Kit — 119730 (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-74590 · 04111-74591 · 04111-74592
04112Engine valve grinding pad assembly04112-74560 · 04112-74561 · 04112-74562
