Toyota RAV4 Partial Engine Assembly — Figure 1101

Toyota RAV4 EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

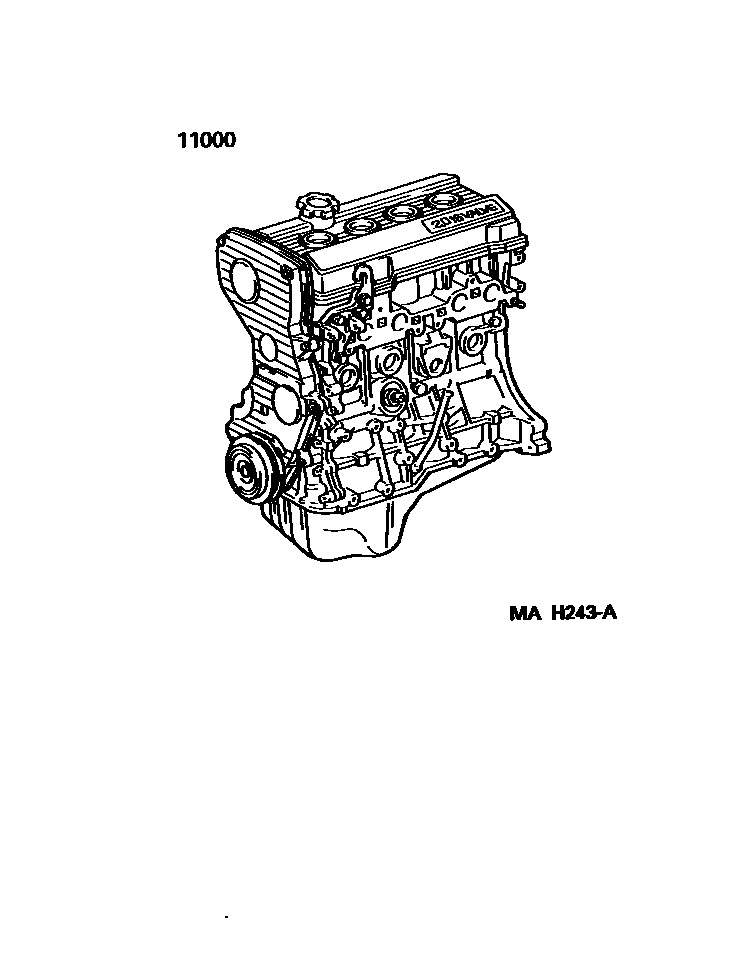

Toyota RAV4 Partial Engine Assembly EPC diagram — MAH243A
Partial Engine Assembly — MAH243A (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-74870 · 19000-74880 · 19000-7A290 · 19000-7A300 · 19000-7A310 · 19000-7A320
