Toyota RAV4 Standard Tools — Figure 0901

Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 4 PNC and OE references.

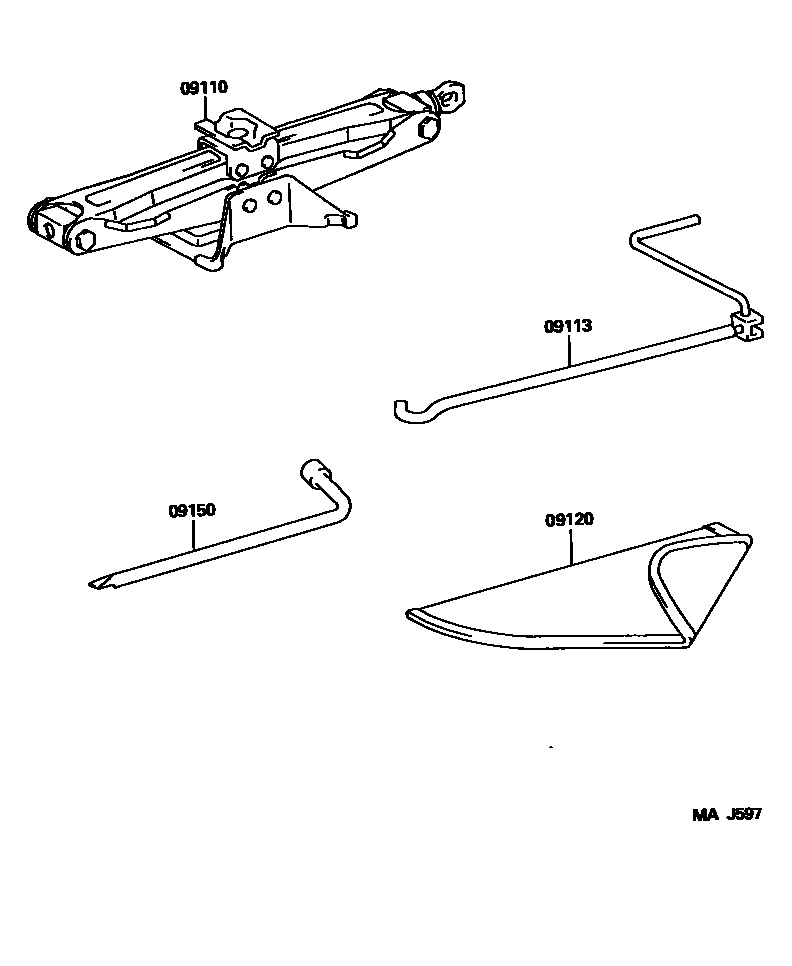

Toyota RAV4 Standard Tools EPC diagram — MAJ597
Standard Tools — MAJ597 (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09110-42020 · 09111-42010
09113Jack Handle09113-42010
09120Tool Bag09120-30050
09150Wheel Nut Wrench09150-40010
