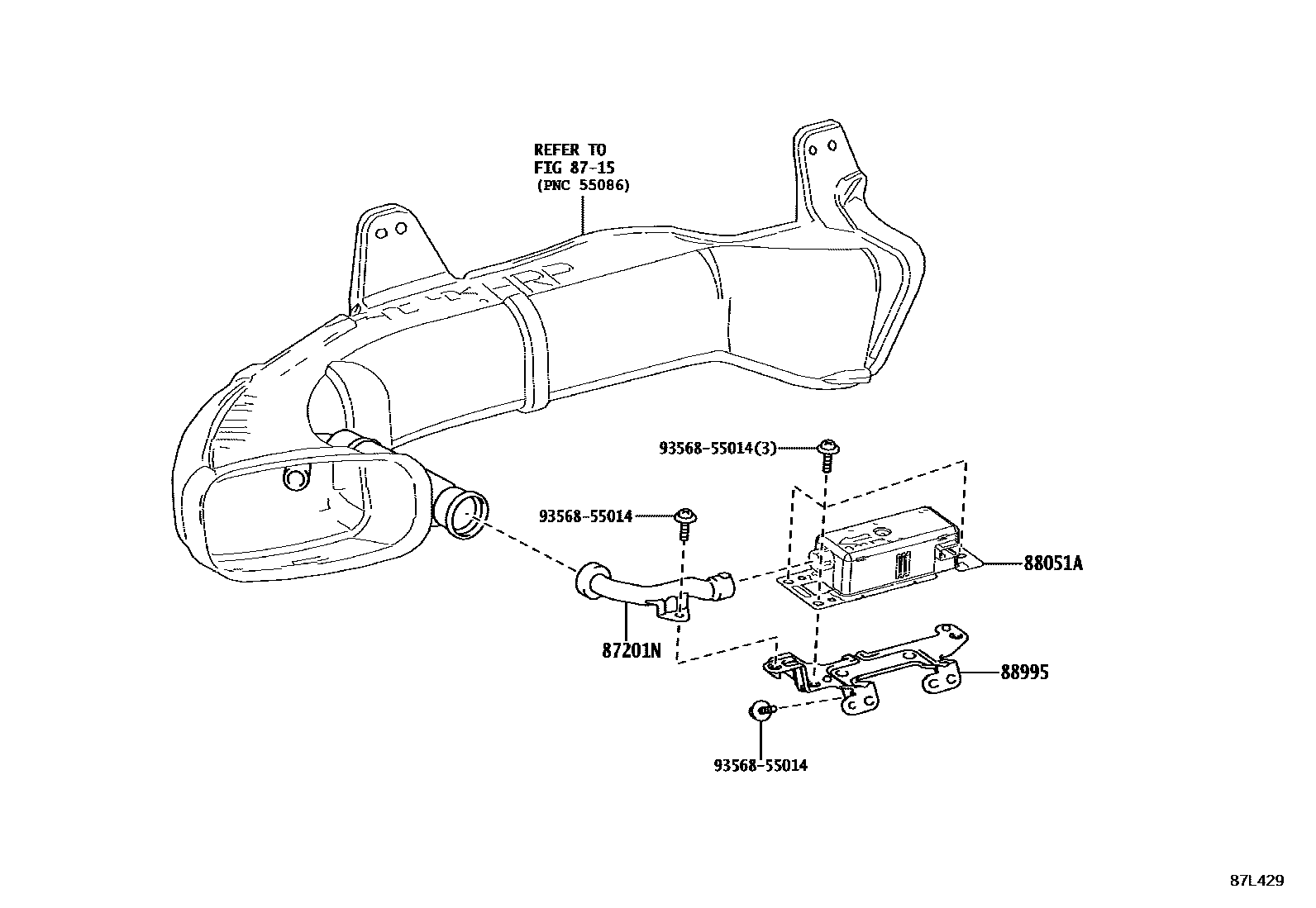

Toyota RAV4 空气净化器或离子发生器 — Figure 8724
Toyota RAV4 EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87201N | Air duct sub-assembly | 55848-42080 |
| 88051A | Ion generator sub-assembly | 88051-48010 |
| 88995 | SUPPORT, GENERATEUR D'IONS, NO.1 | 55425-42080 |
