Toyota RAV4 前大灯清洗器 — Figure 8505

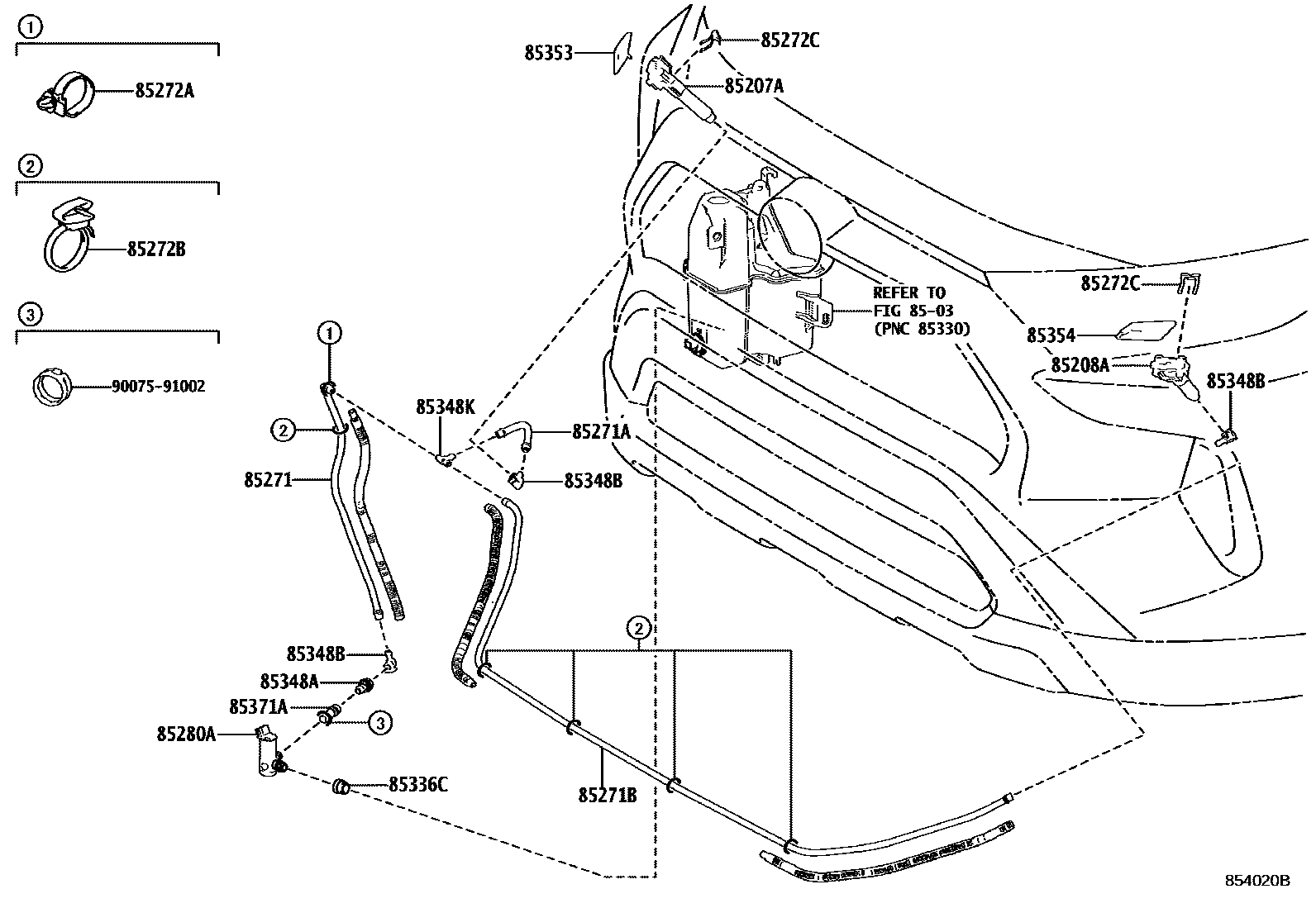

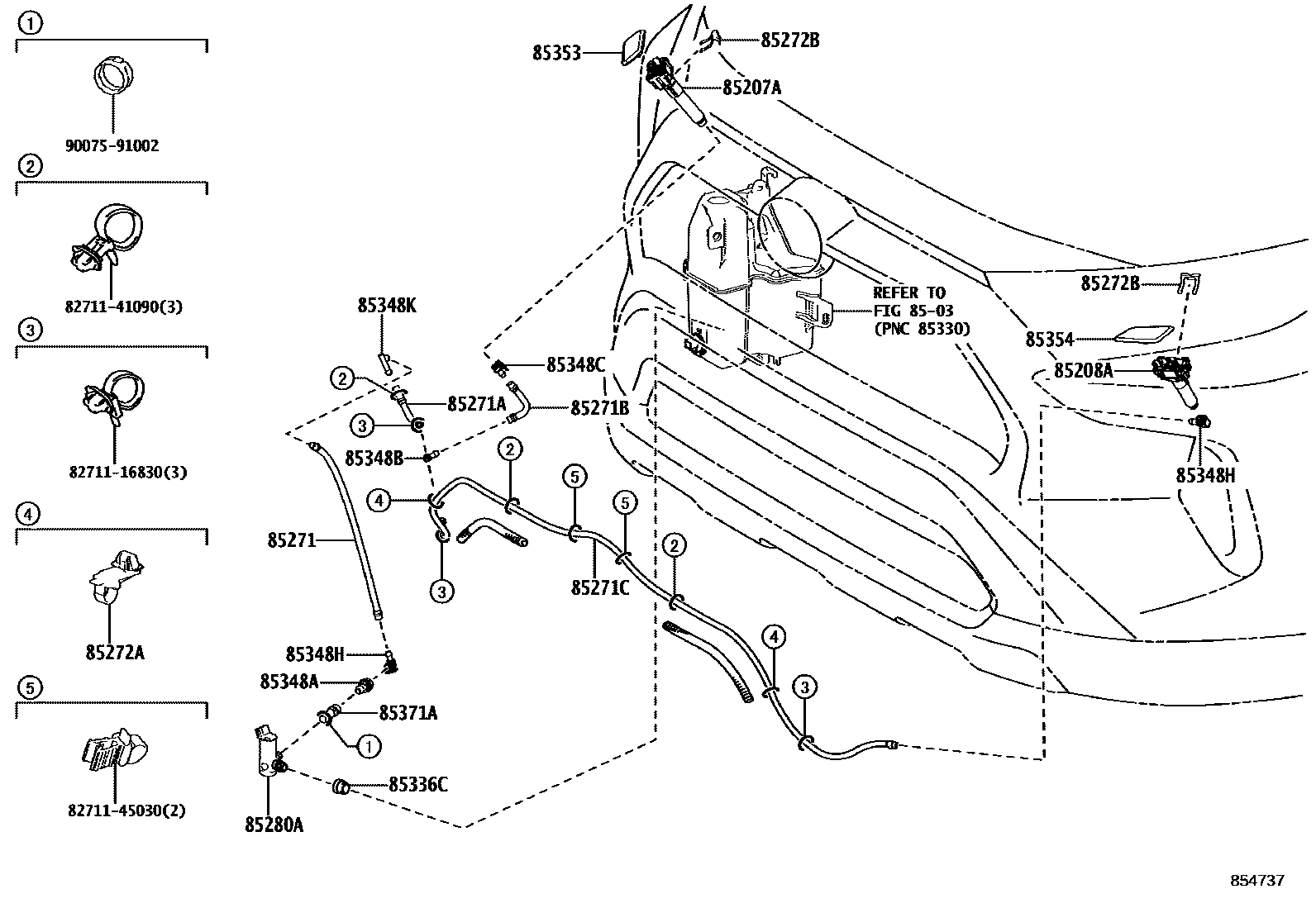

Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-42070 · 85207-42120 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-42070 · 85208-42120 |
| 85271 | No. 1 headlight washer hose | 90075-15088 · 90075-15106 |
| 85271A | No. 2 headlight washer hose | 90075-15058 · 90075-15082 |
| 85271B | No. 3 headlight washer hose | 90075-15055 · 90075-15092 |
| 85271C | No. 4 headlight washer hose | 90075-15080 |
| 85272A | Headlight washer No. 1 clip | 82711-16820 · 90075-90006 |
| 85272B | Headlight washer clip No. 2 | 82711-48190 · 85272-75050 |
| 85272C | Headlight washer clip No. 3 | 85272-75050 |
| 85280A | Headlight washer motor and pump assembly | 85280-33030 |
| 85336C | Headlight washer motor seal | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17012 |
| 85348B | No. 2 headlight washer hose connector | 90075-17009 · 90075-17010 · 90075-17020 |
| 85348C | No. 3 headlight washer hose connector | 90075-17011 |
| 85348H | No. 4 headlight washer hose connector | 90075-17009 |
| 85348K | No. 1 headlight washer elbow joint | 90075-17010 · 90075-17013 · 90075-17020 · 90075-17021 |
| 85353 | CACHE, LAVE-PHARES, MD | 85353-42010-A0 · 85353-42010-A1 · 85353-42010-A2 · 85353-42010-B0 · 85353-42010-B1 · 85353-42010-B2 · 85353-42010-C0 · 85353-42010-C1 · 85353-42010-D0 · 85353-42010-D1 · 85353-42010-D2 · 85353-42010-E0 · 85353-42010-G1 · 85353-42010-J0 · 85353-42010-J1 · 85353-42010-J2 · 85353-42060-B0 · 85353-42060-C0 · 85353-42060-D0 · 85353-42060-G0 |
| 85354 | CACHE, LAVE-PHARES, MG | 85354-42010-A0 · 85354-42010-A1 · 85354-42010-A2 · 85354-42010-B0 · 85354-42010-B1 · 85354-42010-B2 · 85354-42010-C0 · 85354-42010-C1 · 85354-42010-D0 · 85354-42010-D1 · 85354-42010-D2 · 85354-42010-E0 · 85354-42010-G1 · 85354-42010-J0 · 85354-42010-J1 · 85354-42010-J2 · 85354-42060-B0 · 85354-42060-C0 · 85354-42060-D0 · 85354-42060-G0 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
