Toyota RAV4 后清洗器 — Figure 8504

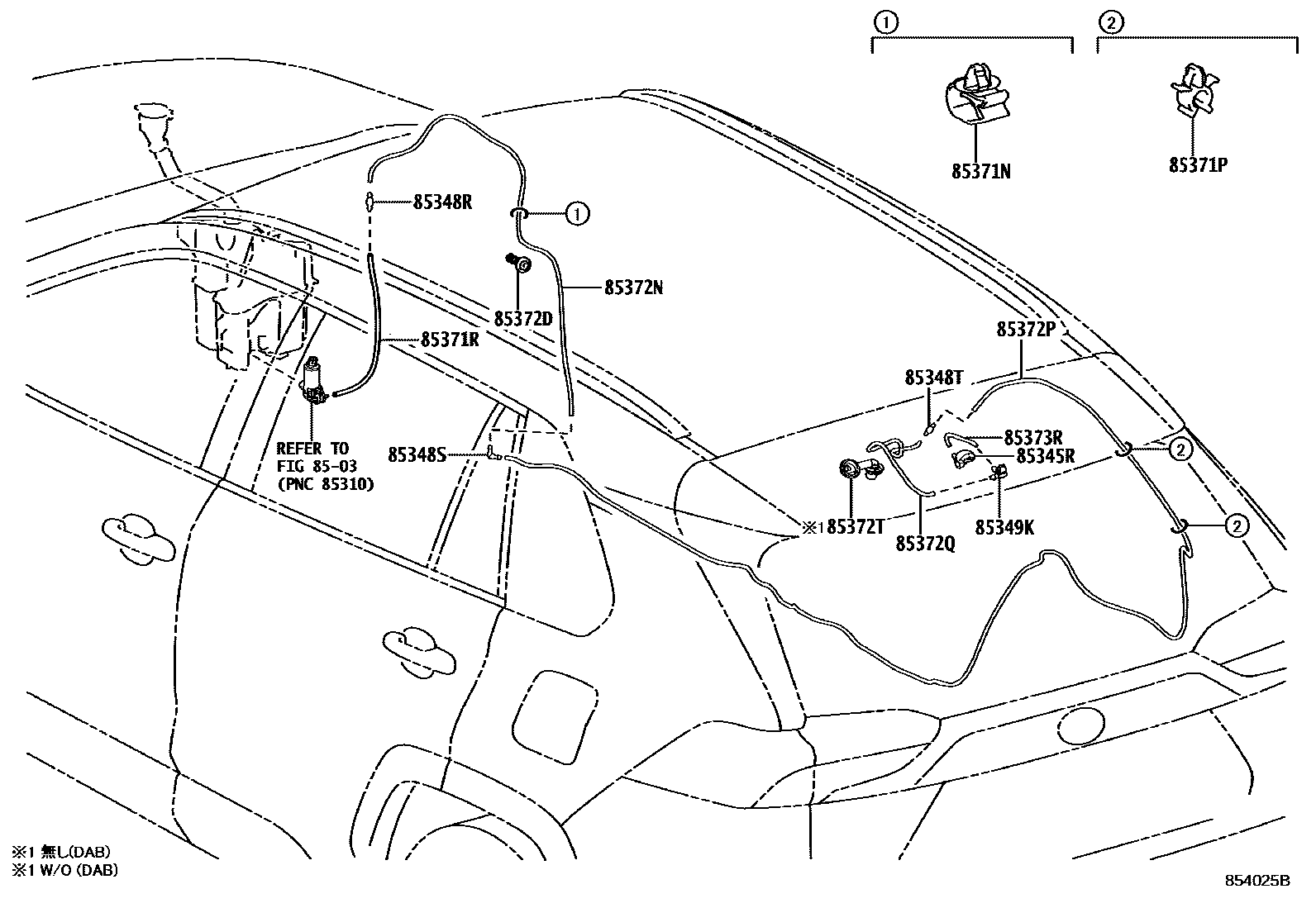

Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-42030 |
| 85348R | No. 1 rear washer hose connector | 85375-10260 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85375-10260 |
| 85349K | No. 2 rear cleaner elbow joint | 85375-60290 |
| 85371N | Rear washer hose clamp | 82711-16790 |
| 85371P | COLLIER, FLEX LAVE-VITRE ARR, NO.2 | 90469-07011 |
| 85371R | Rear washer hose (from motor to connector) | 90099-62092 |
| 85372D | Rear washer hose seal | 85379-12850 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90099-62187 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90099-62180 |
| 85372T | Cleaner seal | 85373-42030 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-62128 |
