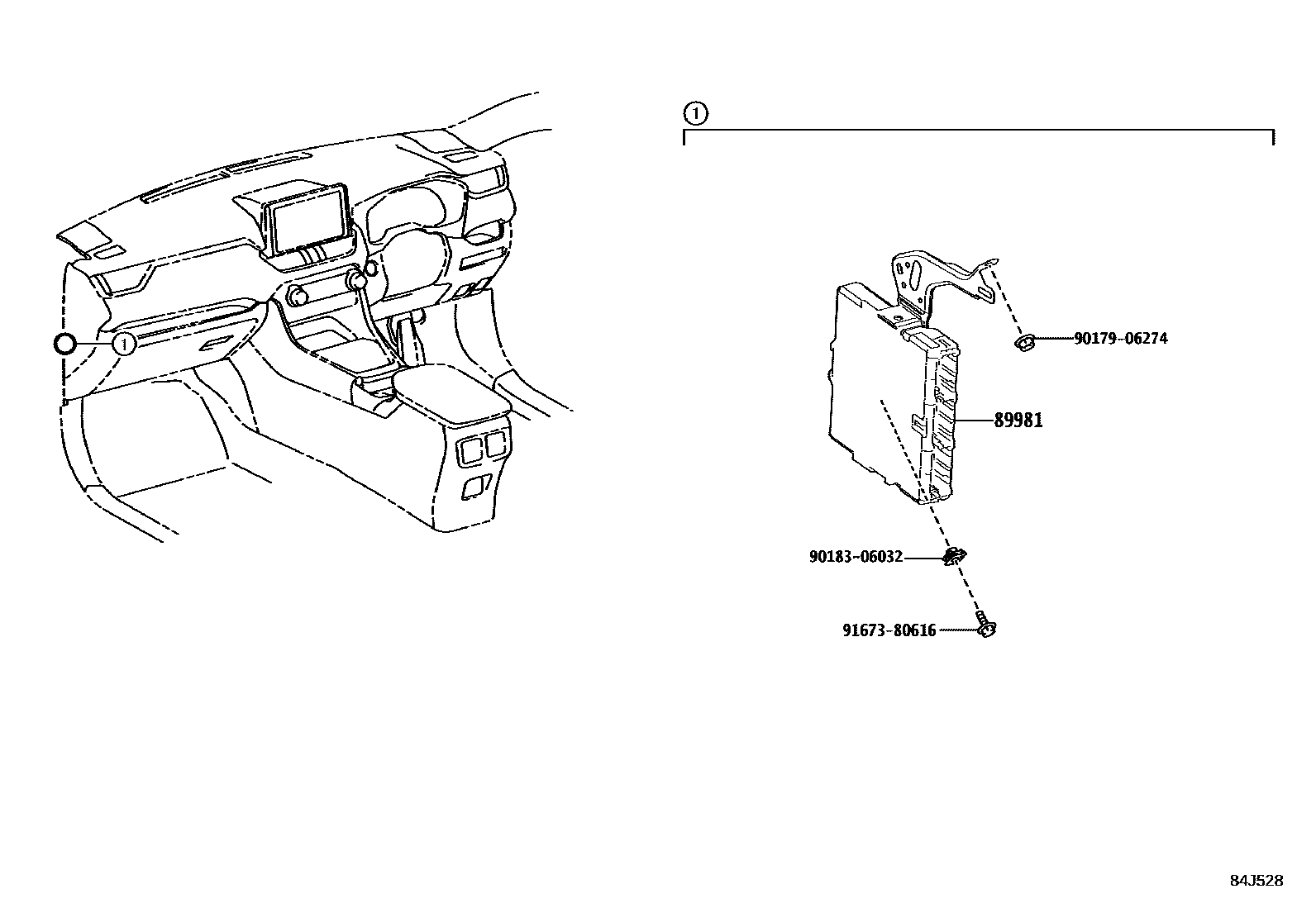

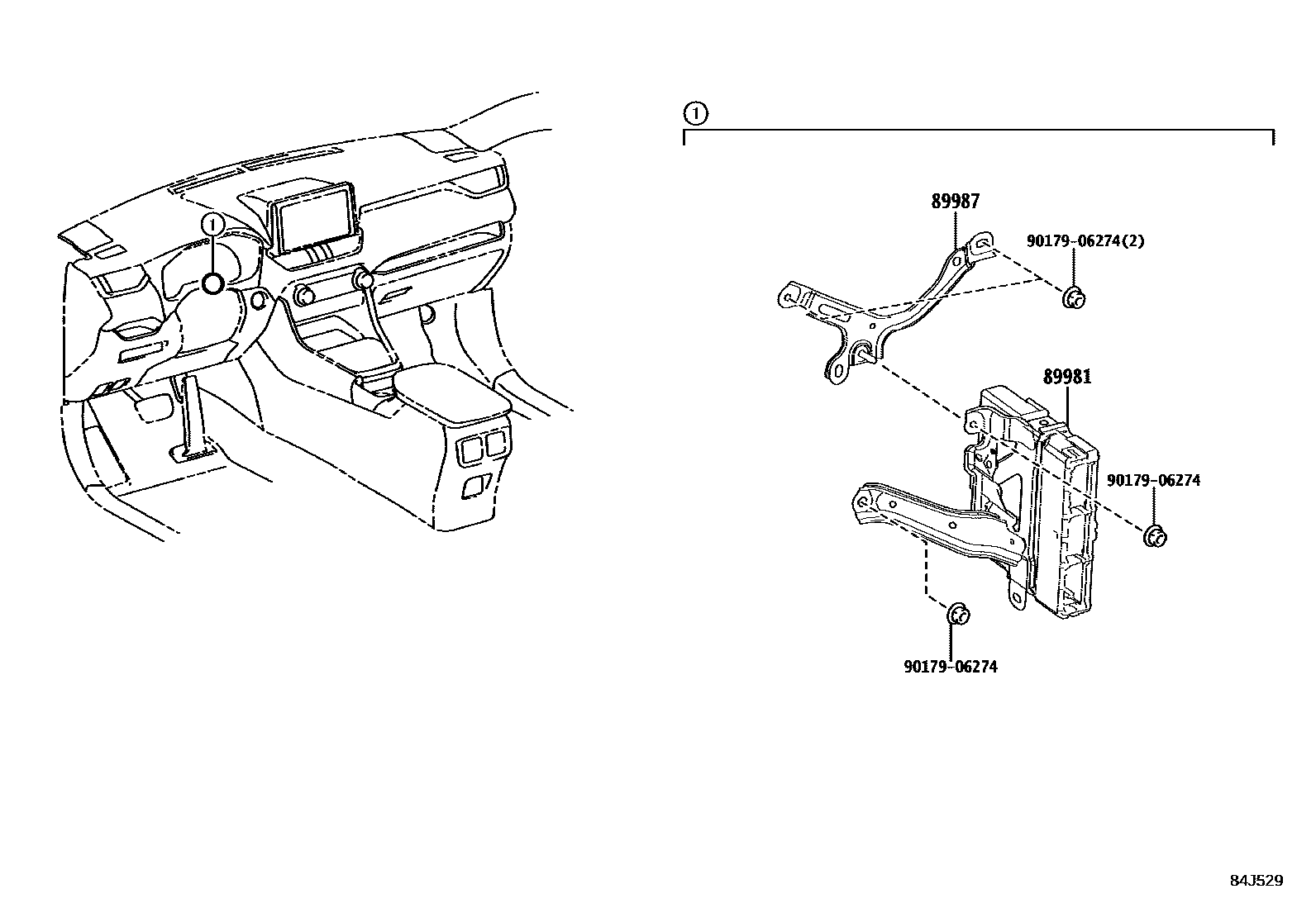

Toyota RAV4 HV控制ECU — Figure 8433
Toyota RAV4 EPC diagram 8433, HV控制ECU, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89980-42110 · 89980-42120 · 89980-42150 · 89980-42160 · 89980-42210 · 89980-42220 · 89980-42310 · 89980-42320 · 89980-42330 · 89980-42340 · 89980-42400 · 89980-42410 · 89980-42420 · 89980-42430 · 89980-42630 · 89980-42640 · 89980-42650 · 89980-42660 · 89980-42690 · 89980-42700 · 89980-42710 · 89980-42720 · 89980-42A00 · 89980-42A10 · 89980-42A20 · 89980-42A30 · 89980-42B10 · 89980-42B20 · 89980-42B30 · 89980-42B40 · 89980-42C30 · 89980-42C40 · 89980-42C50 · 89980-42C60 · 89980-42C70 · 89980-42C80 · 89980-42C90 · 89980-42D00 · 89980-42J10 |
| 89987 | No.1 ECU bracket | 89987-42030 |
