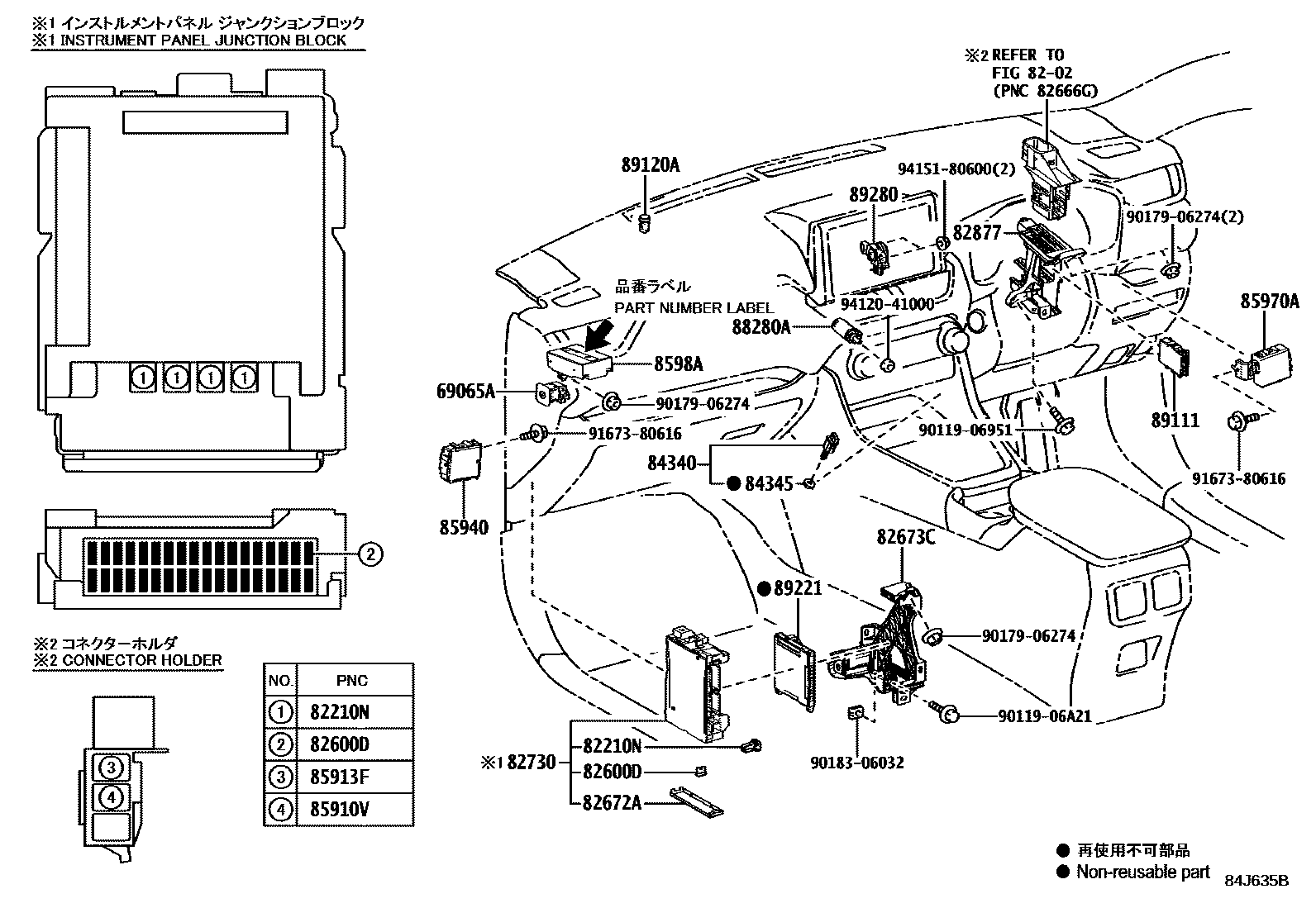

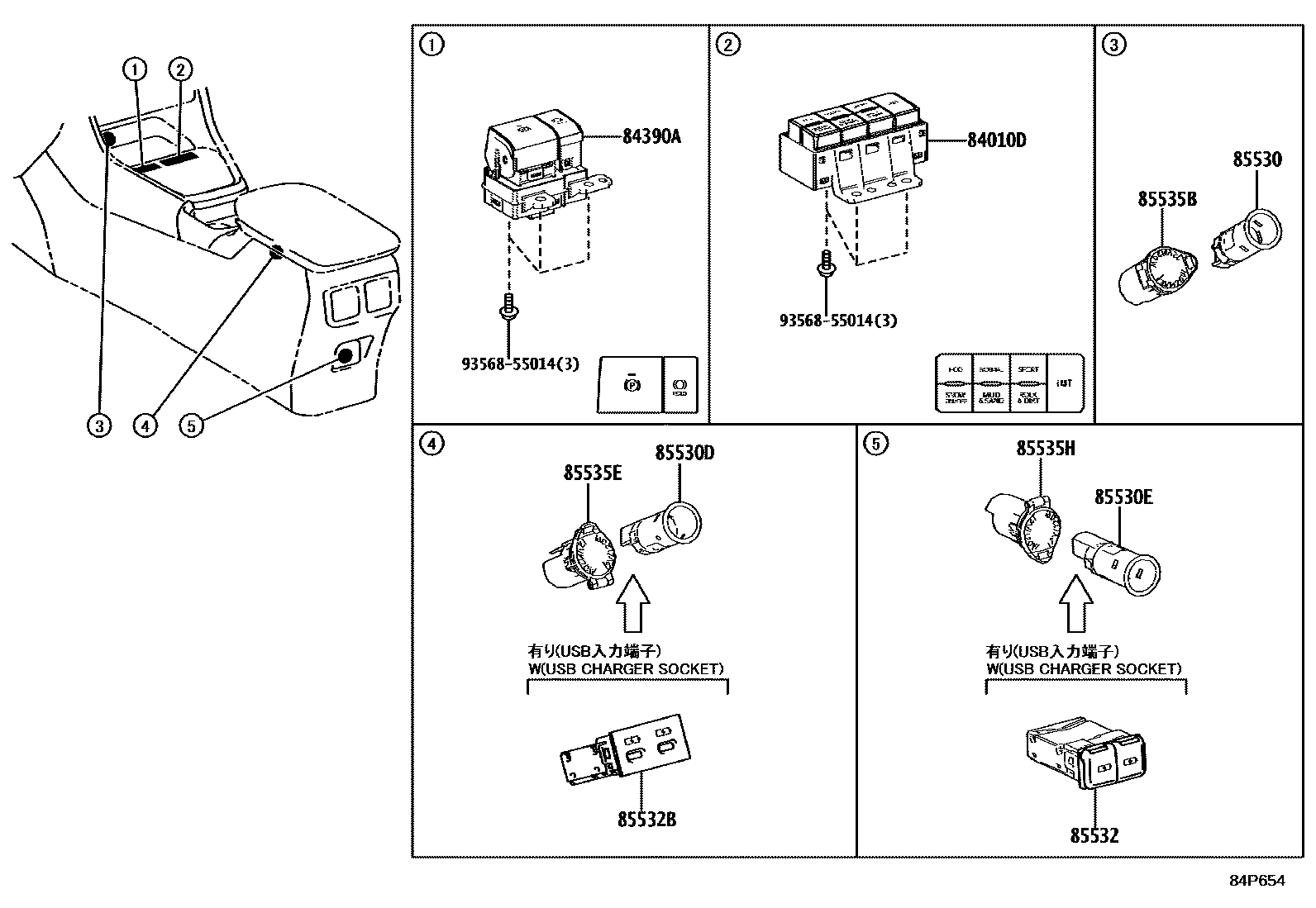

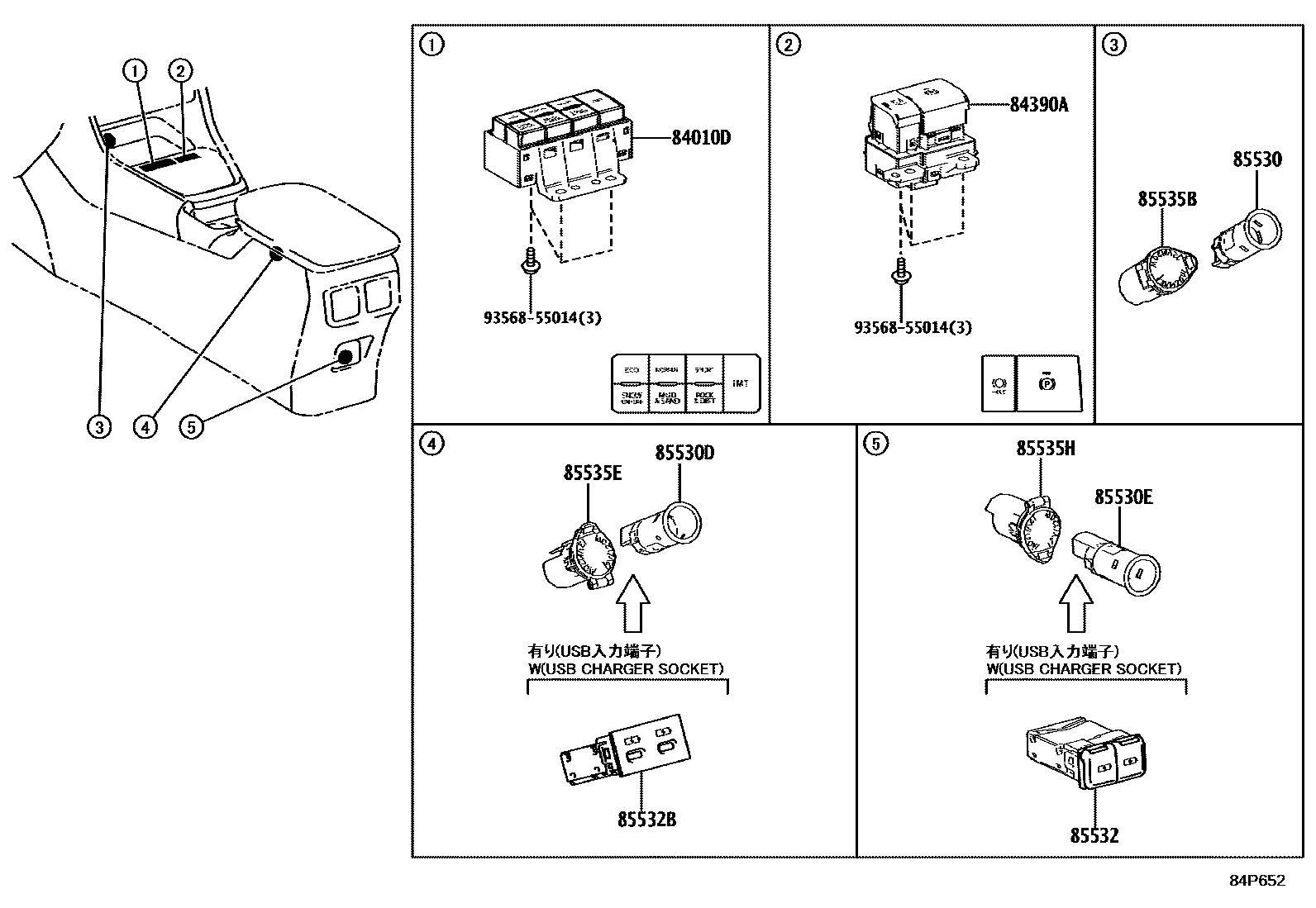

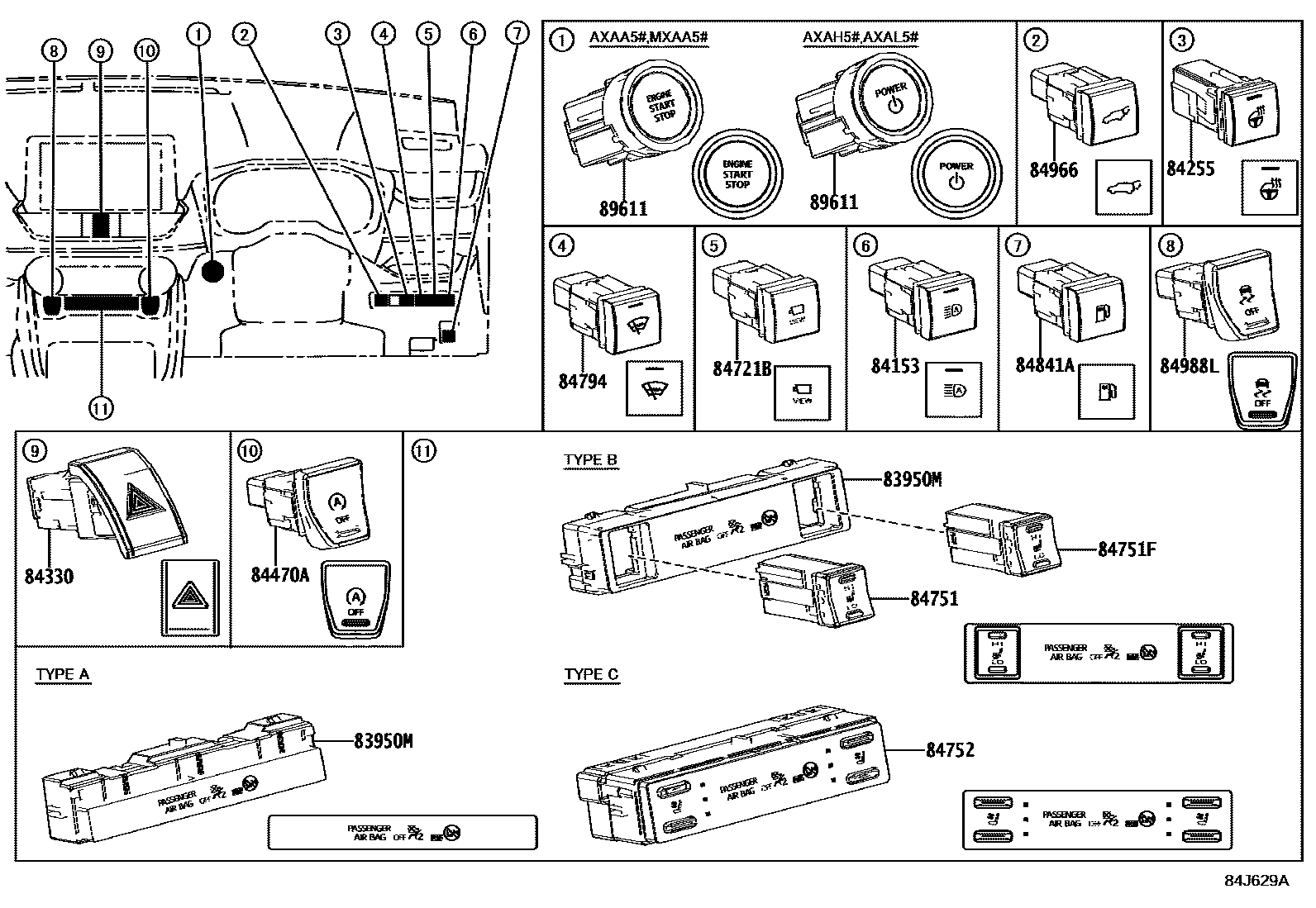

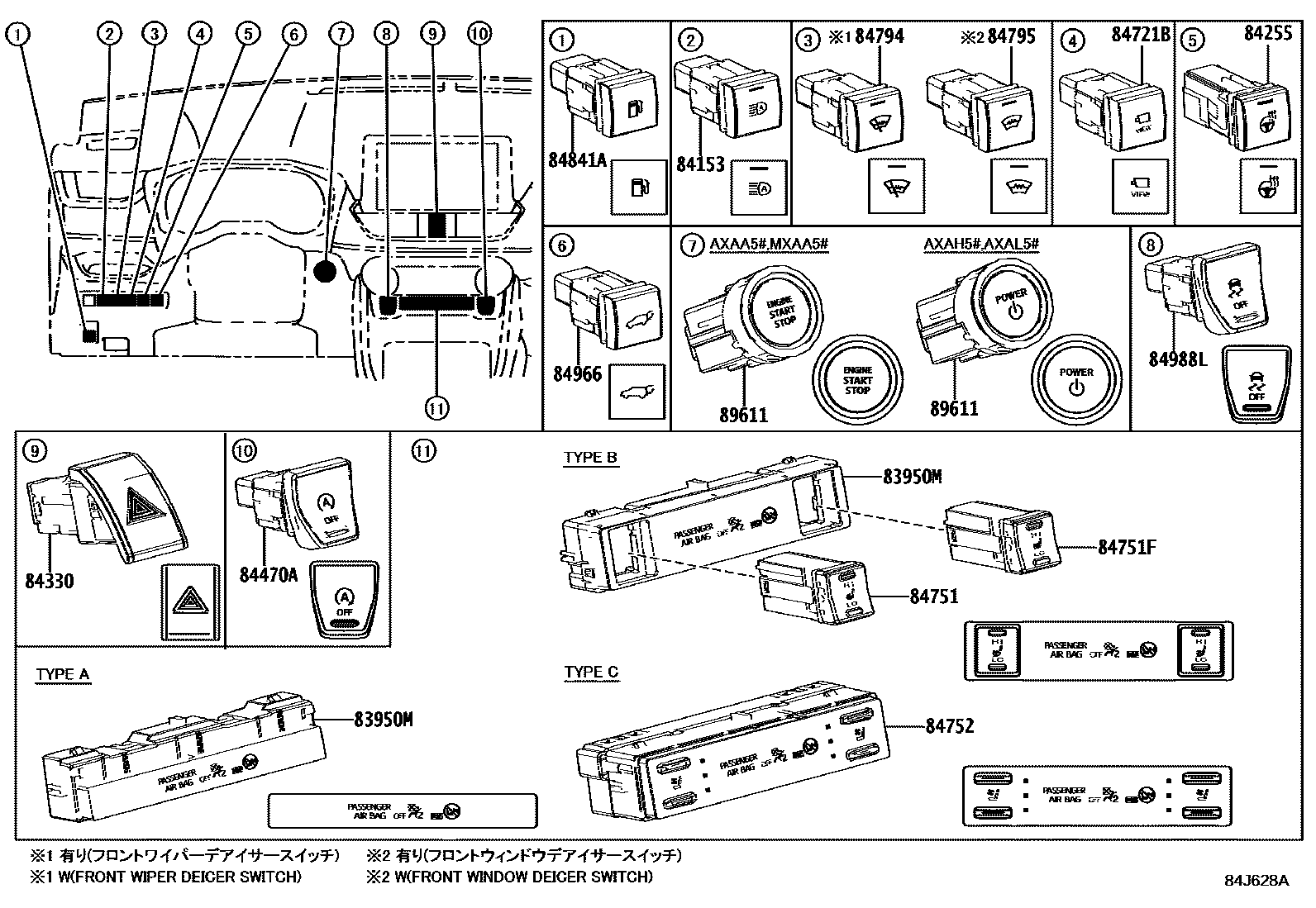

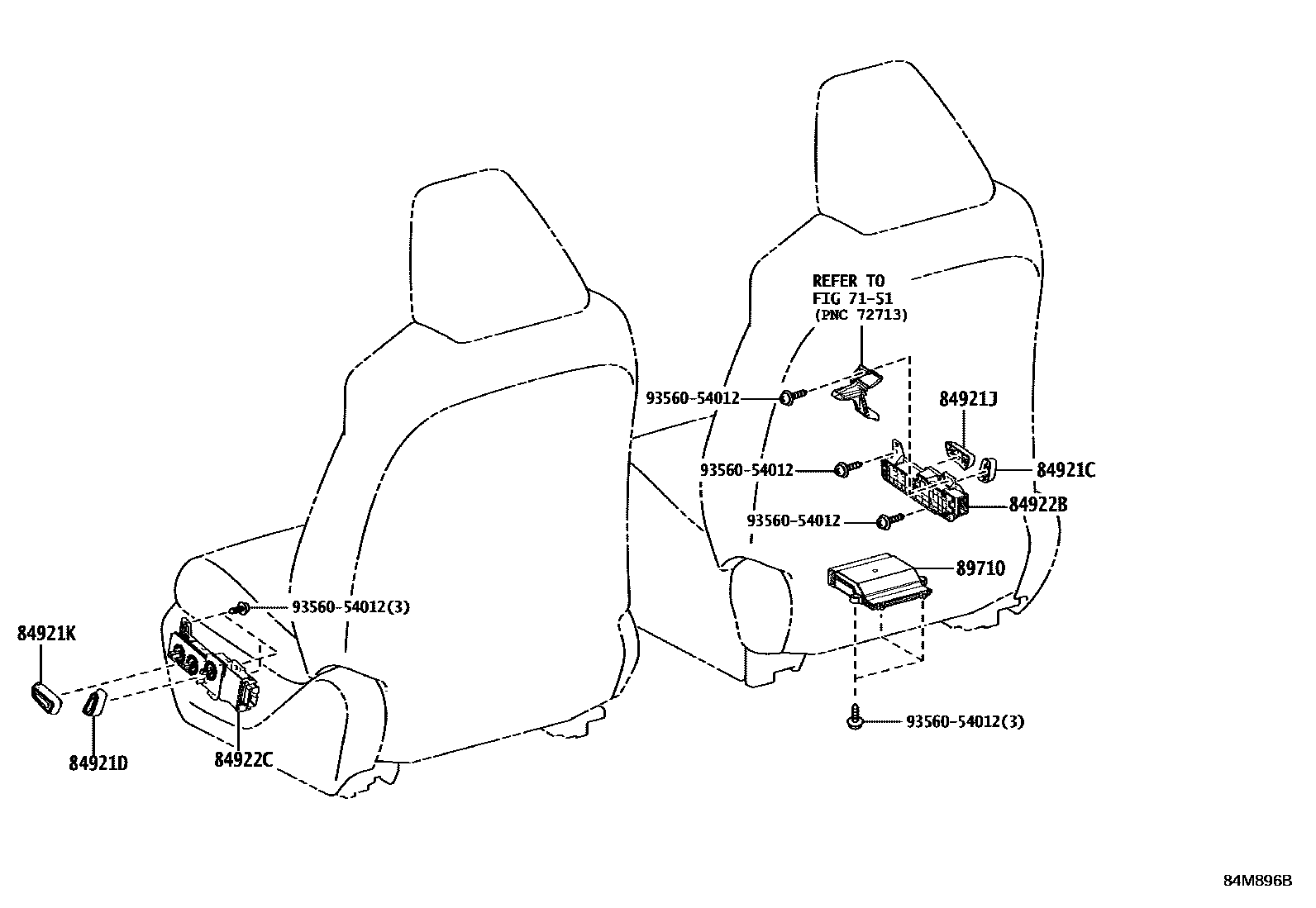

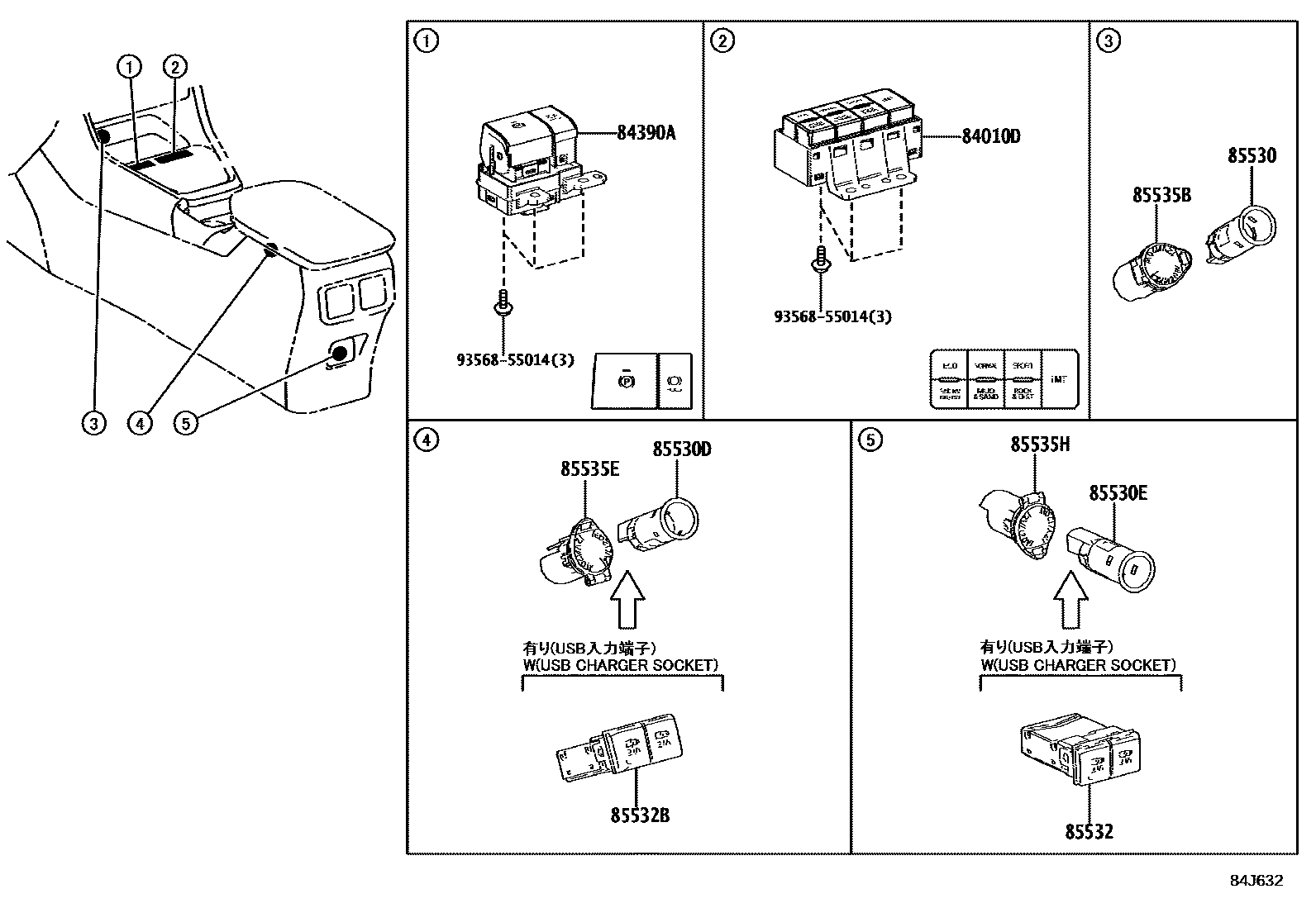

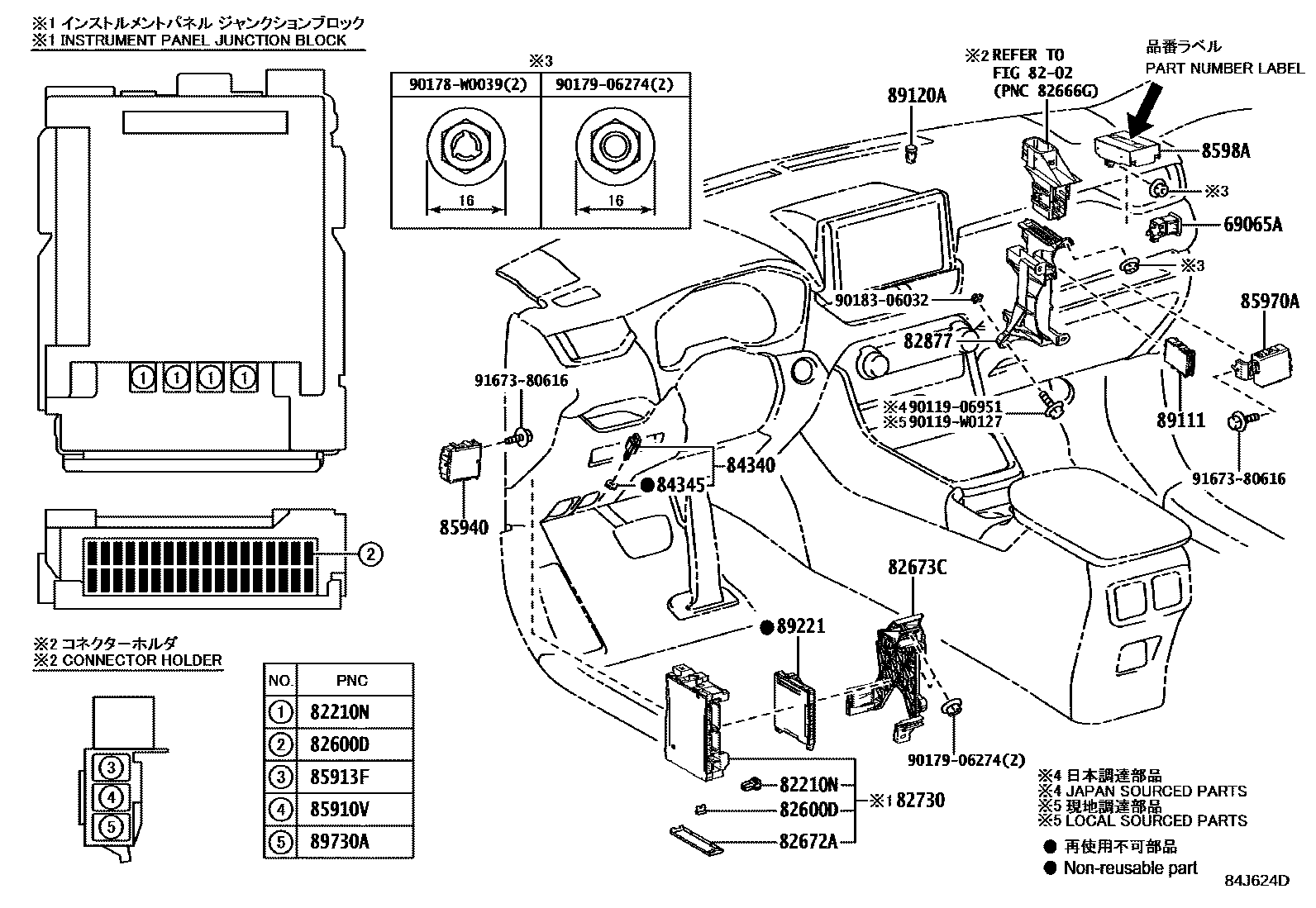

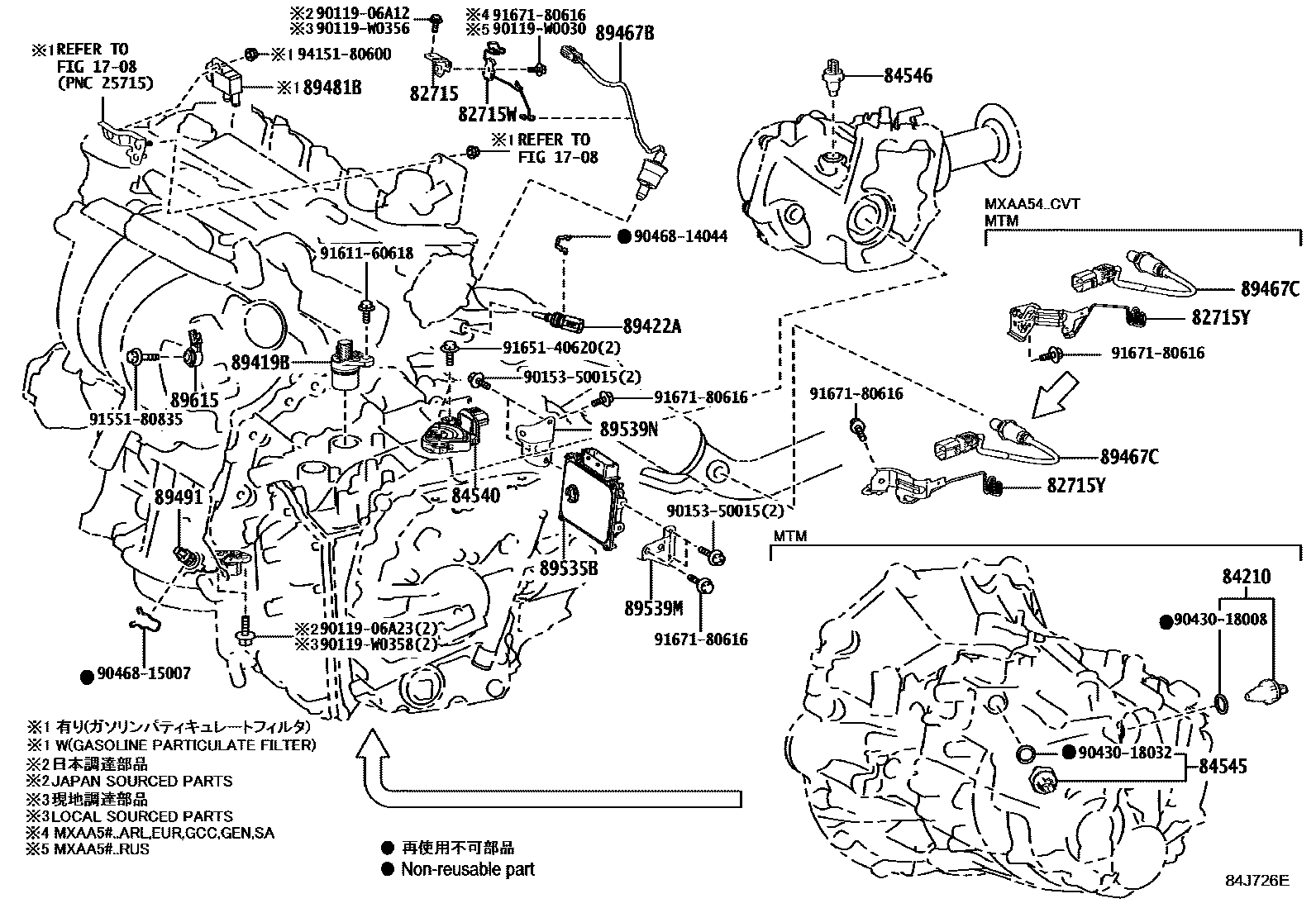

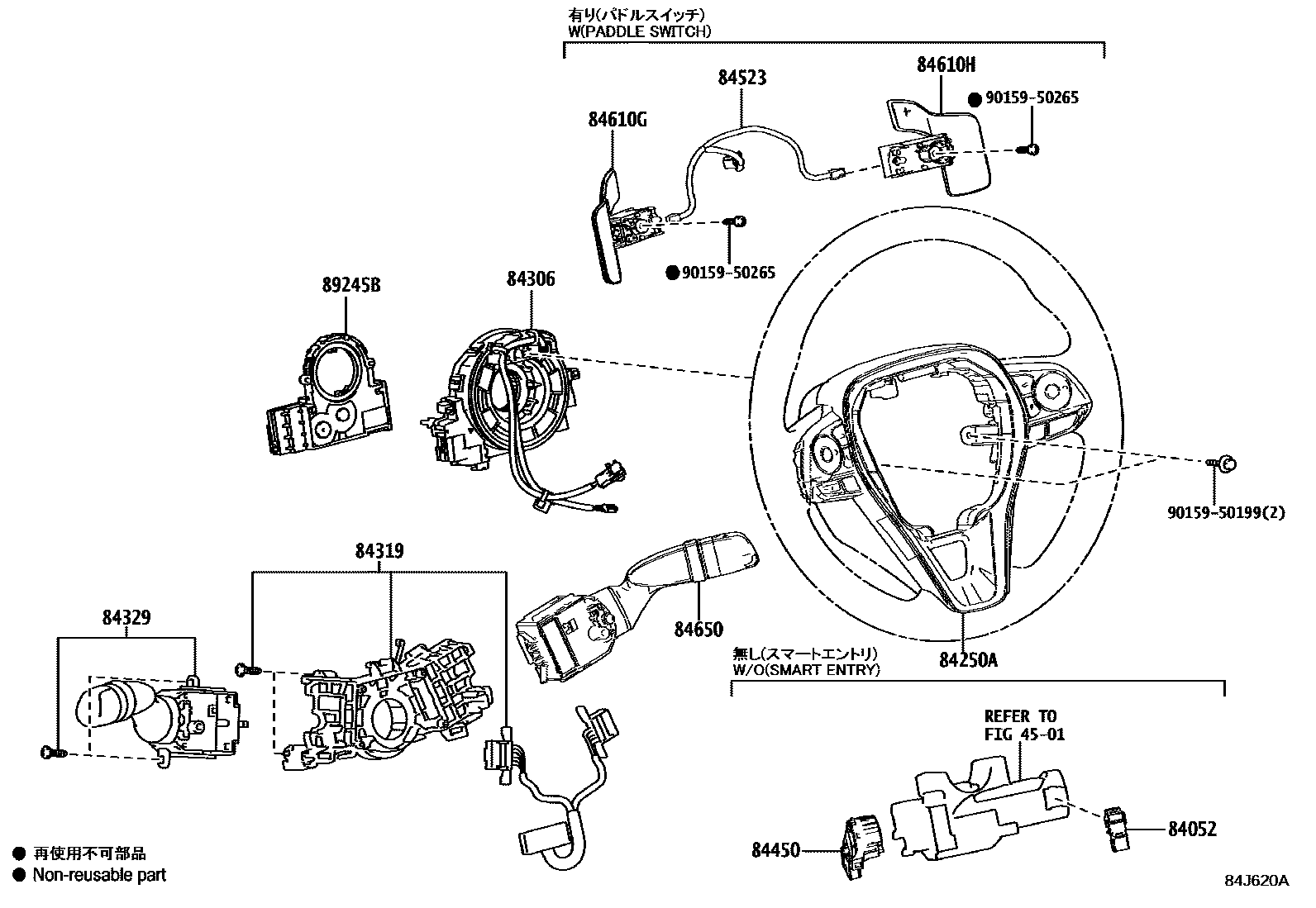

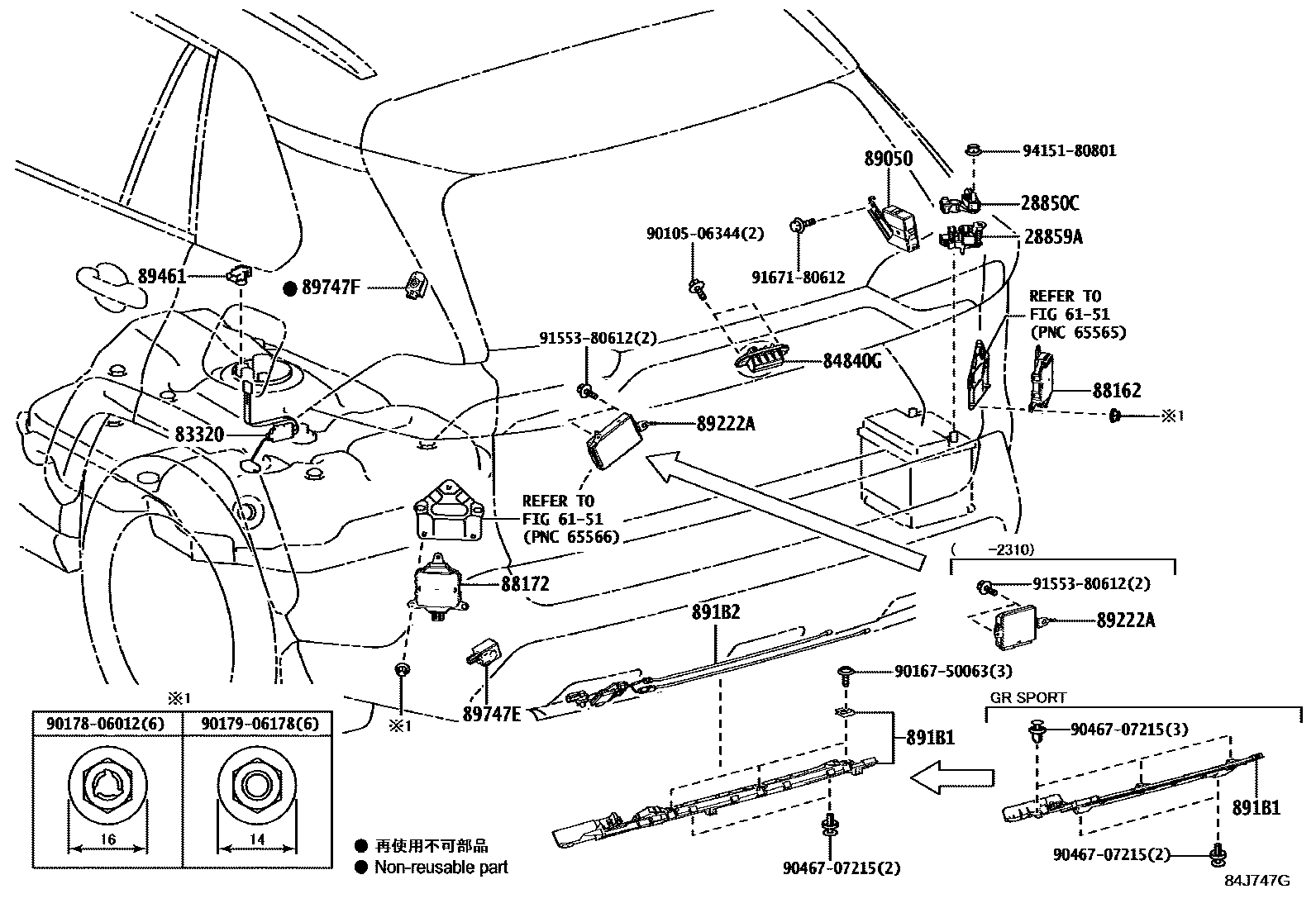

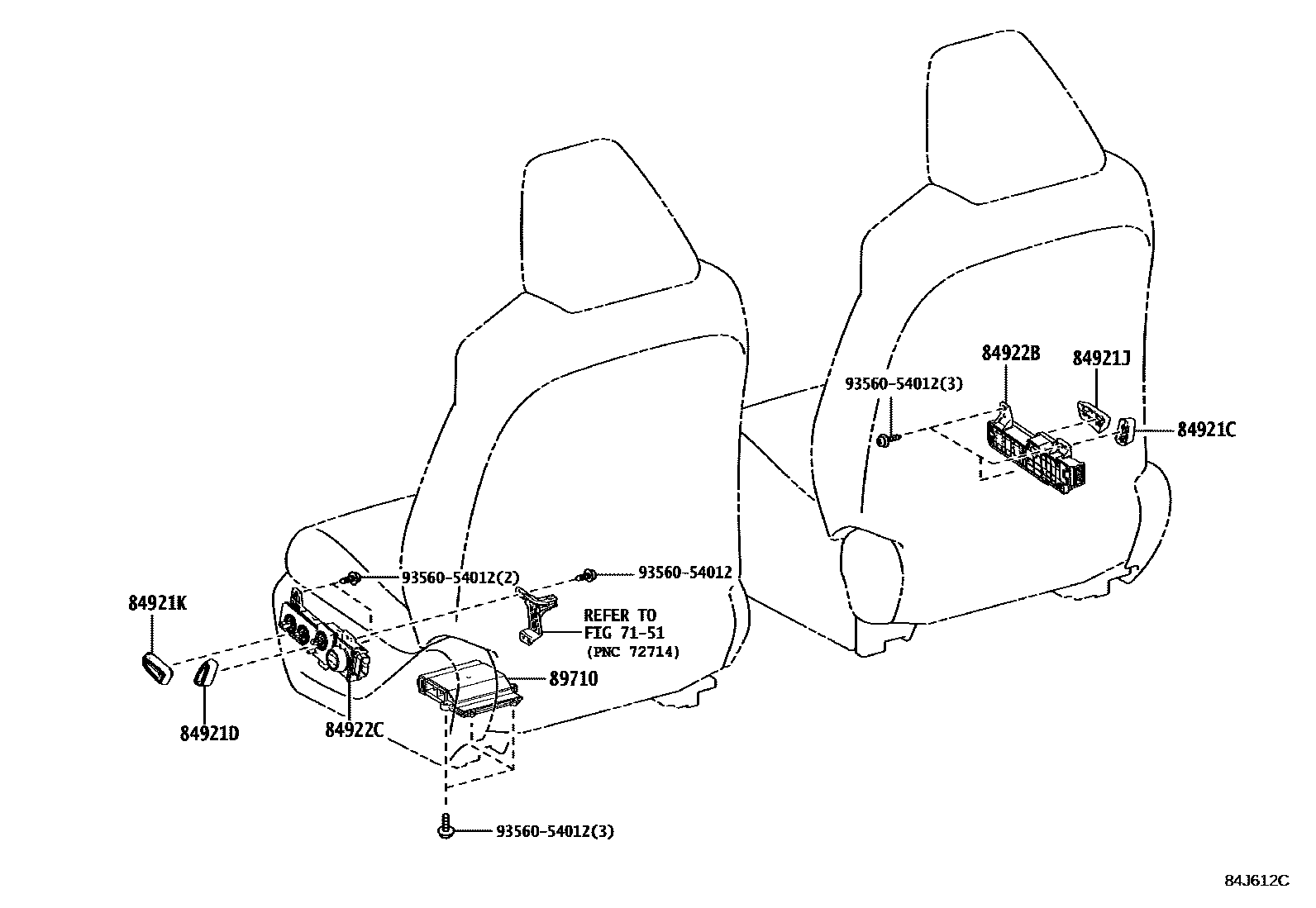

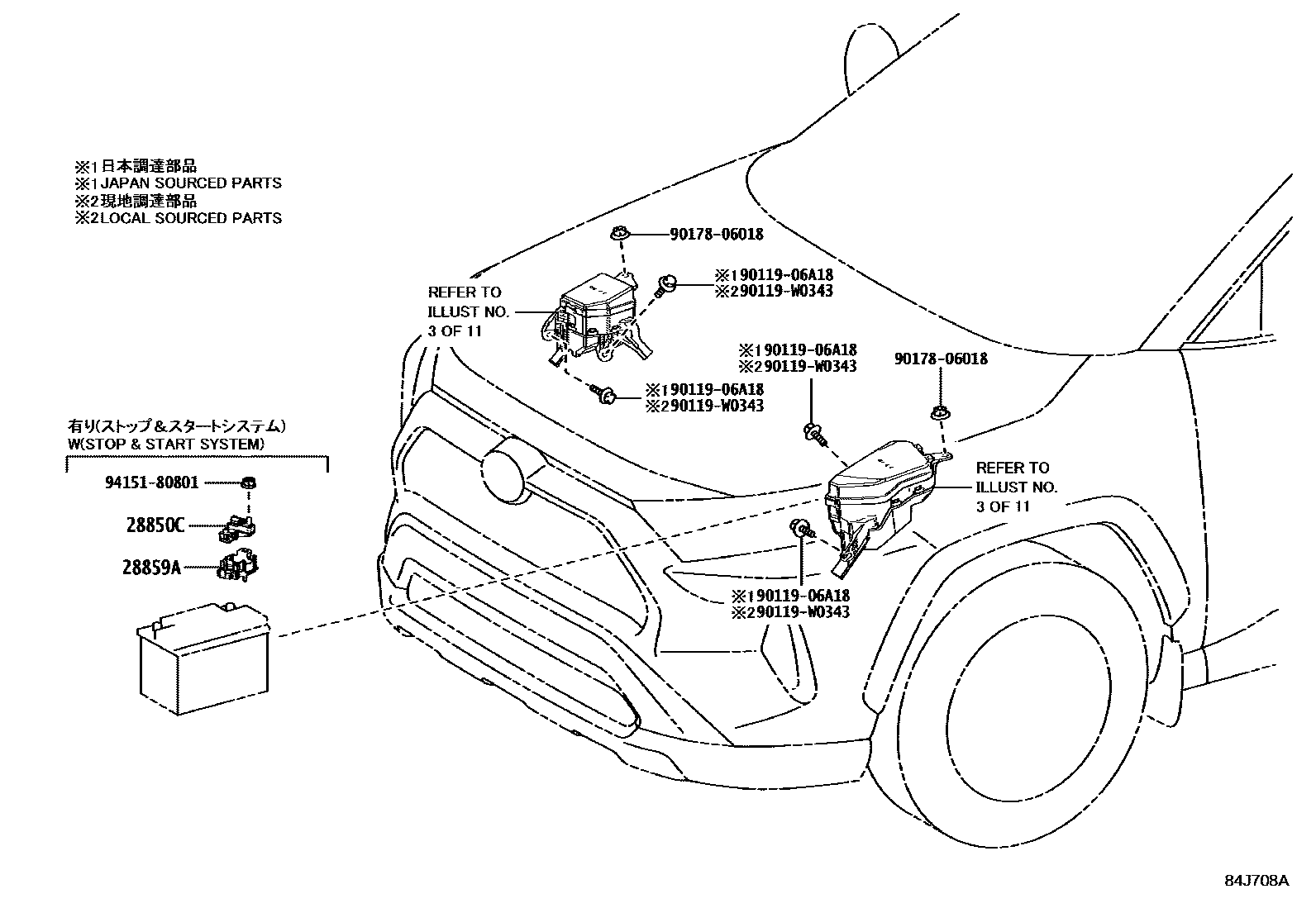

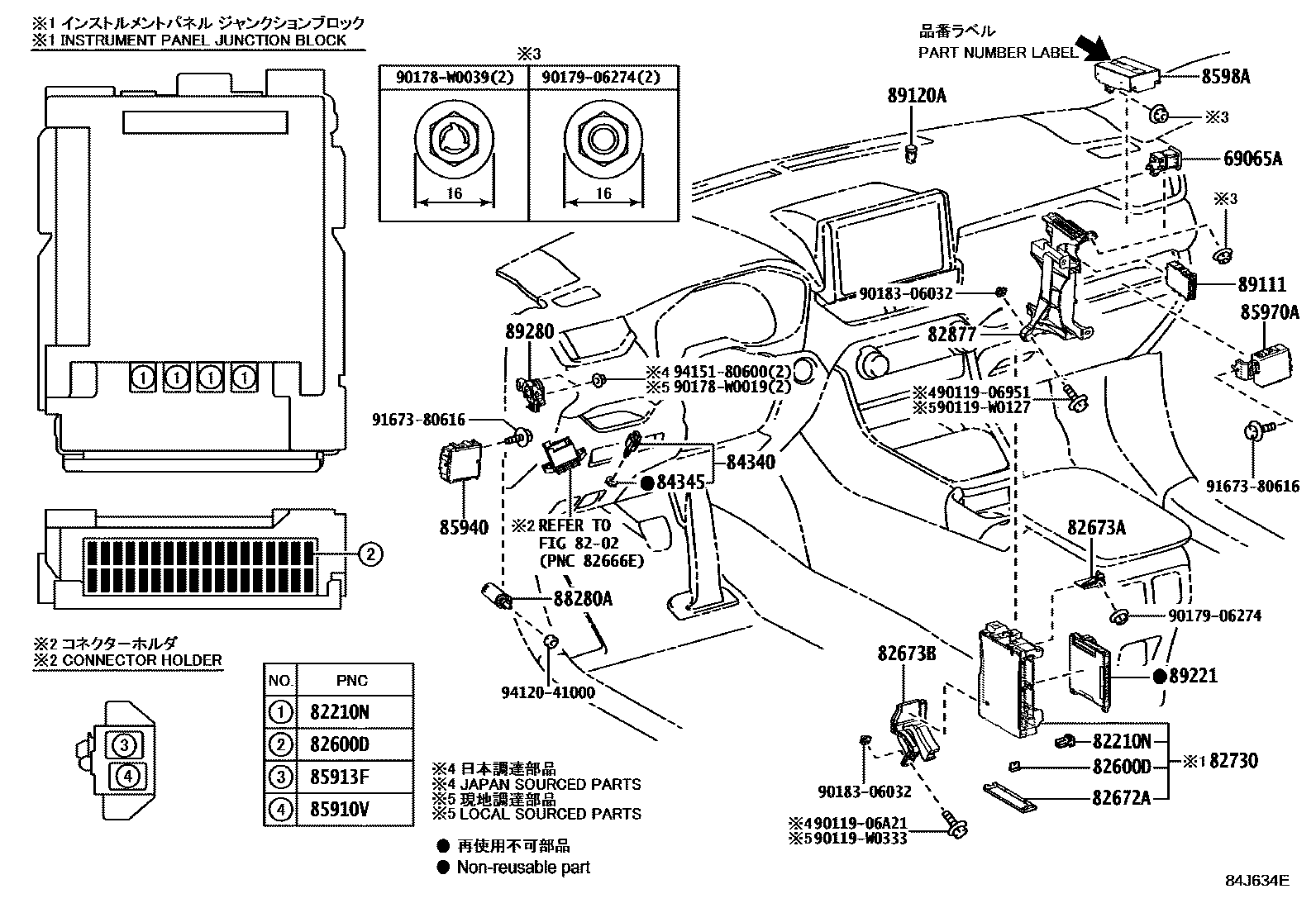

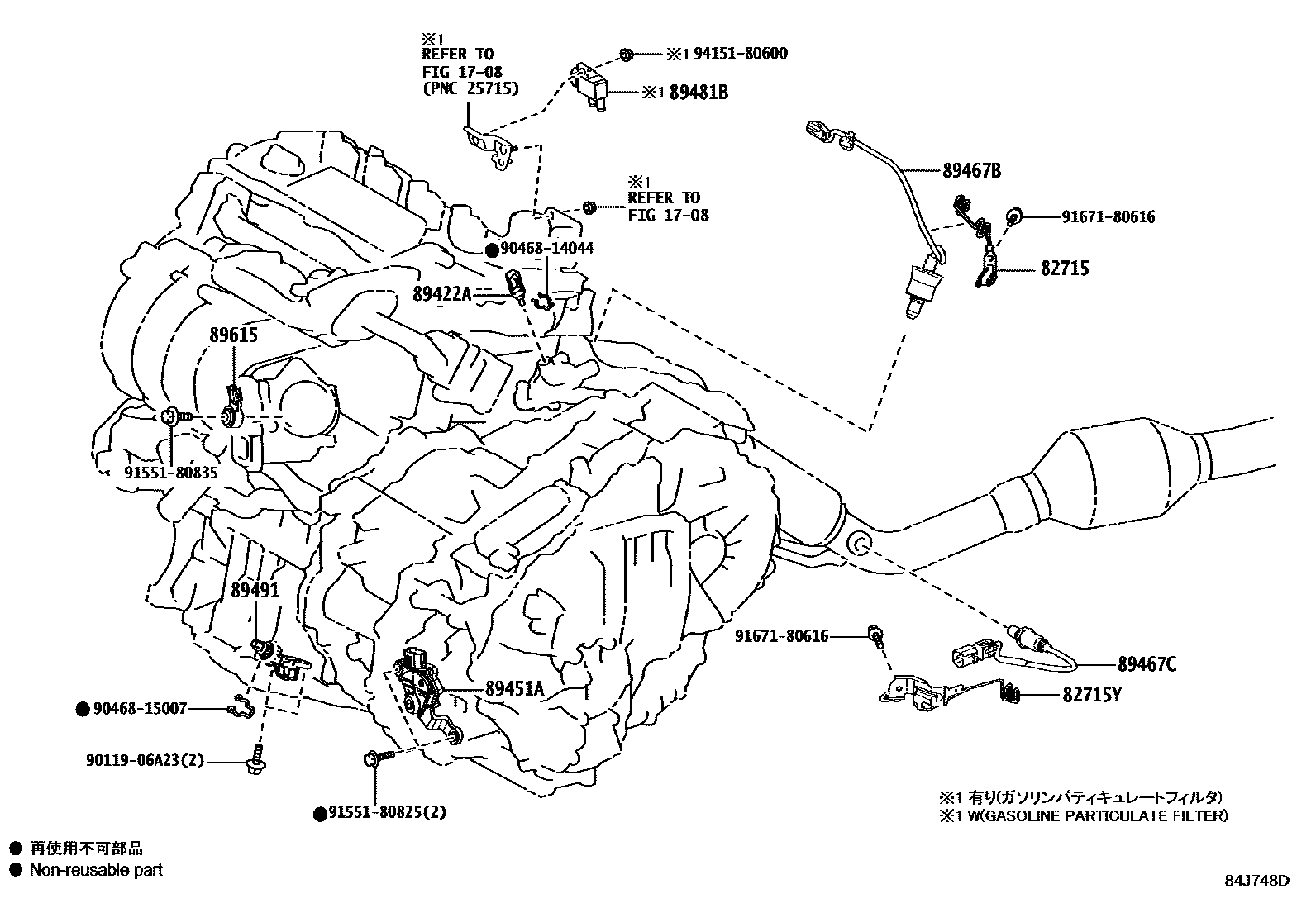

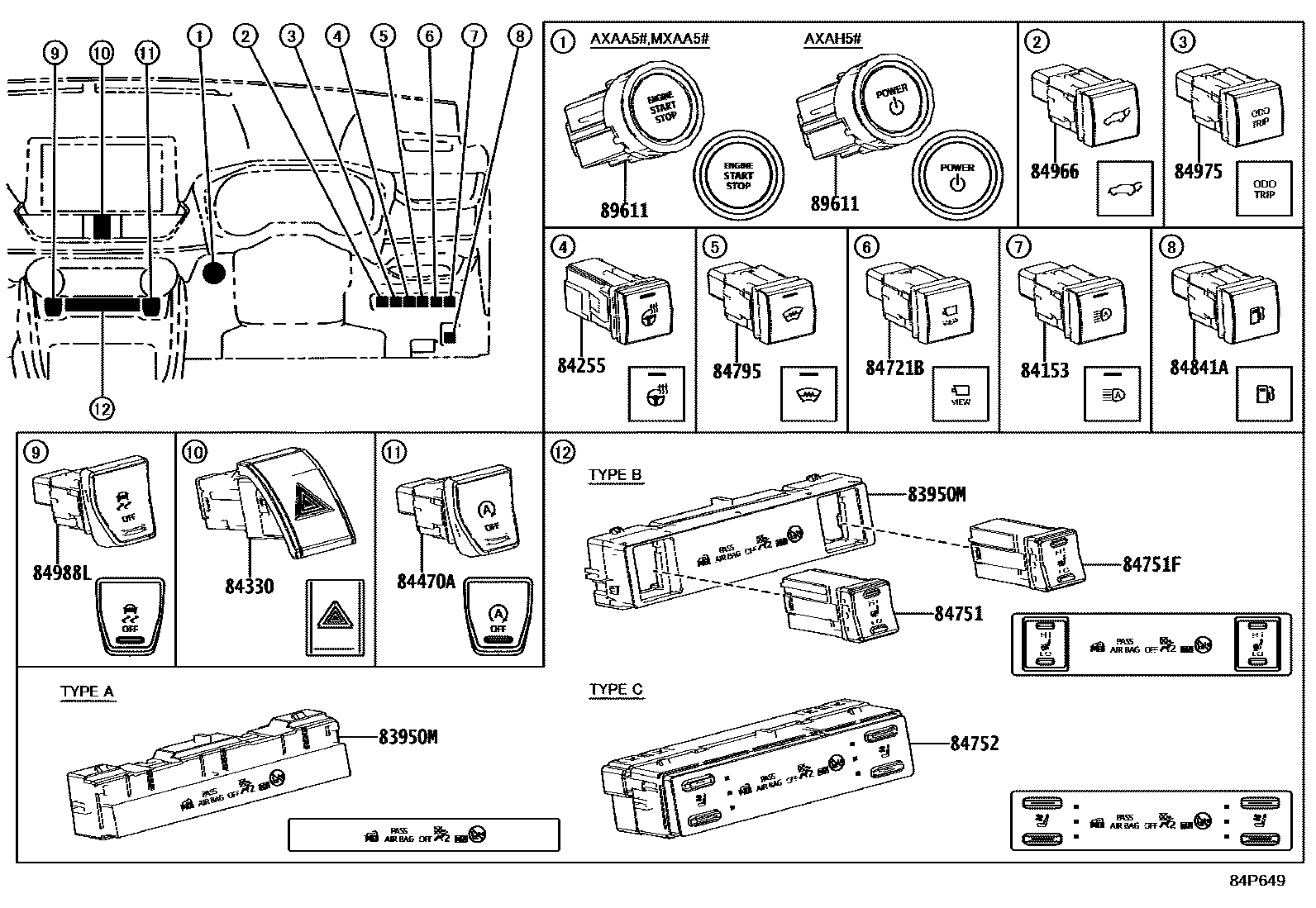

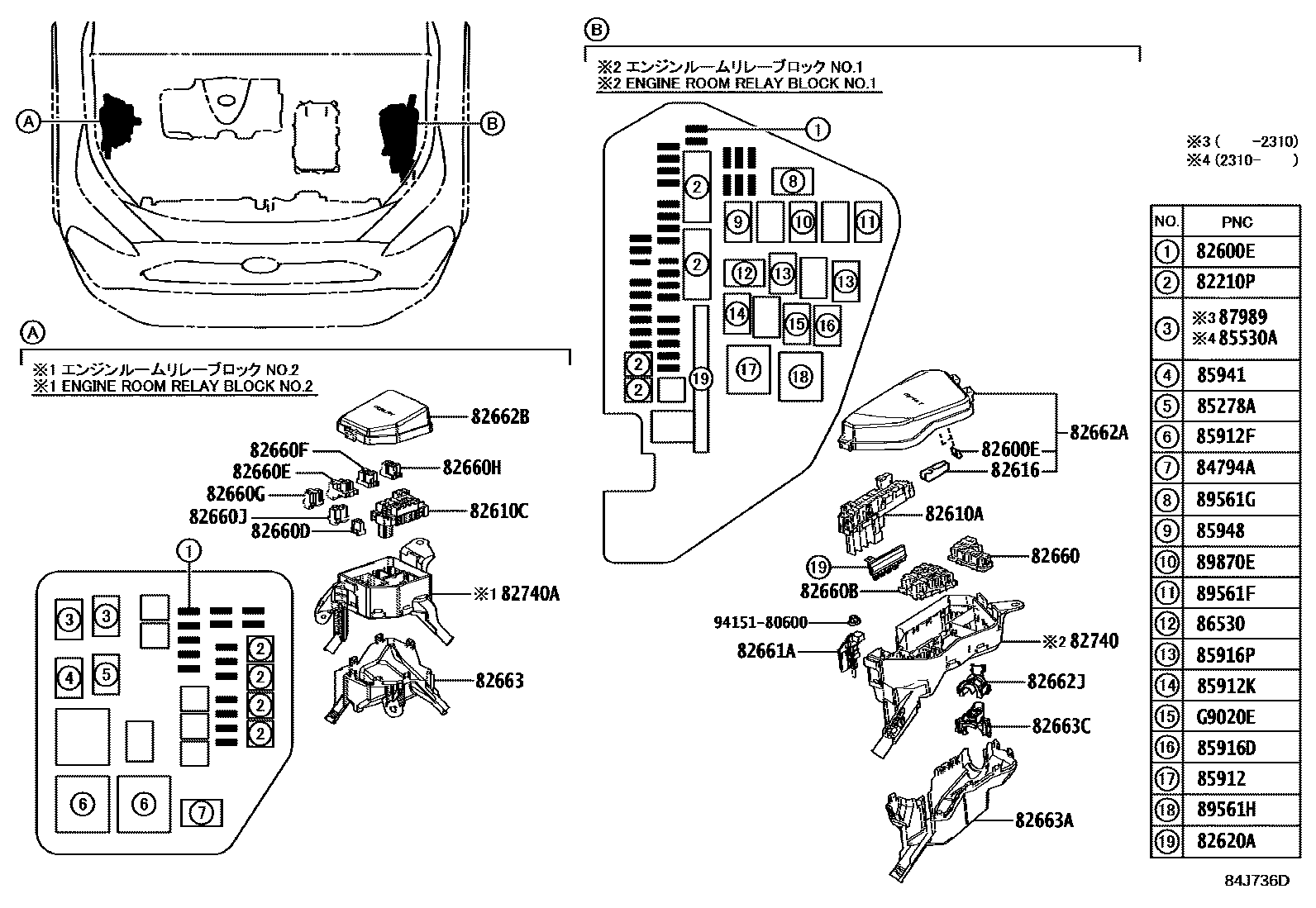

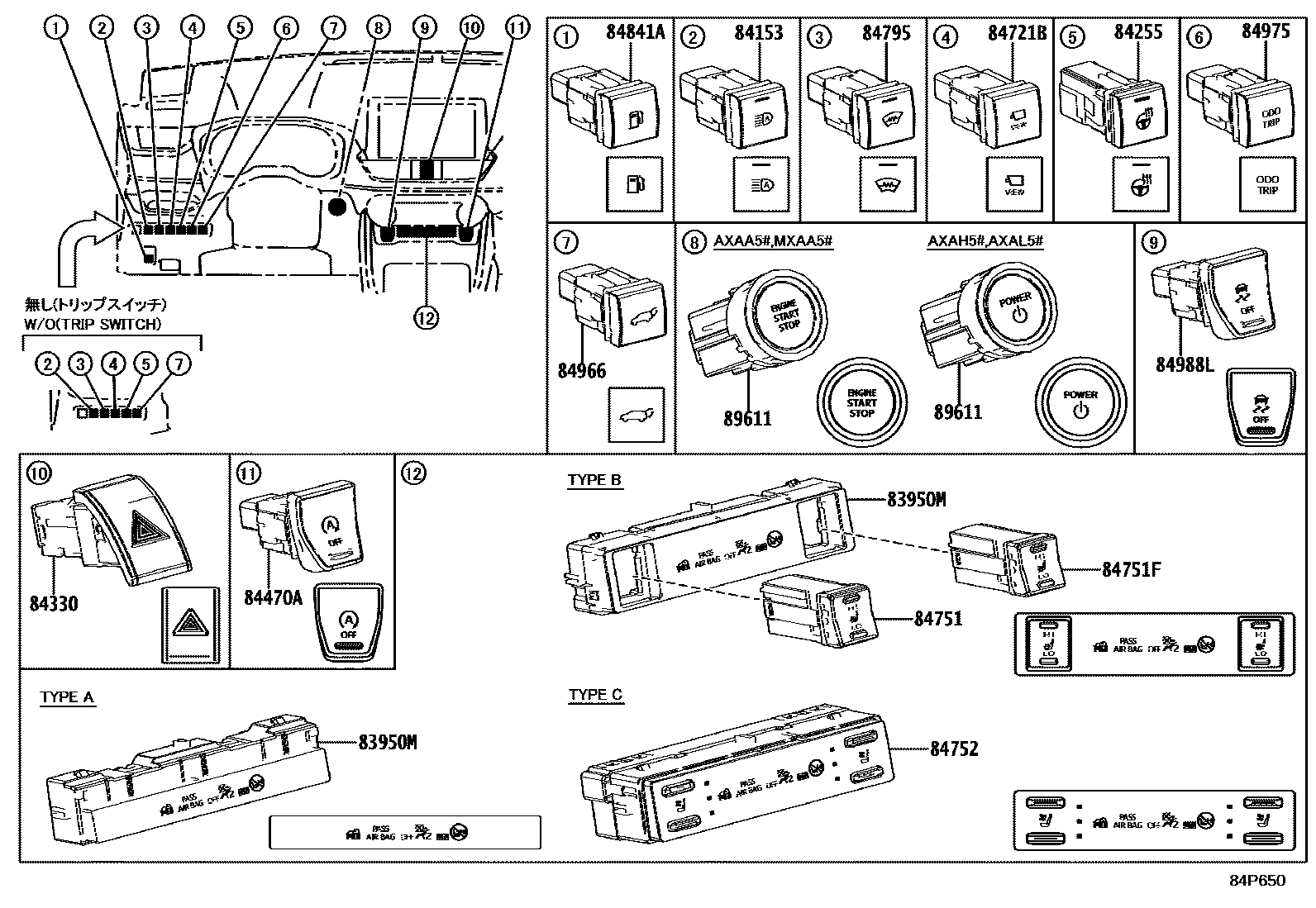

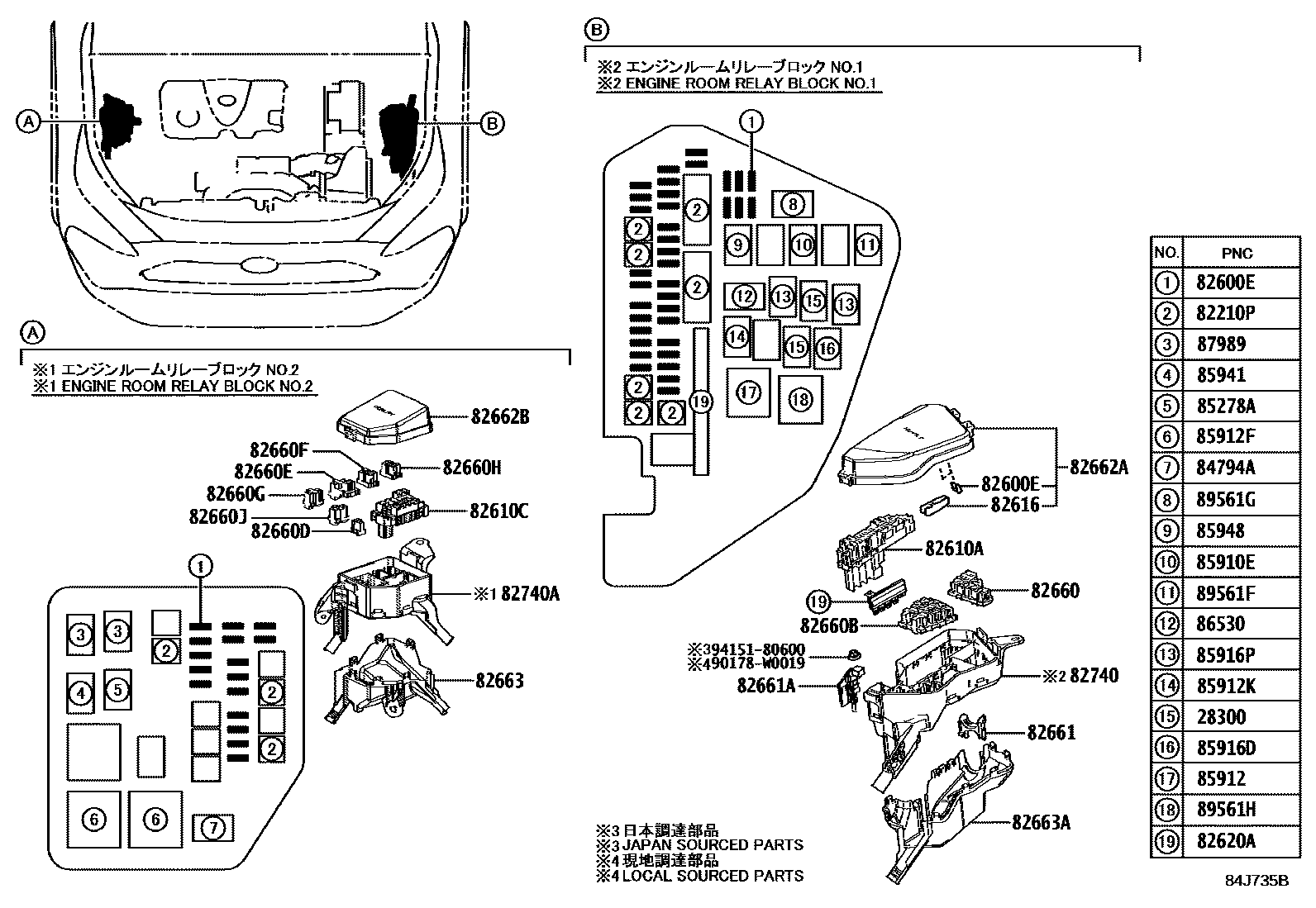

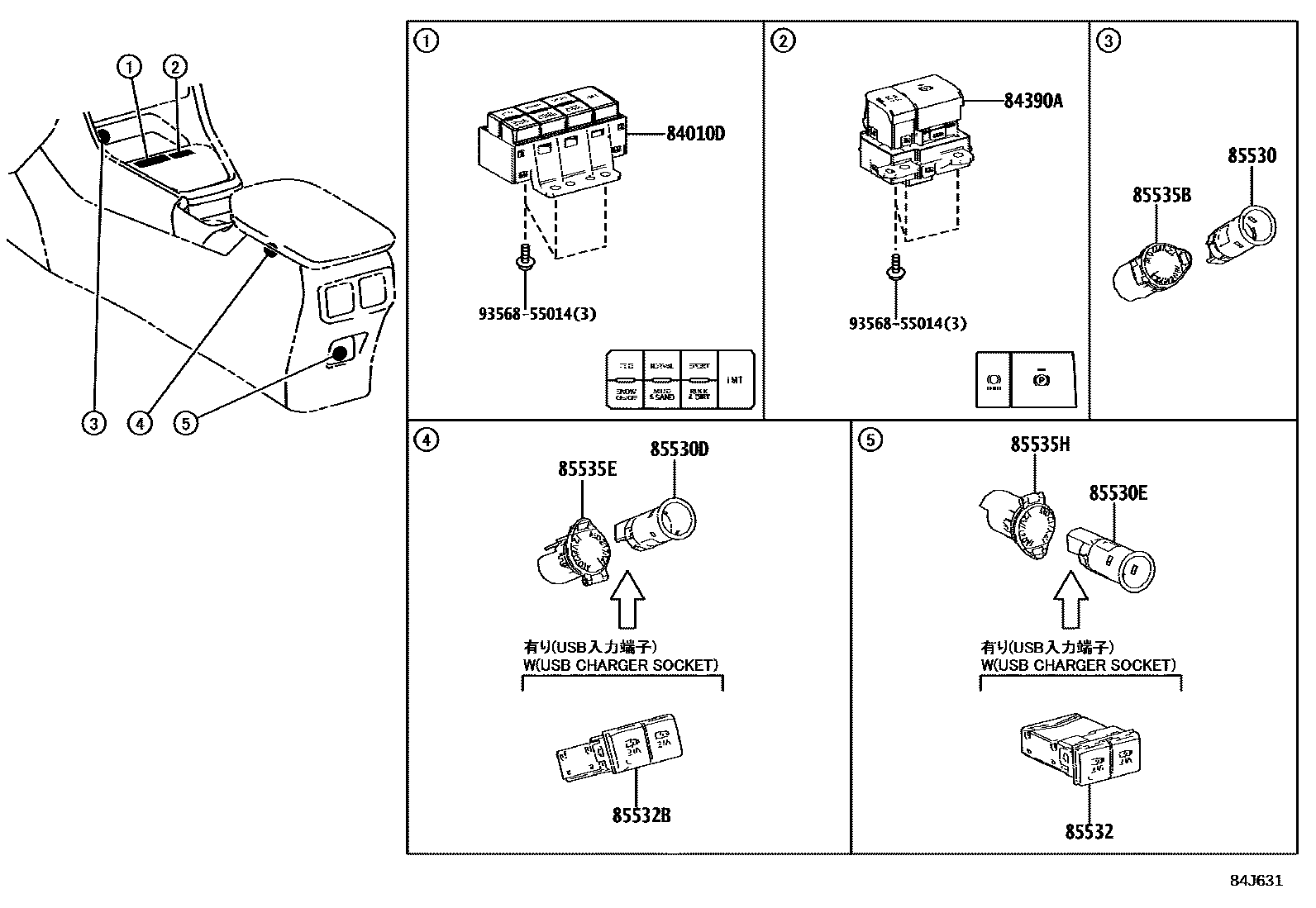

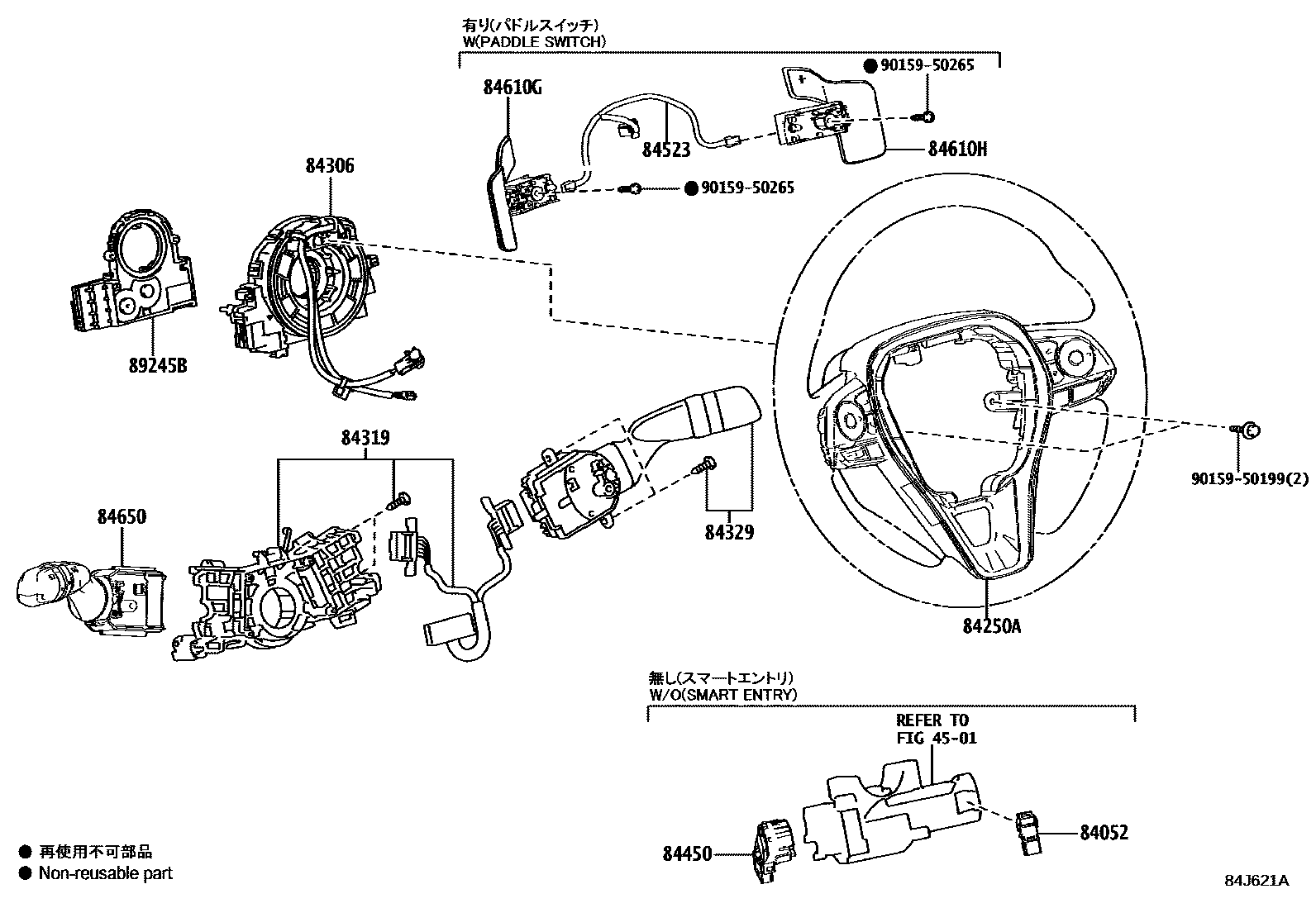

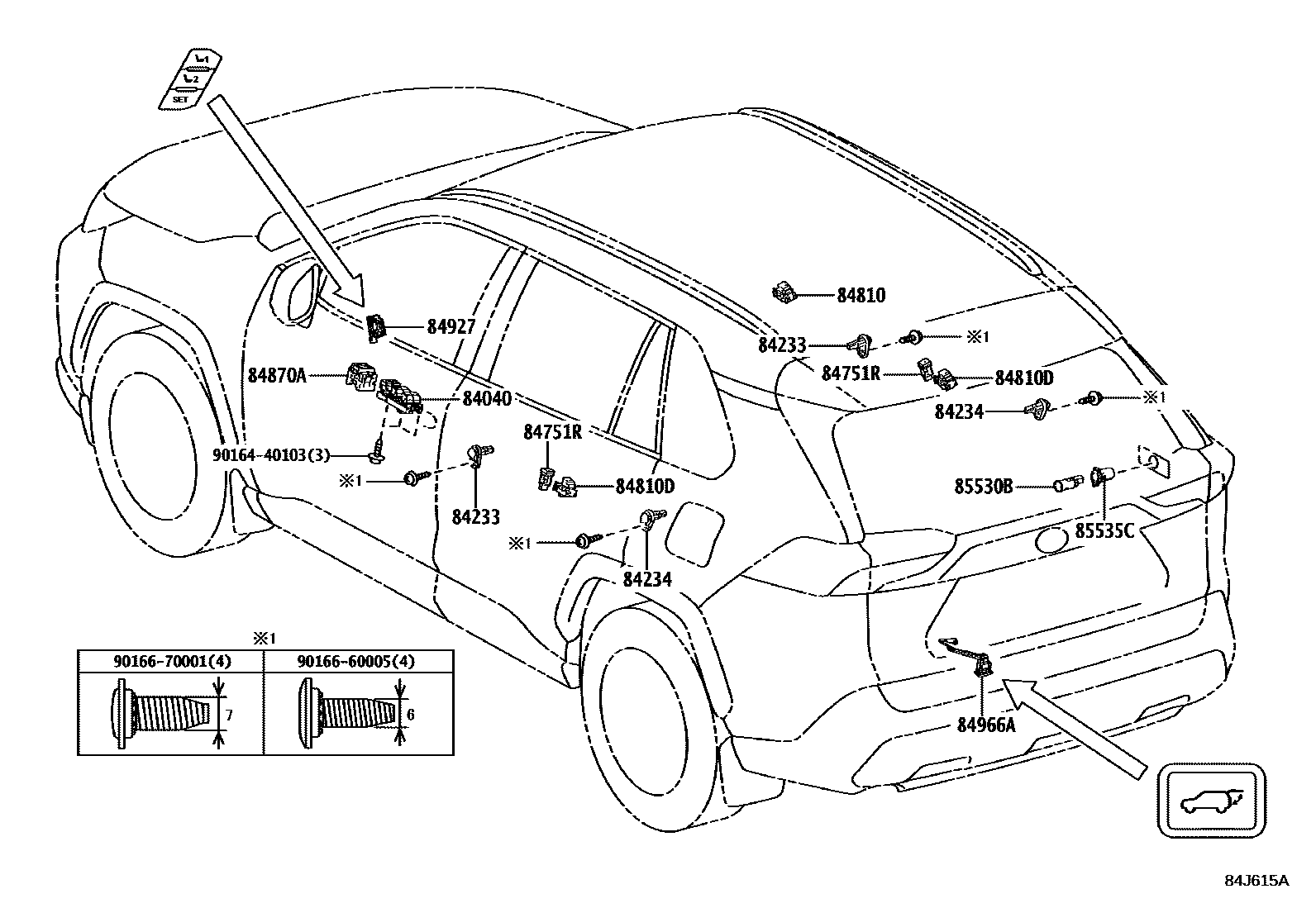

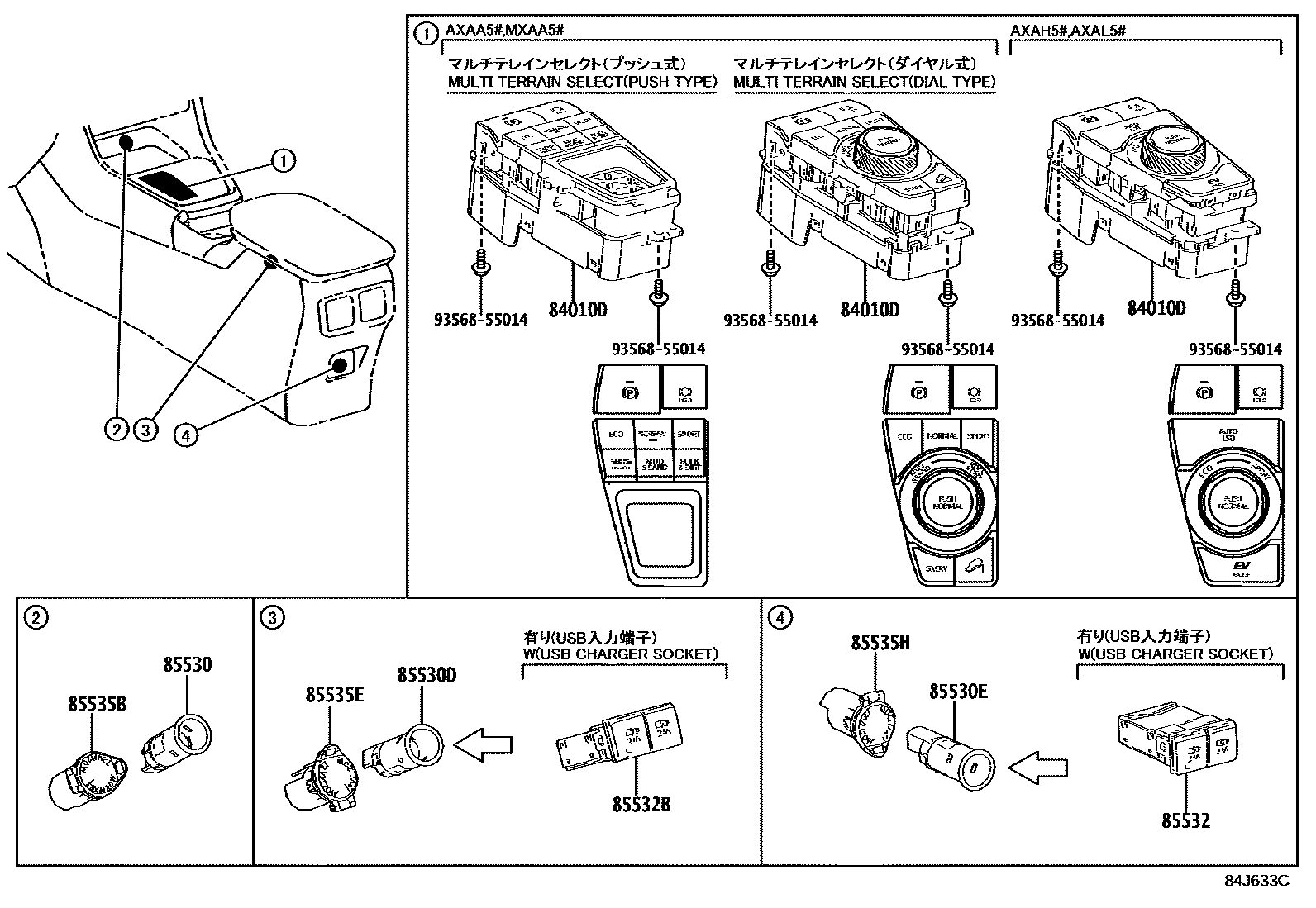

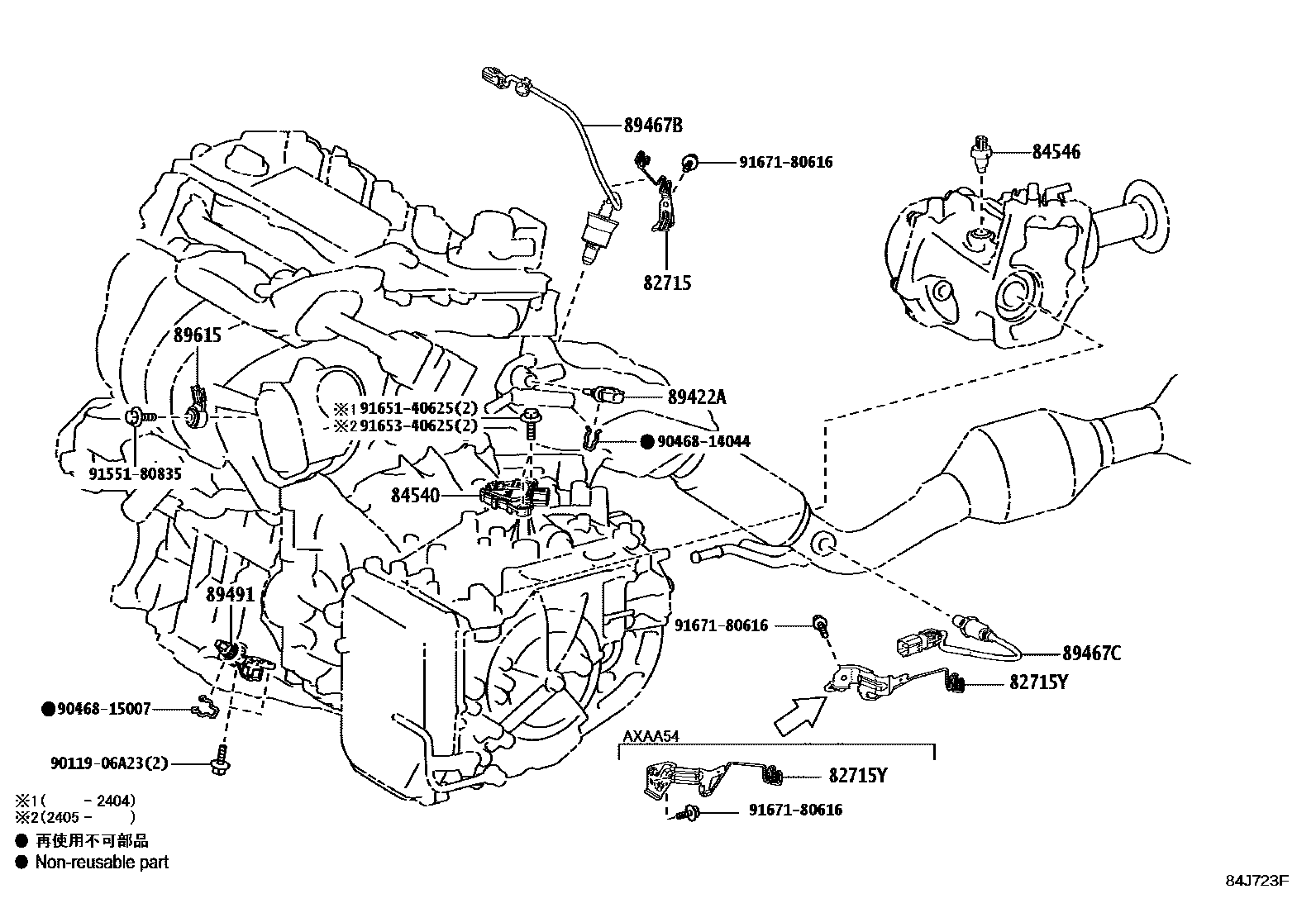

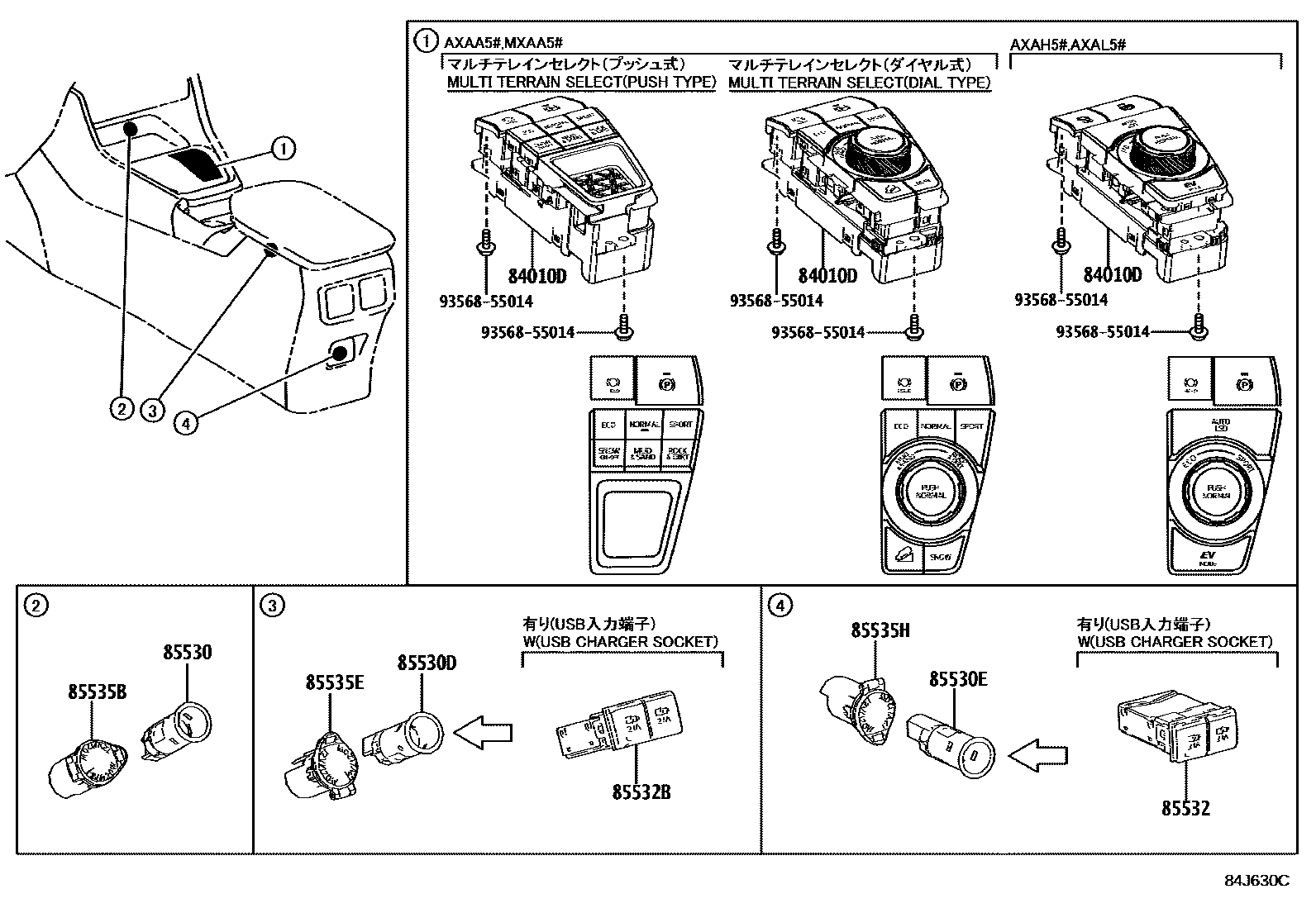

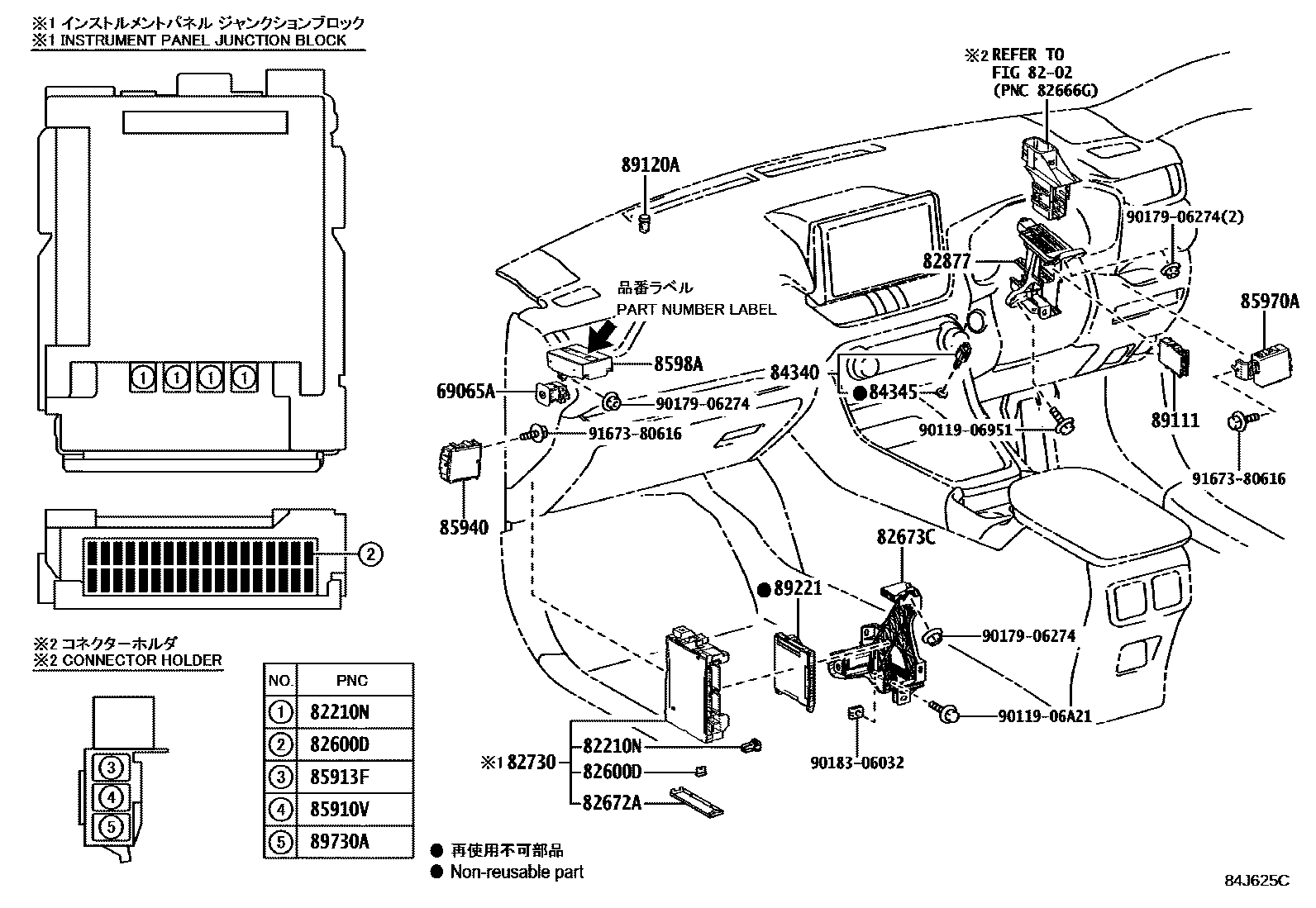

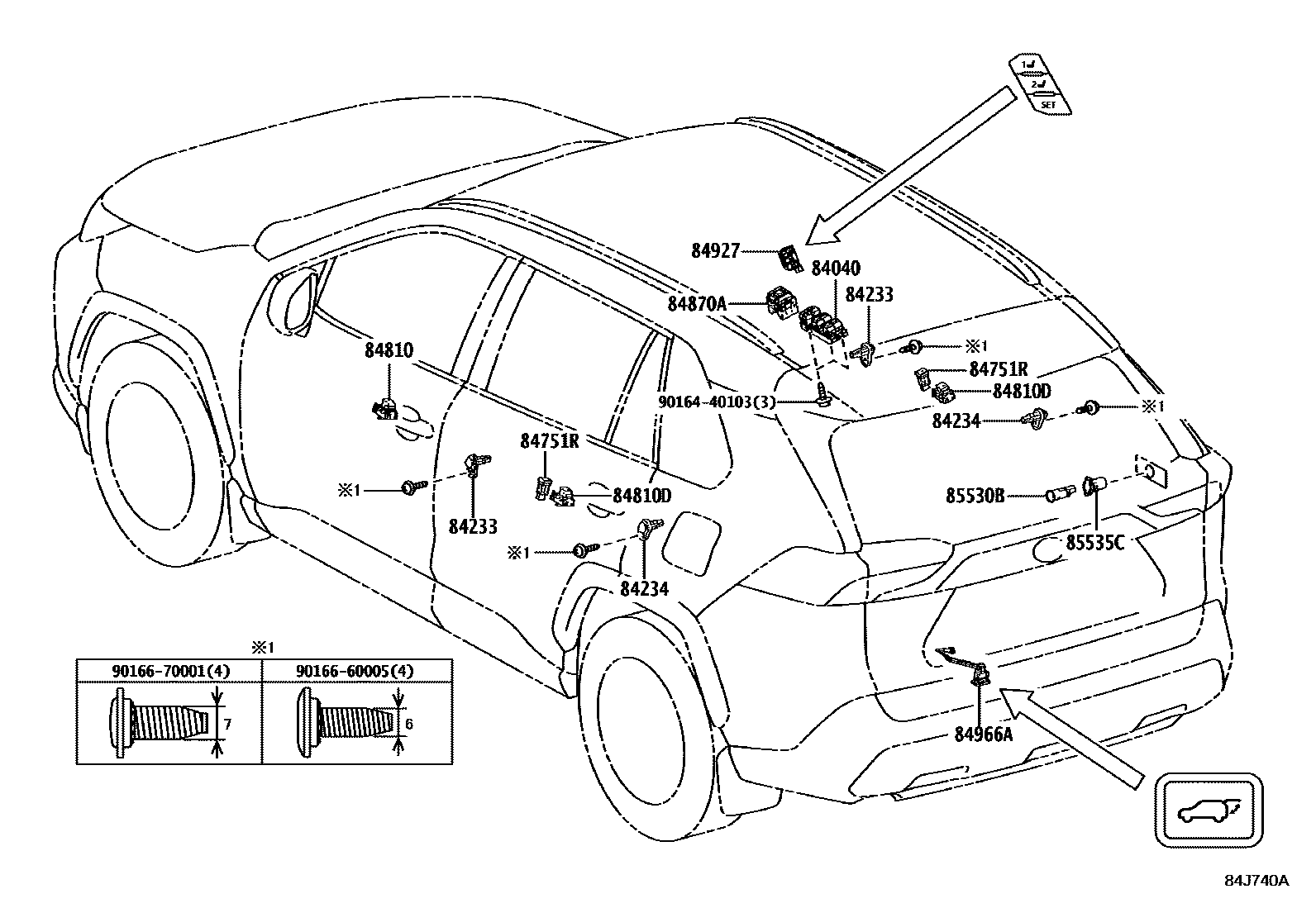

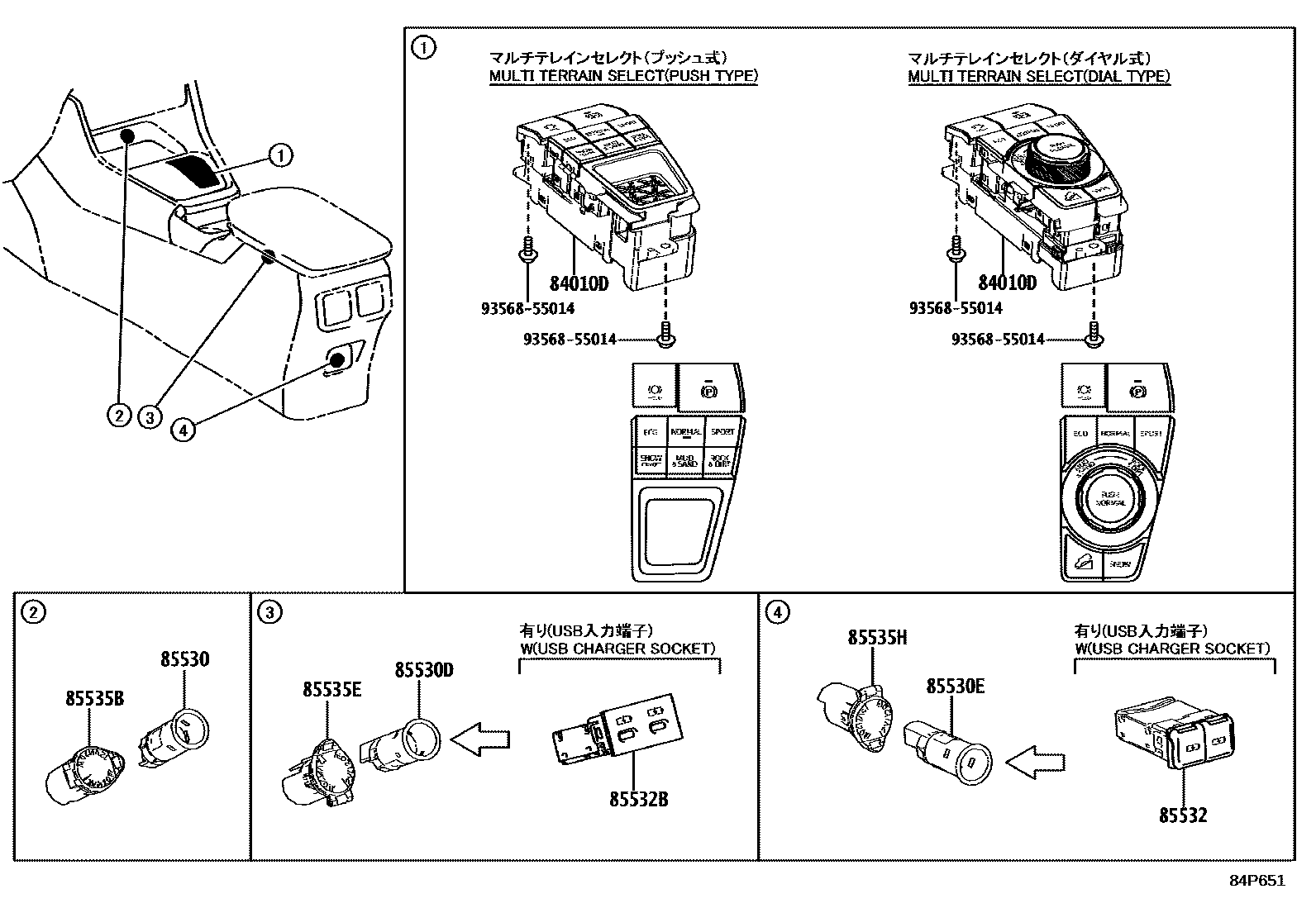

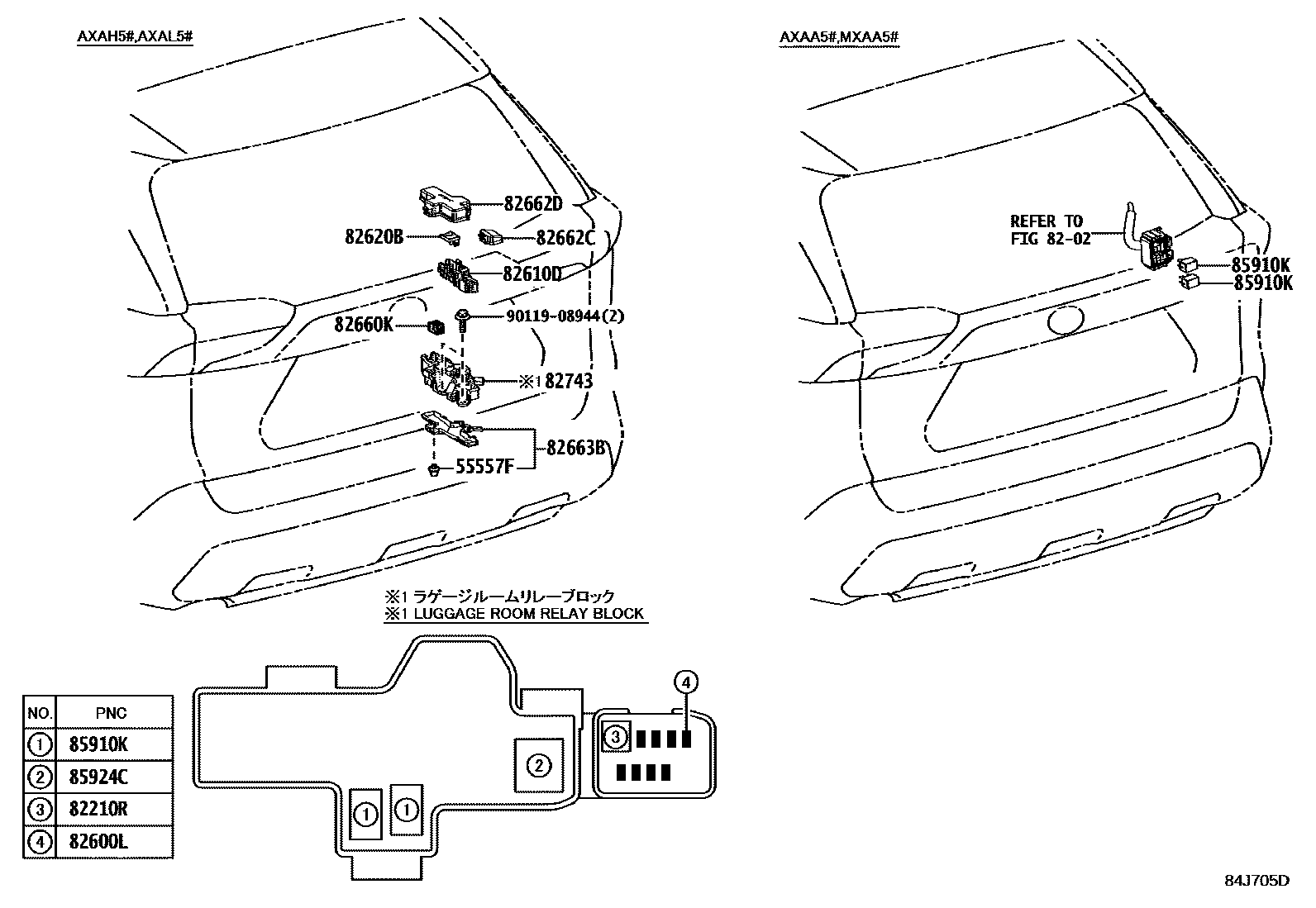

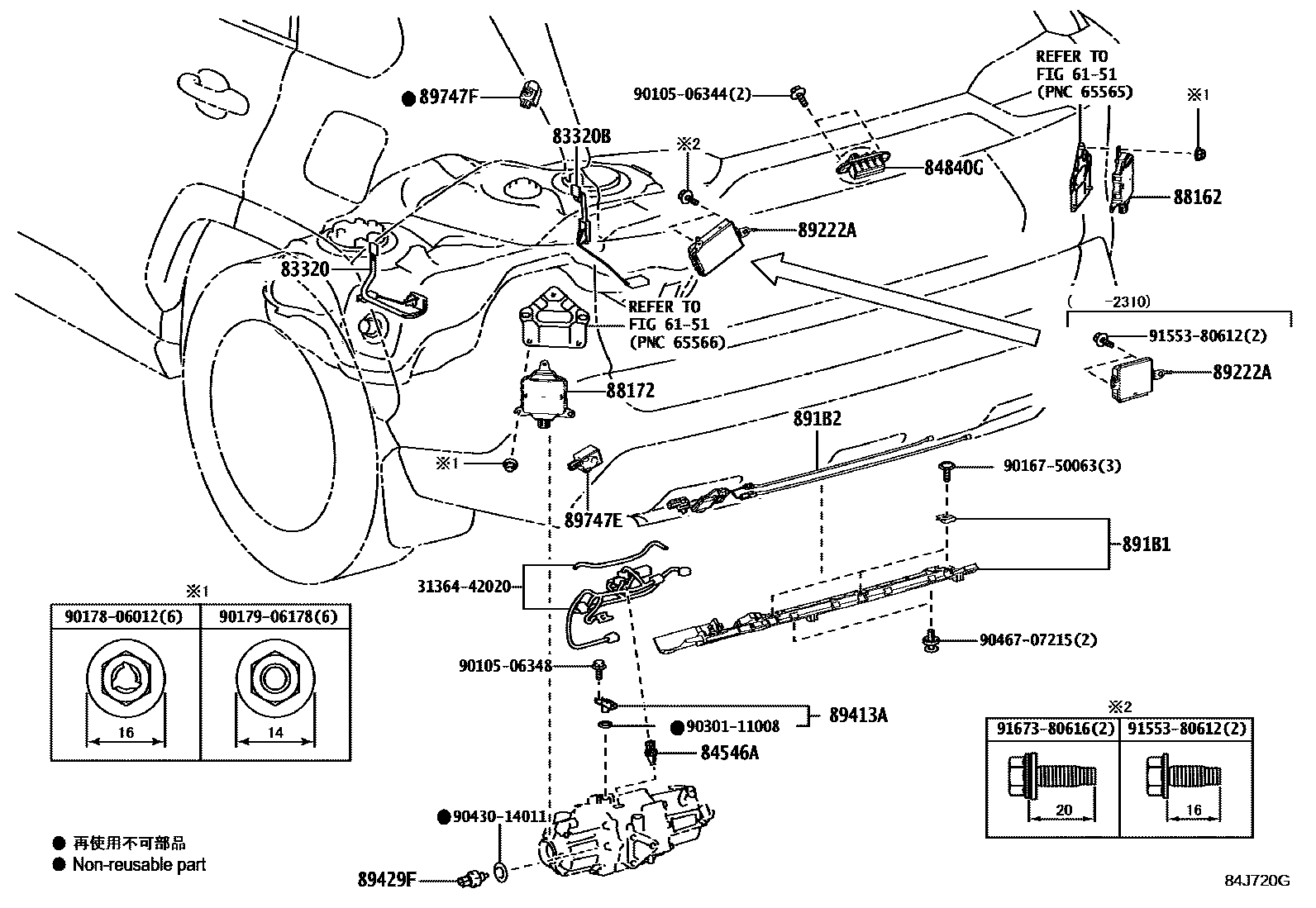

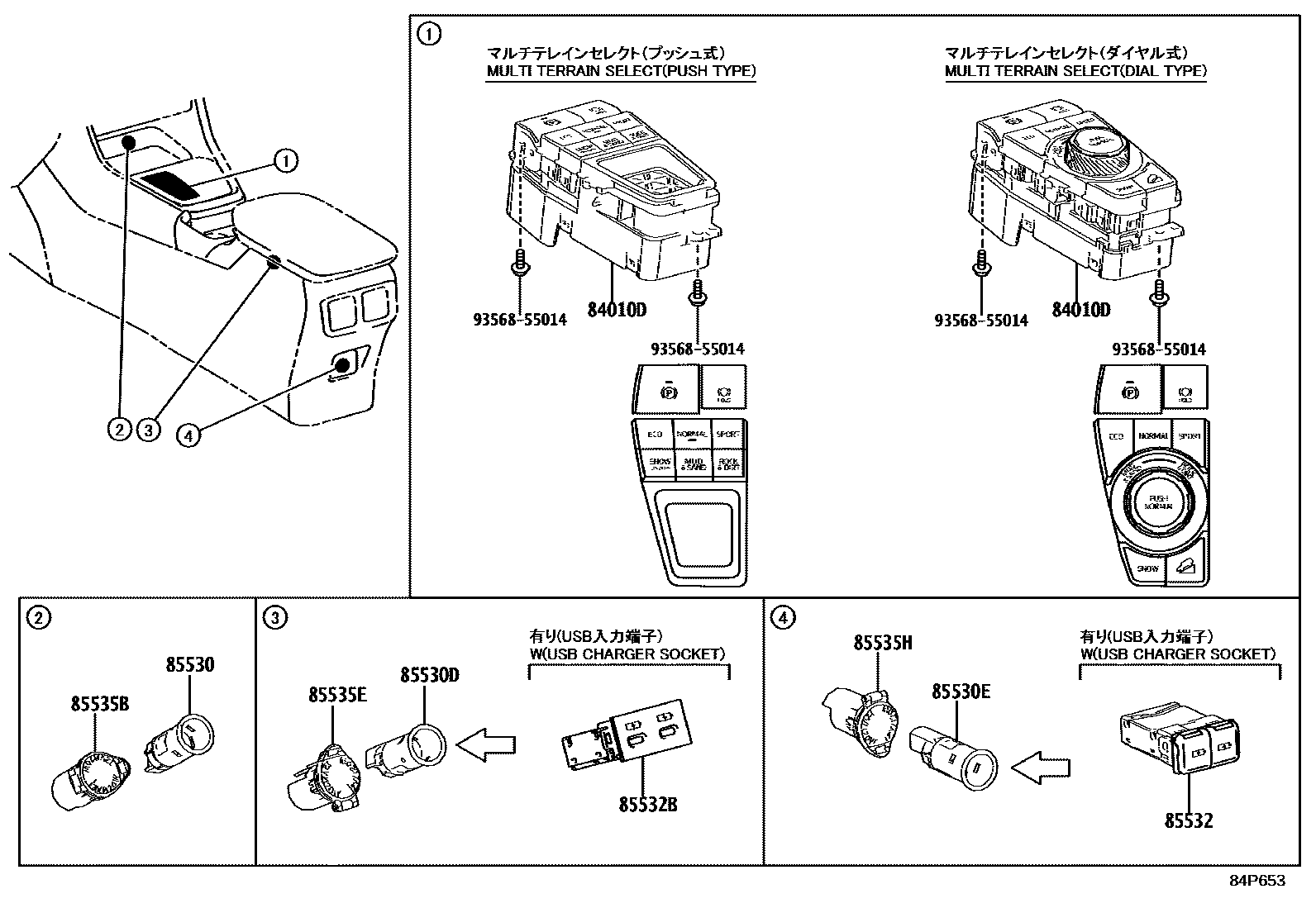

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 31 images and 122 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-25020 · 28850-37080 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-25040 · 28859-25050 · 28859-25150 |
| 55557F | COUSSIN, BLOC RELAIS | 55557-53030 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08283 · 90982-08285 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 |
| 82210R | FIL FUSIBLE DU COMPARTIMENT BAGAGE | 90982-08284 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |
| 82600E | Engine room fuse | 90982-08298 · 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-42080 · 82610-42120 · 82610-48050 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 · 82620-33150 · 82620-48280 |
| 82620B | Fuse box assembly | 82620-42080 |
| 82660 | Engine room relay box assembly | 82660-42100 |
| 82660B | Relay assembly | 82660-42110 |
| 82660D | Relay assembly | 82660-0E010 |
| 82660E | Relay assembly | 82660-33050 |
| 82660F | Relay assembly | 82660-48020 |
| 82660G | Relay assembly | 82660-48030 |
| 82660H | Relay assembly | 82660-48040 |
| 82660J | ENS. BLOC RELAIS | 82660-52100 |
| 82660K | ENS. BLOC RELAIS | 82660-48020 |
| 82661 | No. 1 relay box cover | 82661-42070 · 82661-42080 |
| 82661A | No. 2 relay box cover | 82661-42060 |
| 82662A | No. 1 relay box upper cover | 82662-42460 · 82662-42640 · 82662-42641 · 82662-42660 · 82662-42661 · 82662-42700 · 82662-42701 · 82662-42702 · 82662-42710 · 82662-42711 |
| 82662B | No. 2 relay box upper cover | 82662-42470 · 82662-42650 · 82662-42651 · 82662-42670 · 82662-42671 · 82662-42A40 |
| 82662C | No. 3 relay box upper cover | 82662-42690 |
| 82662D | No. 4 relay box upper cover | 82662-42720 |
| 82662J | COUVERCLE, BLOC-RELAIS, SUPERIEUR, NO.5 | 82662-42730 |
| 82663 | Relay box lower cover | 82663-42160 · 82663-42170 |
| 82663A | No. 2 relay box lower cover | 82663-42160 · 82663-42190 |
| 82663B | No. 3 relay box lower cover | 82663-42200 |
| 82663C | No. 4 relay box lower cover | 82663-42220 |
| 82672A | Junction box cover | 82672-42200 · 82672-42250 |
| 82673A | Junction box bracket | 82673-42240 |
| 82673B | Junction box bracket | 82673-42260 |
| 82673C | Junction box bracket | 82673-42230 · 82673-42270 · 82673-42310 · 82673-42320 |
| 82715 | Wire harness clamp bracket | 82715-0Z160 · 82715-12X50 · 82715-33K11 · 82715-33V10 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-12V90 |
| 82715Y | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.3 | 82715-42K60 · 82715-42K70 |
| 82730 | Instrument panel junction box assembly | 82730-42830 · 82730-42890 · 82730-42A10 |
| 82740 | Engine room relay box assembly | 82740-42050 · 82740-42080 |
| 82740A | Engine room No. 2 relay box assembly | 82740-42120 |
| 82743 | Engine room No. 3 relay box | 82740-42070 |
| 82877 | Right ECU integrated box | 82877-33030 · 82877-33040 · 82877-42050 · 82877-42060 |
| 83320 | Fuel gauge sensor assembly | 83320-42080 · 83320-42100 · 83320-42101 · 83320-42110 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-42090 |
| 83950M | Warning light assembly | 83950-42390 · 83950-42400 · 83950-42410 · 83950-42420 · 83950-42520 · 83950-42540 · 83950-42570 |
| 84010D | Integrated control and panel assembly | 84010-42040 · 84010-42041 · 84010-42050 · 84010-42051 · 84010-42060 · 84010-42061 · 84010-42070 · 84010-42071 · 84010-42080 · 84010-42081 · 84010-42090 · 84010-42091 · 84010-42100 · 84010-42110 · 84010-42120 · 84010-42130 · 84010-42140 · 84010-42150 · 84010-42170 · 84010-42171 · 84010-42190 · 84010-42191 · 84010-42251 · 84010-42252 · 84010-42261 · 84010-42262 · 84010-42271 · 84010-42272 · 84010-42281 · 84010-42282 · 84010-42291 · 84010-42292 · 84010-42301 · 84010-42302 |
| 84040 | Multi-channel network main switch assembly | 84040-42020 · 84040-42030 · 84040-42040 · 84040-42050 · 84040-42080 · 84040-42090 · 84040-42120 · 84040-42130 · 84040-42140 · 84040-42150 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02F60 · 84250-02F70 · 84250-02F90 · 84250-0R340 · 84250-12550 · 84250-12570 · 84250-12580 · 84250-12780 · 84250-12790 · 84250-42320 · 84250-42370 · 84250-42400 · 84250-42410 · 84250-42420 · 84250-42430 · 84250-42440 · 84250-42450 · 84250-42470 · 84250-42550 · 84250-42580 · 84250-42590 · 84250-42600 · 84250-42610 · 84250-42620 · 84250-42690 · 84250-42700 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-02100 · 84308-12020 · 84308-33110 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-11010 · 84319-33030 |
| 84329 | turn signal switch | 84329-12110 · 84329-12120 · 84329-12140 · 84329-12170 · 84329-12180 · 84329-33020 · 84329-33030 · 84329-33060 · 84329-33070 · 84329-33090 · 84329-33100 · 84329-33110 · 84329-33120 |
| 84330 | Hazard warning signal switch assembly | 84332-42030 |
| 84340 | brake light switch assembly | 84340-09370 · 84340-19095 · 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390A | Brake warning switch assembly | 84390-42010 · 84390-42011 · 84390-42020 · 84390-42021 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84470A | Economic operation cancel switch assembly | 84470-42031 · 84470-42040 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-33020 · 84540-33021 |
| 84545 | INTERRUPTEUR, POSITION NEUTRE | 84545-52010 |
| 84546 | CNT, POSITION 4 ROUES MOT, NO.1 | 84546-42010 |
| 84546A | CNT, POSITION 4 ROUES MOT, NO.2 | 84546-42010 |
| 84610G | ENS. COM, BOITE VITESSES, NO.1 | 84610-33011 |
| 84610H | ENS. COM, BOITE VITESSES, NO.2 | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12A70 · 84652-12B40 · 84652-42200 · 84652-42210 |
| 84721B | COMM., MONITEUR VUE PANORAMIQUE | 84721-16010 · 84721-33010 |
| 84751 | Seat heater switch | 84751-16020 · 84751-42050 |
| 84751F | Seat heater switch | 84751-16030 · 84751-42060 |
| 84751R | Seat heater switch (rear) | 84751-12080 · 84751-33140 |
| 84752 | Relax seat switch | 84752-42010 · 84752-42030 · 84752-42040 · 84752-42070 · 84752-42080 · 84752-42090 |
| 84794 | Front wiper de-icer switch | 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84795 | INTERRUPTEUR, DEGIVRAGE DE VITRE AVANT | 84794-42020 · 84795-42010 |
| 84810 | Electric window lift switch assembly | 84810-12100 · 84810-12110 · 84810-12120 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 · 84810-12110 · 84810-12120 · 84810-30230 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 |
| 84841A | Fuel filler cap opener switch | 84841-30050 · 84841-33040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-42010 · 84872-42020 · 84872-42030 · 84872-42130 · 84872-42140 · 84872-42150 · 84872-42310 · 84872-42320 · 84872-42330 |
| 84921C | Right power seat switch button | 84921-33200-C0 |
| 84921D | Left electric seat switch button | 84921-33180-C0 |
| 84921J | Right power seat switch button | 84921-33190-C0 |
| 84921K | Left electric seat switch button | 84921-33170-C0 |
| 84922B | Front right electric seat switch | 84922-33170 · 84922-33190-C0 · 84922-33220-C0 |
| 84922C | Front left electric seat switch | 84922-33160-C0 · 84922-33200 · 84922-33210-C0 |
| 84927 | Seat memory switch | 84927-42040 · 84927-42050 |
| 84966 | CNT, COMM HAYON ELEC | 84966-16020 · 84966-42010 |
| 84966A | CNT, COMM HAYON ELEC, NO.1 | 84966-42020 |
| 84975 | trip odometer switch | 84975-42030 |
| 84988L | VSC off switch | 84988-42050 · 84988-42060 |
| 85278A | Headlight washer control relay assembly | 90987-02027 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530A | power outlet relay | 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85532 | PRISE, CHARGEUR USB | 85532-15010 · 85532-33020 · 85532-60020 · 85532-78010 · 85532-78040 |
| 85532B | PRISE, CHARGEUR USB | 85532-33040 · 85532-42010 · 85532-42020 · 85532-42050 · 85532-42060 · 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85535C | Rear power outlet cover | 85535-30020 |
| 85535E | No. 2 power outlet cover | 85535-30020 |
| 85535H | COUV, PRISE SORTIE ALIM, NO.3 | 85535-30020 |
| 85910E | Injector relay | 90987-02027 |
| 85910K | Rear seat heater relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 · 90987-04004 |
| 85912 | defogger relay | 90987-04010 |
| 85912F | RELAI, HWD | 90987-02025 |
| 85912K | RELAIS, VVT | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90080-87026 · 90987-02027 |
