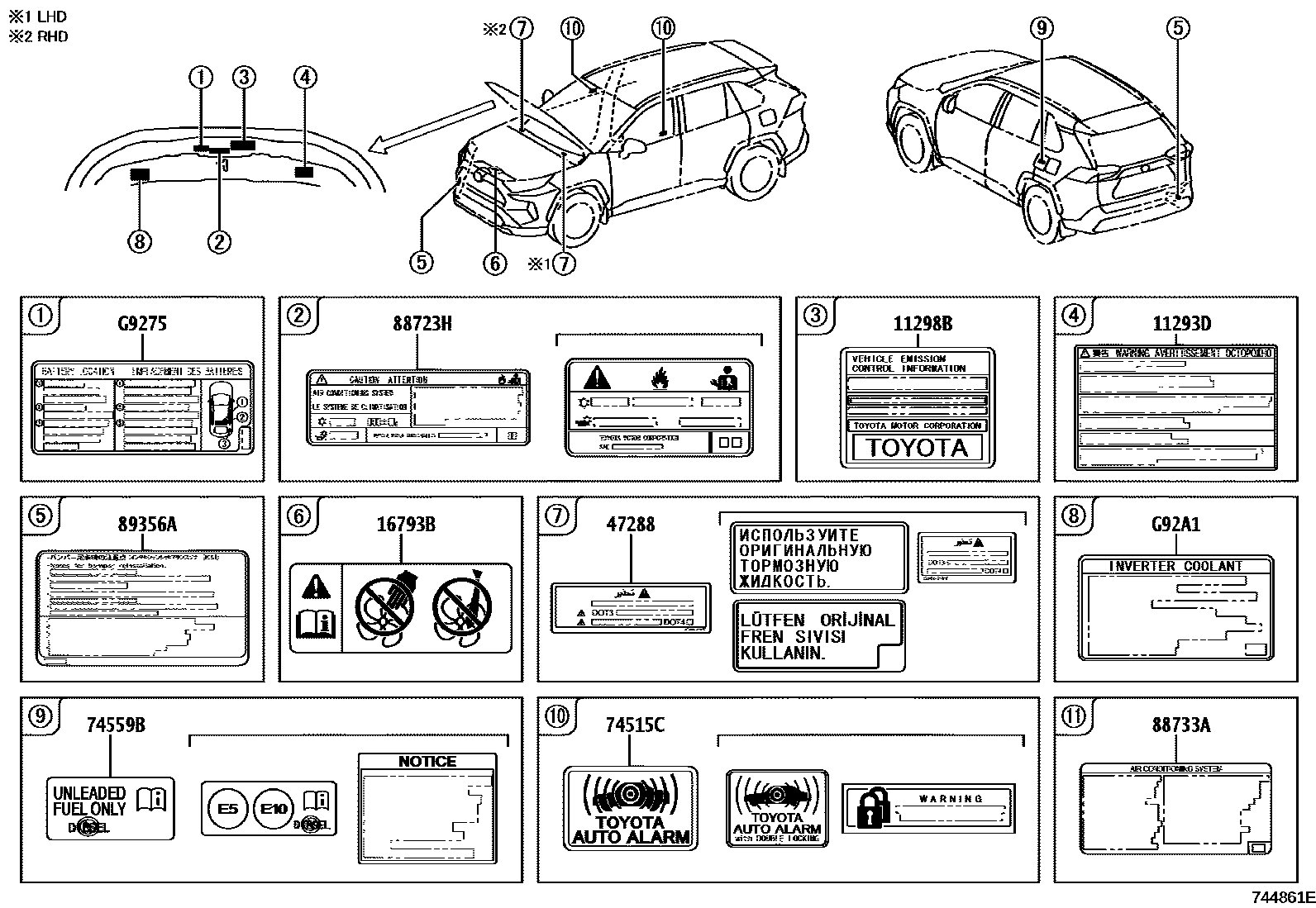

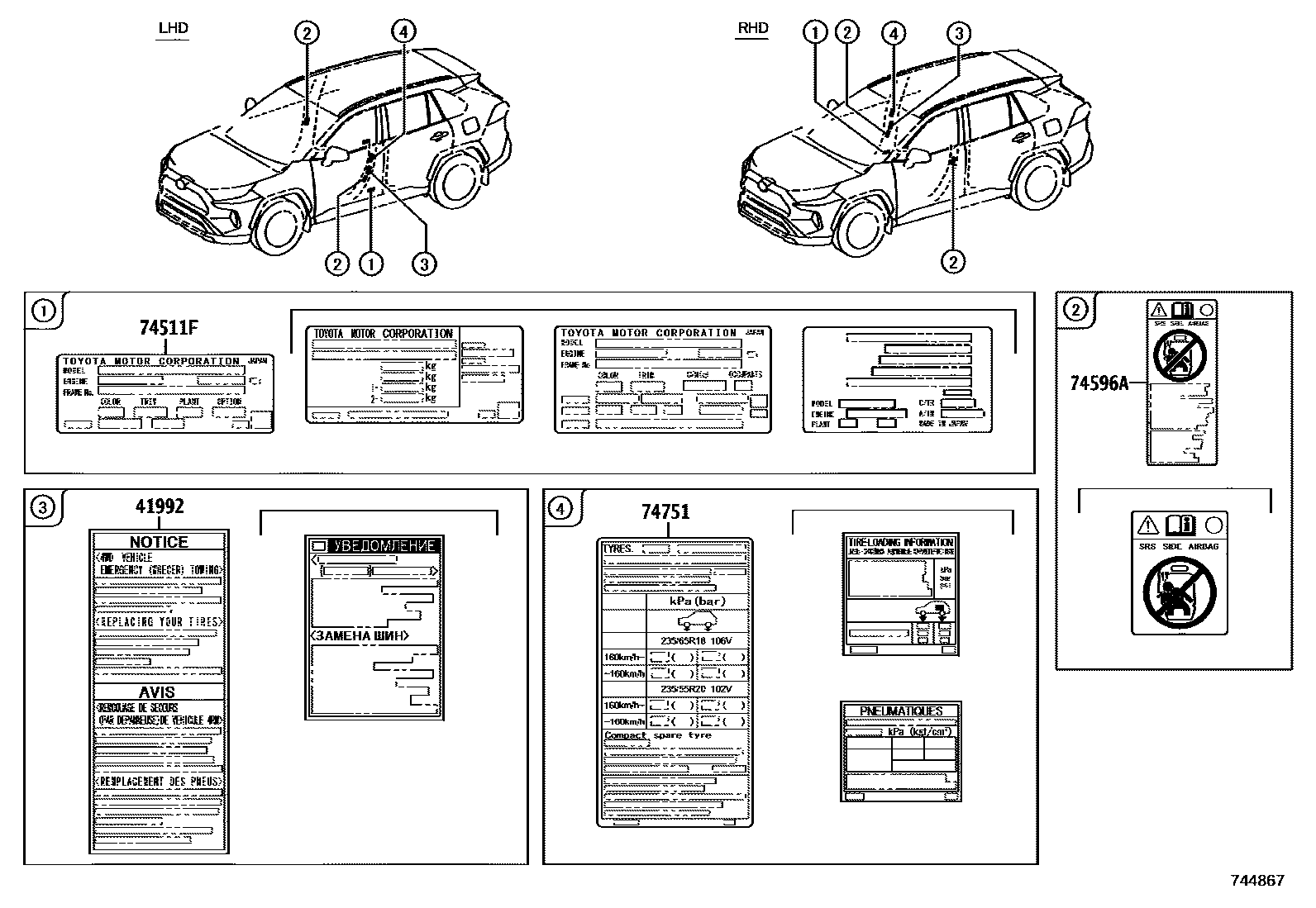

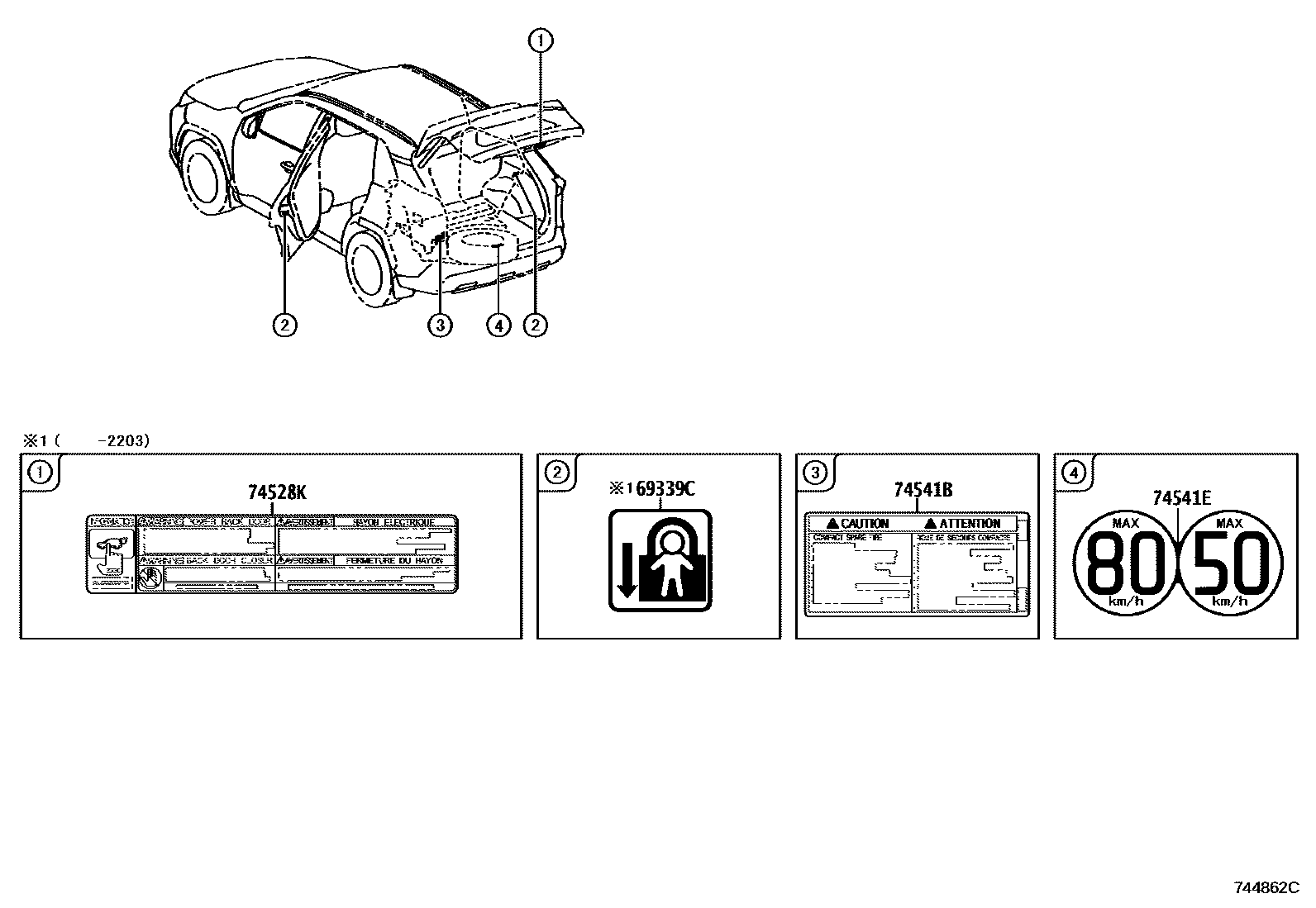

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 · 11293-37060 |
| 11298B | Emission Control Information Label | 11298-25090 · 11298-25180 · 11298-25181 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-42040 · 41992-48020 |
| 47288 | Brake Fluid Caution Label | 47288-30010 · 47288-33010 · 47288-33020 · 47288-64010 · 47288-71010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A20 · 74511-30A80 · 74511-33070 · 74511-48020 · 74511-48030 · 74511-60480 · 74514-42051 · 74514-47020 · 74514-52010 |
| 74515C | Anti-theft warning information label | 74515-20010 · 74515-33020 · 74515-42010 |
| 74528K | Door closer warning label | 74528-42011 · 74528-48120 · 74528-78030 |
| 74541B | Small spare tire warning plate | 42668-42020 · 42668-42030 · 42668-42040 · 42668-42050 · 42668-42060 · 42668-42070 · 42668-42080 |
| 74541E | Small spare tire warning plate | 42668-42010 · 42668-78040 |
| 74559B | fuel information label | 74559-11030 · 74559-20140 |
| 74596A | Side air bag warning label | 74596-74020 · 74596-78010 |
| 74751 | tire pressure information label | 42661-42A40 · 42661-42A50 · 42661-42A60 · 42661-42A70 · 42661-42A80 · 42661-42C20 · 42661-42C70 · 42661-42D00 · 42661-42E80 |
| 88723H | Cooler maintenance warning label | 7454B-76040 · 88723-11050 · 88723-11070 · 88723-33170 · 88723-48180 |
| 88733A | PLAQUETTE D'INSTRUCTIONS D'ENTRETIEN DE CLIMATISEUR | 88733-52160 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-12010 · G9275-12020 · G9275-33090 · G9275-48120 |
| G92A1 | HV coolant system information label | G92A1-76010 |
