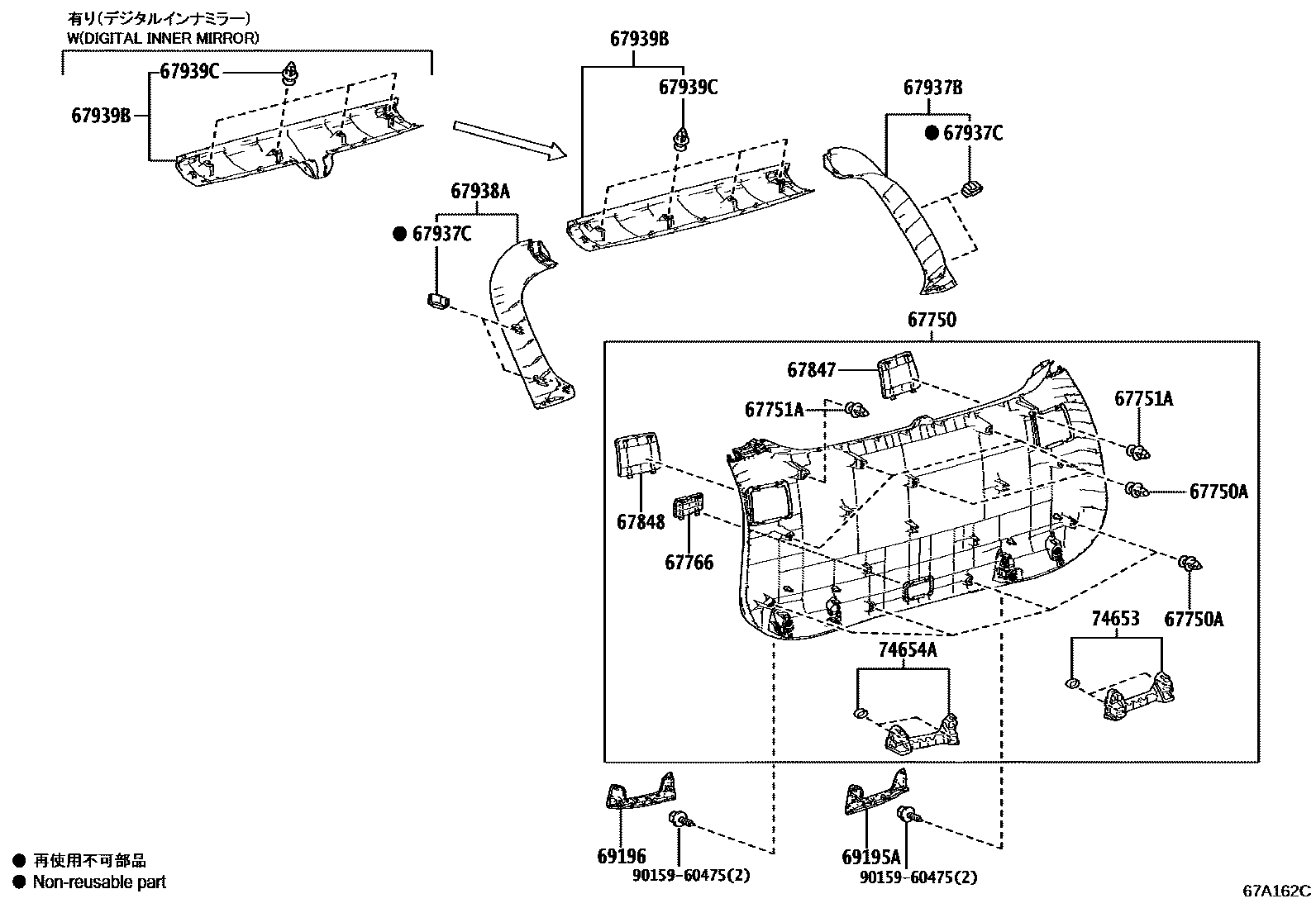

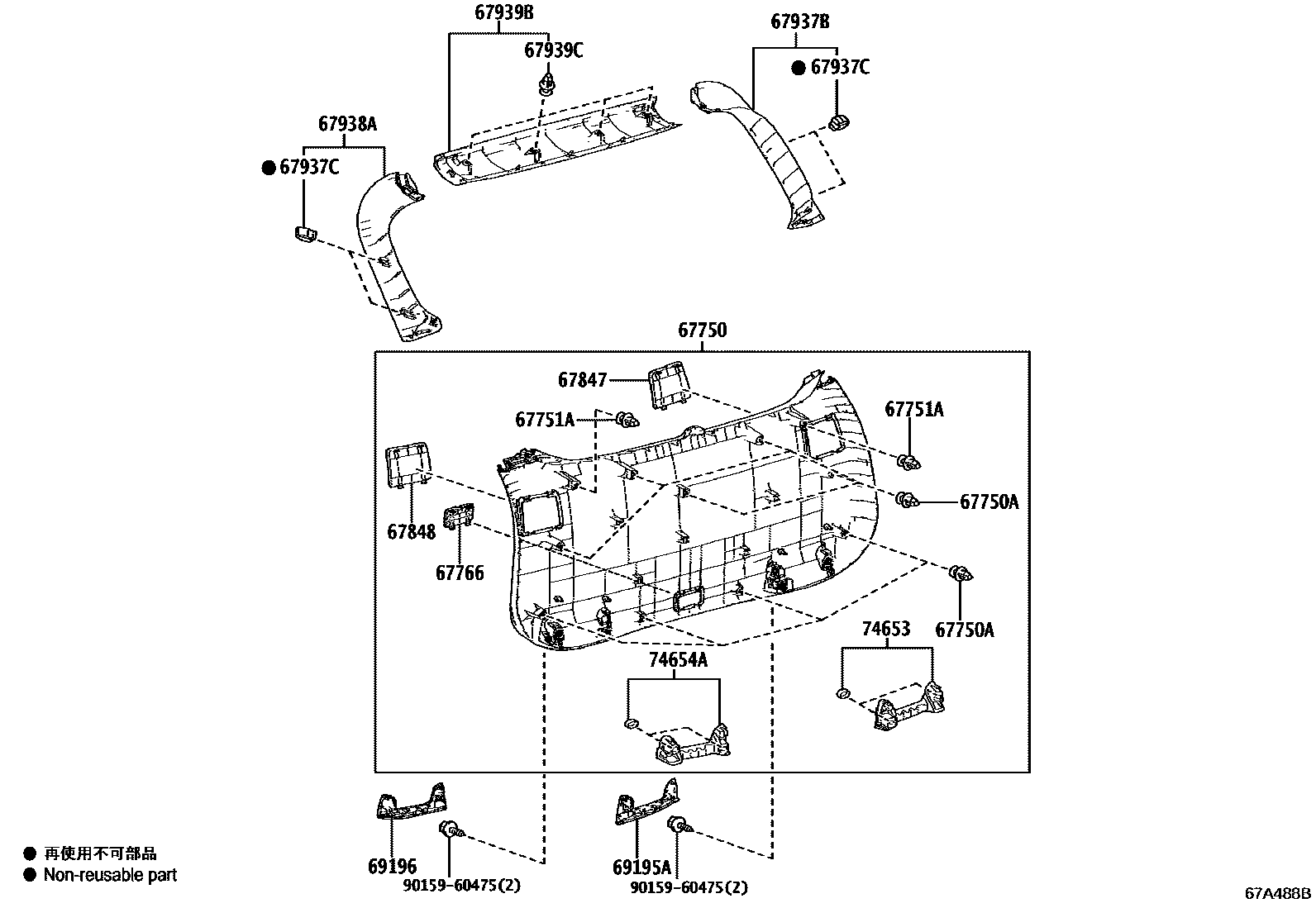

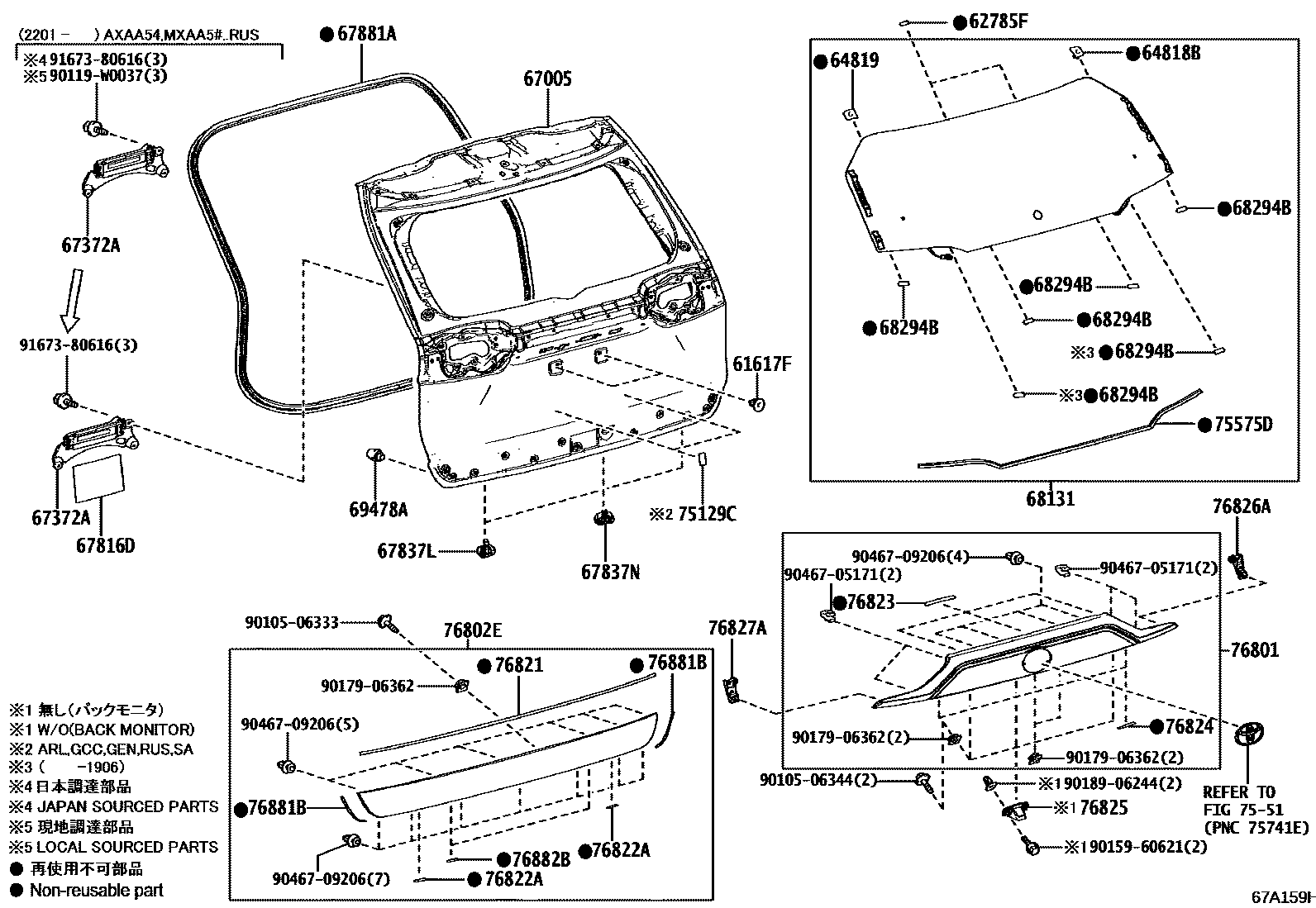

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61617F | ARRETOIR, SUPPORT HAYON | 61617-42070 |
| 62785F | Back door glass spacer | 62785-60030 |
| 64818B | No. 1 back door glass spacer | 64818-42050 |
| 64819 | No. 2 back window glass spacer | 64819-42050 |
| 67005 | Rear door panel sub-assembly | 67005-0R370 · 67005-0R380 · 67005-42640 · 67005-42650 · 67005-42660 · 67005-42670 |
| 67372A | Back door counterweight | 67372-42020 · 67372-42030 |
| 67750 | Rear door decorative panel assembly | 67750-0R120-C0 · 67750-42060-C0 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67751A | Clip (for rear door trim panel) | 90467-09232 |
| 67766 | Back door No. 2 manhole cover | 67766-42020-C0 |
| 67816D | Rear door silencer panel | 67816-42020 |
| 67837L | Door dust seal retainer | 67837-42050 |
| 67837N | JOINT D'ETANCHEITE, ANTI-POUSSIERE HAYON | 67837-52040 |
| 67847 | Back door right access hole cover | 67847-42060-C0 |
| 67848 | Rear door left access hole cover | 67848-42020-C0 |
| 67881A | Back door seal | 67881-42070 |
| 67937B | Decorative strip on the right side of the rear door | 67937-0R080-C0 · 67937-42060-C0 |
| 67937C | Clip (for rear door side decorative strip) | 90467-09241 |
| 67938A | Decorative strip on the left side of the rear door | 67938-0R090-C0 · 67938-42070-C0 |
| 67939B | Rear door center decorative strip | 67939-0R120-C0 · 67939-42050-C0 · 67939-42060-C0 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-0R170 · 68105-42220 · 68105-42230 · 68105-42240 · 68105-42250 · 68105-42270 · 68105-42280 · 68105-42290 · 68105-42300 · 68105-42310 · 68105-42320 · 68105-42330 · 68105-42360 · 68105-42370 |
| 68294B | Rear door glass adhesive seal | 68294-26030 |
| 69195A | POIGNEE, HAYON | 69195-42010-C0 |
| 69196 | BASE, POIGNEE HAYON | 69196-42010-C0 |
| 69478A | COUSSIN, BUTEE INF HAYON | 69478-42010 · 69478-42020 |
| 74653 | POIGNEE, MAINTIEN HAYON, MD | 74653-42010 · 74653-42010-C0 |
| 74654A | POIGNEE, MAINTIEN HAYON, MG | 74654-42010 · 74654-42010-C0 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75575D | Protective strip under rear window | 75575-42040 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-42241-A0 · 76801-42241-A2 · 76801-42241-B0 · 76801-42241-B1 · 76801-42241-C0 · 76801-42241-D0 · 76801-42241-G1 · 76801-42241-J1 · 76801-42241-J3 · 76801-42261-A2 · 76801-42261-A3 · 76801-42261-B0 · 76801-42261-B1 · 76801-42261-C0 · 76801-42261-D0 · 76801-42261-G3 · 76801-42261-J1 · 76801-42261-J7 · 76801-42904 · 76801-42908 |
| 76802E | Rear door outer lower decorative strip sub-assembly | 76802-0R070 · 76802-42140 · 76802-42170-C0 |
| 76821 | Protective cover for rear door trim strip | 76821-0R090 · 76821-42060 |
| 76822A | Protective cover under rear door trim strip | 76822-0R050 · 76822-42060 |
| 76823 | Rear door right side decorative strip protective cover | 76823-42030 |
| 76824 | Rear door left side decorative strip protective cover | 76824-42030 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-42040 |
| 76826A | No. 1 rear door trim strip fixing | 76826-42140 |
| 76827A | No. 2 rear door trim strip fixings | 76827-42050 |
| 76881B | Back door lower right protective strip protection device | 76881-0R040 · 76881-42010 |
| 76882B | Back door lower left protective strip protection device | 76882-0R030 · 76882-42010 |
