Toyota RAV4 车顶内衬和消声垫 — Figure 6452

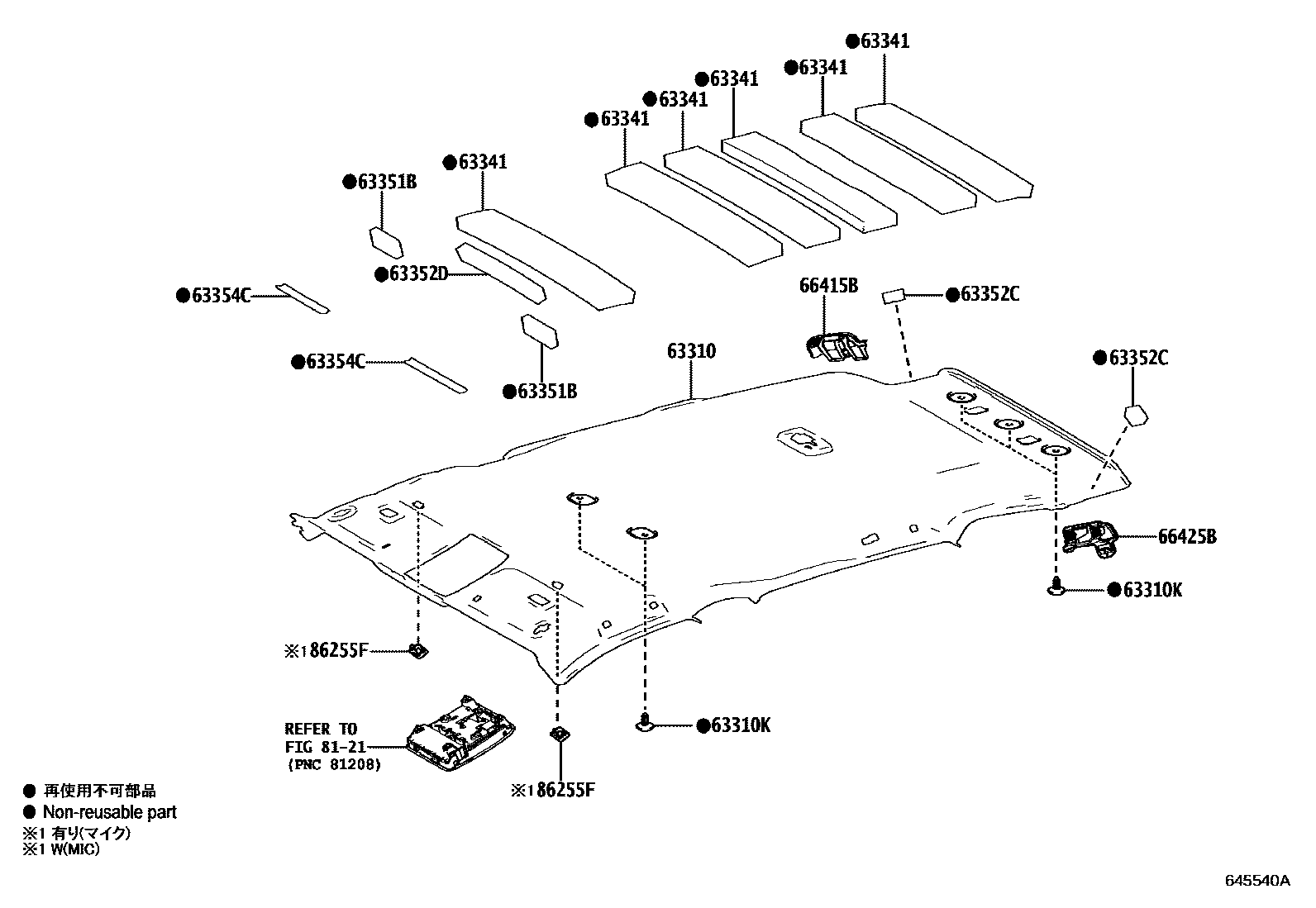

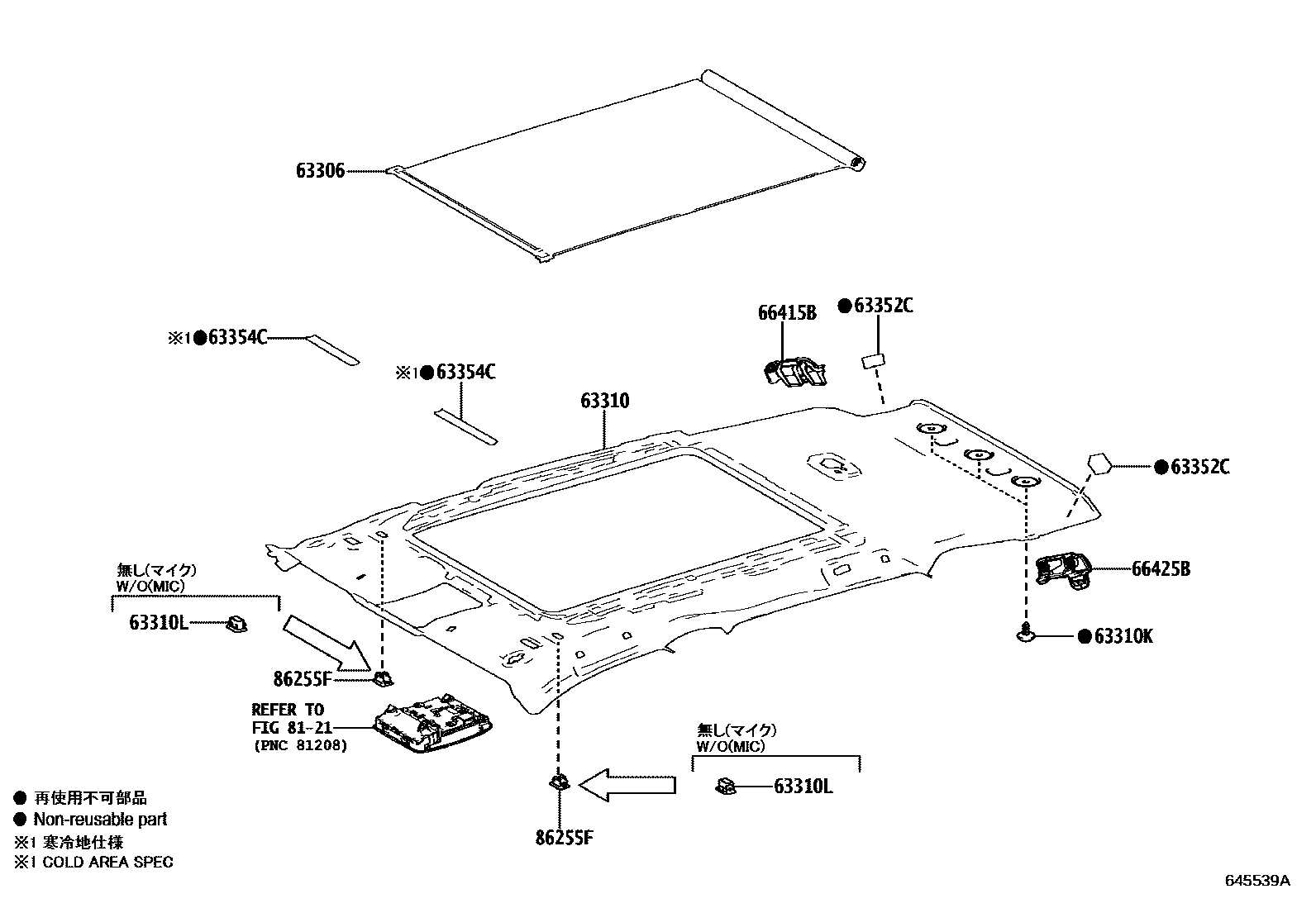

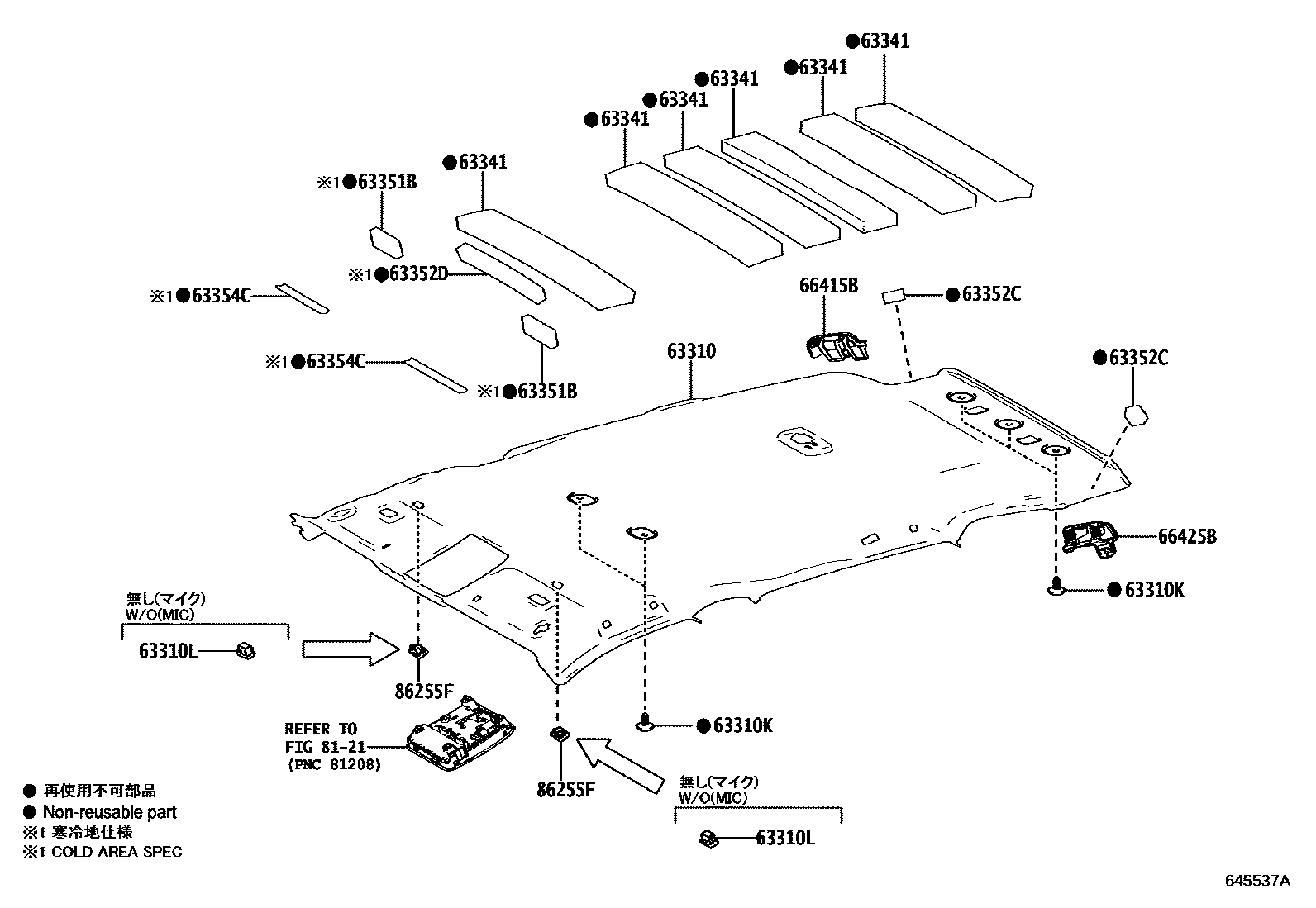

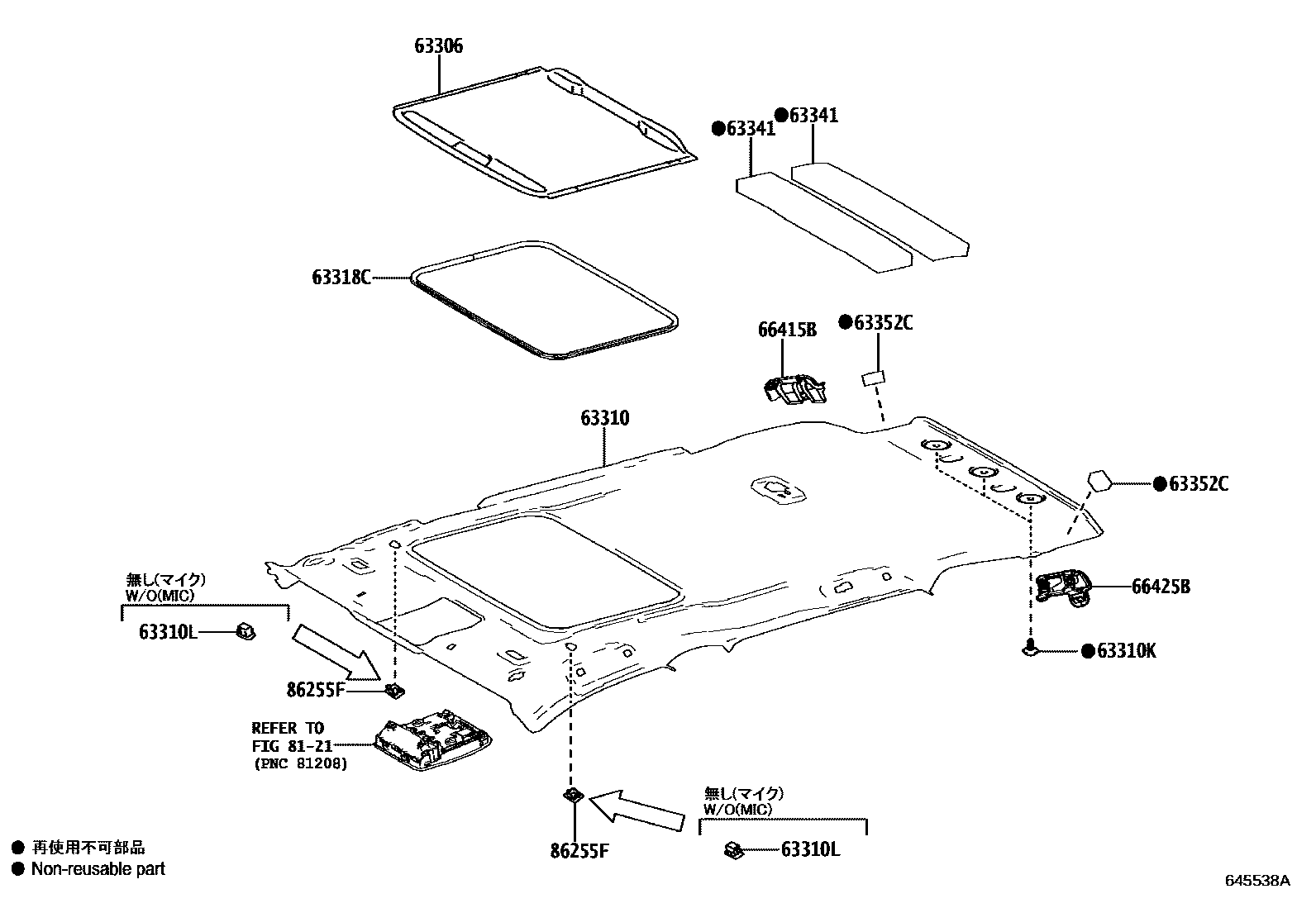

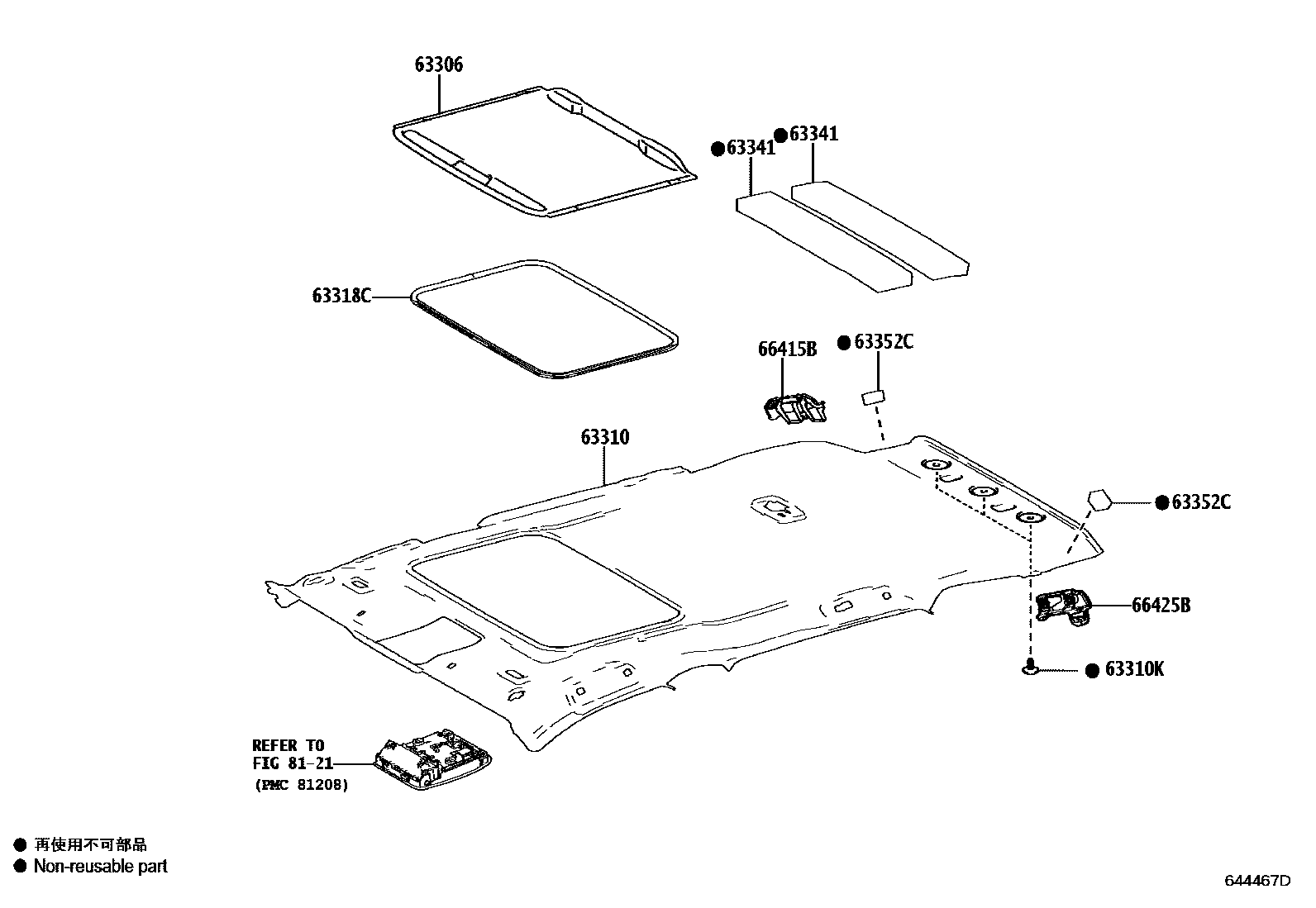

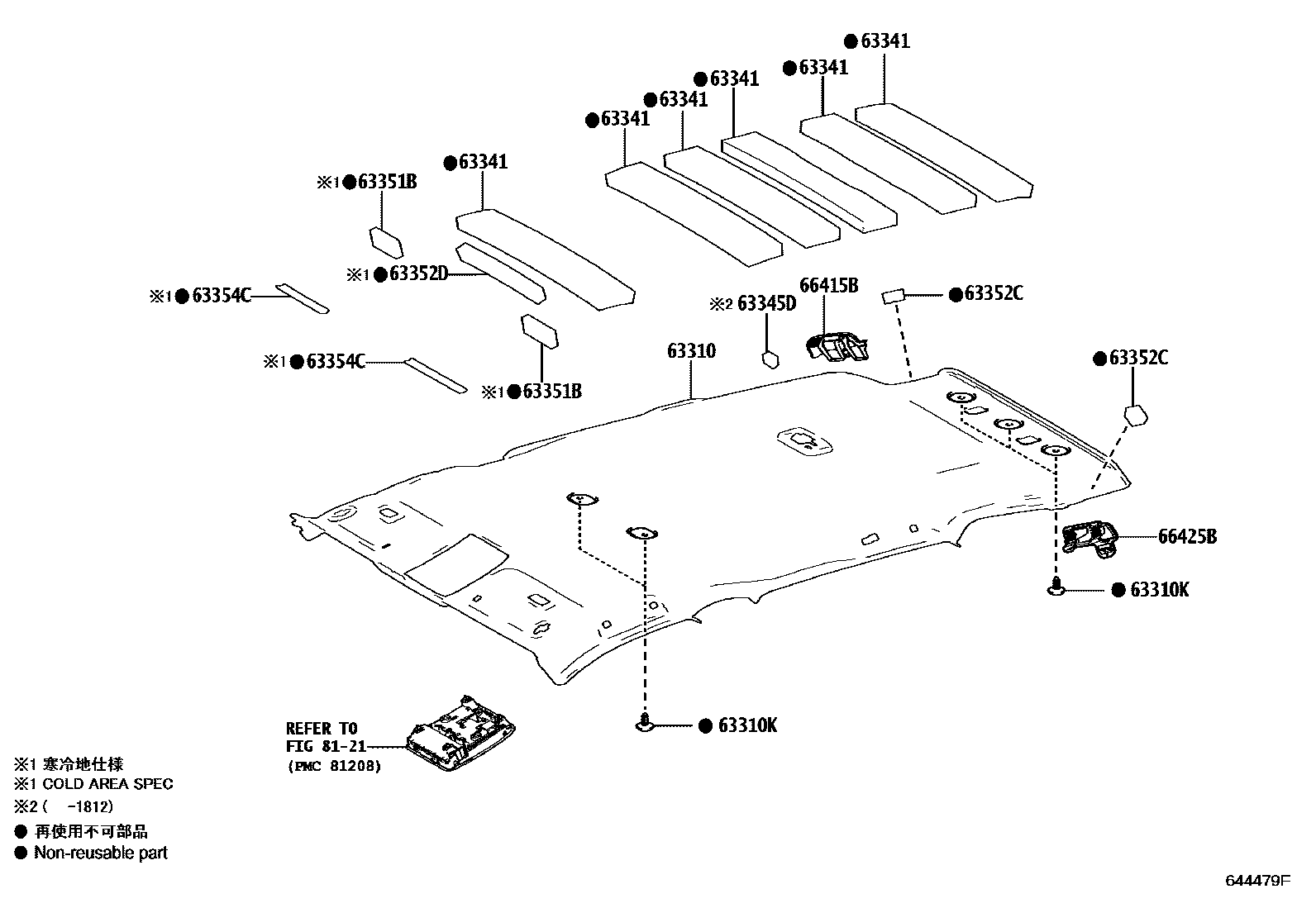

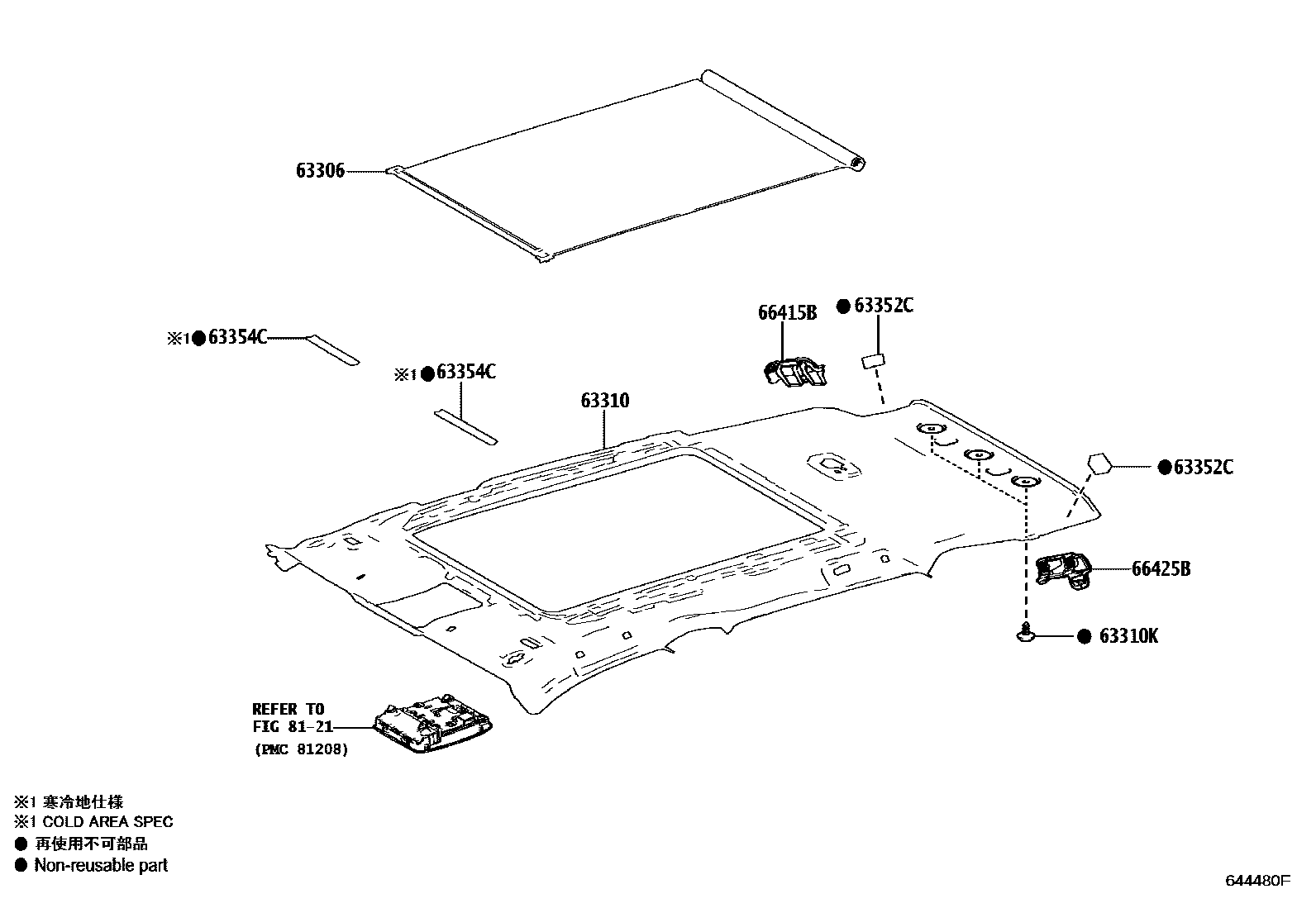

Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 7 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63306 | Sunshade decorative panel sub-assembly | 63306-42070-B1 · 63306-42070-C1 · 63306-42080-B1 · 63306-42080-C1 |
| 63310 | Headlining assembly | 63310-42500-B0 · 63310-42500-C0 · 63310-42510-B0 · 63310-42510-C0 · 63310-42520-B0 · 63310-42520-C0 · 63310-42590-B0 · 63310-42590-C0 · 63310-42600-B0 · 63310-42600-C0 · 63310-42610-B0 · 63310-42610-C0 |
| 63310K | clip | 90467-05164-B0 · 90467-05164-C7 |
| 63310L | Cover (for headliner) | 86255-42030 · 86255-42030-B0 · 86255-42030-C0 |
| 63318C | Skylight opening decorative strip | 63318-42080-B1 · 63318-42080-C1 |
| 63341 | No. 1 roof silencer mat | 00000-00000 · 63341-42060 |
| 63345D | Center roof muffler pad | 63345-42020 |
| 63351B | roof lining pads | 63351-42040 |
| 63352C | Headlining end pads | 63353-0R050 · 63353-42020 |
| 63352D | No. 2 roof lining lining block | 63352-42070 |
| 63354C | Headlining front side pads | 63354-0R050 · 63354-42020 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0R100 · 66415-42130 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0R100 · 66425-42110 |
| 86255F | BOITIER, MICROPHONE | 86255-42020 · 86255-42020-B0 · 86255-42020-C0 |
