Toyota RAV4 后保险杠及附件 — Figure 5253

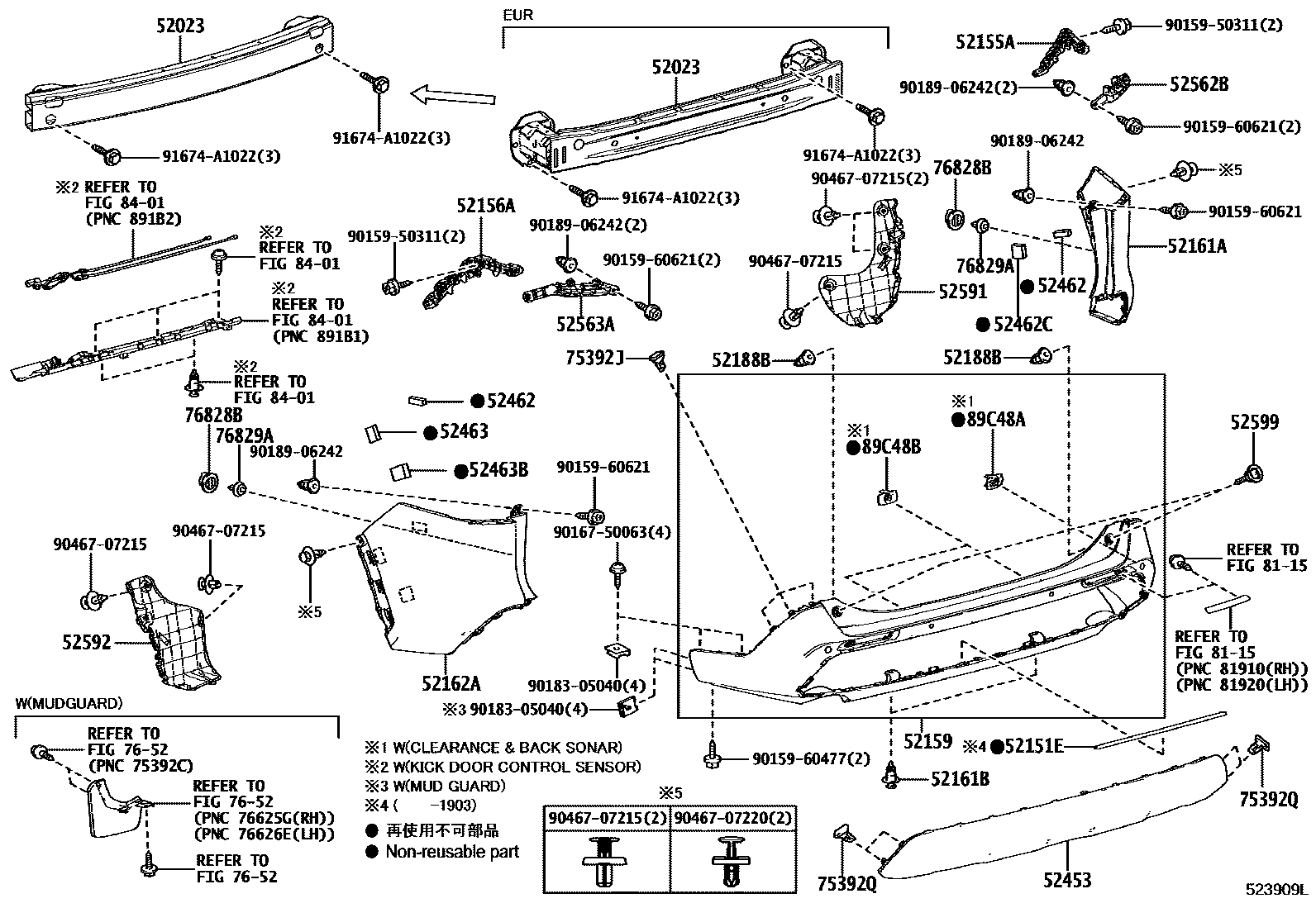

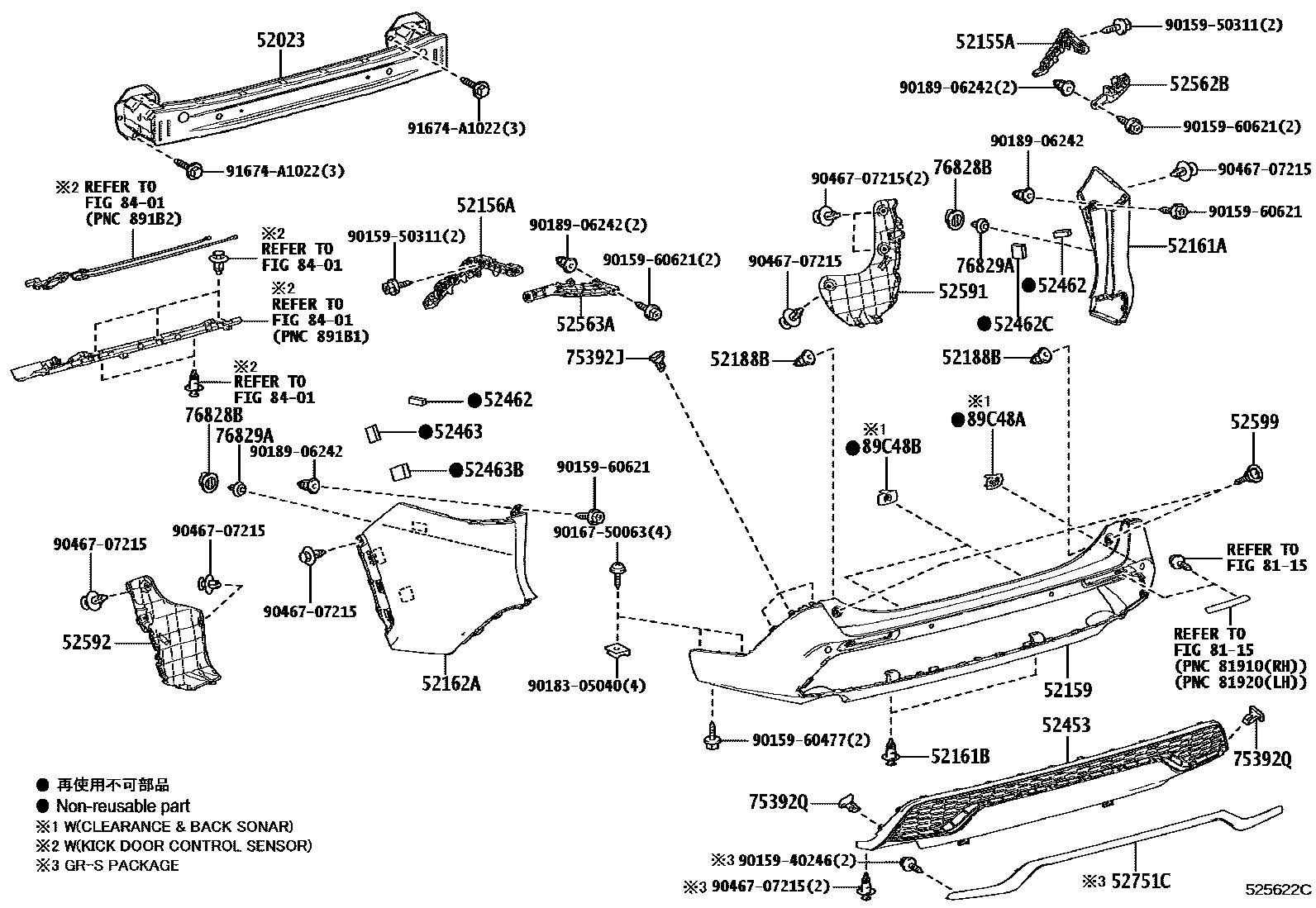

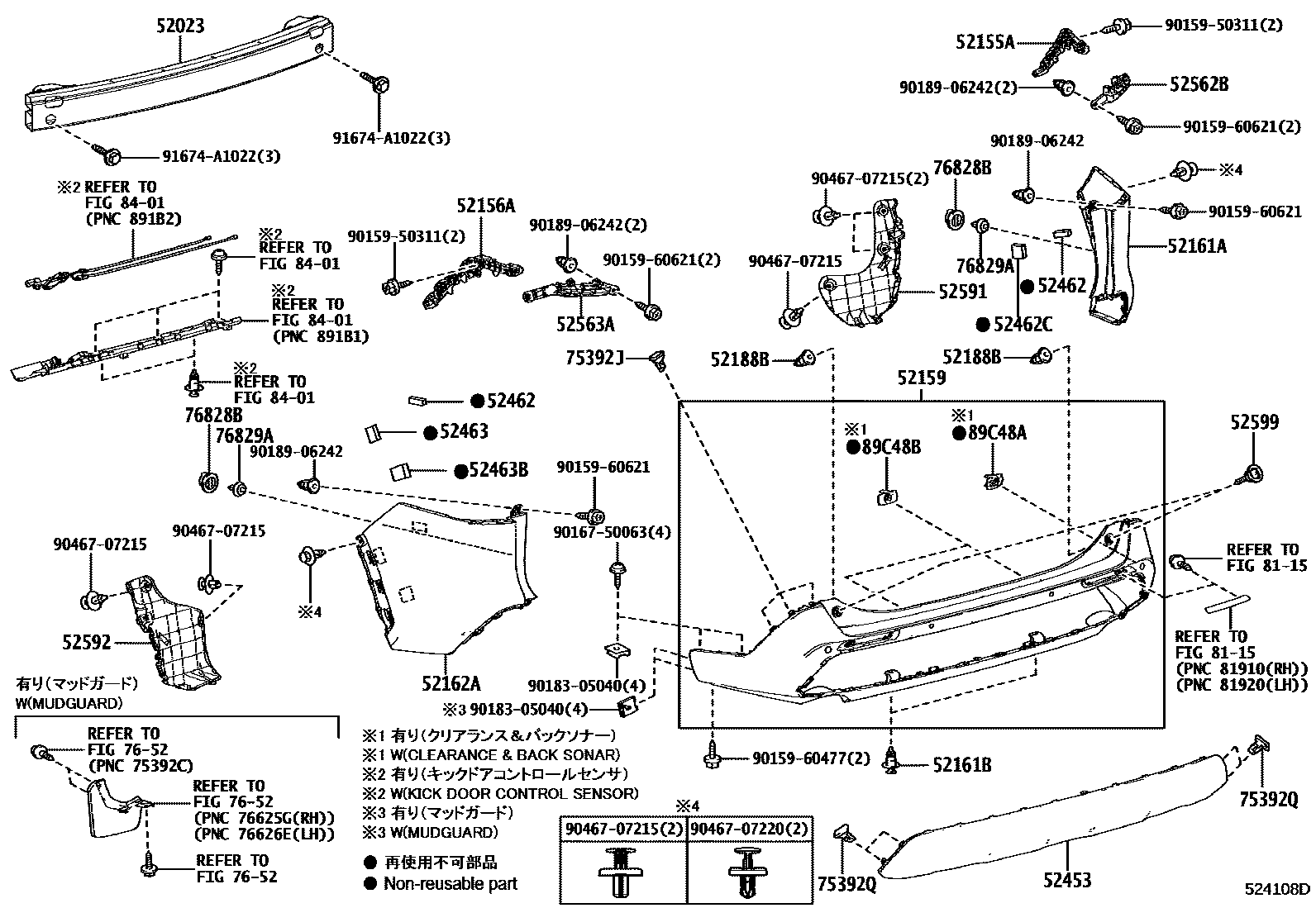

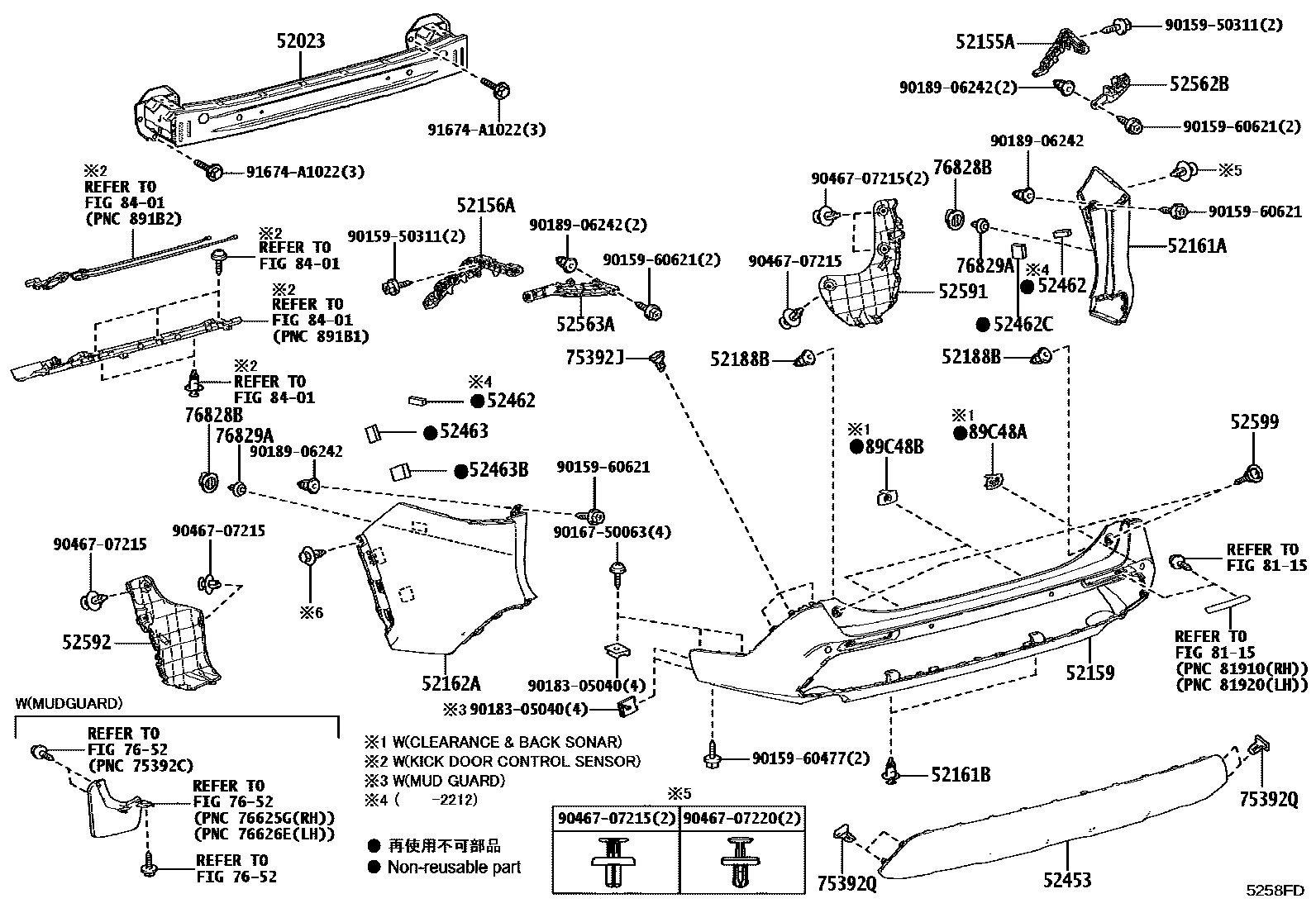

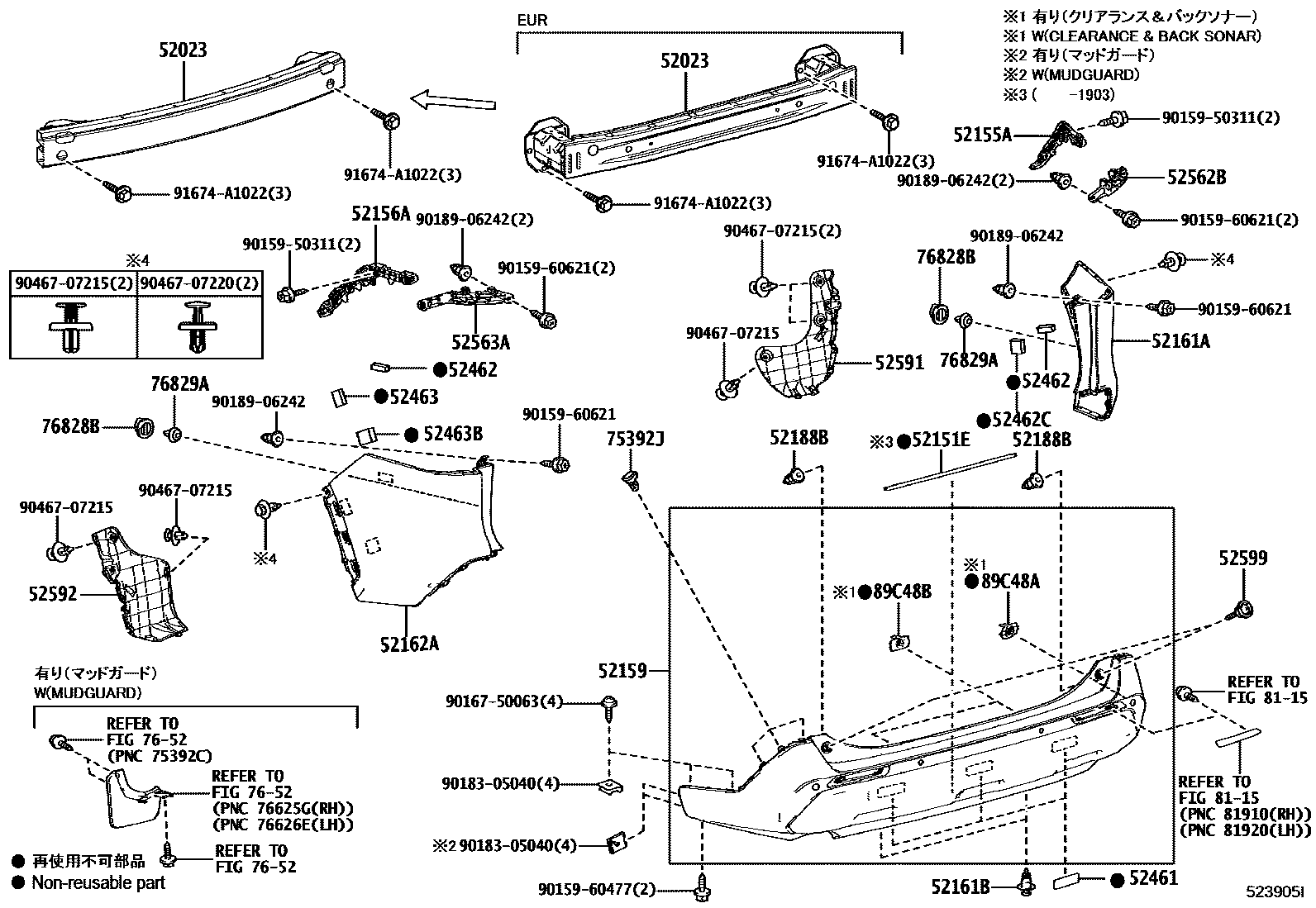

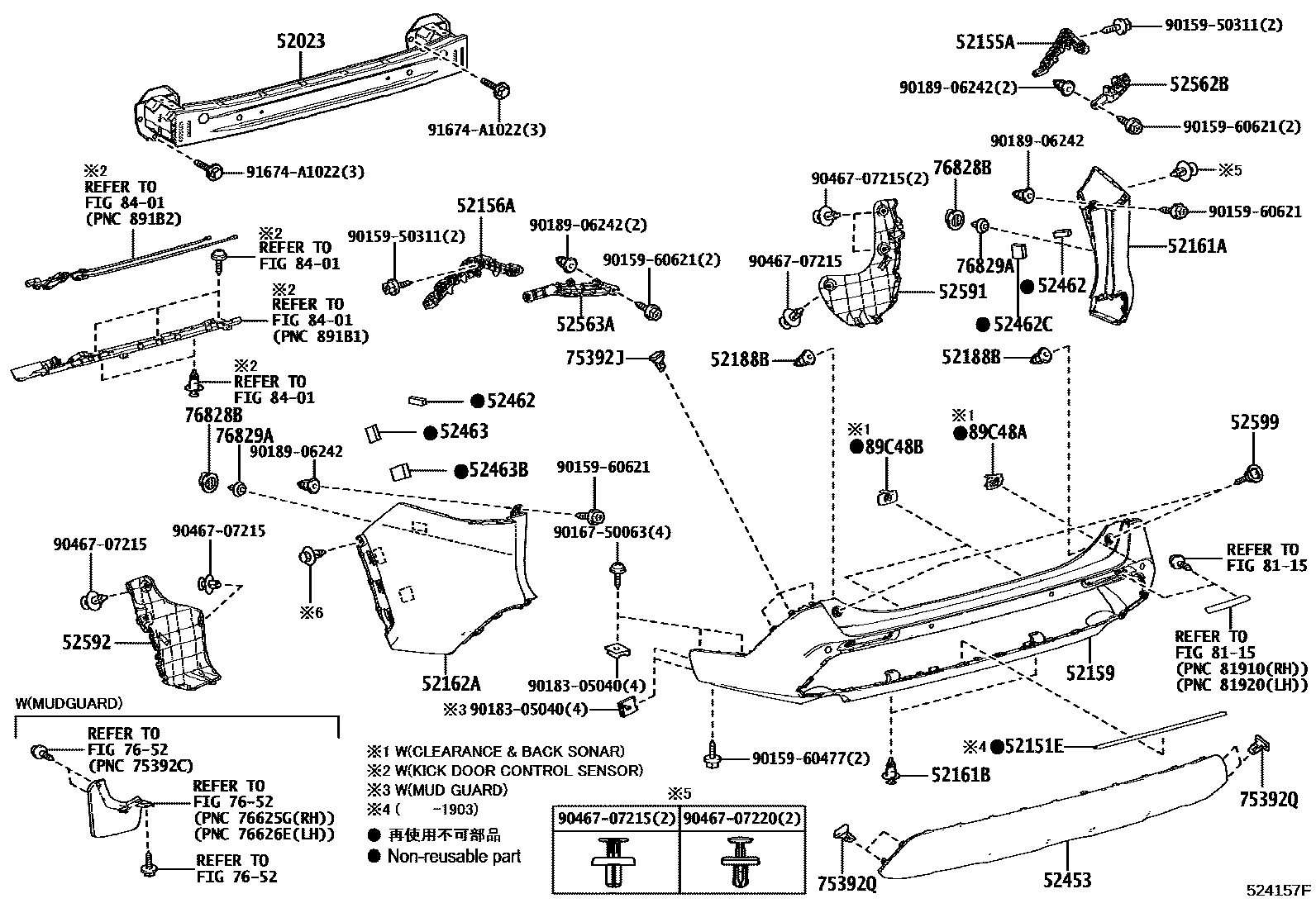

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-42060 · 52023-42070 |
| 52151E | rear bumper | 52151-42010 |
| 52155A | Rear bumper right side bracket | 52155-42050 |
| 52156A | Rear bumper left bracket | 52156-42050 |
| 52159 | rear bumper cover | 52159-0R280 · 52159-0R930 · 52159-42220 · 52159-42230 · 52159-42932 · 52159-42938 · 52159-42939 · 52159-42943 · 52159-42944 · 52159-42945 · 52159-42951 · 52159-42954 · 52159-42956 · 52159-42957 · 52159-42958 · 52159-42964 · 52159-42965 · 52159-42966 · 52159-42969 |
| 52161A | Rear bumper right side gap filler | 52161-0R910 · 52161-42440-B0 · 52161-42440-C0 · 52161-42440-D0 · 52161-42440-G0 · 52161-42440-J0 · 52161-42944 · 52161-42946 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162A | Rear bumper left insert | 52162-0R910 · 52162-42450-B0 · 52162-42450-C0 · 52162-42450-D0 · 52162-42450-G0 · 52162-42450-J0 · 52162-42944 · 52162-42946 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-0R901 · 52453-42030-C0 · 52453-42040-B0 · 52453-42040-B1 · 52453-42040-B2 · 52453-42040-B3 · 52453-42040-C2 |
| 52461 | Rear bumper center lining | 52461-42010 |
| 52462 | Rear bumper right side lining | 52462-42020 |
| 52462C | TAMPON, PARE-CHOCS ARR, MD | 52462-42030 |
| 52463 | Rear bumper left lining | 52463-42010 |
| 52463B | TAMPON, PARE-CHOCS ARR, MG | 52463-42020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-42060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-42050 |
| 52591 | Rear bumper right seal | 52591-42100 |
| 52592 | Rear bumper left seal | 52592-42100 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 52751C | MOULURE, PARE-CHOCS ARR | 52751-42050 |
| 75392J | External protective strip fixings | 75392-35220 |
| 75392Q | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-35220 |
| 76828B | ARRETOIR, GARNITURE HAYON | 76828-60030 |
| 76829A | ARRETOIR, GARNITURE HAYON | 76829-60020 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-42170-C0 · 89348-42170-C1 · 89348-42180-C0 · 89348-42180-C1 · 89348-42190 · 89348-42200 · 89348-42250-C0 · 89348-42250-C1 · 89348-42260-C0 · 89348-42260-C1 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-33400 · 89348-42440-C0 · 89348-42440-C1 · 89348-42450-C0 · 89348-42450-C1 · 89348-42720-C0 · 89348-42730-C0 · 89348-42740-C0 · 89348-42740-C1 · 89348-58110 |
