Toyota RAV4 Brake Pedal & Bracket — Figure 4701

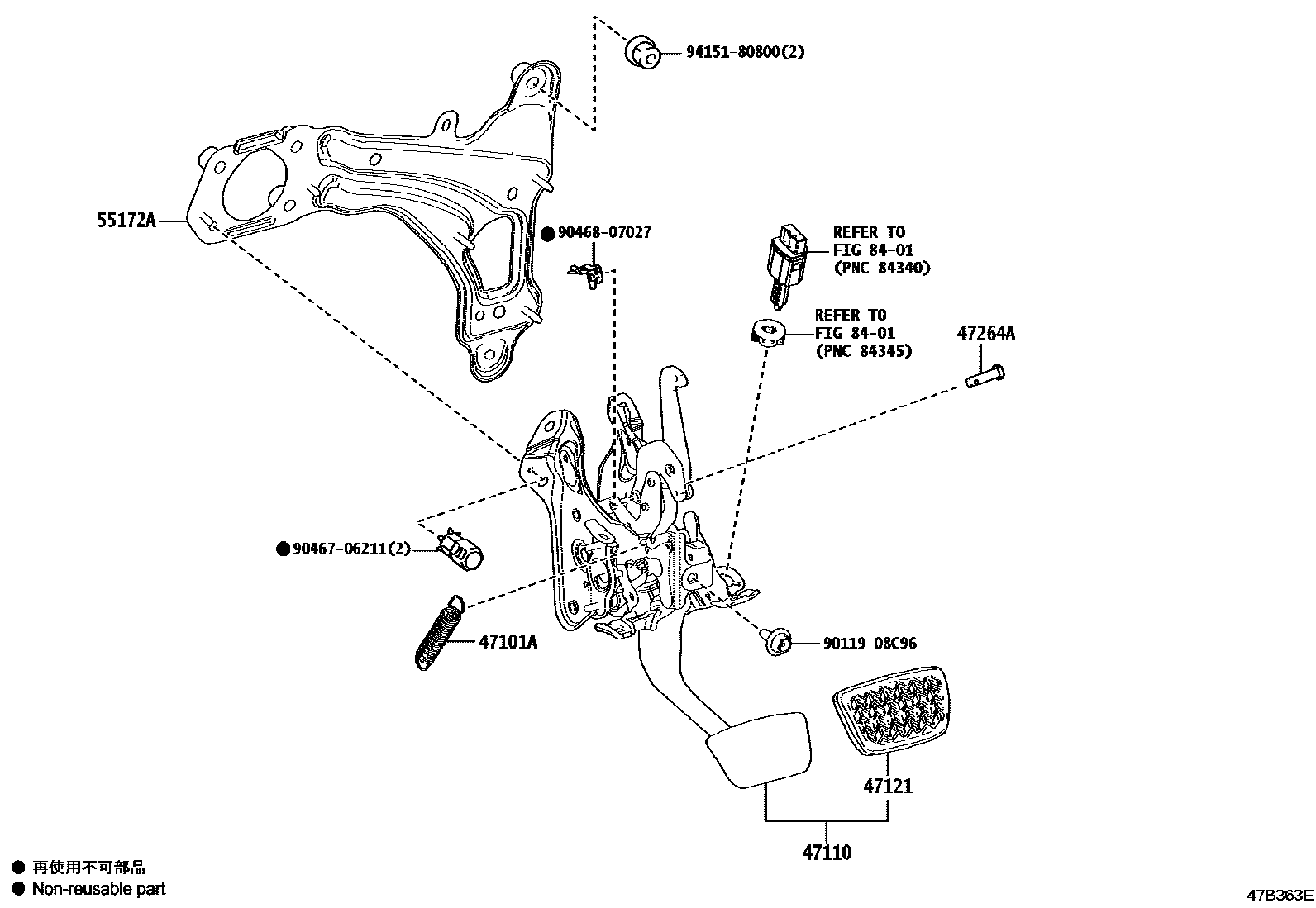

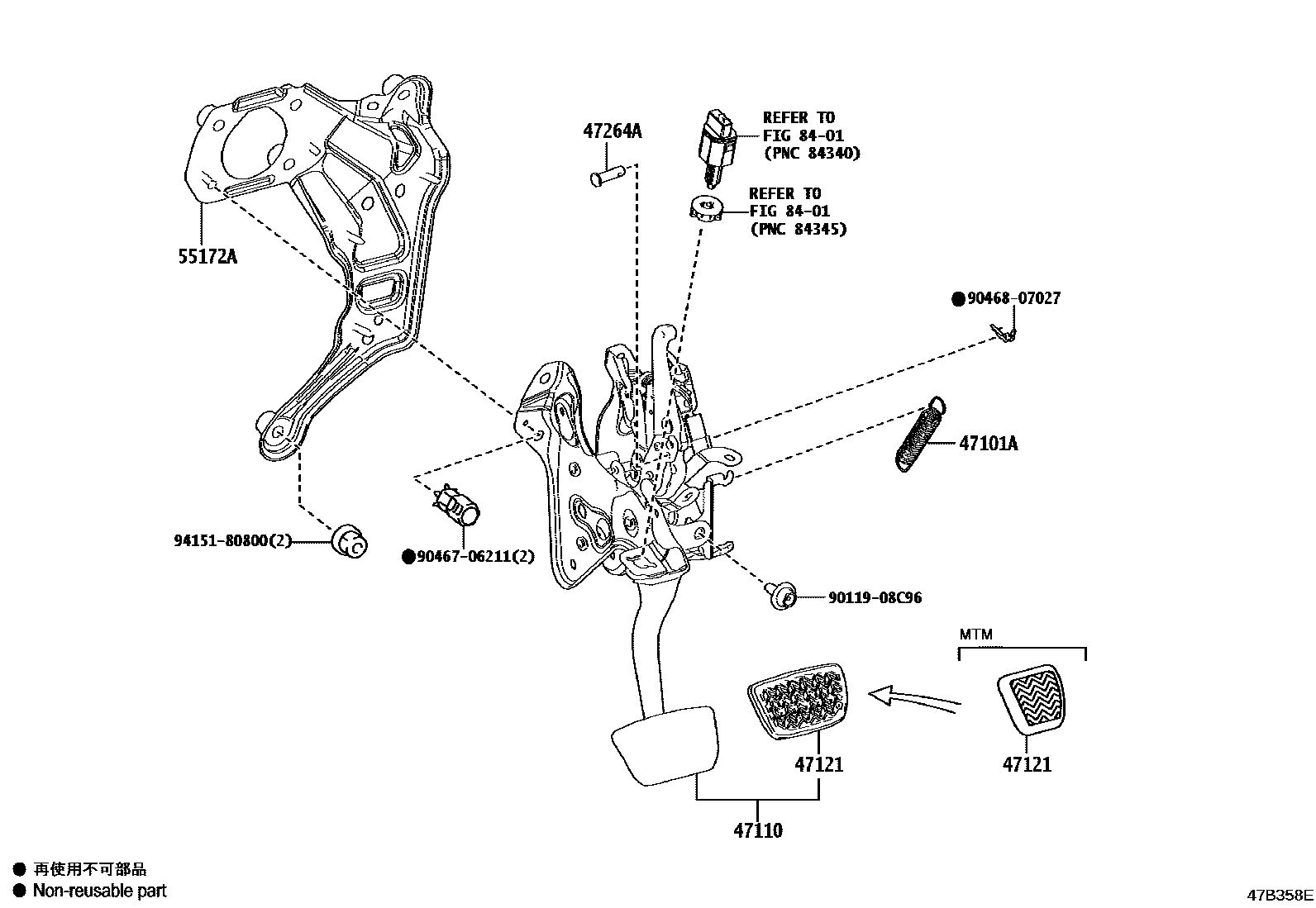

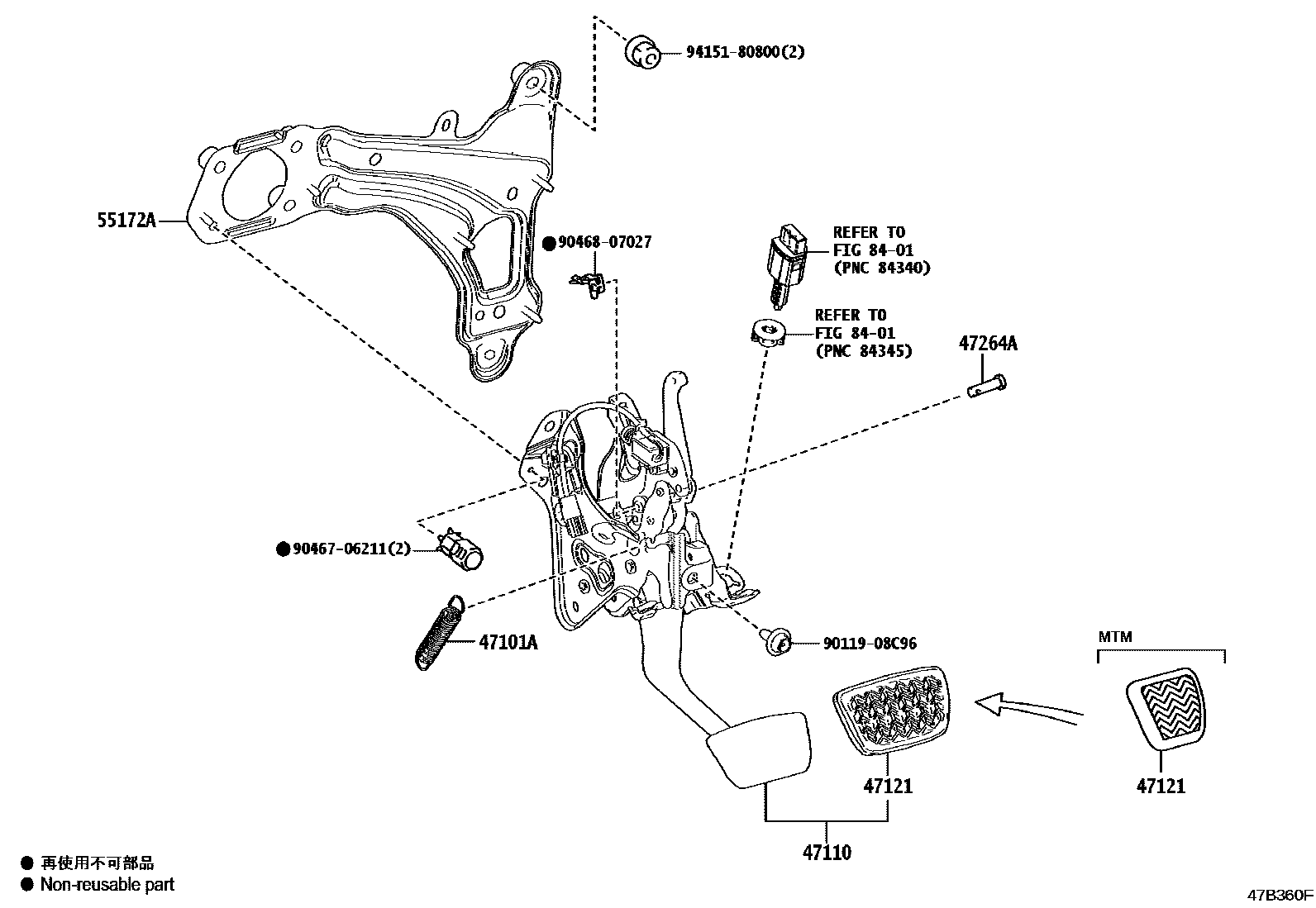

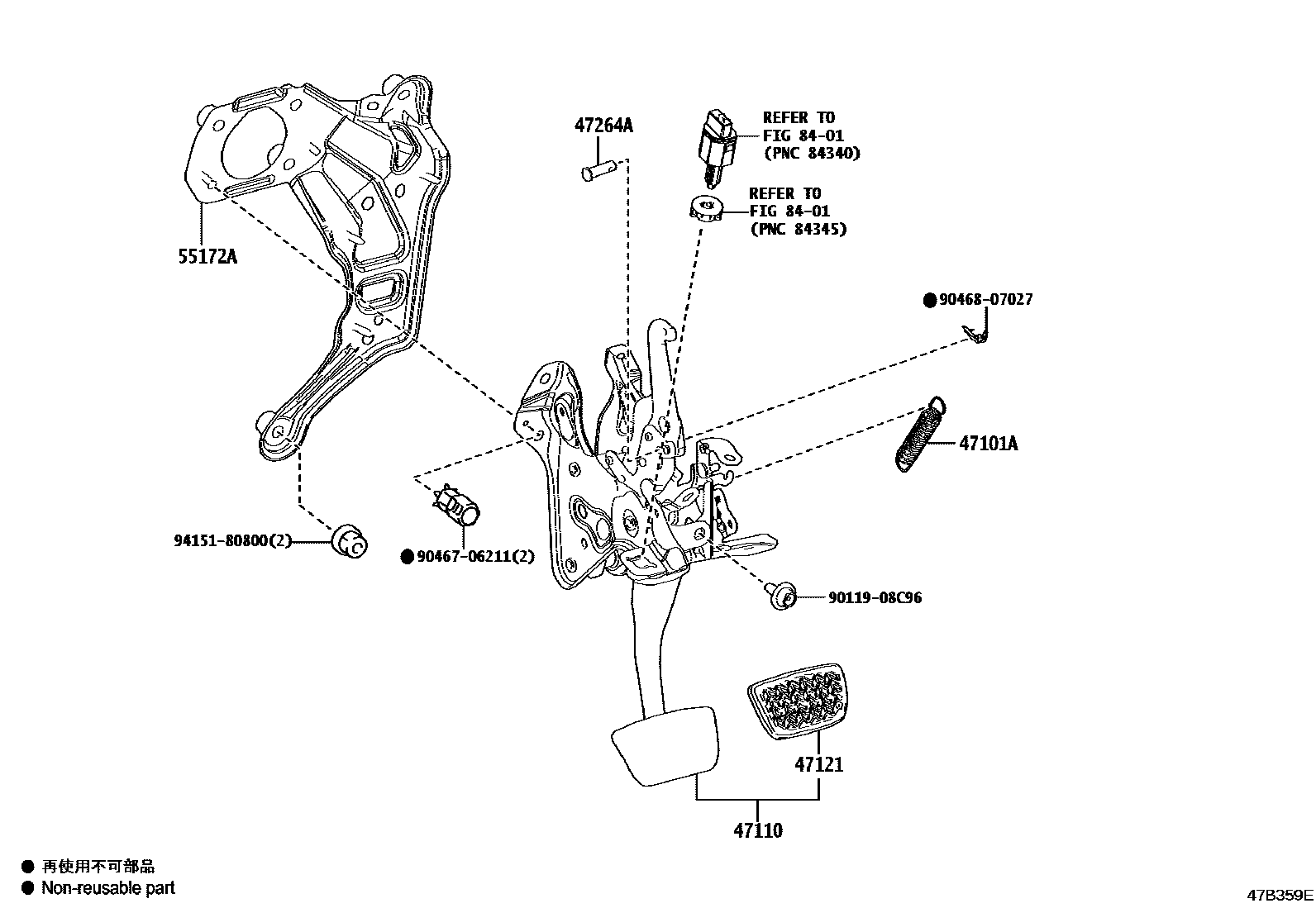

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-12046 |
| 47110 | Brake pedal bracket assembly | 47110-42260 · 47110-42270 · 47110-42280 · 47110-42290 · 47110-42300 · 47110-42310 · 47110-42320 · 47110-42330 · 47110-42340 · 47110-42350 · 47110-42390 · 47110-42400 · 47110-42410 · 47110-42420 · 47110-42430 · 47110-42440 · 47110-42450 · 47110-78090 |
| 47121 | brake pedal pad | 47121-12040 · 47121-48010 · 47121-62010 |
| 47264A | Pin (for push rod) | 90240-06028 · 90240-08078 · 90240-08082 |
| 55172A | BASE, SUPPORT PEDALE FREIN | 55172-42010 · 55172-42020 |
